This Koyorad radiator slots straight into Suzuki Vitara LY 1.6L petrol models and keeps the engine temp in check when you get out there with a loaded cabin or light towing. The core runs 375 millimetres high and 683 millimetres wide, so it matches the factory front support without headaches. An integrated 275 millimetre transmission cooler supports auto boxes when you tackle long climbs in warm weather. The aluminium core and plastic tanks keep weight down while still handling constant heat cycles in Australian stop start traffic. Inlet and outlet necks are both 34 millimetres so your factory hoses and clamps go straight back on. Core thickness is 16 millimetres which works well with the Vitara shroud and fan setup. Overall dimensions and mounting points match the LY platform, making this radiator a smart buy for keeping temps steady on real Australian roads.

• Suits Suzuki Vitara LY 09/2015–on 1.6L M16A petrol
• Compatible with both automatic and manual transmissions
• Core height measures 375 mm for factory fitment
• Core width of 683 mm maximises frontal cooling area
• Core thickness of 16 mm balances cooling and clearance
• Inlet and outlet neck diameters both 34 mm
• Integrated 275 mm transmission cooler for auto models
• Direct replacement style radiator layout

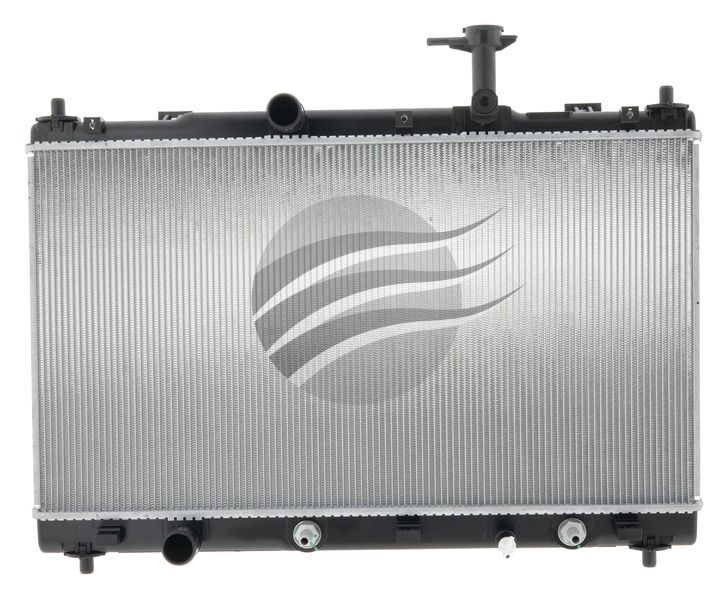

• Aluminium core with plastic tank construction visible in images
• Ideal for restoring cooling performance in touring and daily use

Q: Is this radiator suitable for both automatic and manual Suzuki Vitara LY models?

Yes, this radiator suits both automatic and manual Suzuki Vitara LY models with the 1.6L M16A petrol engine. The core dimensions and mounting points match the shared front support layout. Automatic models use the integrated 275 mm transmission cooler. Manual models simply leave the cooler ports capped or unused as per normal practice.

Q: Do I need new radiator hoses to install this Koyorad radiator?

No, the inlet and outlet diameters match the factory hoses. Both the top and bottom necks measure 34 mm, so the existing hoses and clamps can usually be reused if they are still in good condition. Many owners still choose to replace old hoses while the cooling system is open. A fresh coolant fill is also recommended after installation.

Q: Does this radiator change the vehicle’s cooling capacity compared to stock?

This radiator matches the original style dimensions and cooling layout used on the Vitara LY 1.6L. The core measures 375 mm high by 683 mm wide with a 16 mm thickness, so heat rejection performance is comparable to the factory unit. Condition of fans, shrouds and coolant mix will also influence overall cooling performance. Keeping the fins clean and straight will help maintain designed efficiency.

Q: Can this radiator be installed at home or should a workshop handle it?

Many home mechanics with basic tools can fit a direct replacement radiator, but a workshop is recommended if you are unsure. Correctly draining and refilling coolant, connecting the 275 mm transmission cooler on auto models and bleeding air from the system are critical steps. A workshop can also pressure test the system after install. Proper setup helps avoid hot spots and potential engine damage on later trips.

Suitable for Suzuki Vitara LY built from 09/2015 onward with 1.6L M16A petrol engine in both automatic and manual transmission variants. Fitment location is the factory radiator position in the front of the engine bay. Installation requires transfer of original hoses, fan shroud and mounting hardware from the existing radiator. Professional installation is recommended to correctly bleed the cooling system and connect the integrated transmission cooler on automatic models.
