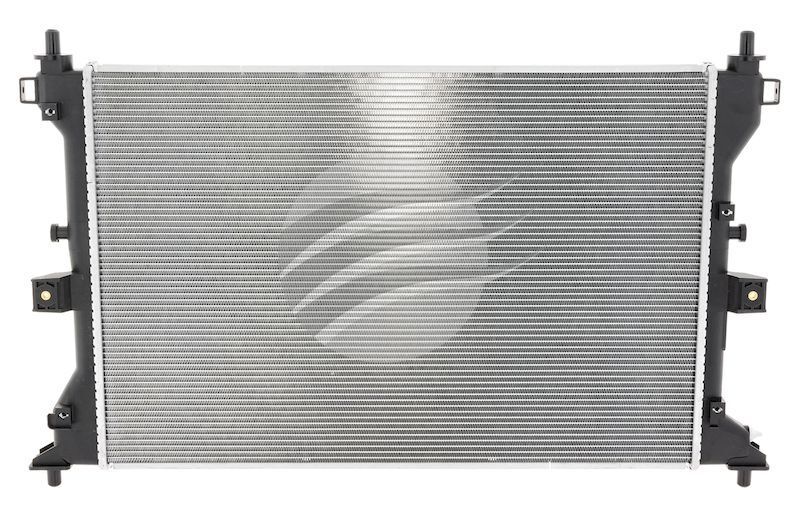

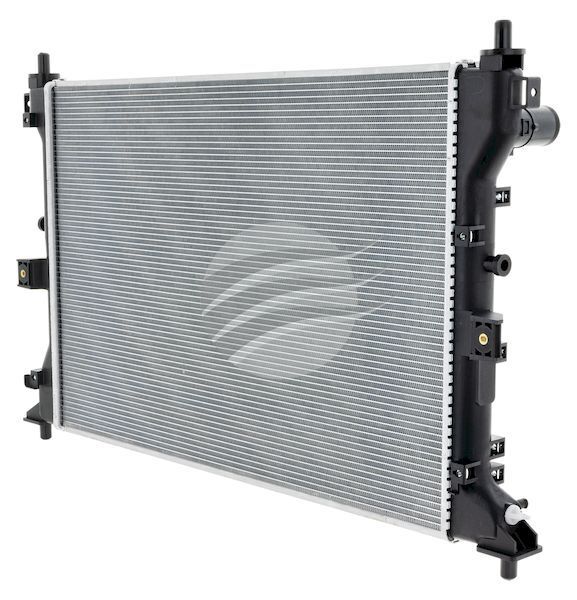

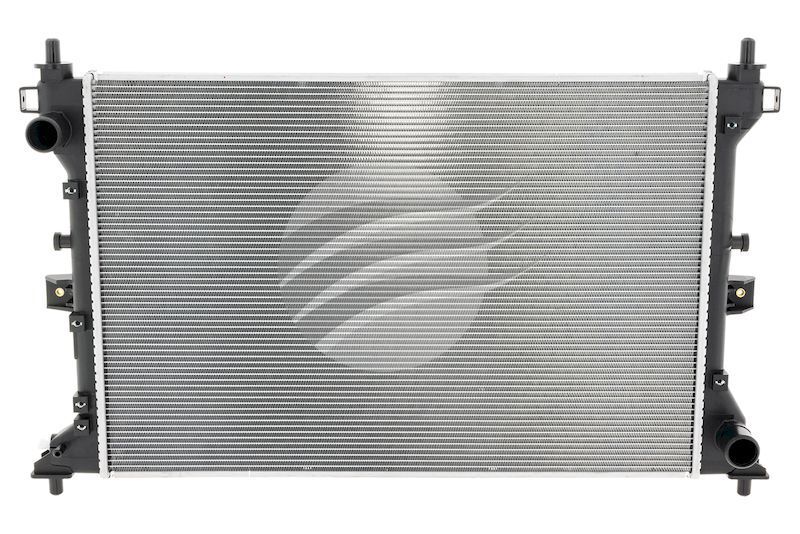

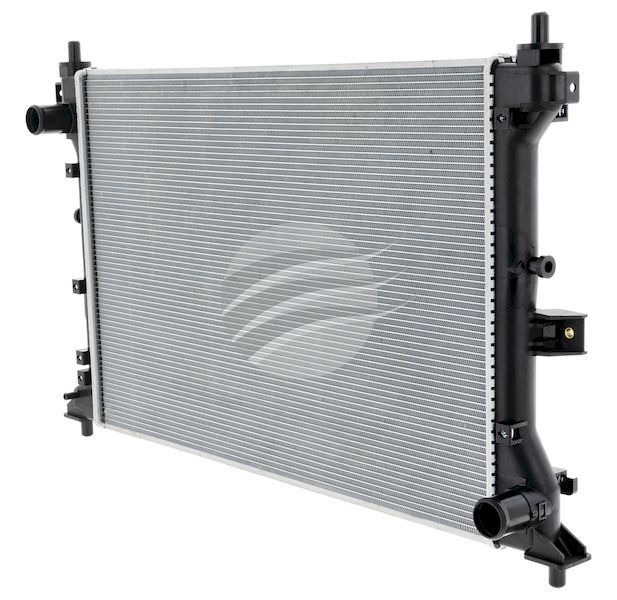

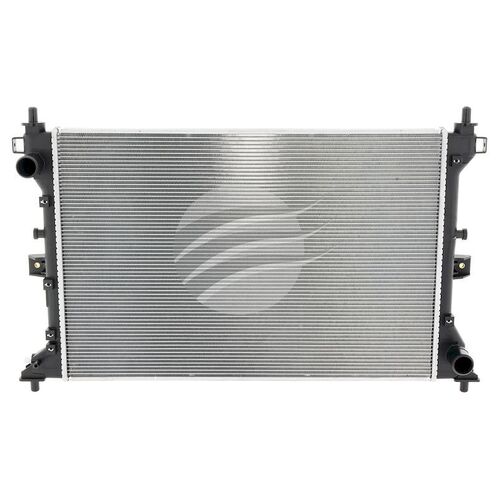

This Koyorad radiator drops straight into a Suzuki Vitara LY with the 1.4 L turbo K14C and automatic transmission so you can tackle long highway pulls without the temp gauge creeping. The core stands 623 mm high and 415 mm wide which lines up well with the front opening on these wagons. A 27 mm core thickness keeps airflow moving for slow climbs and city work.

The inlet and outlet sit at 34 mm diameter so your factory hoses clamp straight back on without mucking around. The aluminium core handles Aussie summer days that push coolant well above 90 °C while the composite tanks keep weight reasonable over rough roads. Mounting points match the Vitara layout so the shroud and fans stay in the right spot. For a smart buy that keeps the cooling system sorted this is solid gear for everyday touring.

• Suits Suzuki Vitara LY 1.4L Petrol Turbo K14C
• Fitment for automatic transmission models from 01/2016-on
• Koyorad direct-replacement engine cooling radiator
• Core height of 623 mm for strong cooling area
• Core width of 415 mm to match factory opening
• Core thickness of 27 mm for balanced flow and cooling
• 34 mm inlet diameter for upper radiator hose
• 34 mm outlet diameter for lower radiator hose
• Aluminium core with composite side tanks
• Suitable for 4x4 and touring use within stock cooling limits

Q: Does this radiator suit manual transmission Suzuki Vitara LY models?

This radiator is specified for automatic transmission (A/T) models only. The tank fittings and internal layout are matched to the A/T cooling setup used with the 1.4L K14C engine. Manual versions may use different hose routing and mounting points. To avoid fitment issues always match the transmission type listed in the specs to your vehicle.

Q: Do I need to replace the radiator cap when fitting this unit?

Replacing the radiator cap at the same time is recommended. A fresh cap helps the cooling system hold the correct pressure so the 623 mm by 415 mm core can work properly. Old caps often vent early and cause overheating. Check your owner manual for the correct pressure rating and match a quality cap to suit.

Q: Can I reuse my existing coolant with this new radiator?

Coolant should be fully drained and replaced when fitting a new radiator. Old coolant can carry scale and corrosion that may shorten the life of the new 27 mm thick core. A complete flush also helps remove trapped air from the 34 mm inlet and outlet passages. Always refill with the correct coolant type and concentration for the Vitara engine.

Q: Is any modification needed to the fan shroud or mounts?

The radiator is built as a direct replacement so the factory shroud and mounts should align. Mounting points are positioned to suit the original Suzuki Vitara LY layout. Refit all brackets and fasteners in their original positions. If anything feels forced double-check part numbers and vehicle details before proceeding.

• Suits Suzuki Vitara LY with 1.4L Petrol Turbo K14C engine
• Build dates: 01/2016–Onwards
• Transmission type: Automatic transmission (A/T)
• Location: direct replacement for factory engine radiator in front of engine bay
• Professional installation recommended to match OEM hose diameters of 34 mm inlet and 34 mm outlet
