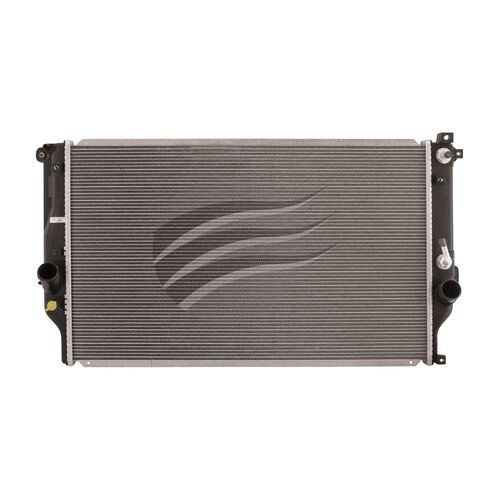

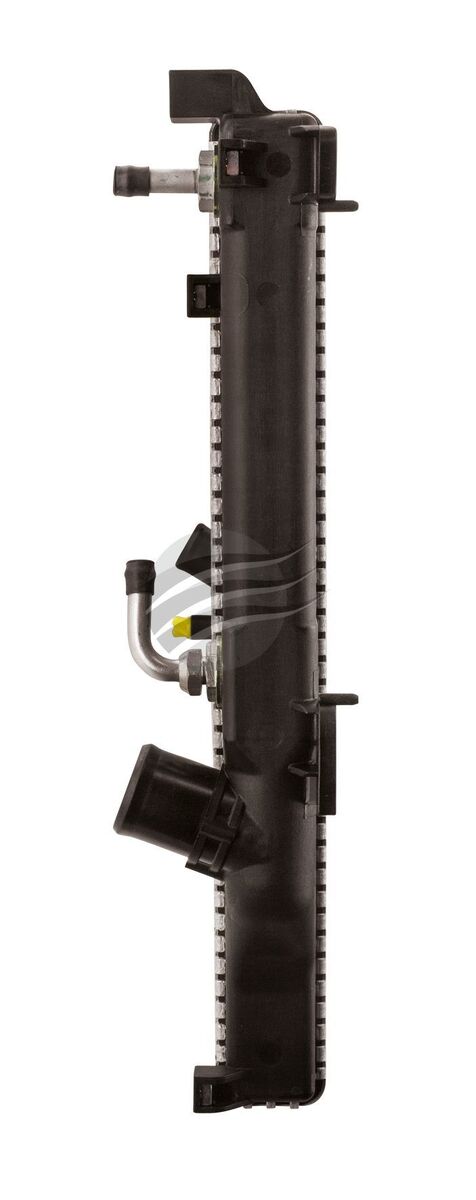

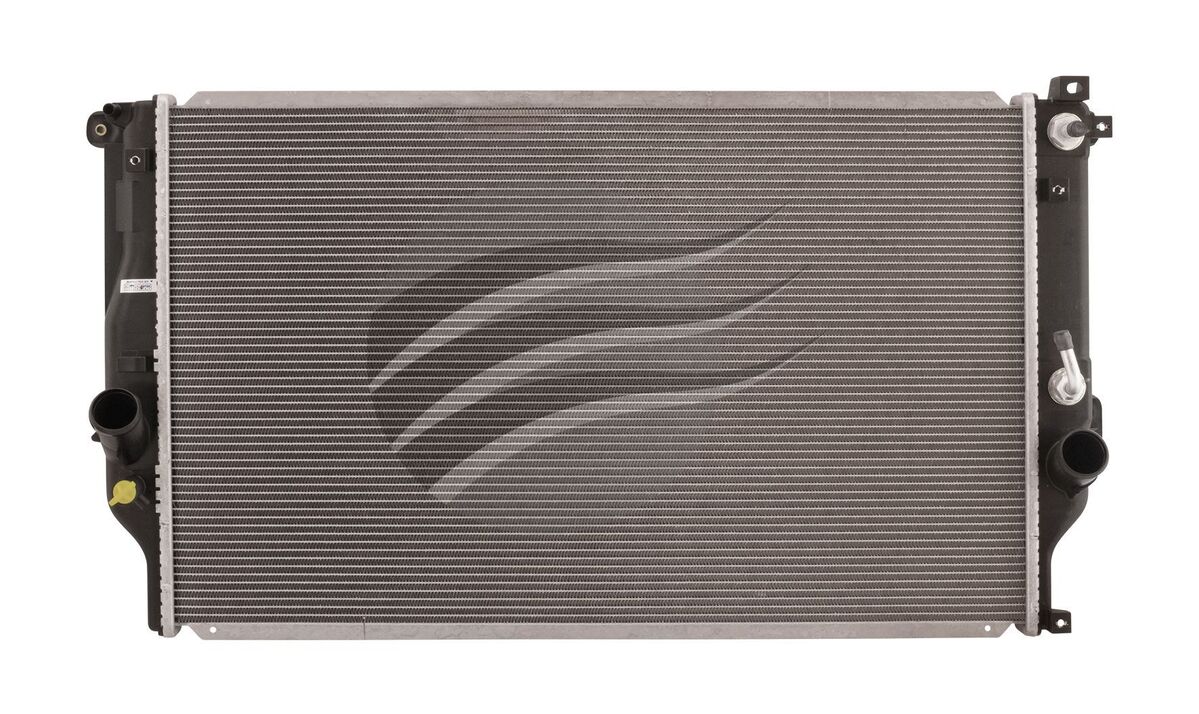

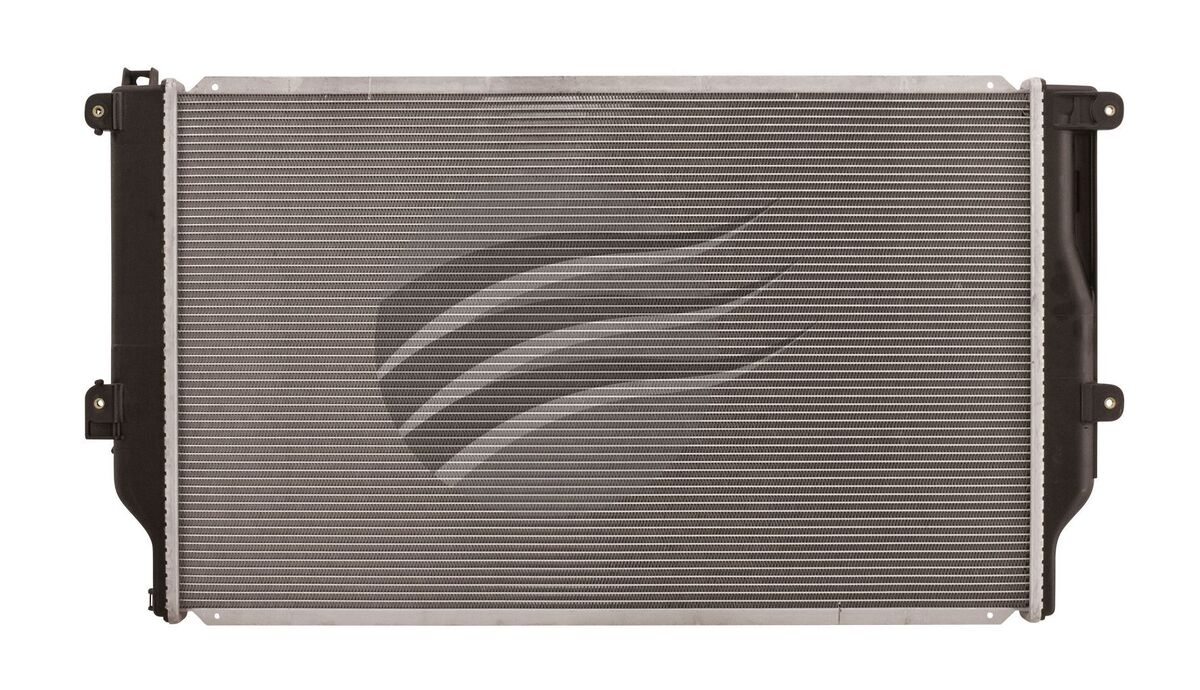

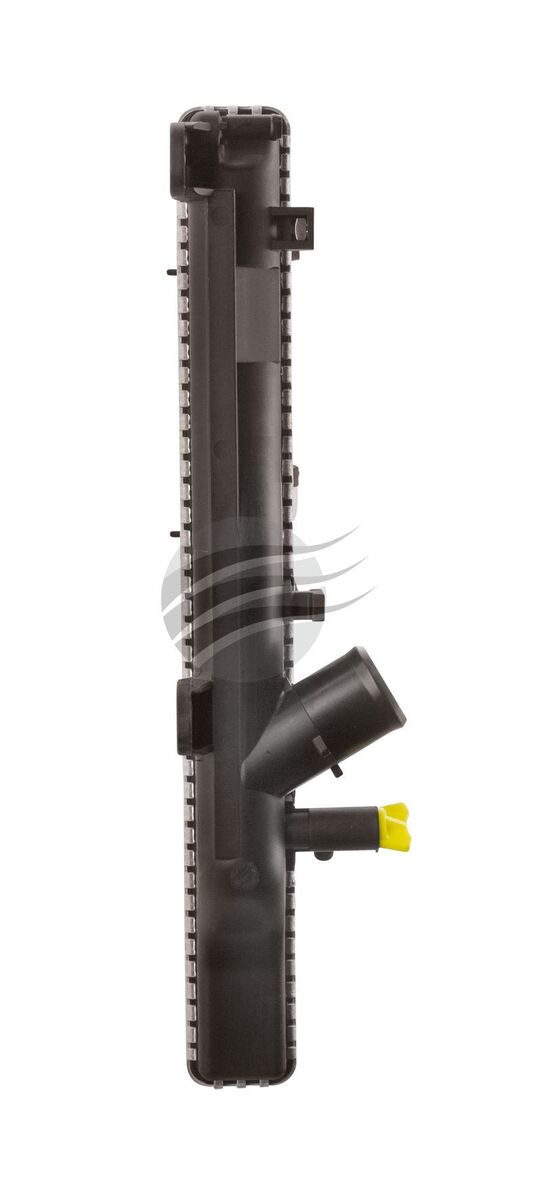

This Koyorad JR2714J radiator slots into Toyota RAV4 ALA49R diesel models from 2012-on with the 2AD-FHV 2.2 litre engine and auto transmission. The core stands 670 mm high and 402 mm wide so it lines up with factory shrouds and fans. A 27 mm thick core gives enough capacity for long country pulls while the 200 mm transmission cooler keeps the auto in its comfort zone. The tanks run 38 mm inlet and outlet connections so your existing hoses hook straight up. Twin 10 mm breather ports help you bleed the system clean without chasing air pockets. The layout matches the original 1640026411 radiator so mounting points and brackets stay simple. You end up with cooling gear that handles Aussie heat without drama and still fits like stock which makes this a smart buy for touring setups.

• Suits Toyota RAV4 ALA49R 2.2L 2AD-FHV diesel
• Compatible with automatic transmission models only
• Direct replacement for OEM radiator 1640026411
• Core dimensions 670 mm height x 402 mm width
• Core thickness 27 mm for stable cooling
• 38 mm inlet and 38 mm outlet hose connections
• Dual breather ports sized 2 x 10 mm
• Integrated 200 mm automatic transmission cooler
• Designed as a bolt-in fit to factory mounts
• Ideal for restoring cooling performance on touring vehicles

Q: Does this radiator fit manual transmission RAV4 models?

This radiator is specified for automatic transmission RAV4 ALA49R diesel models. The 200 mm integrated transmission cooler is intended for auto gearbox lines and may not be required or compatible on manual variants. Always match part numbers and core dimensions with your original unit before ordering. If your RAV4 is manual, confirm compatibility with your mechanic.

Q: What engine does this Koyorad radiator suit?

This radiator suits Toyota RAV4 models running the 2AD-FHV 2.2L turbo diesel engine. That engine code is used in ALA49R series vehicles from 2012-on and the cooling package is matched to its thermal output. Check your build plate or service book for the 2AD-FHV code. Matching the engine code helps avoid incorrect parts and refit delays.

Q: Can I reuse my existing radiator hoses with this unit?

Yes, the radiator uses 38 mm inlet and outlet diameters which match the factory hose size on compatible RAV4 ALA49R diesels. If your hoses are in good condition they will physically fit these 38 mm necks. Many owners still choose to replace old hoses while the system is drained. Fresh hoses reduce the risk of future leaks on touring trips.

Q: Do I need to replace transmission fluid when fitting this radiator?

In most cases some transmission fluid will be lost when disconnecting the auto cooler lines. It is good practice to top up or change the fluid after installing any radiator with an integrated 200 mm cooler. Fresh fluid supports stable gearbox temperatures under load. A workshop can check the level and condition once the new radiator is bled and the vehicle warmed up.

• Suits Toyota RAV4 ALA49R 2.2L 2AD-FHV turbo diesel automatic 2012-on
• Direct replacement radiator for factory unit 1640026411
• Includes integrated 200 mm transmission cooler for auto models
• Check core size 670 x 402 x 27 mm and 38 mm inlet and outlet match existing radiator before installation
• Professional installation recommended and coolant and transmission fluid replacement required during fitment
