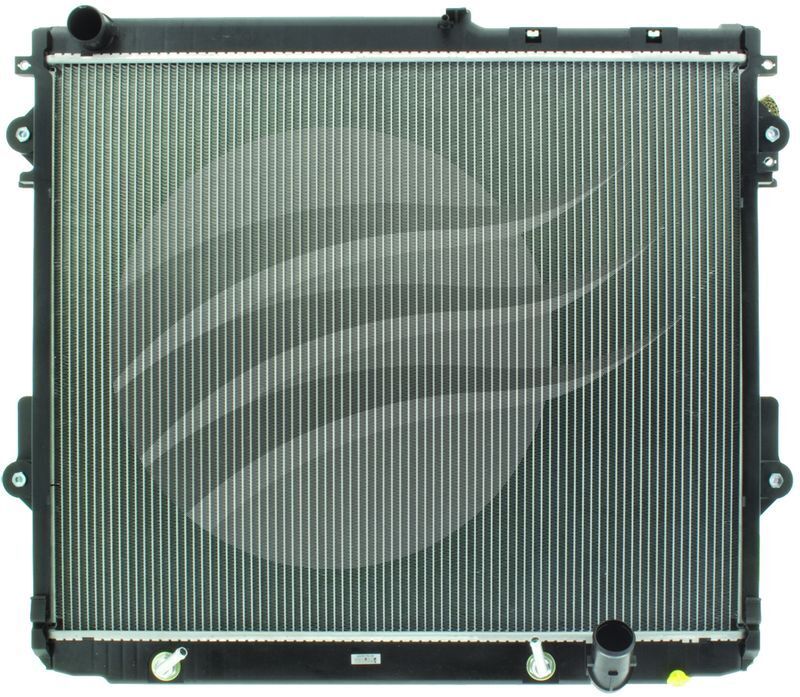

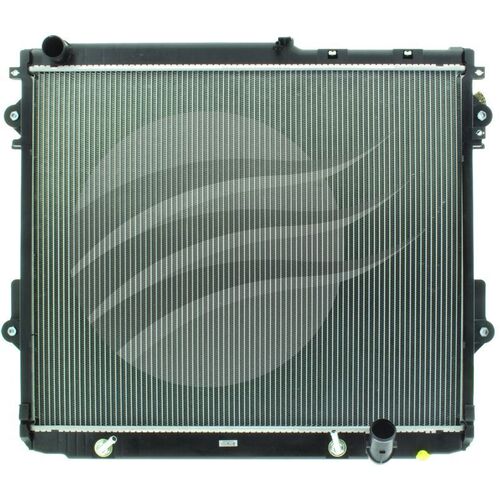

This Koyorad radiator drops into the Toyota Land Cruiser VDJ200R with the 1VD FTV 4.5 litre diesel and automatic box, so you can tackle long hauls without watching the temp gauge. The core stands at 590 millimetres high and 712 millimetres wide, with a 48 millimetre thickness to handle slow climbs, beach sand and heavy loads that push factory cooling to its limits. You get a 38 millimetre inlet and 42 millimetre outlet, so factory hoses line up without mucking around. The built in 390 millimetre transmission cooler keeps the auto fluid in check when you tow or crawl for hours. An 8 millimetre breather port helps move air out during refills, which keeps coolant flow steady on hot days. For a touring Land Cruiser that works hard, this is smart buy cooling gear.

• Suits Toyota Land Cruiser VDJ200R 4.5L diesel
• Fitment for automatic transmission models from 2007-on
• Core height of 590 mm for strong cooling capacity
• Core width of 712 mm to maximise airflow area
• Core thickness of 48 mm for heat dissipation
• 38 mm inlet diameter matching factory hose
• 42 mm outlet diameter for standard return line
• 8 mm breather port to assist air purging
• Integrated 390 mm automatic transmission cooler
• Direct replacement style radiator assembly from Koyorad

Q: Does this radiator suit manual transmission Land Cruiser VDJ200 models?

This radiator is listed for automatic transmission models only. The integrated 390 mm transmission cooler is configured for auto fluid lines, which manuals do not use. Bracket positions and fittings are matched to the auto setup. For manual vehicles, a different part number is usually required to match factory hardware.

Q: What engine does this Koyorad radiator suit?

This radiator suits the Toyota 1VD-FTV 4.5L diesel V8. The hose diameters of 38 mm inlet and 42 mm outlet are matched to this engine. Core sizing at 590 x 712 x 48 mm is also specified for its cooling needs. Always cross-check your VIN and engine code before ordering.

Q: Is there a built-in transmission cooler in this radiator?

Yes, this radiator includes an internal transmission cooler section of about 390 mm length. The cooler is designed for automatic transmission fluid flow. This lets engine coolant and transmission fluid exchange heat in one assembly. It keeps installation tidy in the standard front cooling stack.

Q: What basic checks should be done when fitting this radiator?

You should inspect hoses for correct match to the 38 mm inlet and 42 mm outlet before installation. Use fresh coolant that meets Toyota specifications and bleed through the 8 mm breather. Confirm there are no leaks at the transmission cooler fittings. A final temperature check on a test drive helps confirm good flow and cooling performance.

Suits Toyota Land Cruiser VDJ200R models fitted with the 1VD-FTV 4.5L diesel engine from 2007-on with automatic transmission. Fitment position is in the standard front radiator location. Installation should follow Toyota service manual procedures including correct coolant specification and bleeding process. Radiator includes provision for the factory automatic transmission cooler lines.
