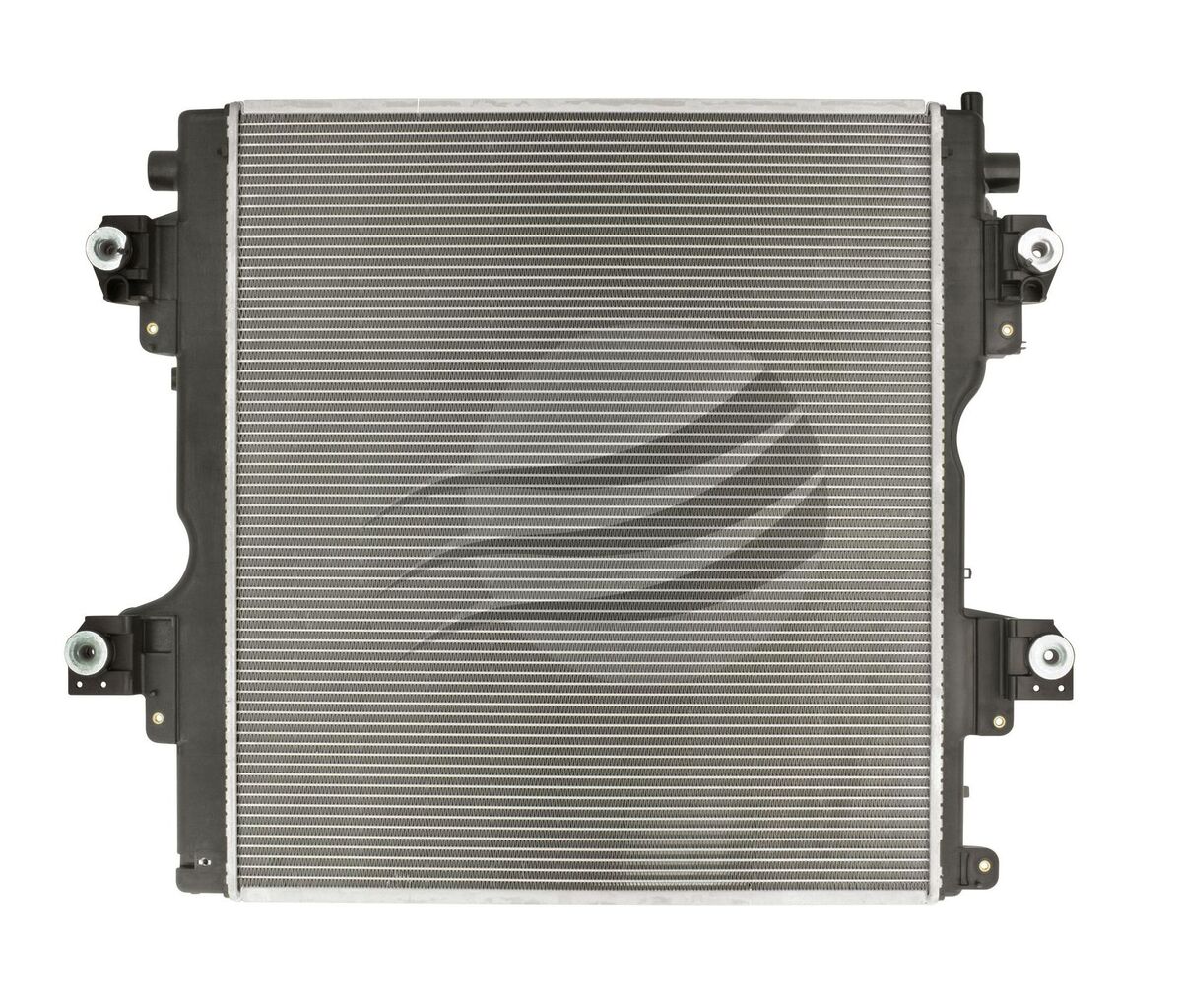

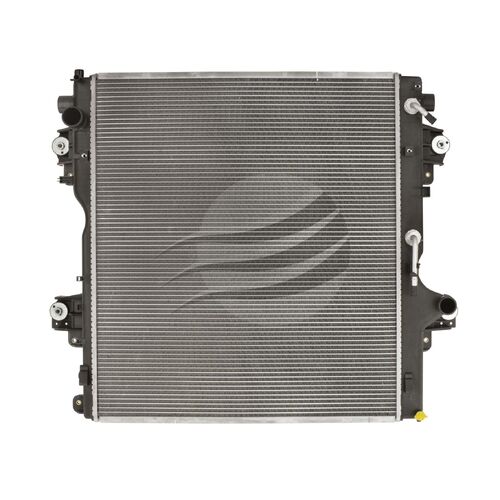

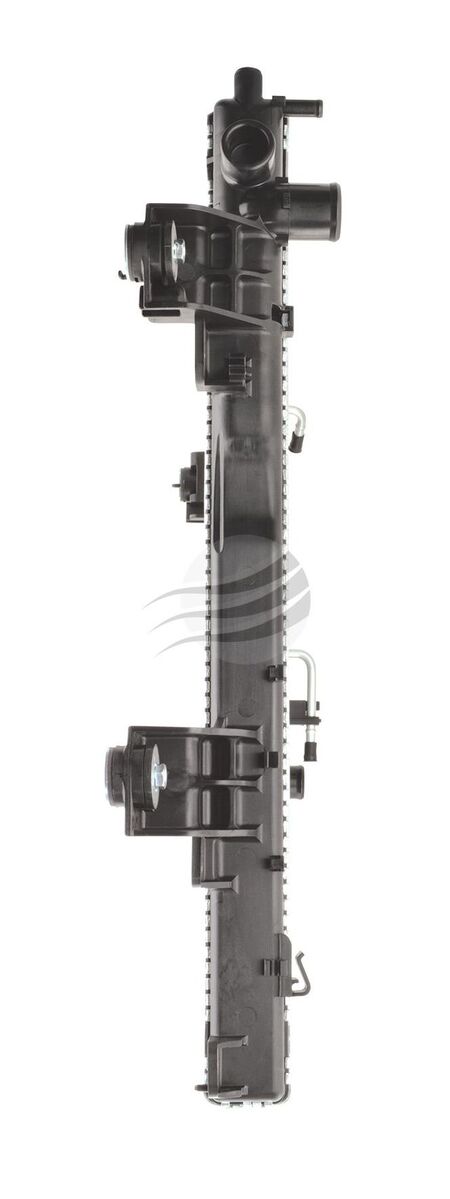

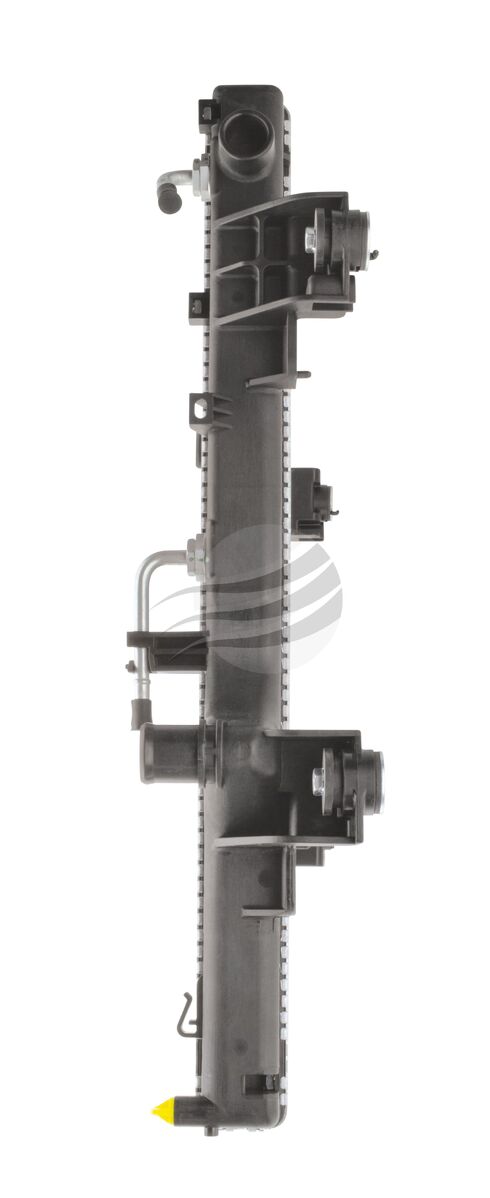

The Koyorad radiator for Toyota Land Cruiser Prado GDJ150 auto replaces tired factory cooling gear with a core measuring 575 mm high and 643 mm wide. You get a direct-fit unit for 8/2015-on Prado models, with a 38 mm inlet and 34 mm outlet to match the standard hoses, so you can tackle long climbs, sand work, and towing without fighting temperature creep.

This setup runs a 36 mm thick core and a built-in 250 mm transmission cooler, so engine coolant and auto fluid both get solid heat rejection on hot Aussie days. The dimensions match standard Prado mounting points and fan shrouds, so the gear drops in as a straight replacement on GDJ150 autos. It is smart buy cooling equipment for touring rigs working from the coast to the outback.

• Suits Toyota Land Cruiser Prado GDJ150 automatic models from 08/2015-onwards
• Direct replacement radiator sized to factory mounting points
• Core height of 575 mm for strong cooling capacity
• Core width of 643 mm to match OEM shroud area
• Core thickness of 36 mm for balanced flow and strength
• 38 mm inlet neck and 34 mm outlet neck to suit standard hoses
• Integrated 250 mm automatic transmission cooler within the radiator tank
• Suitable for 4x4 touring and towing setups in Australian conditions
• Supplied as a complete radiator assembly ready for installation
• Ideal for replacing aging or damaged factory Prado radiators

Q: Does this Koyorad radiator include an integrated transmission cooler?

Yes, it includes an integrated transmission cooler. The cooler section measures 250 mm within the radiator tank. This lets the automatic transmission fluid shed heat through the same airflow path as the engine coolant. It keeps the plumbing tidy with fewer separate coolers up front. It is useful for towing or slow work where fluid temperatures climb.

Q: Will this radiator fit manual transmission Prado GDJ150 models?

This radiator is specified for automatic models only. The built-in 250 mm transmission cooler and hose connections are arranged for an automatic gearbox. Manual models may use a different layout or part number. Always match your gearbox type and build date before ordering. If unsure, check your VIN with your mechanic.

Q: What measurements do I need to check before ordering?

Confirm vehicle series, build date, and hose sizes. Make sure your Prado is a GDJ150 built from 08/2015 onwards. Check that your existing top hose is 38 mm internal diameter and the bottom hose is 34 mm. Matching these specs helps confirm you are replacing like-for-like. When dimensions line up, installation usually goes more smoothly.

Q: Do I need new coolant when fitting this radiator?

Yes, new coolant is strongly recommended. Whenever a radiator is replaced the cooling system is drained. Fresh coolant mixed to the correct ratio protects the new core from internal corrosion. It also restores the proper boiling and freezing points. Follow Toyota guidelines or your mechanic’s recommendation for coolant type and mix.

• Suits Toyota Land Cruiser Prado GDJ150 series with automatic transmission built from 08/2015-onwards
• Direct replacement radiator to fit factory mounting points on compatible Prado models
• Uses 38 mm top hose and 34 mm bottom hose connections as per OEM layout
• Includes built-in 250 mm transmission cooler sized for automatic gearbox lines
• Professional installation recommended and coolant must be refilled and bled to Toyota specifications
• Check vehicle build date and GDJ150 engine code before ordering to confirm compatibility
