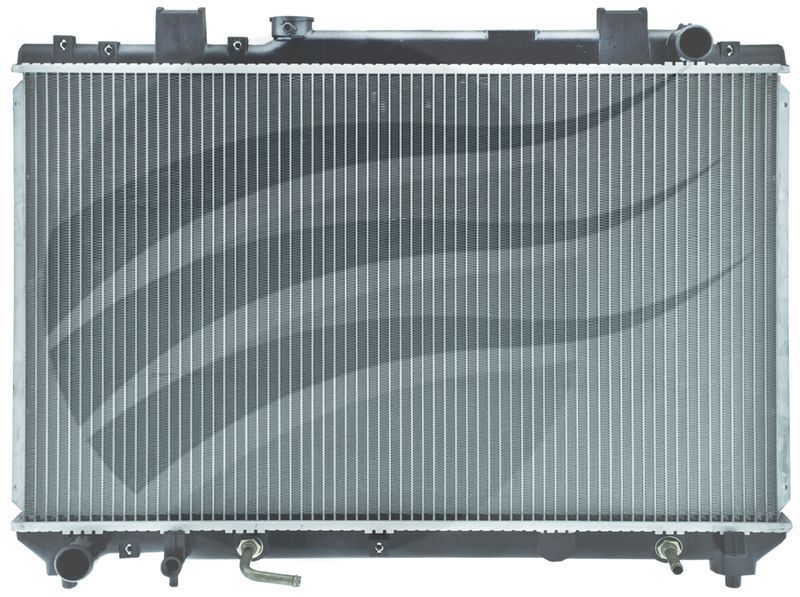

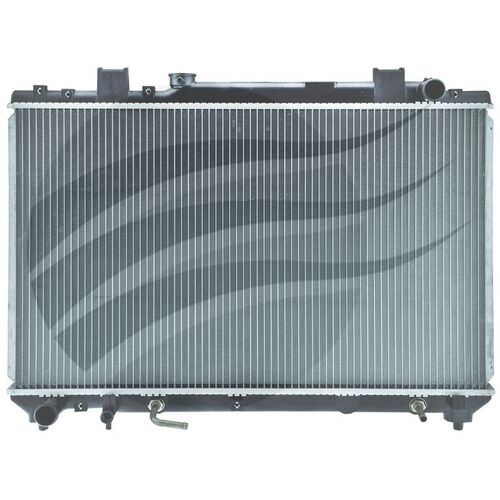

This Koyorad radiator steps straight into Toyota Hiace SBV autos from 1995 on plus Townace and Spacia SR40 vans with 3S FE or 3SFE motors. The core sits at 425 mm high and 678 mm wide so it handles long suburban runs with the van loaded. A 16 mm core thickness keeps coolant flow steady when you crawl in traffic or idle on site with the air con running. The unit carries a 375 mm transmission cooler inside the tank so the auto stays in its comfort zone when you tow or sit on highway speeds. Inlet and outlet pipes both use a 31 mm diameter so they match standard hoses without drama. Every spec lines up with common 4020 style radiator layouts so you know what you are dropping in before you pull the old one. This is smart buy gear for work vans that never stop.

• Direct replacement radiator for Toyota Hiace SBV Auto from 1995-on
• Suits Townace and Spacia SR40 vans with 3S-FE or 3SFE engines
• Core height of 425 mm for strong cooling area
• Core width of 678 mm to match factory radiator footprint
• Core thickness of 16 mm balancing coolant volume and airflow
• 31 mm inlet diameter matching standard Hiace top hose
• 31 mm outlet diameter matching standard Hiace bottom hose
• Integrated 375 mm transmission cooler for automatic gearboxes
• Suited to 4x4 and touring performance cooling applications
• Koyorad branded cooling gear for work and fleet vans

Q: Does this radiator suit manual transmission Hiace models?

This radiator is specified for automatic transmission models. The integrated 375 mm transmission cooler is designed to carry auto fluid, which manual gearboxes do not use. Manual vans often use a different radiator layout without cooler ports. Always match your existing radiator style and check for unused cooler fittings before ordering.

Q: How can I confirm this radiator will fit my van?

Measure your existing core and compare to the 425 mm height, 678 mm width and 16 mm thickness. Check that your engine is the 3S-FE or 3SFE and that the hoses are 31 mm at both inlet and outlet. If those measurements line up, this JR2270J unit should match your current setup. A mechanic can also confirm by cross referencing the part number.

Q: Is this radiator suitable for towing with a Hiace?

The built in 375 mm transmission cooler supports automatic Hiace vans that tow within their rated limits. Keeping auto fluid moving through the cooler helps manage heat build up on long pulls. Still keep an eye on service intervals and fluid condition. Towing beyond manufacturer ratings can stress more than just the radiator.

Q: Do I need to modify any hoses or mounts during installation?

The inlet and outlet diameters are 31 mm to match standard Hiace hose sizes. Mounting points are intended to follow the original radiator pattern for these models. Old hoses or clamps may need replacement if they are worn or swollen. A professional installer can swap the unit and pressure test the system to confirm everything seals properly.

• Suits Toyota Hiace SBV Auto 1995-on
• Also suits Townace and Spacia SR40 models
• Engine compatibility: 3S-FE / 3SFE petrol engines
• Automatic transmission models with integrated transmission cooler
• Check core size 425 x 678 x 16 mm against existing radiator
• Professional installation recommended to ensure correct hose and mount alignment
