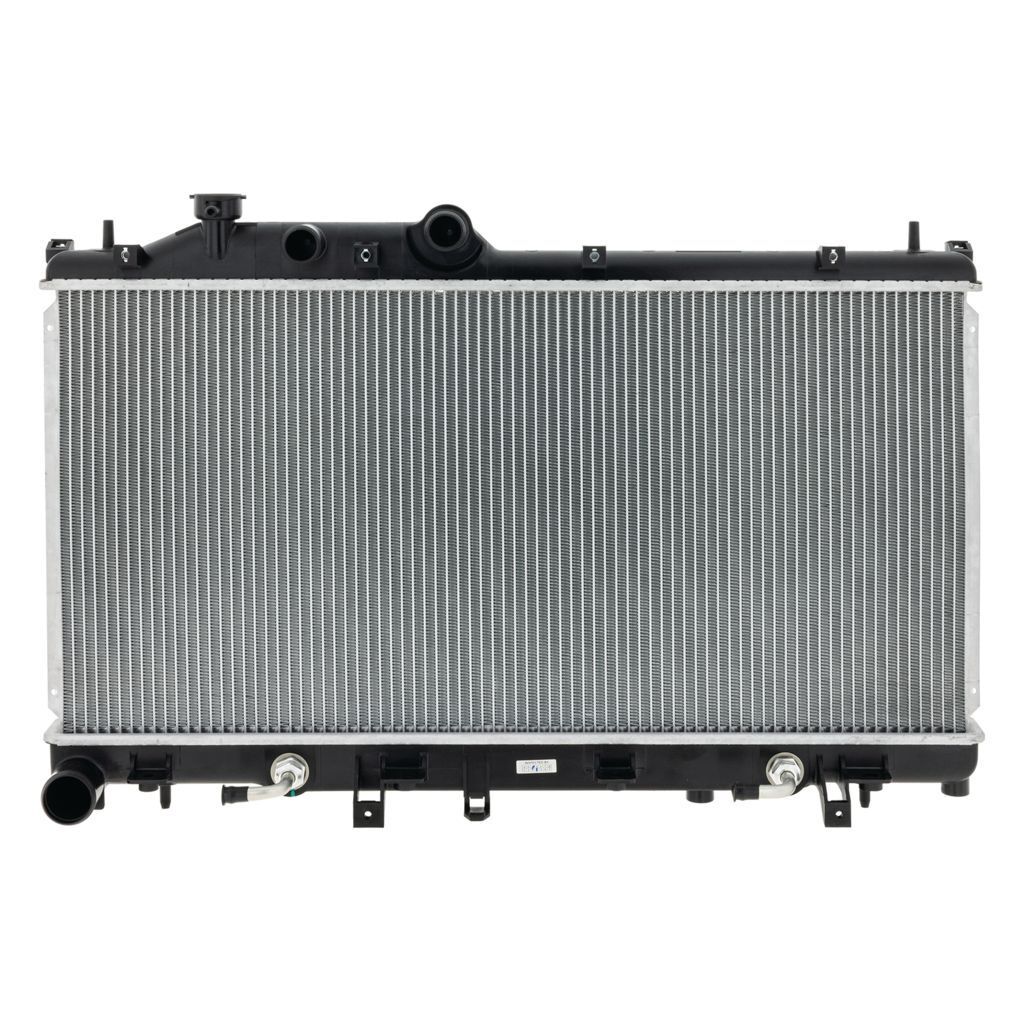

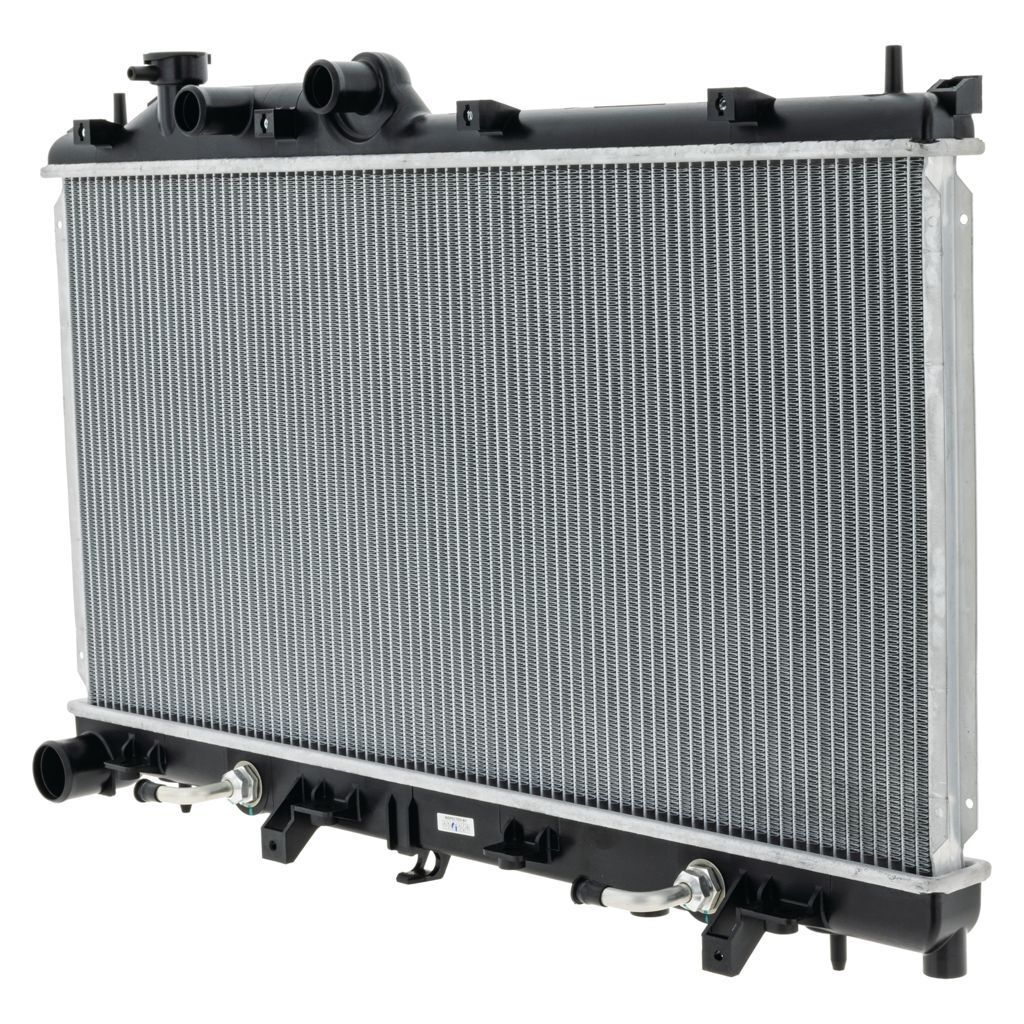

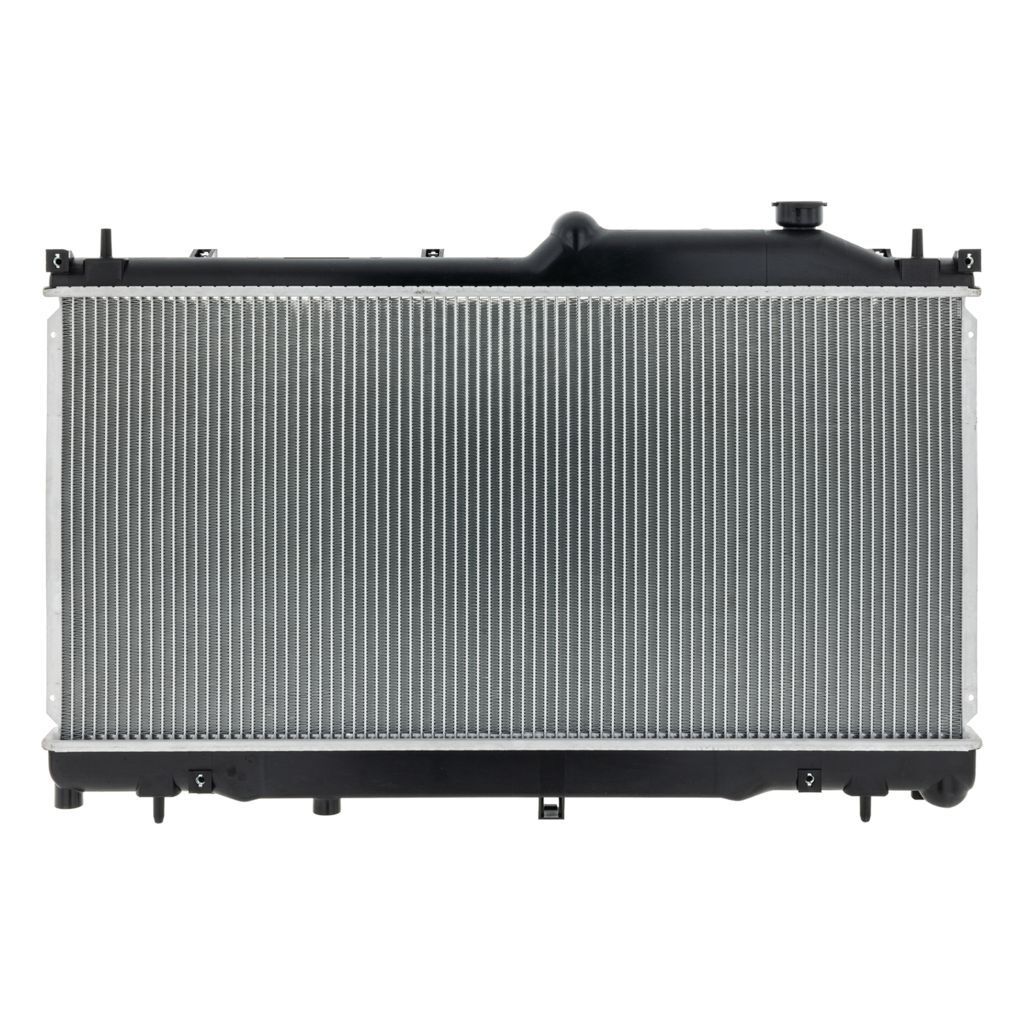

This Koyorad radiator suits Subaru Outback BS with the 2.0L turbo diesel and CVT, so you can tackle long grades without watching the temp gauge. A core height of 342 mm, width of 686 mm and thickness of 25 mm shift plenty of heat on slow climbs and highway runs. Twin 28 mm inlets and a 39 mm outlet line up with factory hoses, so the coolant flow stays where Subaru intended. An integrated 375 mm transmission cooler section keeps the CVT in its comfort zone when you load up the camper or head into soft sand. The dimensions match the BS front end layout, so fans, shrouds and guards still clear as they should. This is straightforward gear for anyone who wants their 2.0L diesel Outback to get out there and keep working hard in Aussie heat without drama.

• Suits Subaru Outback BS 2.0L turbo diesel CVT from 12/2014-on
• Core height of 342 mm for effective heat transfer
• Core width of 686 mm maximises frontal cooling area
• Core thickness of 25 mm balances airflow and capacity
• Twin 28 mm inlet pipes match factory hose sizing
• 39 mm outlet diameter for consistent coolant return
• Integrated 375 mm transmission cooler supports CVT temperatures
• Direct-fit style layout for BS front end architecture
• Suitable for towing and touring in hot Australian climates
• Koyorad brand radiator for 4x4 and touring applications

Q: Does this radiator fit all Subaru Outback BS models?

No, it suits BS Outback models with the 2.0L turbo diesel and CVT from 12/2014-on. Petrol engines and manual transmissions use different radiator layouts. Always match the engine code and transmission type before ordering. Checking build date on the compliance plate helps confirm you have the later BS platform.

Q: Is the transmission cooler built into this radiator?

Yes, it includes an integrated transmission cooler measuring 375 mm. This cooler handles CVT fluid passing through dedicated line fittings at the bottom tank. Keeping the cooler in the main radiator saves space in the front end. It also keeps coolant and transmission temperatures working together under load.

Q: Can I re-use my original radiator hoses with this unit?

Yes, the inlets are 2 x 28 mm and the outlet is 39 mm, which match the factory hose diameters. Re-using hoses is fine if they are in good condition with no cracks or swelling. Many owners still choose fresh hoses and clamps while the system is drained. That approach can prevent future leaks on long trips.

Q: Is this radiator suitable for towing and heavy touring?

Yes, the 342 x 686 x 25 mm core and 375 mm cooler section are well suited to towing and highway touring in Australian conditions. Correct coolant mix and a clean condenser in front of the radiator still matter. Fans, shrouds and undertrays should all be refitted so airflow stays as Subaru intended. Regular checks for bugs and seeds in the fins keep performance consistent.

Suitable for Subaru Outback BS with CVT from 12/2014-on fitted with 2.0L turbo diesel engine.
