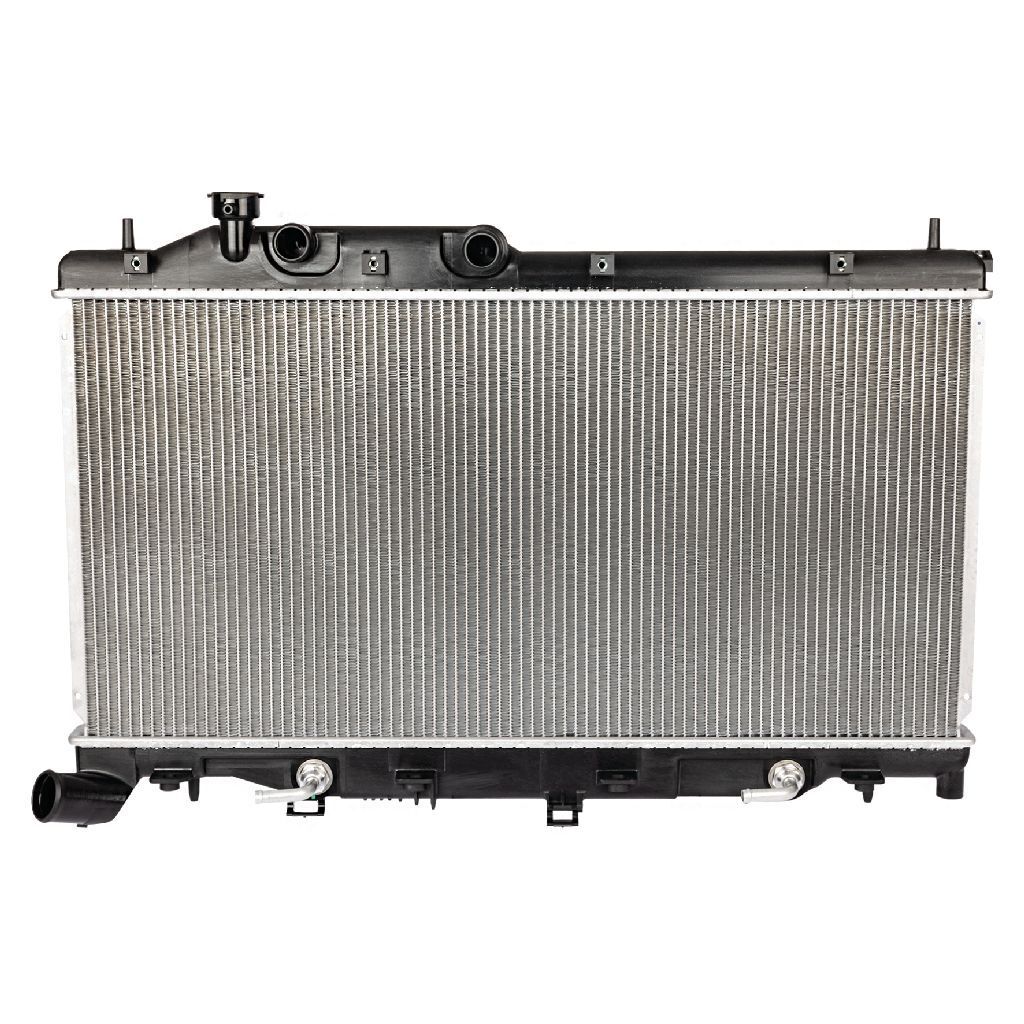

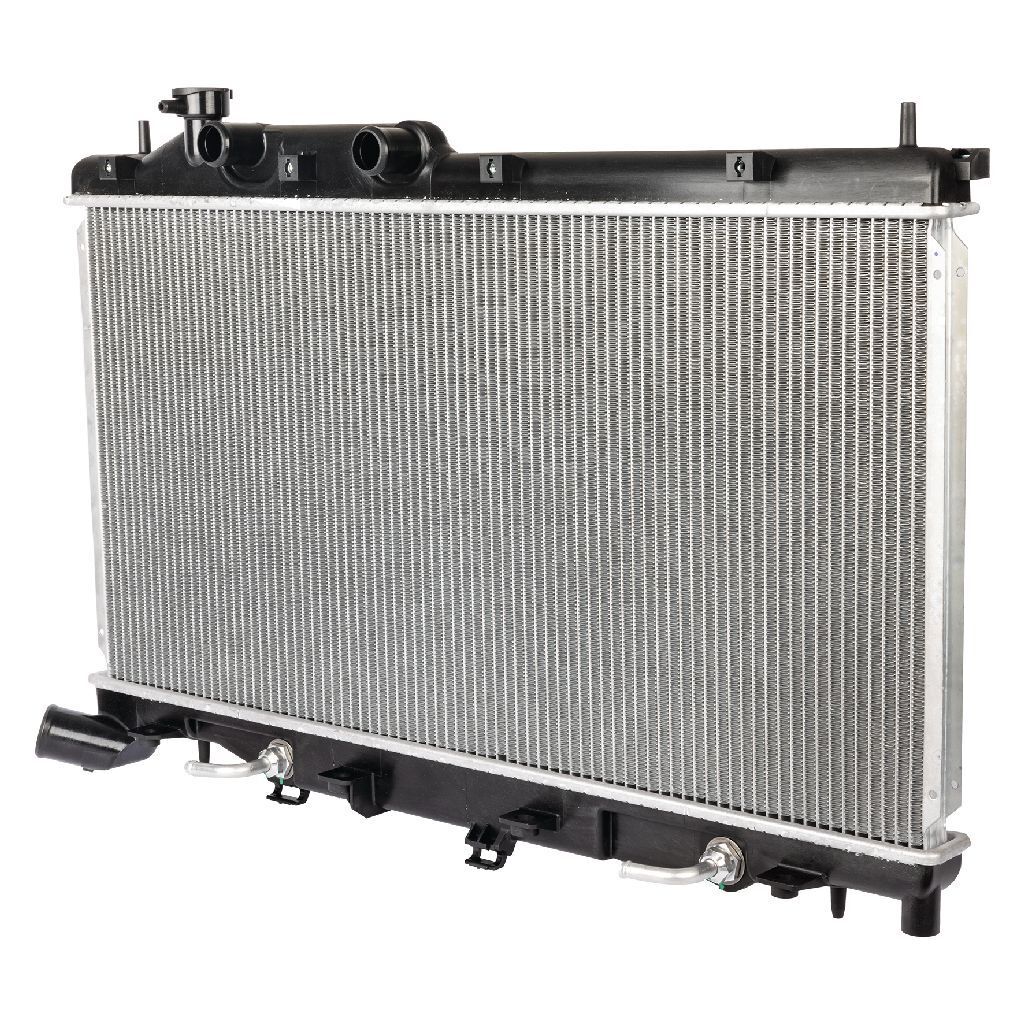

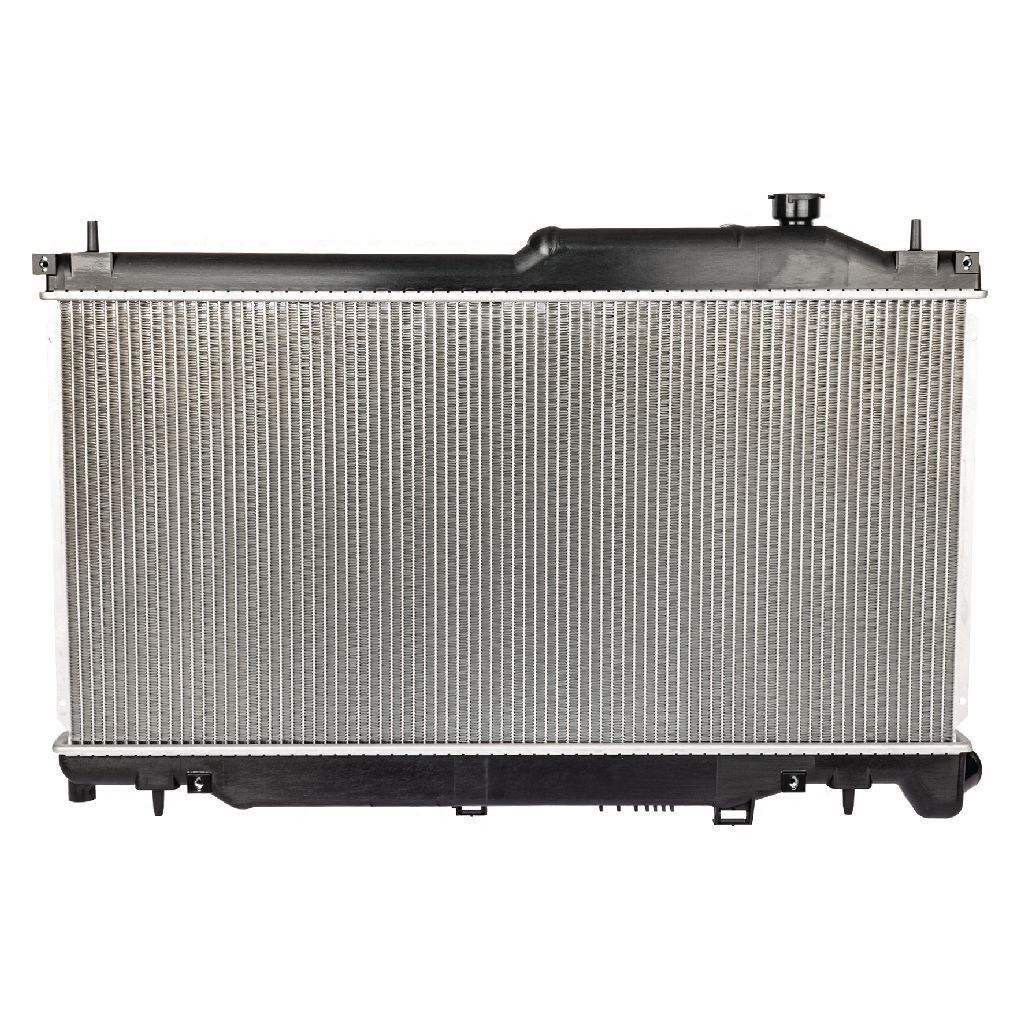

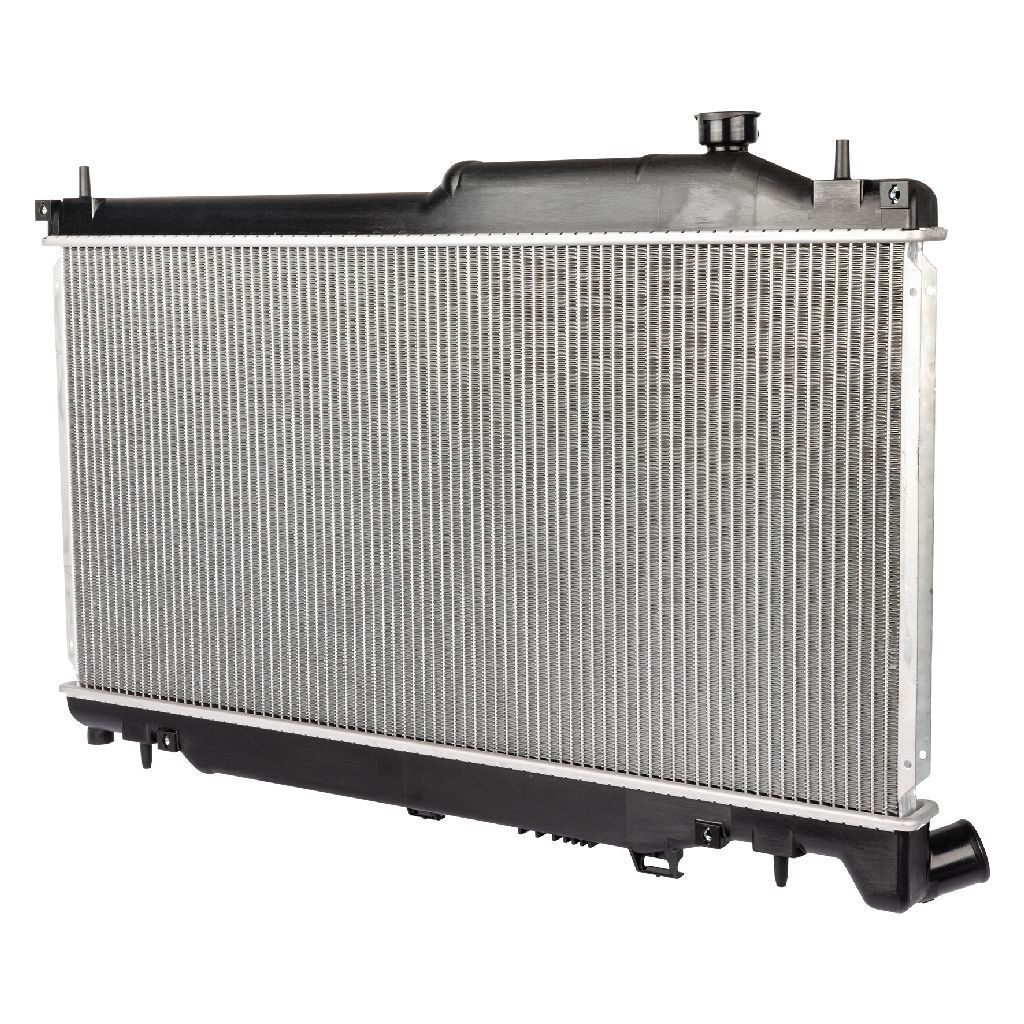

This Koyorad radiator steps straight into Subaru Forester SJ EE20 2.0L turbo diesel autos from 01/2013 to 09/2018, so you can tackle long climbs without watching the temp gauge creep. The core runs 342 mm high and 686 mm wide with a 25 mm thickness, which suits the factory fan shroud and support panel. The built-in 375 mm transmission cooler keeps the auto fluid in check when you tow or load up the wagon.

The tanks line up with twin 28 mm inlet connections and a single 39 mm outlet, matching the Forester hose sizes for a straightforward swap. The footprint matches the SJ mounting points, so the radiator sits square in the support with proper airflow through the core. The dimensions give enough coolant volume for the EE20 diesel without crowding the front end. For a Forester that works in Aussie heat, this is smart buy cooling gear.

• Direct fit for Subaru Forester SJ EE20 2.0L turbo diesel A/T
• Suits model years from 01/2013 to 09/2018
• Core height of 342 mm for strong frontal coverage
• Core width of 686 mm to match factory shroud
• Core thickness of 25 mm balances flow and cooling
• Twin 28 mm inlet connections for upper hoses
• Single 39 mm outlet connection for lower hose
• Integrated 375 mm transmission cooler in lower tank
• Compatible with automatic models running an oil cooler
• Purpose-built replacement radiator from Koyorad

Q: Will this radiator fit my Subaru Forester SJ petrol model?

No, this radiator is specified for the EE20 2.0L turbo diesel Forester SJ with automatic transmission. Petrol engines use different hose sizes and mounting layouts. Matching the EE20 engine code and build range from 01/2013 to 09/2018 is important. If your compliance plate or rego papers list a petrol engine, you will need a different radiator.

Q: Does this Koyorad radiator include a built-in transmission cooler?

Yes, this radiator includes an integrated transmission cooler section measuring 375 mm. That cooler is designed for the Forester SJ automatic transmission fluid circuit. The lines connect at the lower end tank. This setup keeps both engine coolant and auto fluid within their working temperature range on climbs and towing.

Q: Can I reuse my original radiator hoses with this unit?

Yes, as long as your vehicle is an EE20 2.0L turbo diesel Forester SJ automatic in the listed years. The upper connections are 28 mm and the lower outlet is 39 mm, which match the original hose sizing. Always inspect the old hoses for hardness or cracking. Replacing tired hoses at the same time can prevent future leaks.

Q: Is this radiator suitable for Foresters built after September 2018?

No, the listed fitment stops at 09/2018 for the SJ series Forester. Later models moved to a different body generation and cooling package. Mounting points, core dimensions and hose routing can all change between generations. Checking the build date on the compliance plate against 01/2013 to 09/2018 helps confirm compatibility.

Suits Subaru Forester SJ with EE20 2.0L turbo diesel engine built from 01/2013 to 09/2018. Suits automatic transmission vehicles that run an oil cooler. Radiator includes an integrated transmission cooler measuring 375 mm. Fitment requires compatibility with factory mounting points and hose sizes including 28 mm inlet and 39 mm outlet. Intended as a direct replacement for the original radiator on applicable Forester SJ EE20 A/T models.
