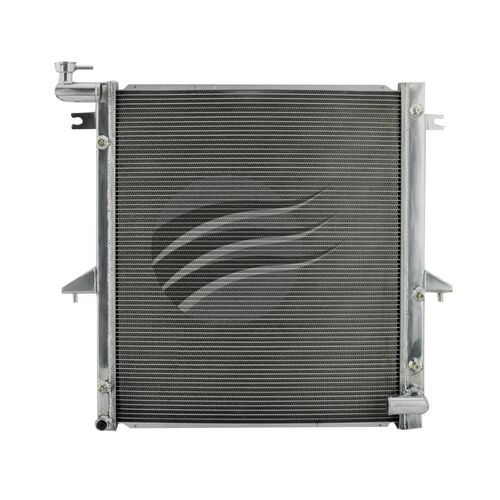

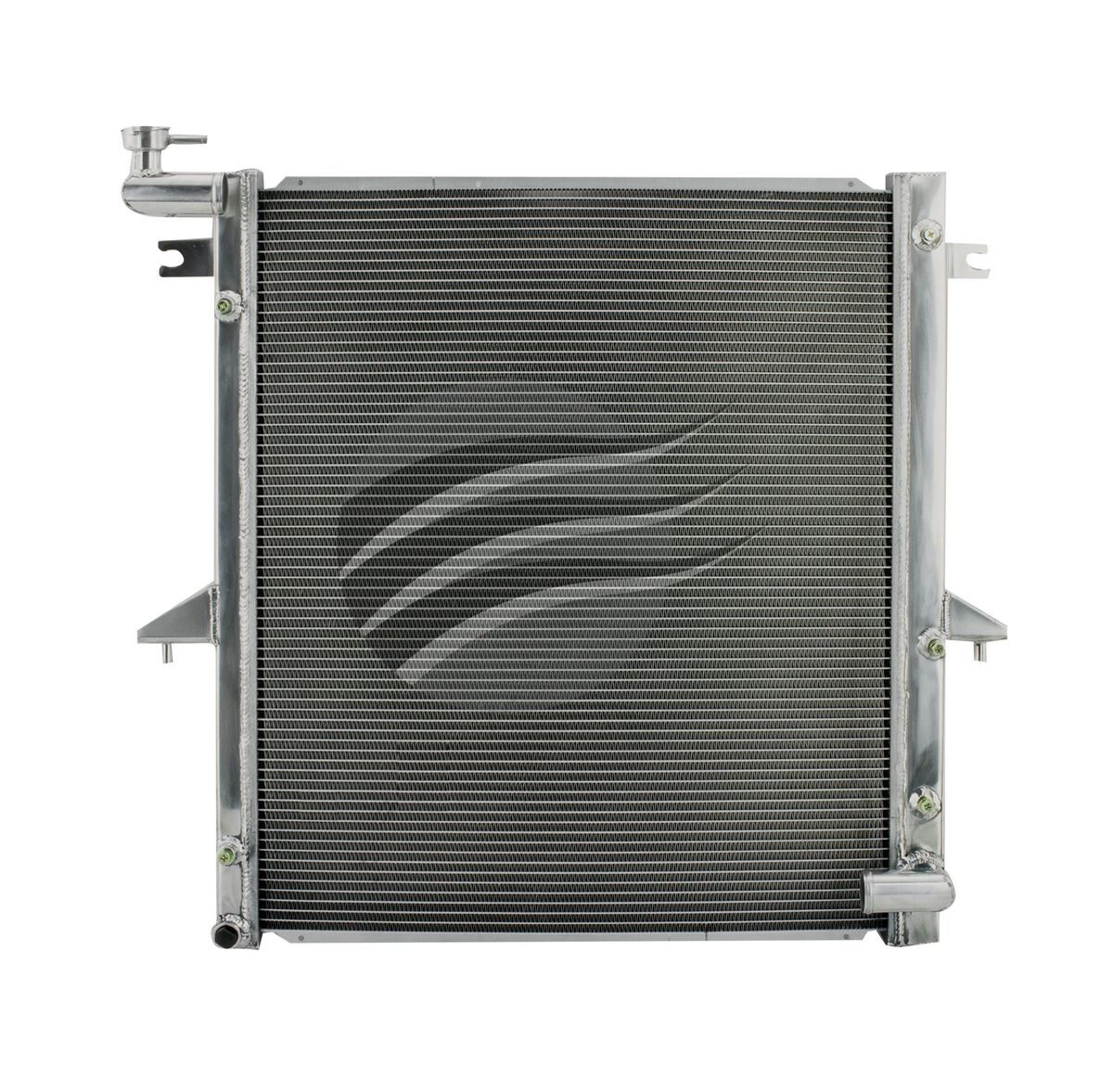

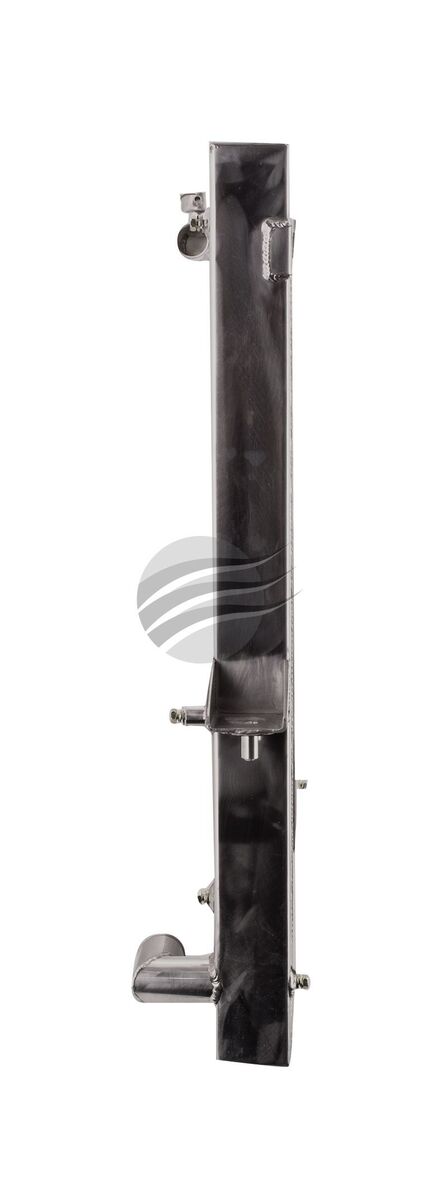

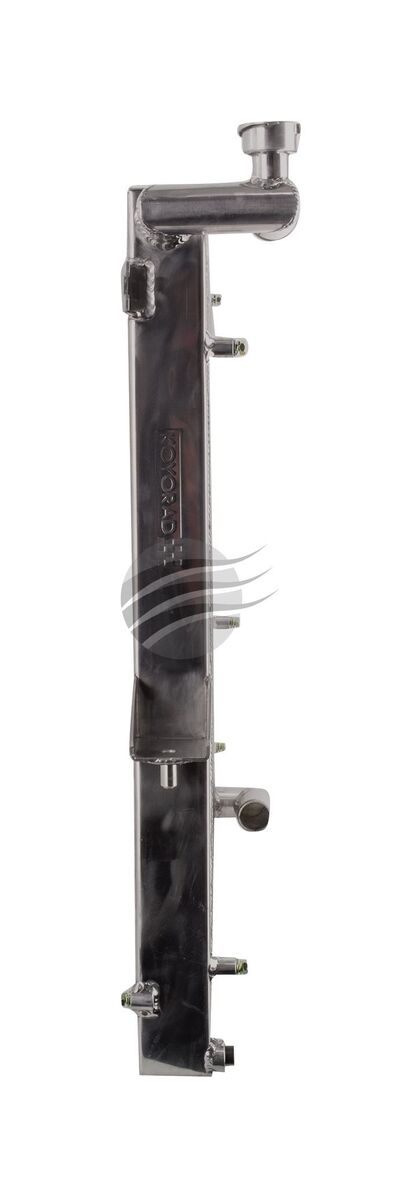

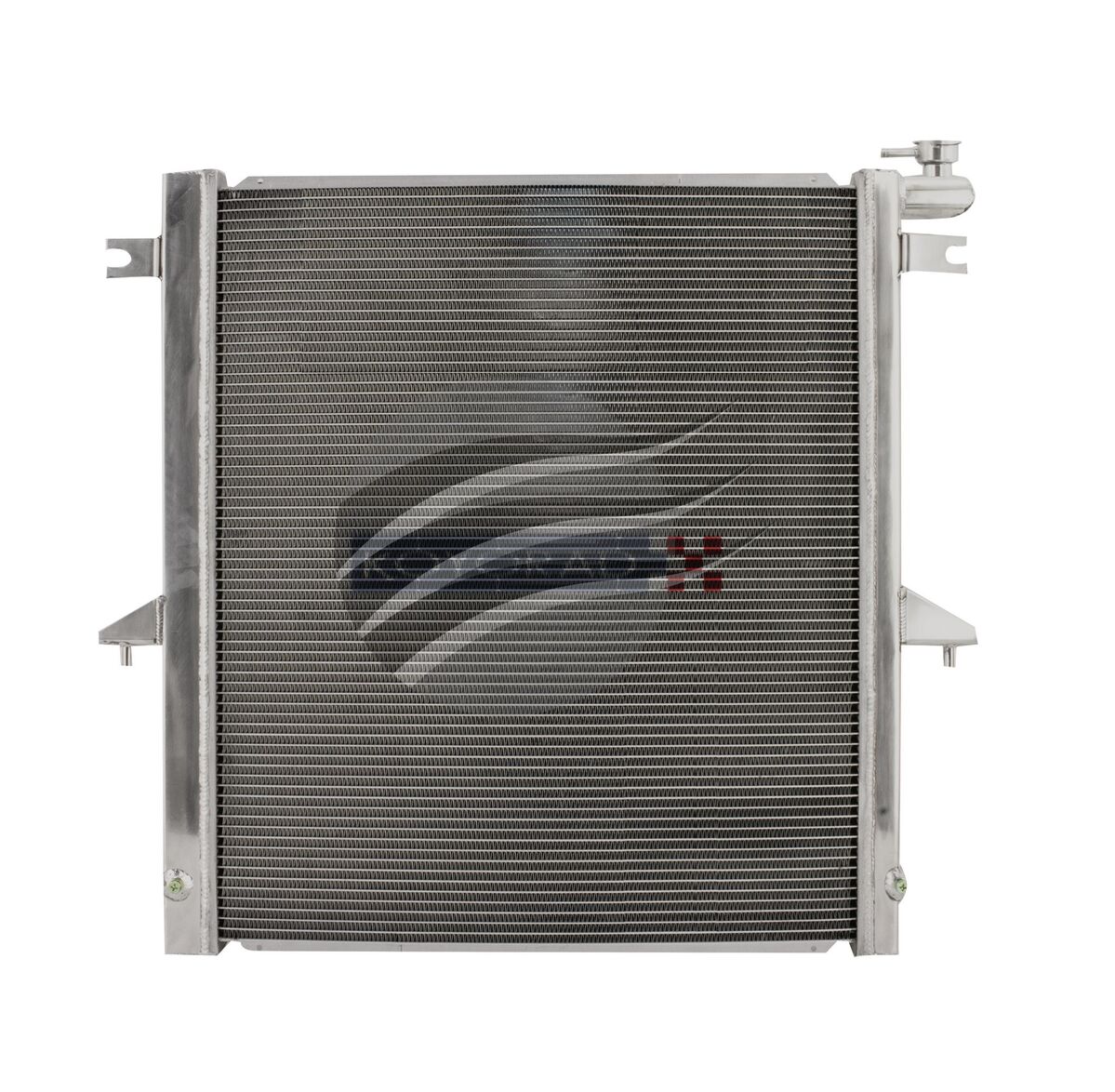

This Koyorad radiator slots straight into Triton ML and MN models from 2006 to 2015 with 2.5L turbo diesel engines plus Challenger PB from 2009 on, so you can keep temps in check when you load the tray or tow. A core height of 525 mm and width of 650 mm give enough face to handle long climbs and hot days without the gauge creeping higher than it should. The 48 mm thick core and 35 mm inlet and outlet pair up with the factory hoses and clamps, so the cooling system keeps its intended flow. An integrated transmission cooler section looks after autos without extra plumbing hanging off the front. Mounting tabs line up with OEM points across the 650 mm span, which keeps the swap neat for driveway or workshop jobs. This is smart buy gear for anyone keen to get out there without stressing the 2.5L TD under heat.

• Suits Mitsubishi Triton ML and MN 2006–2015 with 2.5L turbo diesel engines
• Also suits Mitsubishi Challenger PB models from 2009 onwards with compatible 2.5L turbo diesel
• Core height of 525 mm for strong airflow coverage
• Core width of 650 mm to spread engine heat load
• Core thickness of 48 mm for improved thermal capacity
• 35 mm inlet diameter to match factory upper hose
• 35 mm outlet diameter to match factory lower hose
• Integrated transmission cooler section for automatic models
• OEM-style mounting brackets for straightforward replacement
• Koyorad JR2866HP specification suited to towing and touring use

Q: Does this radiator fit both manual and automatic Triton ML and MN models?

Yes, it fits both manual and automatic models that share the 2.5L turbo diesel setup. The core and tanks suit the same mounting points across these variants. An internal transmission cooler is provided for automatic transmissions. Manual vehicles simply leave the cooler ports capped or unused as per standard practice.

Q: Is this radiator suitable for Mitsubishi Challenger PB models with the 2.5L turbo diesel engine?

Yes, this radiator suits Mitsubishi Challenger PB models from 2009 onwards with compatible 2.5L turbo diesel drivetrains. The mounting points and hose diameters match the factory layout on these vehicles. Always confirm engine code and build year against JR2866HP before purchase. If unsure, check the old radiator label or consult your mechanic.

Q: What measurements should I check against my factory radiator before ordering?

Check core height of 525 mm, width of 650 mm, thickness of 48 mm, and 35 mm inlet and outlet diameters. Matching these figures against your existing radiator helps confirm compatibility. You should also compare the location of the hose connections and mounting brackets. Taking a quick photo of the old unit before removal can help with cross-checking.

Q: Can this radiator be installed using the original fan shroud and mounts?

Yes, the design follows OEM-style mounting across the 650 mm width and 525 mm height. This allows reuse of the factory fan shroud and radiator support hardware where they are in good condition. Reusing original mounts keeps fan-to-core spacing correct. Inspect rubber isolators and hardware during the job and replace worn parts as needed.

Suits Mitsubishi Triton ML and MN models built from 2006 to 2015 with 2.5L turbo diesel engines, plus Mitsubishi Challenger PB from 2009 onwards with compatible 2.5L turbo diesel drivetrains. Radiator features a 35 mm inlet and 35 mm outlet and an integrated transmission cooler to match factory-style automatic transmission setups. Standard mounting points match the original radiator positions on these vehicles. Mechanical knowledge and correct coolant handling are required during installation.
