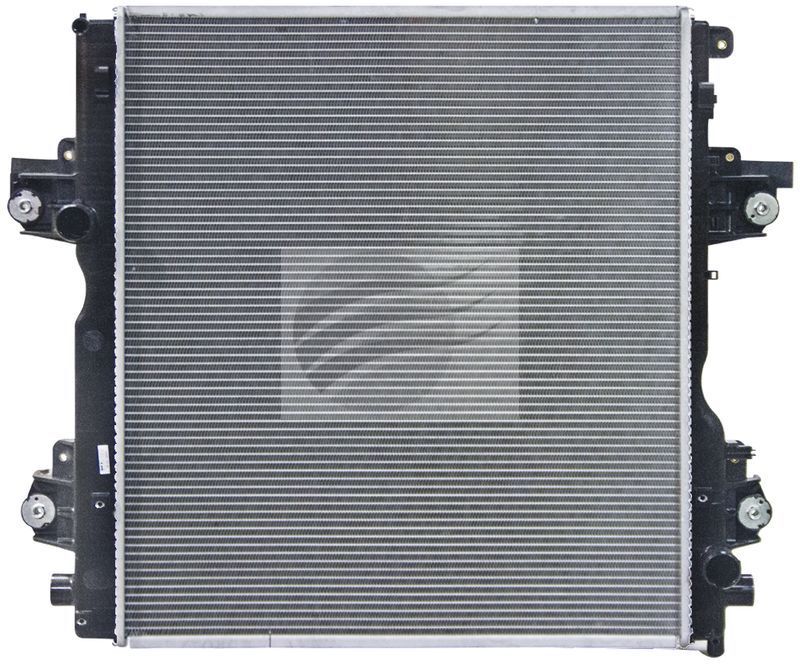

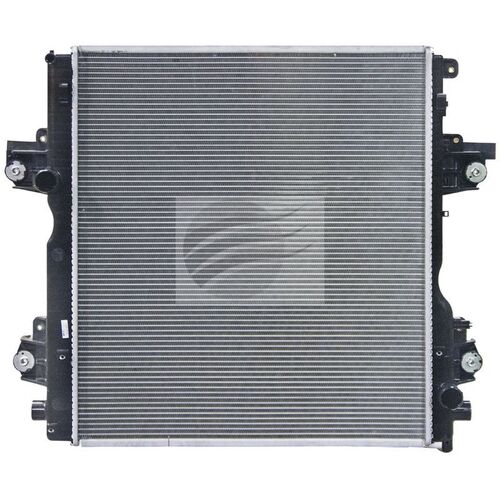

This Koyorad radiator slots into Prado KDj150 GDj150 and GRj150 wagons from 2009 to 2017 with a core size of 575 by 643 by 36 mm so you can get out there without chasing odd fittings. The 38 mm inlet and outlet match factory hoses so swaps on the driveway stay simple. The 8 mm breather port keeps the overflow line in the right place for steady expansion control.

The core runs 575 mm tall and 643 mm wide so the fan pulls air across the full face when you tackle slow climbs or soft sand. The 36 mm thickness balances flow and cooling area for typical Aussie touring loads. The integrated transmission cooler suits the manual setup on these Prados so there is no need to add extra hardware. The dimensions mirror OE layout which makes this radiator a smart buy for long term ownership.

• Brand: Koyorad replacement radiator
• Suits Toyota Land Cruiser Prado KDj150 GDj150 GRj150
• Fits manual transmission models approximately 2009–2017
• Core height 575 mm for OE-style fit
• Core width 643 mm for full fan coverage
• Core thickness 36 mm for effective heat transfer
• Inlet and outlet hose diameter both 38 mm
• Breather port diameter 8 mm for overflow hose
• Integrated transmission cooler in end tank
• Direct replacement dimensions reduce custom fabrication

Q: Does this radiator fit all Prado 150 series models?

No, this radiator suits KDj150 GDj150 and GRj150 models with manual transmission from around 2009 to 2017. Automatic variants or earlier 120 series use different radiators. Always check the core size of 575 x 643 x 36 mm against your original. Matching inlet and outlet diameters of 38 mm and the 8 mm breather port is also important.

Q: Do I need new hoses with this Koyorad radiator?

Not necessarily, as the inlet and outlet diameters are 38 mm which matches the factory Prado 150 manual hoses. If your existing hoses are in good condition they can usually be reused. Many owners replace old hoses at the same time as a radiator for peace of mind. A visual check for cracks, swelling or hardness is recommended before reusing.

Q: Is the transmission cooler included in this radiator?

Yes, this radiator has an integrated transmission cooler section. The cooler is built into one of the end tanks and is sized for the Prado 150 manual driveline layout. This means you can connect the existing cooler lines to the new unit. There is no need to mount a separate external cooler for standard use with this configuration.

Q: What measurements should I confirm before ordering?

You should confirm the core height of 575 mm, width of 643 mm and thickness of 36 mm on your current radiator. You should also check that both hose connections are 38 mm diameter and that the breather port is 8 mm. These measurements help avoid ordering a radiator for a different engine or transmission variant. Measuring the old unit while it is still in the vehicle is usually possible with a tape measure.

• Suits Toyota Land Cruiser Prado KDj150 GDj150 GRj150 with manual transmission
• Suits approximate model years 2009 to 2017
• Match core size 575 x 643 x 36 mm against original radiator before install
• Confirm inlet and outlet diameters of 38 mm and breather diameter of 8 mm with existing hoses
• Intended as direct replacement radiator for manual transmission models with integrated trans cooler
