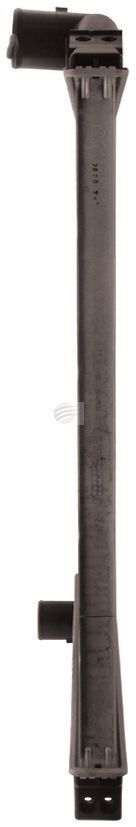

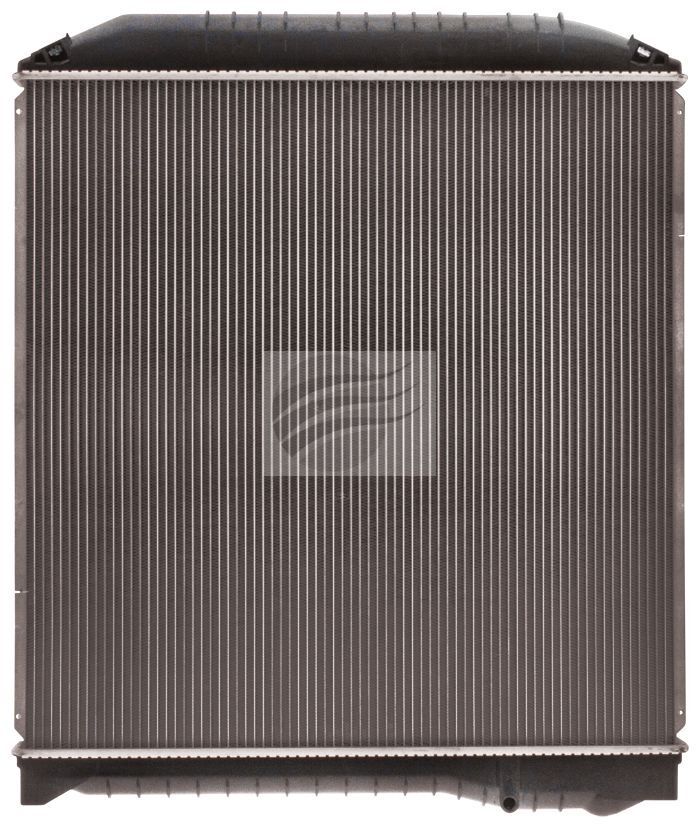

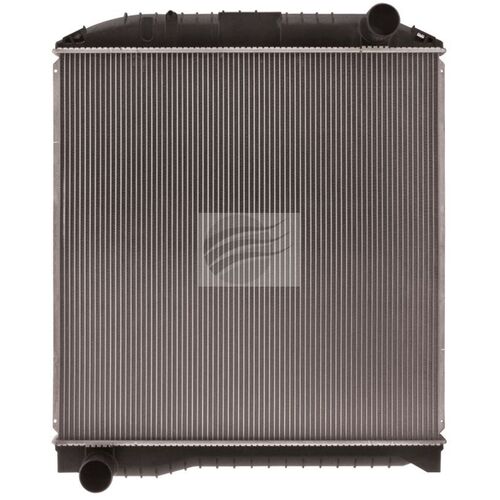

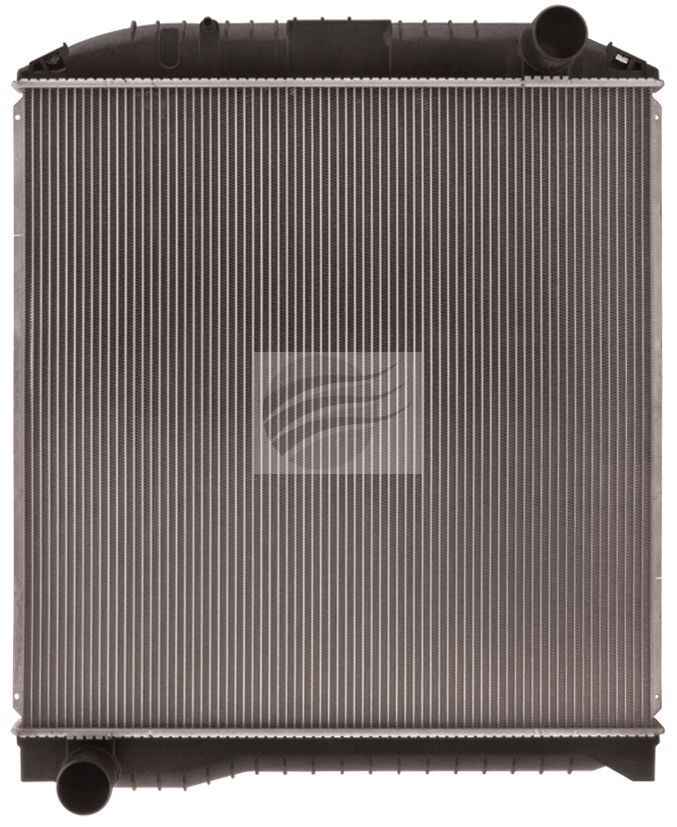

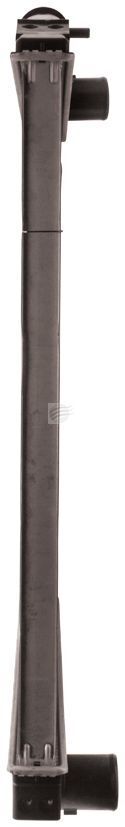

This Koyorad JR7801HD radiator steps straight into Hino Ranger FE and FD trucks with a J07E engine and manual box so you can get out there and work the truck hard. The core runs 650 mm high and 636 mm wide so the fan pulls air across the full face when you are crawling in traffic or backing into a dock. Inlet and outlet necks at 55 mm match the factory hoses and clamps. The 36 mm thick core gives a good balance between coolant volume and airflow so the setup handles long pulls without drama. Integrated transmission cooler ports keep the driveline temperatures in check on loaded runs. Mounting points line up with the original radiator support so there is no mucking around with brackets. This is smart buy cooling gear for anyone who wants parts that just match factory spec and get the job done.

• Suits Hino Ranger FE and FD trucks from 2010-on
• Matches J07E diesel engine with manual transmission
• Core height measures 650 mm
• Core width measures 636 mm
• Core thickness measures 36 mm
• Inlet pipe diameter is 55 mm
• Outlet pipe diameter is 55 mm
• Includes integrated transmission cooler provision
• Direct replacement for OE part number 16041E0330
• Intended as a bolt-in radiator assembly

Q: Does this radiator fit both FE and FD Hino Ranger models from 2010-on?

Yes, this radiator suits Hino Ranger FE and FD models from 2010-on with the J07E engine and manual transmission. The core size of 650 mm by 636 mm and 36 mm thickness matches this application. The 55 mm inlet and outlet necks align with the original hoses. Always confirm your OEM part number 16041E0330 before ordering.

Q: Is the transmission cooler built into this radiator?

Yes, this radiator includes provision for a transmission cooler. The cooler is integrated into the tank so coolant and transmission lines share the same assembly. This keeps the install neat and close to factory layout. Make sure your existing lines and fittings are in good condition before refitting.

Q: Can this radiator be used on an automatic transmission model?

The catalog application lists this unit for manual transmission Hino Ranger FE and FD models only. Port layout and cooling capacity are matched to the specified driveline. Using it on a different transmission type can cause plumbing or performance issues. Check your vehicle details carefully and select the correct unit for an automatic if required.

Q: Do I need to modify the mounting brackets to install this radiator?

The radiator is built as a direct replacement for the listed Hino Ranger FE and FD applications. Mounting points are arranged to line up with the original support panel. Reusing the factory hardware normally keeps the core sitting square in the shroud. Inspect rubbers and bushes during install and replace worn pieces as needed.

Suitable for Hino Ranger FE and FD trucks from 2010-on fitted with the J07E engine and manual transmission. Cross-references OE part number 16041E0330. Check the core size of 650 mm x 636 mm x 36 mm and 55 mm inlet and outlet diameters against the existing radiator before purchase. Professional installation is recommended to maintain correct cooling system performance.
