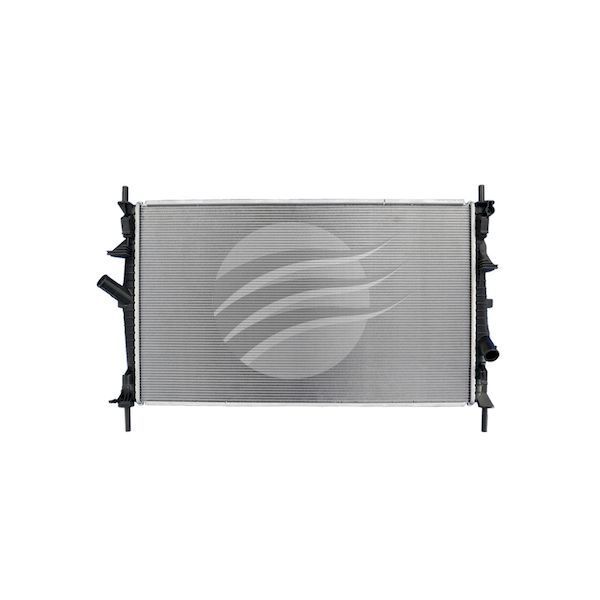

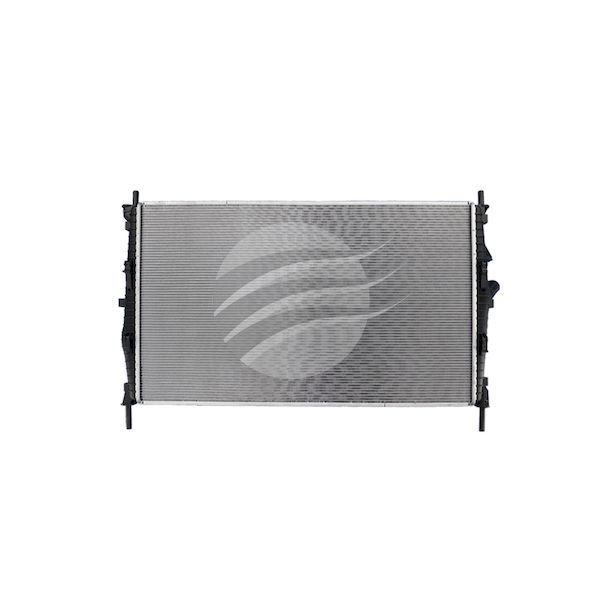

This Koyorad radiator drops into Ford Transit VO and VN bays with a core footprint of 769 mm high and 466 mm wide, so you can tackle hot days without babysitting the temp gauge. The 16 mm core suits the 2.2L Custom diesel, keeping coolant moving when the van is loaded. Inlet and outlet sizes of 33 mm match factory hoses, so the rest of the cooling gear stays as is.

The narrow 16 mm core keeps weight down while still giving enough frontal area at 769 x 466 mm for steady cooling in traffic or on the highway. Manual and auto vans run the same shell, so one radiator part number keeps the setup simple. Tube diameters of 33 mm suit the standard hose spec used across Aussie-delivered Transit VO and VN models, which makes this a smart buy for fleet spares.

• Koyorad radiator part number JR0171J
• Suits Ford Transit VO 2014-on 2.2L Custom
• Suits Ford Transit VN 2013-2018 M/T and A/T
• Core height measures 769 mm
• Core width measures 466 mm
• Core thickness measures 16 mm
• Inlet tube internal diameter 33 mm
• Outlet tube internal diameter 33 mm
• Compatible with vehicles using transmission cooler in radiator
• Direct replacement style for factory radiator on listed models

Q: Does this radiator fit both manual and automatic Ford Transit VN models?

Yes, it suits both manual and automatic VN Transits within the listed years. The mounting points and core size of 769 x 466 x 16 mm match the shared front-end layout. Transmission cooler provision is included for autos using the same shell. Always compare your original unit before install to confirm hose and line routing.

Q: What engine size is this Koyorad radiator intended for?

This radiator is specified for the 2.2L Custom engine in the Transit VO model range. The core volume and 33 mm inlet and outlet sizing suit the coolant flow requirements of this diesel. Using it on other engine sizes may not give correct temperature control. Check your compliance plate and handbook to confirm engine code.

Q: Can I use this radiator as a spare for a mixed VO and VN Transit fleet?

Yes, if the vehicles fall within the VO 2014-on and VN 2013–2018 range listed. The shared 769 mm height and 466 mm width allow one part number across those vans. This cuts down stock you need on the shelf. Still match each van’s original radiator layout before fitting.

Q: What should I check before ordering this radiator?

You should confirm build year, series code and engine. Measure your existing core height, width and thickness to match the 769 x 466 x 16 mm spec. Check hose inside diameters against the 33 mm ports. Taking a few measurements upfront helps avoid delays once the gear arrives.

Suitable for Ford Transit VO from 2014-on with 2.2L Custom engine and Ford Transit VN from 2013-2018 with manual or automatic transmissions. Check core height 769 mm, width 466 mm and thickness 16 mm against the original radiator before install. Confirm 33 mm inlet and 33 mm outlet hose diameters match existing cooling hoses. Professional installation is recommended for correct coolant bleeding and transmission cooler line reconnection where fitted.
