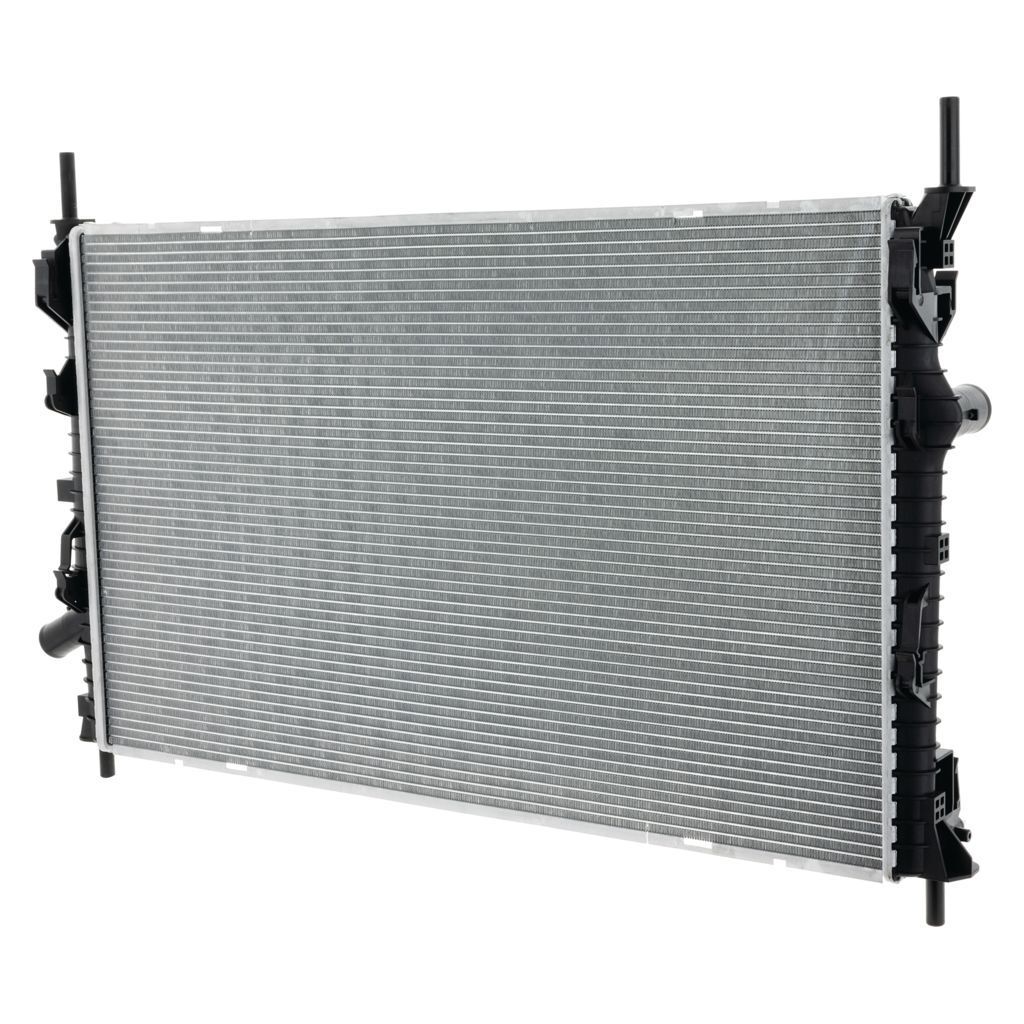

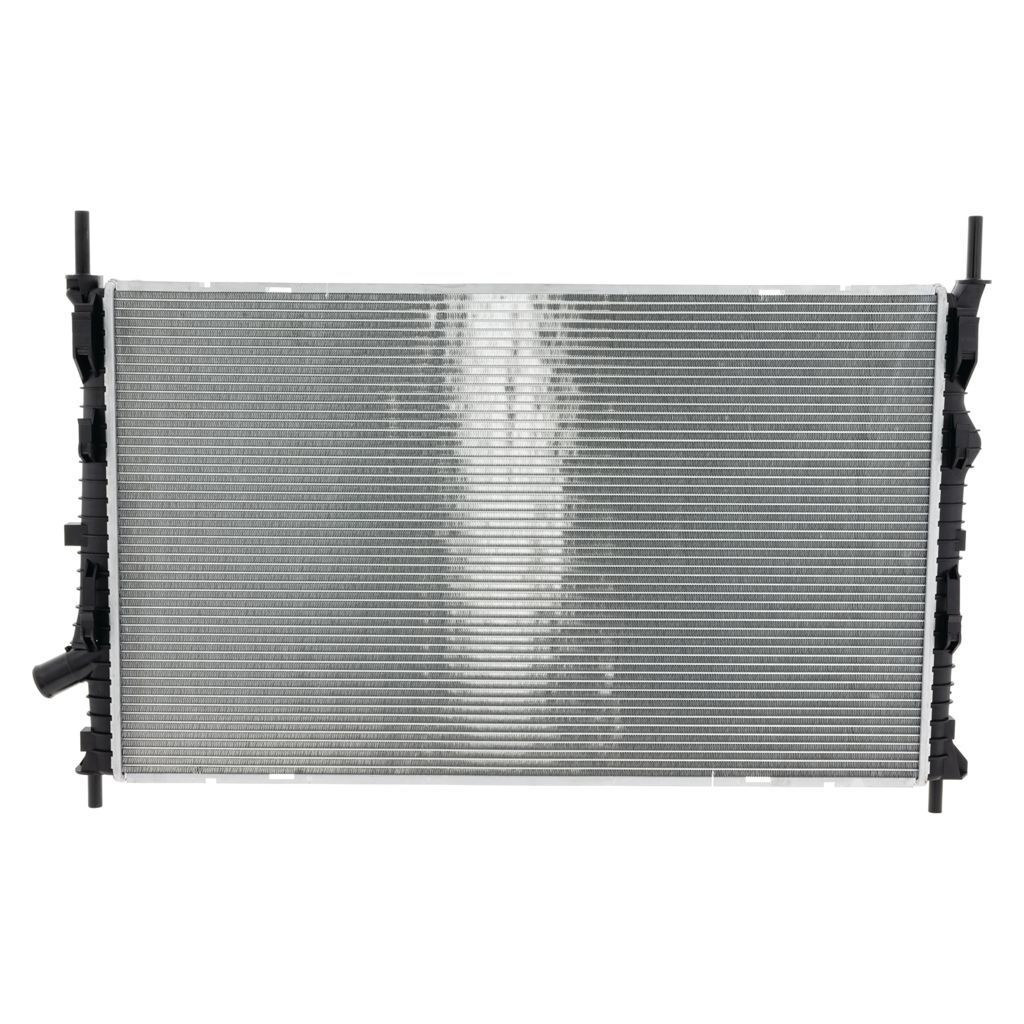

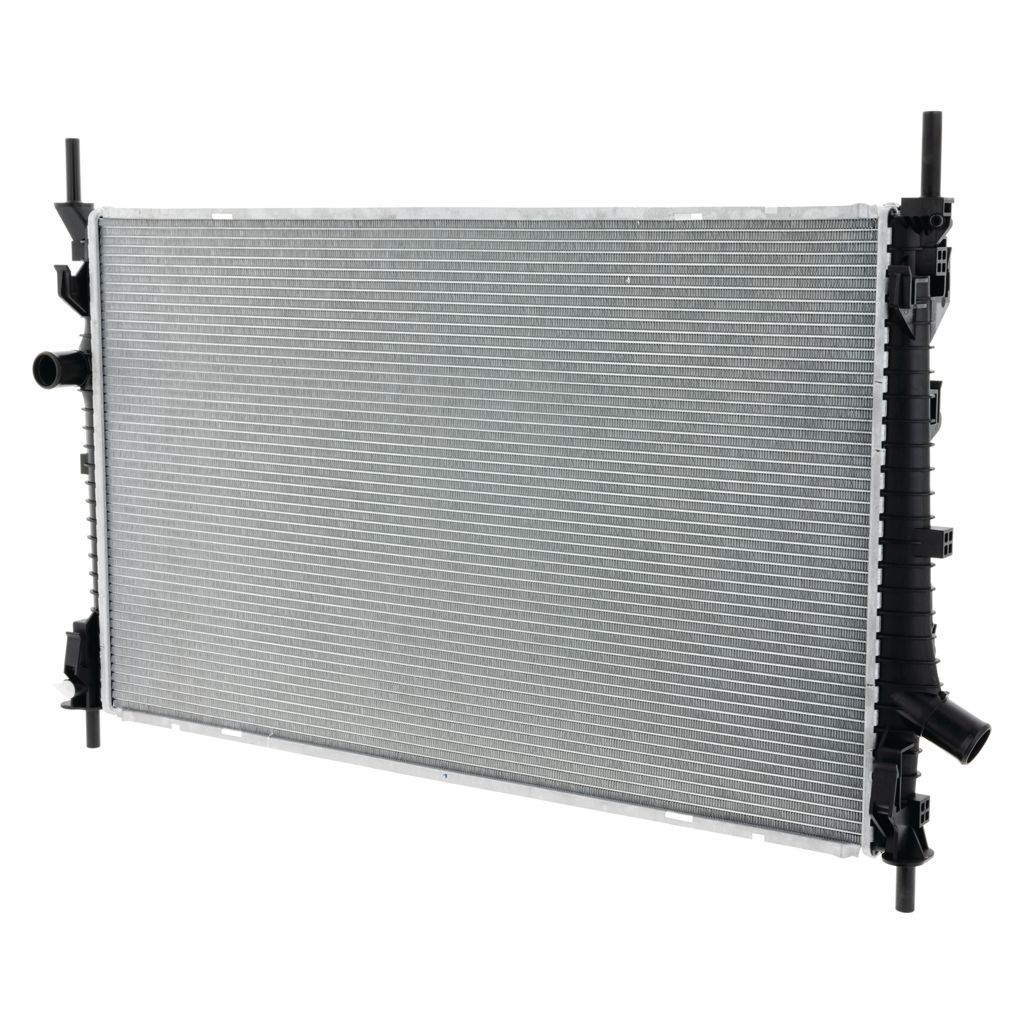

If you run a Ford Transit from 2014 with the 2.0L diesel, this Koyorad radiator keeps the van ready to get out there with a core that stands 767 mm high and 462 mm wide. The 25 mm thick core gives enough volume for coolant when the van is loaded with tools or freight. An integrated transmission cooler looks after both manual and auto setups on long highway runs or city delivery loops.

The 34 mm inlet and outlet necks match standard hose sizes, so you tackle a straight swap without hunting odd fittings. An 8 mm breather port helps clear air from the system after a refill. The alloy core and plastic tanks keep weight down while coping with Aussie heat from the coast to the industrial backblocks. The matched dimensions suit the Transit radiator support, making this a smart buy when the original unit starts to struggle.

• Suits Ford Transit 2014-on 2.0L diesel
• Compatible with both manual and automatic transmissions
• Core height of 767 mm for effective cooling
• Core width of 462 mm to match factory support
• Core thickness of 25 mm for adequate coolant volume
• 34 mm inlet and outlet diameters for hose compatibility
• 8 mm breather port to assist system bleeding
• Integrated transmission cooler for auto models
• Direct replacement footprint for OEM-style installation
• Suitable for daily commercial and touring use within factory specs

Q: Does this radiator suit all Ford Transit 2.0L diesel models from 2014-on?

It suits Ford Transit models from 2014-on fitted with the 2.0L diesel engine. It is intended for vans that match the listed core size and hose diameters. Always check your VIN and existing radiator dimensions before ordering. If you are unsure, our crew can help confirm suitability for your setup.

Q: Will this radiator work with both manual and automatic transmissions?

Yes, this radiator is listed for both manual and automatic Ford Transit 2.0L diesel models. The unit includes an integrated transmission cooler section for vehicles with auto gearboxes. Manual vans can still use the same core without issue. Have your mechanic connect or cap the cooler ports as required for your vehicle.

Q: What measurements should I check before replacing my existing radiator?

You should check core height, width, thickness and hose diameters against your current radiator. This unit measures 767 mm high, 462 mm wide and 25 mm thick, with 34 mm inlet and outlet and an 8 mm breather. Matching these figures helps avoid installation surprises. Measuring between tank seams on your old unit gives the closest comparison.

Q: Is this radiator suitable for heavy load or towing use?

This radiator is sized to the factory dimensions for the 2.0L diesel Transit, which is built for commercial use. The 767 mm by 462 mm core and integrated transmission cooler are intended to manage heat under typical work van loads. For extreme towing or modified engines, speak with your mechanic. They can advise if additional cooling gear is needed for your setup.

Suits Ford Transit models from 2014-on with 2.0L diesel engines. Compatible with both manual and automatic transmission variants. Fitment requires matching the 767 mm x 462 mm x 25 mm core size and 34 mm hose diameters to the existing cooling system. Professional installation is recommended to confirm correct hose routing and transmission cooler line connections.
