Our cartridge pumps incorporate some of the most advanced Features in the industry, Features developed from service in a wide variety of uses including racing, cruising, sport fishing and demanding commercial duties. For L450, L550, and L650, the design has been improved with easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. Where applicable the pumps are delivered including both a straight and a 90° smooth elbow Dura-Port as well as a removable check valve.
| BLA CODE | MODEL | CAPACITY OPEN FLOW L/M | CAPACITY OPEN FLOW GPH | CAPACITY @ 1M HEAD L/M | CAPACITY @ 1M HEAD GPH | POWER V | POWER AMP | FUSE SIZE | MAX HEIGHT MM | HEIGHT MM | OUTLET DIA IN | OUTLET DIA MM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 131802 | 500GPH | 40 | 630 | 33 | 525 | 12 | 2.5 | 5A | 1.30 | 149 | 3/4 | 19 |
| 131804 | 700GPH | 50 | 800 | 44 | 700 | 12 | 3.0 | 5A | 1.30 | 149 | 3/4 | 19 |
| 131810 | 1000GPH | 63 | 1000 | 50 | 800 | 12 | 3.2 | 5A | 2.70 | 177 | 3/4 | 19 |
| 131812 | 1000GPH | 63 | 1000 | 50 | 800 | 24 | 2.0 | 3A | 2.70 | 177 | 3/4 | 19 |
| 131814 | 1250GPH | 73 | 1150 | 60 | 952 | 12 | 3.0 | 5A | 2.45 | 216 | 11/8 | 28 |
| 131816 | 1250GPH | 73 | 1150 | 60 | 952 | 24 | 2.0 | 3A | 2.45 | 216 | 11/8 | 28 |
Spare Parts
131799 12V Replacement Motor Cartridge
N.B. As with all submersible electrics, attention is needed during installation to ensure that wiring connections remain above water level. Specified output is US gph open flow.
- 2200GPH rating tackles heavy bilges
- Cartridge core swap keeps installs tidy
- 12V electrics match most onboard setups
- Dura-Port outlets handle tight hose runs
- Check valve helps keep water out
- Smart buy for Aussie marine conditions
- Brand: Johnson Pump
- Model: Heavy Duty Bilge Pump 2200GPH 12V
- Pump type: Submersible cartridge bilge pump
- Nominal voltage: 12V DC
- Capacity open flow: 2200GPH (US gallons per hour)
- Discharge ports: Dura-Port straight and 90° smooth elbow
- Check valve: Removable
- Application: Racing, cruising, sport fishing and commercial marine duties
- Installation note: Wiring connections must remain above water level
- Flow rating basis: Specified output is US GPH open flow

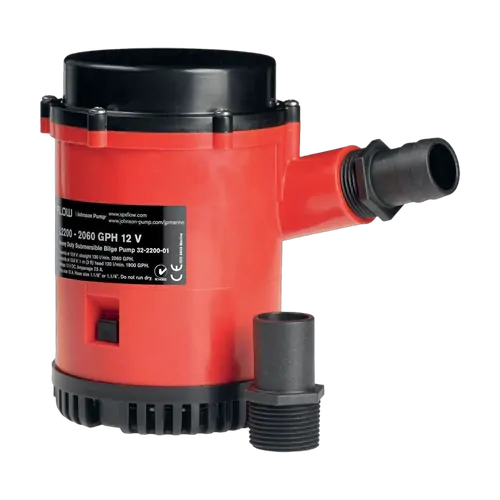

Johnson Pump heavy duty bilge pump 2200GPH 12V unit
Straight Dura-Port discharge port
90° smooth elbow Dura-Port discharge port
Removable check valve
| SKU | 131818 |
|---|---|
| Barcode # | 7330717000340 |
| Brand | Johnson |
| Shipping Weight | 2.6000kg |
| Assembled Length | 0.180m |
| Assembled Height | 0.190m |
| Assembled Width | 0.140m |
Johnson Pump Heavy Duty Bilge Pump 2200Gph -12V
