This Jayrad JR2223J radiator suits Toyota RAV4 ACA20 to ACA23 models from 2000 to 2005 and runs a 425 mm high core that lines up with the factory fan and shroud so the engine stays in its temperature range when you tackle long country stretches. A 708 mm wide face and 48 mm thick two row core handle steady coolant flow when the RAV4 is loaded with camping gear or towing within its rated capacity. The core uses two rows in that 48 mm stack to give more tube and fin contact without changing the standard 708 mm by 425 mm footprint so it bolts into existing mounts. Both inlet and outlet sit at 38 mm diameter for straightforward hose fit on these ACA20 to ACA23 engines. An integrated transmission cooler suits automatic models so you can get out there knowing the gearbox and engine share the same cooling hardware from one reliable unit.

• Suits Toyota RAV4 ACA20–23 2000–2005
• Intended for automatic transmission models
• Core height measures 425 mm
• Core width measures 708 mm
• Core thickness is 48 mm two row
• Inlet neck diameter is 38 mm
• Outlet neck diameter is 38 mm
• Includes integrated transmission cooler

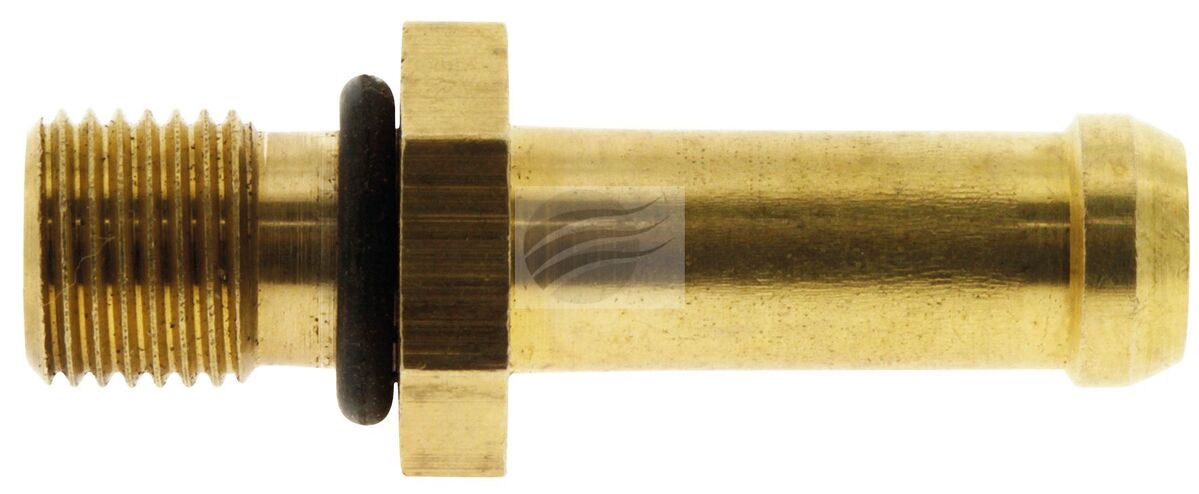

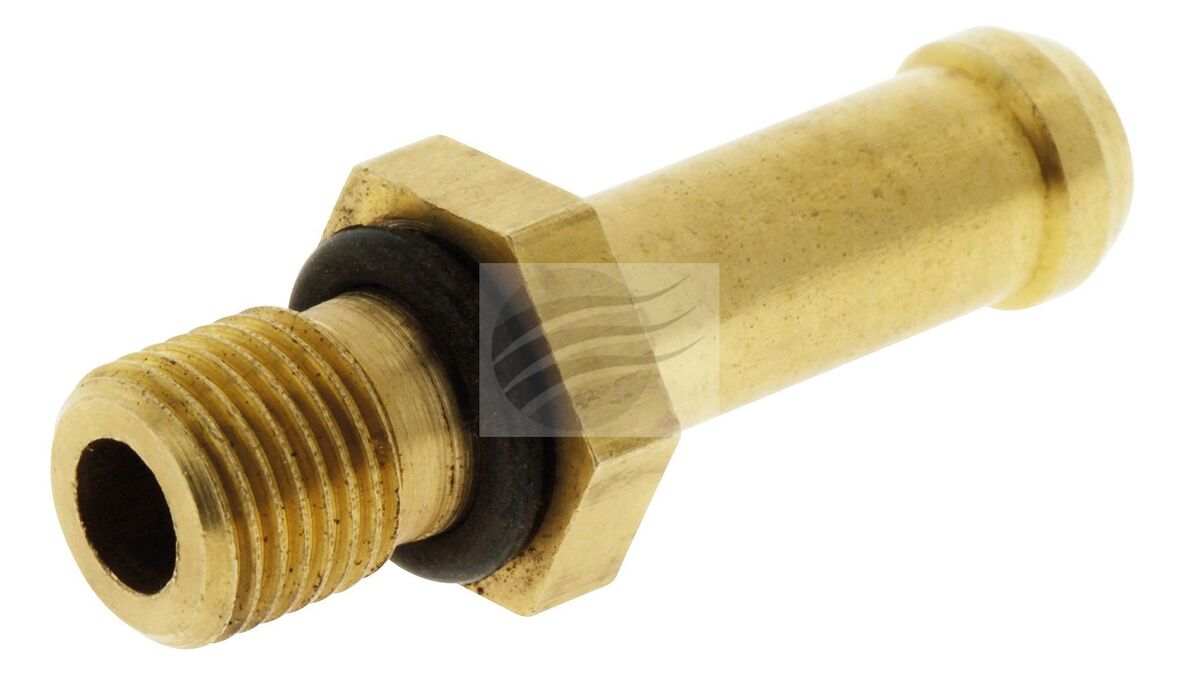

• Supplied with brass hose fitting
• Direct style replacement for factory radiator dimensions

Q: Does this radiator fit manual transmission Toyota RAV4 models?

This radiator is specified for automatic transmission RAV4 ACA20–23 models from 2000–2005. The core dimensions and tank layout suit autos that use an internal transmission cooler. Manual models may use a different tank casting without cooler ports. Always confirm your VIN and transmission type before ordering to avoid returns.

Q: What are the exact core measurements of this Jayrad radiator?

The core height is 425 mm, the width is 708 mm, and the thickness is 48 mm in a two row configuration. These dimensions refer to the finned cooling area between the tanks. Matching these numbers with your existing radiator helps confirm suitability. Small variations can affect fan shroud fit and mounting points.

Q: What hose size does the inlet and outlet on this radiator use?

Both the inlet and outlet necks use a 38 mm diameter. This matches the standard hose size used on ACA20–23 Toyota RAV4 engines. Checking your existing hoses for a 38 mm ID reduces the chance of mismatch. If hoses are worn, it is a good time to replace them with the new radiator.

Q: Does this Jayrad radiator include a built-in transmission cooler?

Yes, this unit includes an integrated transmission cooler for automatic models. The cooler uses dedicated ports on the radiator tank for the factory transmission lines. Keeping the transmission cooler inside the radiator helps manage gearbox temperatures in traffic and on climbs. Always confirm connections are tight and leak-free after installation.

Suitable for Toyota RAV4 ACA20/21/22/23R built between 2000 and 2005 with automatic transmission. Fitment requires removal of the existing radiator and transfer of any required hoses and mounts from the original unit. Integrated transmission cooler must be connected to the factory auto transmission cooler lines. Professional installation is recommended to ensure correct coolant bleeding and leak checks.
