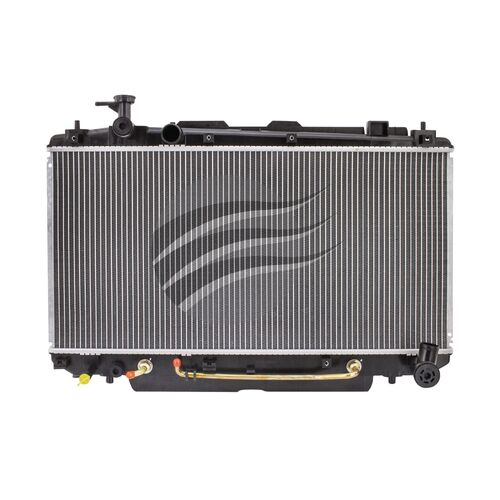

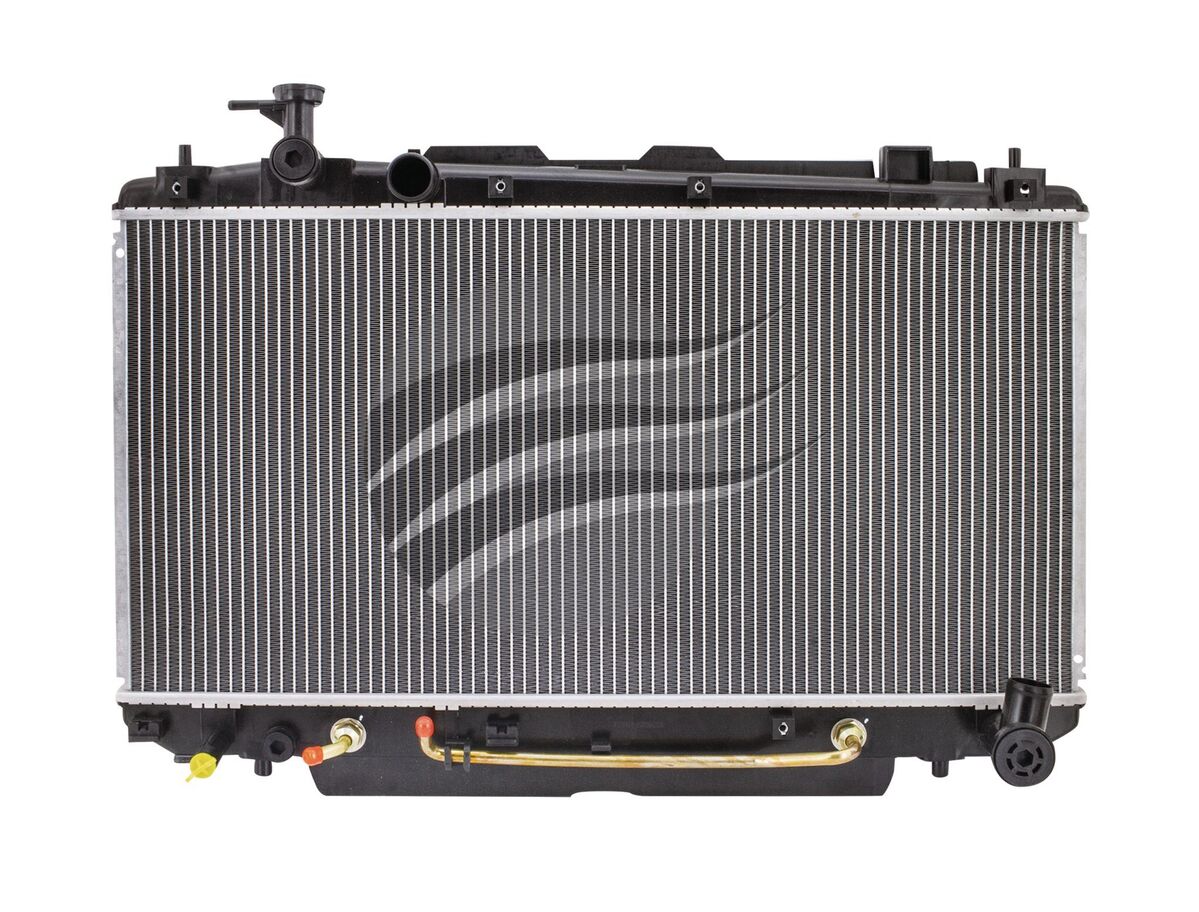

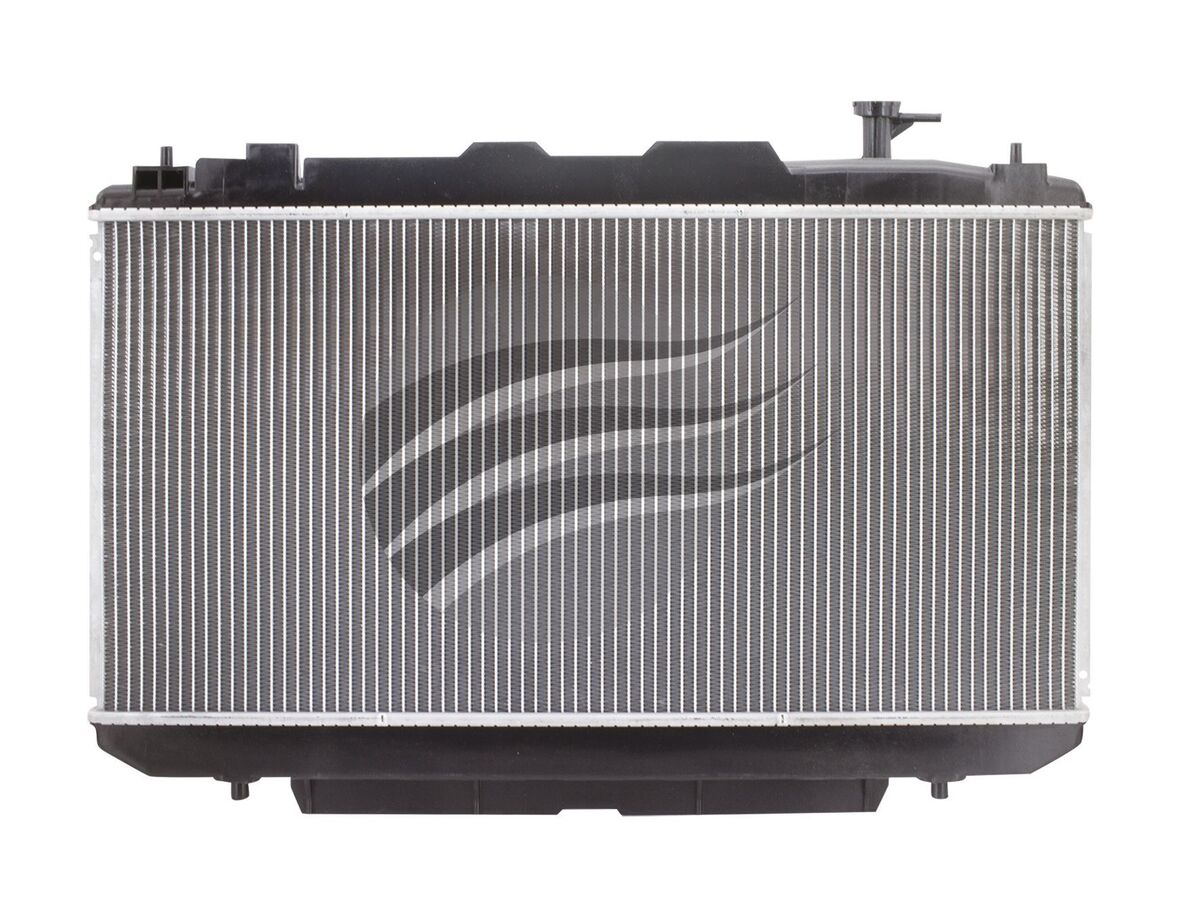

This Jayrad radiator keeps the 4.5 litre V8 turbo diesel in your VDJ76 VDJ78 or VDJ79 at the right temp when you load the tray or tow up to the legal 3500 kilograms. The core stands at 375 millimetres high and 738 millimetres wide so it shifts plenty of heat when you crawl in low range for hours. The 25 millimetre thickness fits into the factory bay without pushing hard against the fan. The alloy core and plastic tanks handle hot 40 degree days plus long stretches of corrugations without the weight of a full brass build. The 35 millimetre inlet and outlet line up with stock hoses so you can bolt the gear in and get out there sooner. The inbuilt transmission cooler suits auto setups that sit in third gear for kilometres. The Jayrad badge marks it as solid kit and a smart buy for touring Land Cruisers.

• Suits Toyota Land Cruiser VDJ76 VDJ78 and VDJ79
• Compatible with 4.5L V8 turbo diesel engines
• Alloy radiator core for strong heat transfer
• Plastic end tanks for corrosion resistance
• Core height measures 375 mm
• Core width measures 738 mm
• Core thickness measures 25 mm
• Inlet and outlet diameters both 35 mm
• Integrated transmission cooler built into lower tank
• Direct replacement style unit from Jayrad brand

Q: Does this radiator suit all Toyota Land Cruiser 70 Series models?

No it suits VDJ76 VDJ78 and VDJ79 models with the 4.5L V8 turbo diesel engine. Earlier 1HZ and petrol models use different radiator dimensions and mounting patterns. Always compare the 375 mm height 738 mm width and 25 mm thickness against your original unit. Matching the 35 mm inlet and outlet sizes is also important before ordering.

Q: Is there a built in transmission cooler in this radiator?

Yes this radiator includes an integrated transmission cooler circuit. The cooler sits in the lower tank and uses dedicated fittings for the transmission lines. This setup keeps automatic transmission fluid temperatures in check under towing loads and slow off road work. Always flush or cap the cooler ports properly during installation to avoid contamination.

Q: Do I need new hoses and clamps when fitting this radiator?

New hoses and clamps are recommended but not supplied with this radiator. Old rubber hoses can collapse under heat and pressure causing localised hot spots. Fresh clamps help maintain consistent sealing on the 35 mm inlet and outlet pipes. Many workshops pair a new radiator with a full coolant and hose service to avoid repeat labour.

Q: Can this radiator be used with standard coolant from Toyota?

Yes it can be used with coolant that meets the vehicle manufacturer specifications. The alloy core and plastic tanks are compatible with common long life coolant formulas used in modern diesel engines. Always mix to the correct ratio listed on the coolant label for corrosion protection. Bleed the system thoroughly after filling so the full 375 mm core height is wet with coolant.

Suits Toyota Land Cruiser VDJ76, VDJ78 and VDJ79 models with 4.5L V8 turbo diesel engines. Radiator is intended as a direct replacement unit for vehicles originally equipped with an alloy core and plastic tank radiator. Check core height 375 mm, width 738 mm and thickness 25 mm plus 35 mm inlet and outlet diameters against the existing radiator before install. Professional installation is recommended and new coolant must be used. Reuse original shrouds, mounts and hoses if in serviceable condition.
