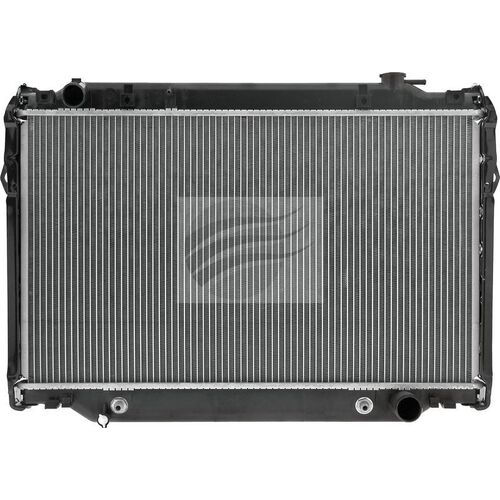

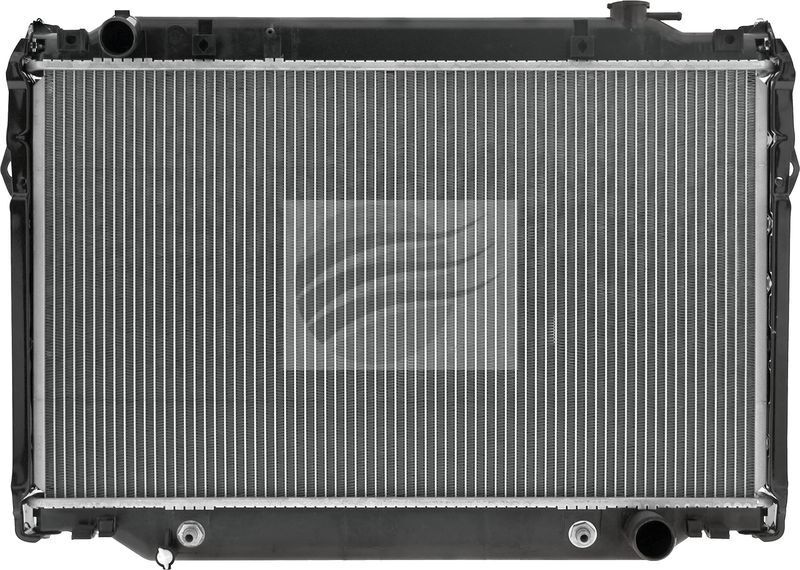

This Jayrad JR2063J radiator keeps Toyota Land Cruiser HZJ and HDJ 80 Series engines in check across long runs, with a core height of 425 mm and width of 720 mm giving the cooling area an 80 Series needs. A core thickness of 48 mm moves a solid volume of coolant, handy when you load the wagon and hold 2500 rpm on a climb. Inlet and outlet necks of 38 mm and 42 mm line up with typical factory hoses.

The integrated transmission cooler helps auto gearboxes stay within their working band while towing weights around 2500 kg, with fluid passing through its dedicated passages inside the 48 mm core. An 8 mm breather port makes bleeding air from the system straightforward after a change-out. The footprint suits the 80 Series radiator support panel dimensions, keeping fan spacing within a few millimetres so the setup drops into standard touring builds.

• Suits Toyota Land Cruiser HZJ/HDJ 80 Series
• Fitment range from 1990 to 1998 models
• Configured for automatic transmission vehicles
• Core height measures 425 mm
• Core width measures 720 mm
• Core thickness measures 48 mm
• Inlet neck diameter is 38 mm
• Outlet neck diameter is 42 mm
• Breather connection diameter is 8 mm
• Includes integrated transmission cooler within core

Q: Does this radiator fit both HZJ80 and HDJ80 Land Cruisers with automatic transmissions?

Yes, this radiator suits Toyota Land Cruiser HZJ80 and HDJ80 models with automatic transmissions built between 1990 and 1998. The core dimensions of 425 mm by 720 mm and 48 mm thickness align with these models. Hose neck diameters of 38 mm inlet and 42 mm outlet are sized for typical 80 Series diesel autos. Always confirm against your existing radiator before ordering.

Q: Does the Jayrad JR2063J include an integrated transmission cooler?

Yes, this radiator includes an integrated transmission cooler suitable for automatic transmissions. The cooler sits within the main 48 mm thick core and routes auto fluid through dedicated passages. This helps control gearbox temperatures when towing or working in low-range. You still need to connect the existing transmission cooler lines to the radiator ports during installation.

Q: What measurements should I check before replacing my existing radiator with this one?

You should check core height, width, thickness, and hose neck diameters against your original radiator. This unit uses a 425 mm high core, 720 mm wide core, and 48 mm thickness. The inlet neck is 38 mm and the outlet neck is 42 mm. Matching these measurements gives the best guide that it will sit correctly in the support panel.

Q: Can this radiator be installed in manual transmission Land Cruisers?

This specific listing is tailored for automatic models due to the built-in transmission cooler. A manual vehicle may have different hose routing or mounting points. If you run a manual gearbox, compare your current radiator dimensions and cooler layout carefully. In many cases a separate radiator part number is used for manual versions.

Suits Toyota Land Cruiser HZJ 80 Series and HDJ 80 Series built between 1990 and 1998 with automatic transmission. Unit is supplied as an A/P universal fit style radiator and is intended for vehicles that require an integrated transmission cooler. Professional installation is recommended to confirm hose routing and mounting. Always compare core dimensions and hose diameters against the original radiator before fitment.
