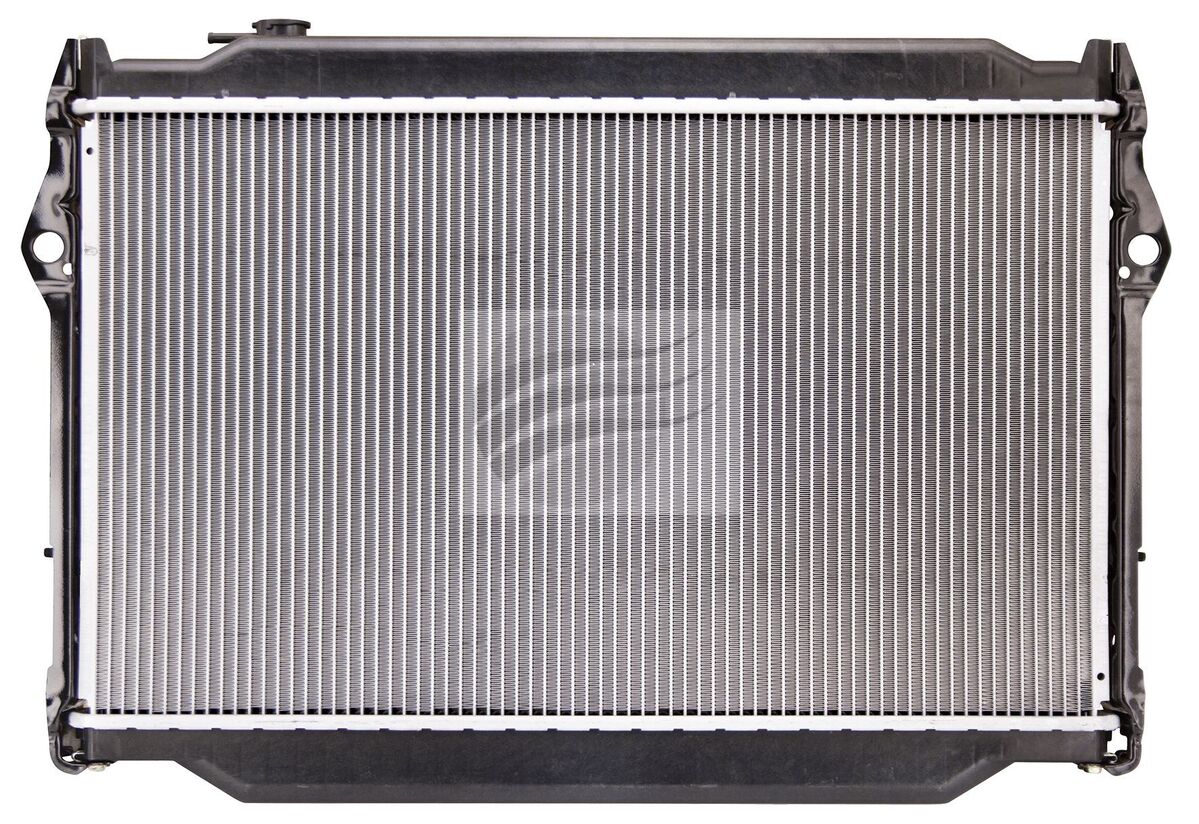

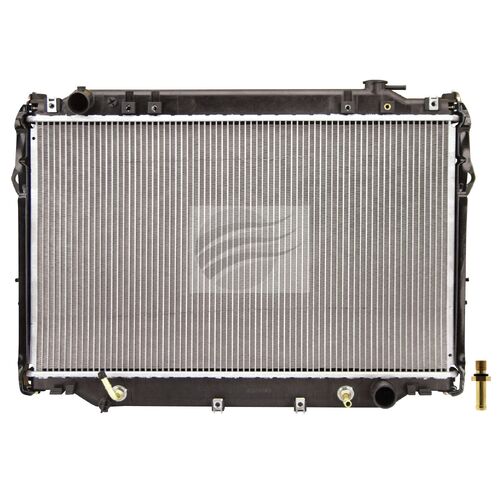

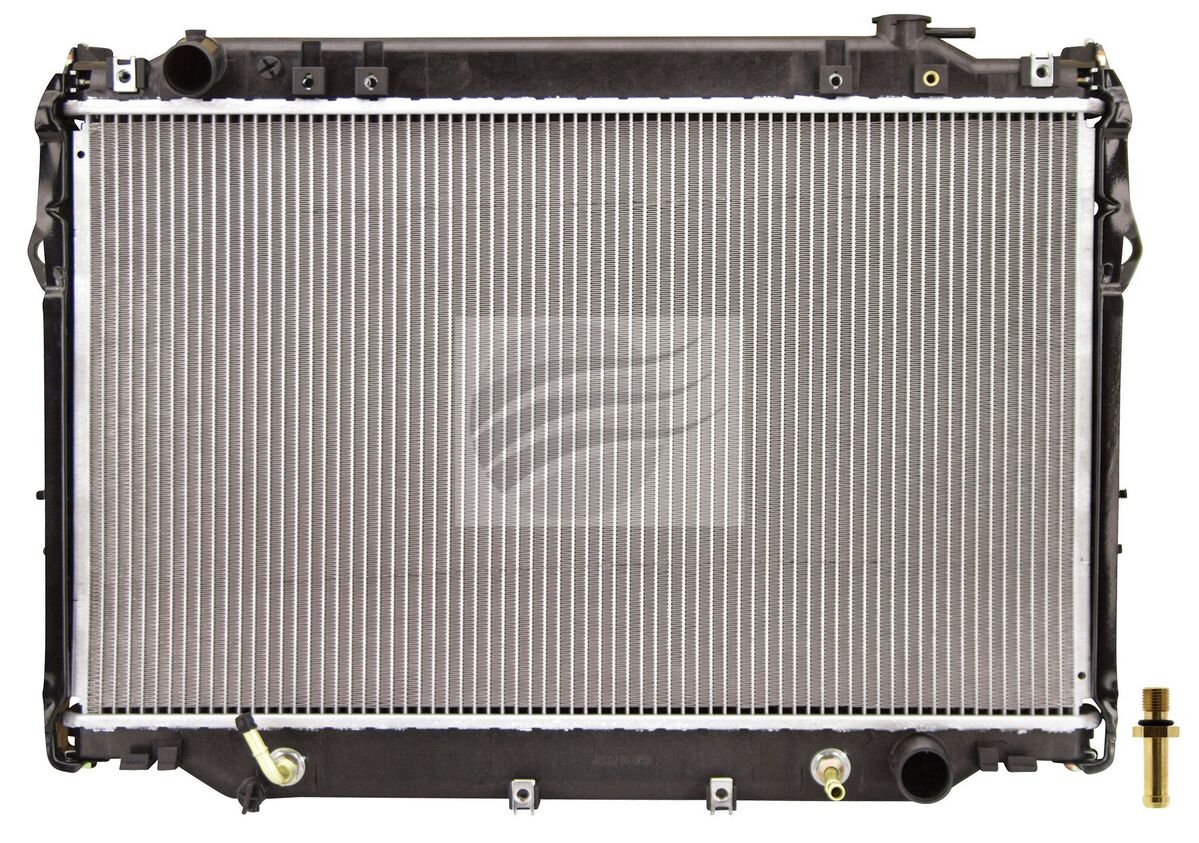

The Jayrad JR2222J radiator suits Toyota Hilux LN86R utes running the 2.8L diesel with manual box and handles coolant flow across a 425 mm high by 708 mm wide core. The 48 mm two row design shifts more heat than a single row unit when you sit on highway speeds with a loaded tray. The bent outlet and 38 mm hose connections keep the setup close to factory so you can get out there without reworking pipework. The integrated 390 mm transmission cooler keeps oil temps steadier on long climbs or soft tracks where revs hang around the torque band. The two row 48 mm core spreads coolant evenly so the top tank does not carry all the heat. The matching 38 mm inlet and outlet stubs line up with standard Hilux hoses for a smart buy when swapping an ageing unit. The overall package suits everyday driving and regular touring in Australian conditions.

• Suits Toyota Hilux LN86R 2.8L diesel manual models
• Jayrad JR2222J replacement radiator assembly
• Core dimensions 425 mm high x 708 mm wide
• 48 mm thick two row core for improved heat transfer
• 38 mm inlet and 38 mm outlet hose connections
• Integrated 390 mm transmission cooler section

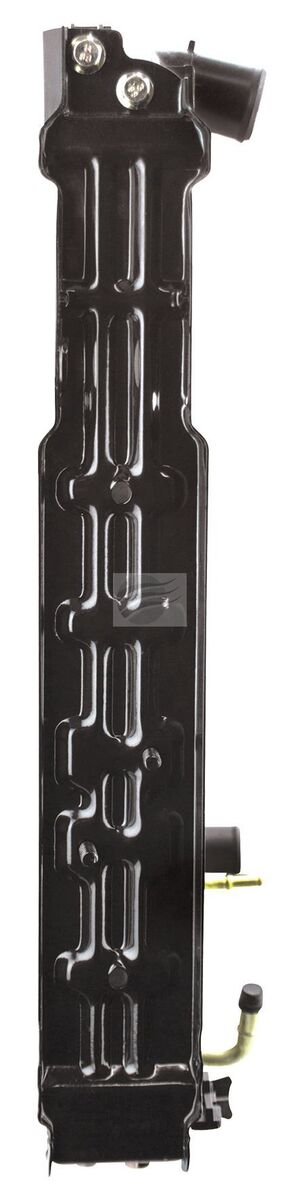

• Bent outlet configuration to follow factory hose routing
• Direct fit style using original mounting locations
• Suitable for cab chassis configurations noted in title
• Ideal replacement for worn or leaking factory radiator

Q: Does this radiator fit all Toyota Hilux LN86R models?

This radiator suits Toyota Hilux LN86R models with the 2.8L diesel engine and manual transmission cab chassis configuration. It matches a core size of 425 mm high by 708 mm wide and 48 mm thick. The hose connections are 38 mm inlet and 38 mm outlet. If your Hilux differs in engine or transmission, you should confirm measurements and part numbers before ordering.

Q: Is the transmission cooler part of the radiator assembly?

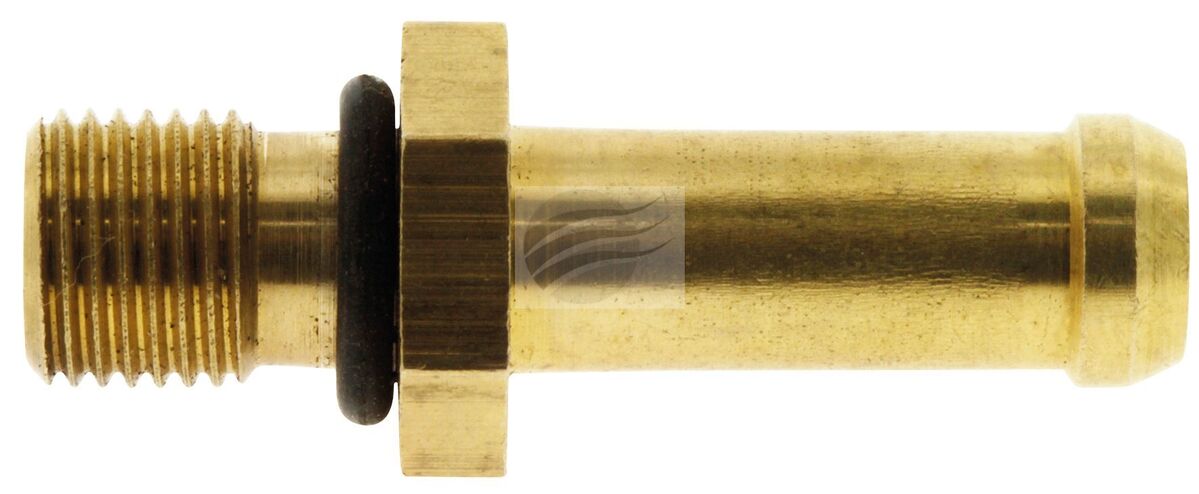

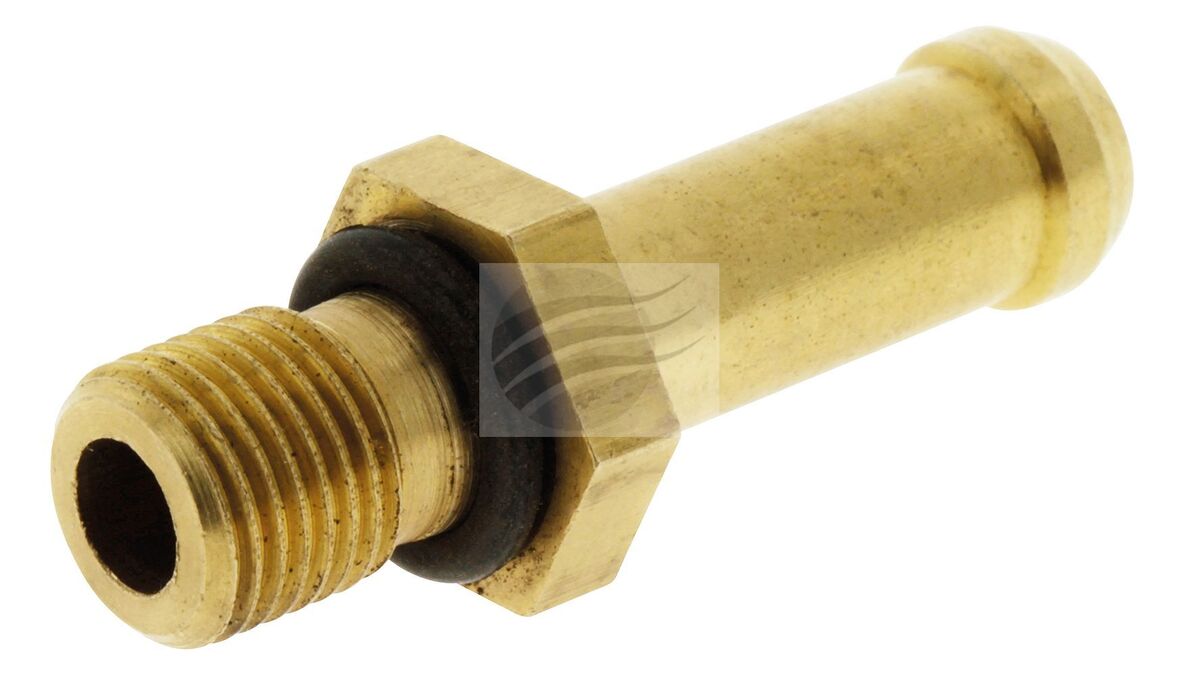

Yes, this radiator includes an integrated 390 mm transmission cooler. The cooler sits inside the main tank section and uses dedicated line fittings. This setup means coolant and transmission oil are separated but share the same heat-exchange package. You should reconnect existing lines and check for leaks after filling and bleeding the system.

Q: Do I need to modify the existing radiator mounts to install this?

No, the radiator is intended to use the standard mounting points for the Hilux LN86R. The 425 mm height and 708 mm width align with the original support frame. The bent outlet and 38 mm hose stubs match the typical routing on this model. You should still dry-fit the unit and check fan and shroud clearance before final tightening.

Q: Can this radiator be used with automatic transmission models?

This listing specifies use with manual transmission Hilux LN86R models. While it has a 390 mm transmission cooler section, the configuration and line fittings are matched to the described setup. Automatic models may require different cooler routing or capacity. For an automatic vehicle it is best to cross-check the OEM part number and choose a radiator listed for that exact drivetrain.

Suits Toyota Hilux LN86R with 2.8L diesel engine and manual transmission with cab chassis body. Includes integrated transmission cooler of 390 mm length. Check existing radiator core size of 425 mm height and 708 mm width before purchase. Confirm inlet and outlet hose diameter of 38 mm on the vehicle. Professional installation is recommended to ensure correct coolant and transmission line connection. Always refill with the correct coolant type and bleed the cooling system after installation.
