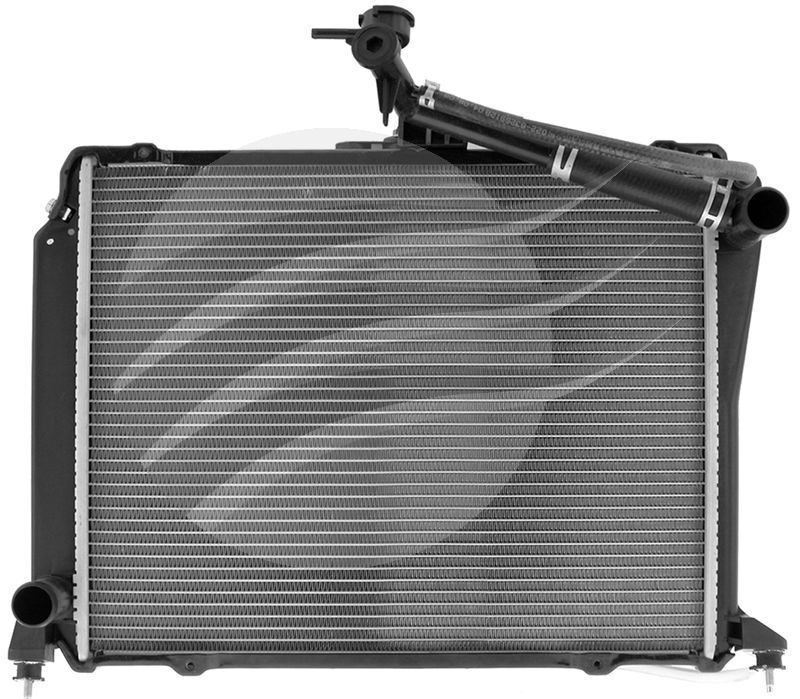

This Jayrad JR2130J radiator drops straight into Toyota HiAce diesel vans from 1999 to 2005 with the 2.8 L setup and manual transmission, using a core that stands 500 mm high and 395 mm wide so it lines up with factory shrouds. The 36 mm core handles constant load on hot days, while 35 mm inlet and outlet necks suit standard hoses so you can swap it in with the gear already on the bench. The integrated transmission cooler sits inside the same 36 mm core block, keeping plumbing neat under the front of the van on corrugated access roads. Jayrad builds this unit to the RA802AL and Toy025PACMDK spec, so the tanks and mounting points match the original pattern across 1999–2005 HiAce bodies. Those fixed dimensions mean less time trimming brackets and more time keeping the setup ready for daily runs.

• Jayrad JR2130J radiator for Toyota HiAce
• Suits 2.8L diesel models 1999–2005
• Matches RA802AL and Toy025PACMDK specs
• Core height of 500 mm
• Core width of 395 mm
• Core thickness of 36 mm
• 35 mm inlet hose connection
• 35 mm outlet hose connection
• Integrated transmission cooler in end tank
• Direct-fit pattern for factory mounts

Q: Does this radiator fit all 2.8L diesel Toyota HiAce models between 1999 and 2005?

It suits 2.8L diesel HiAce vans within that 1999–2005 range where the original radiator matches the RA802AL or Toy025PACMDK pattern. Always compare core size of 500 mm x 395 mm x 36 mm and hose diameters of 35 mm. If your existing unit shares these dimensions and mounting points, this Jayrad radiator is the correct style of gear.

Q: Is a transmission cooler included in this radiator design?

Yes, the radiator includes an integrated transmission cooler within the core. This means the transmission fluid lines connect directly to the end tank. It keeps the cooling setup compact at the front of the HiAce. It also avoids running an extra cooler where space in front of the condenser is limited.

Q: Do I need new radiator hoses with the 35 mm inlet and outlet?

Not necessarily, as this unit uses 35 mm inlet and outlet diameters to match factory hoses. If your existing hoses are in good condition and still grip tightly at 35 mm, they can usually be reused. Many mechanics still recommend replacing old hoses during a radiator change. Fresh clamps and coolant are also a smart move for a long-lasting setup.

Q: Can I install this Jayrad radiator at home or should a workshop handle it?

Installation can be done at home by someone comfortable working with cooling systems and basic tools. The direct-fit dimensions of 500 mm x 395 mm x 36 mm help the job go smoothly. However, correct bleeding of coolant and leak checking are critical. If you are unsure, a workshop with HiAce experience is a reliable option.

Suits Toyota HiAce diesel models from 1999 to 2005 with 2.8L engine left hand drive manual transmission and air conditioning with power steering. Cross references RA802AL and Toy025PACMDK for compatibility checking. Professional installation is recommended and new coolant is required after radiator replacement.
