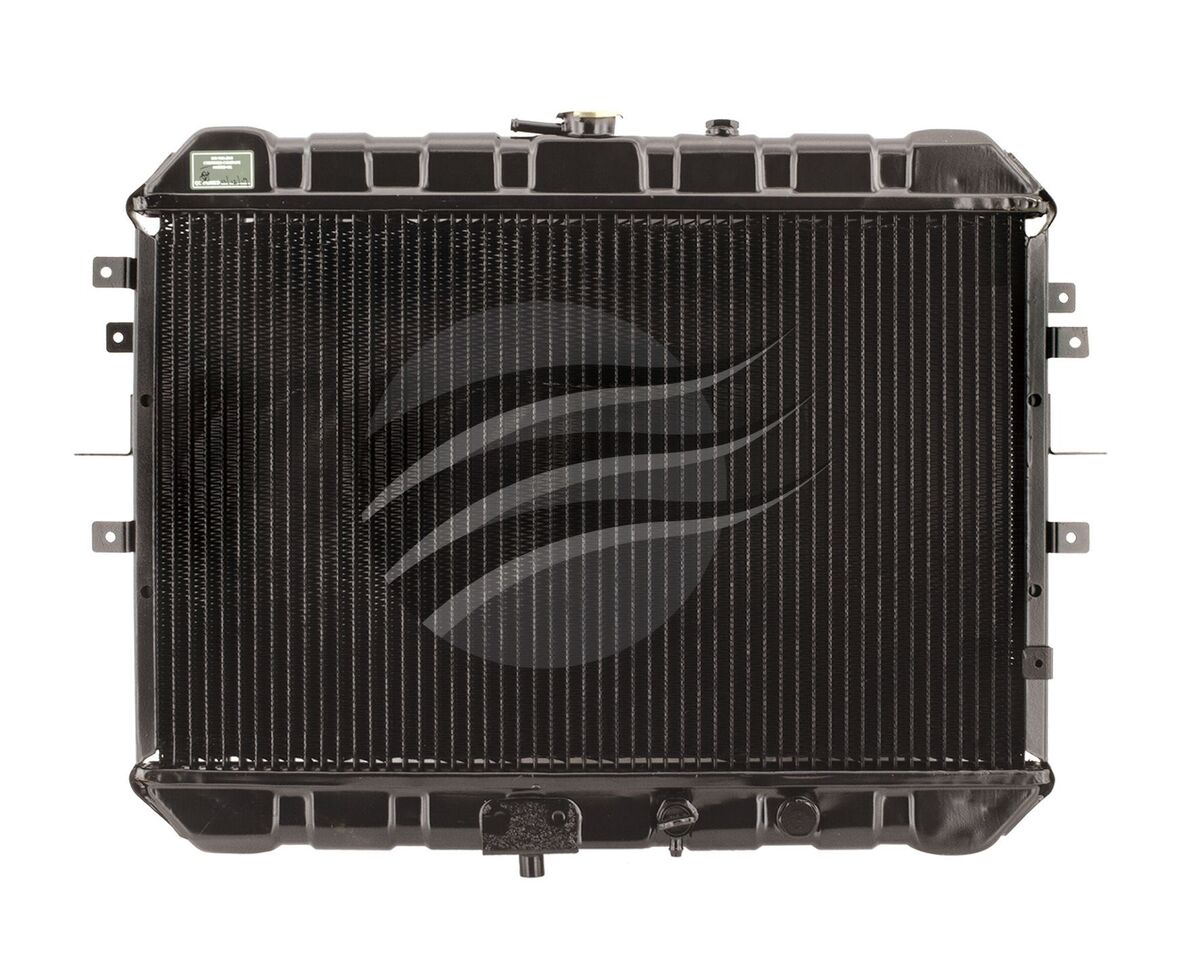

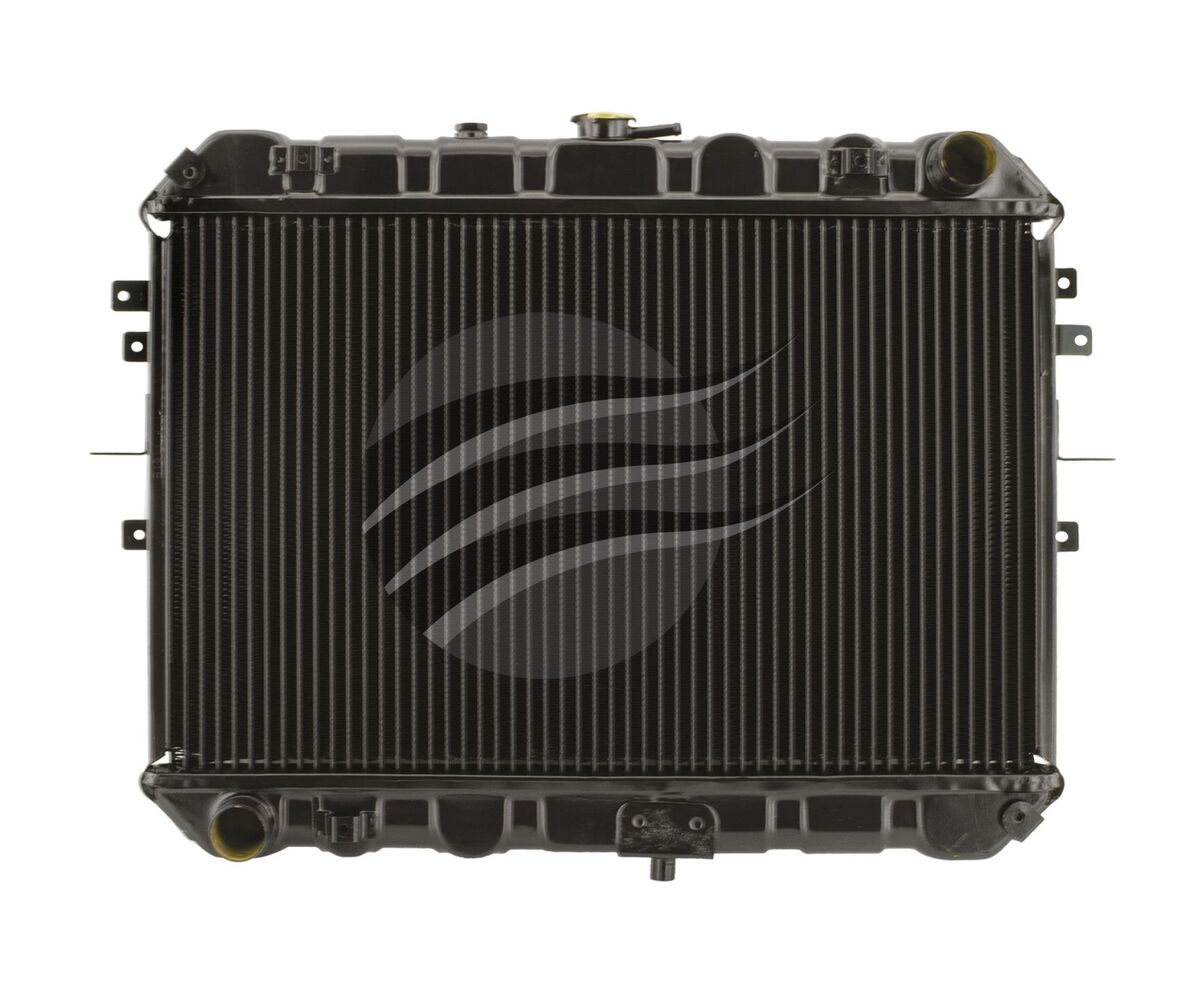

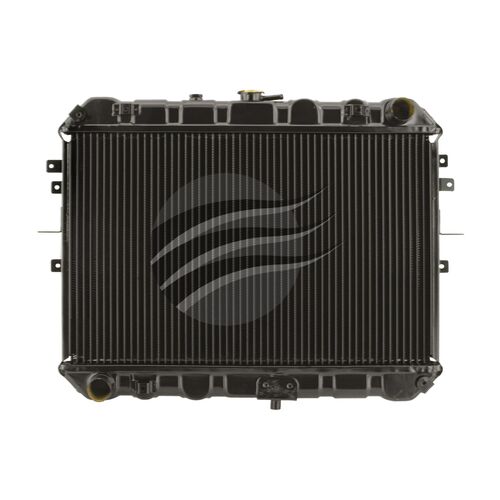

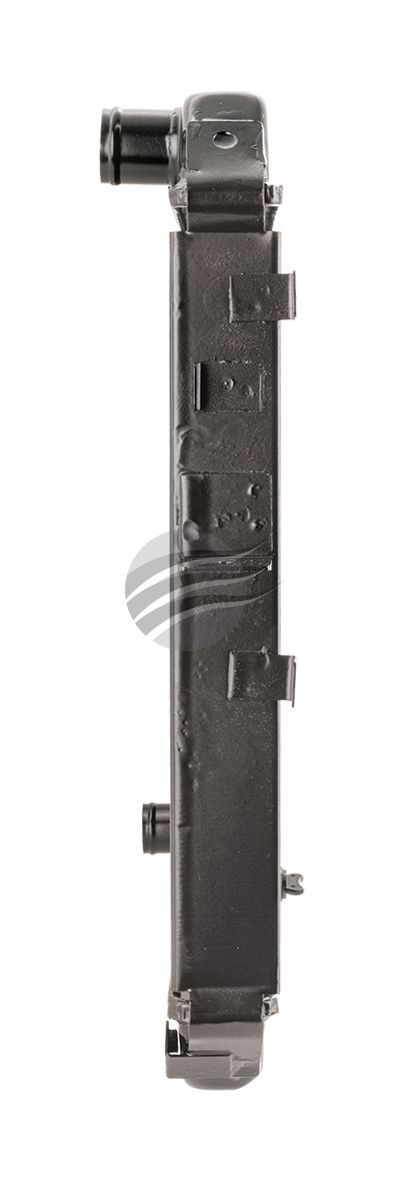

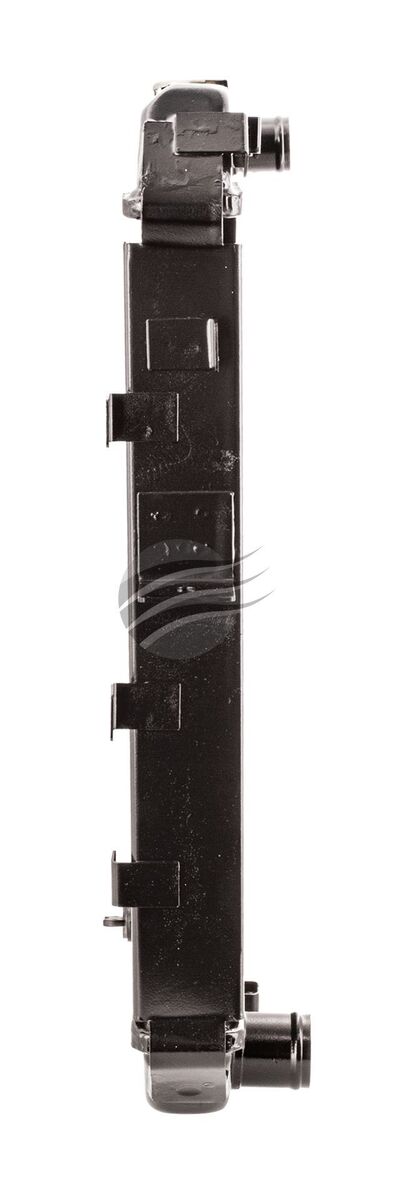

This Jayrad JR3035J radiator drops into Mazda E2000 and Ford Econovan petrol vans from 1984 to 1995 with a core size of 350 mm by 565 mm. The 32 mm core thickness lines up well with the factory shroud so airflow from the engine fan stays on point. The 35 mm inlet and outlet pipes take standard hoses so you can get out there again without hunting down odd fittings. The side tanks carry mounts that line up with existing brackets so the kit sits square without bending panels. The integrated trans cooler ports keep the driveline sorted in one unit instead of adding separate hardware. The 350 mm core height and 565 mm width give solid surface area for long climbs and hot days. The straightforward layout makes this a smart buy when the old radiator cores up or starts weeping.

• Suits Mazda E2000 petrol 1984–1995
• Suits Ford Econovan / Maxivan petrol 1984–1995
• Manual transmission configuration with cooler
• Core height: 350 mm
• Core width: 565 mm
• Core thickness: 32 mm
• Inlet and outlet pipe diameter: 35 mm
• Integrated transmission cooler ports in tank
• OE-style brackets for factory-style mounting
• Direct replacement radiator JR3035J from Jayrad

Q: Does this radiator fit both Mazda E2000 and Ford Econovan petrol vans?

Yes, this radiator is specified for Mazda E2000 and Ford Econovan / Maxivan petrol models from 1984 to 1995. The 350 x 565 x 32 mm core and 35 mm hose connections match the original setup on these vans. Still, it is worth checking your build year and existing core size before ordering. A quick comparison against the current radiator avoids return hassles.

Q: What hose size does this radiator use?

Both the inlet and outlet pipes are 35 mm in diameter. That matches the standard coolant hose size used on the listed Mazda and Ford vans. If your existing hoses are in good condition you can usually reuse them with this unit. If they are swollen or cracked it is a good time to replace them while the cooling system is open.

Q: Is a transmission cooler included in this radiator?

This radiator includes an integrated transmission cooler section within the tank. The ports allow connection to the appropriate transmission lines on compatible setups. This keeps coolant and transmission oil heat exchange in a single assembly. You still need to follow your vehicle manufacturer procedure when reconnecting and bleeding the lines.

Q: What should be checked before installing this radiator?

Check that the core height, width and thickness match your existing radiator. Confirm the 35 mm hose diameter and bracket positions line up with your shroud and mounts. Inspect fan blades and shroud clearance across the 32 mm core once fitted. Always refill with the correct coolant type and bleed the system to remove trapped air.

• Suits Mazda E2000 petrol models 1984–1995
• Suits Ford Econovan / Maxivan petrol models 1984–1995
• For vehicles with manual transmission (M/T)
• Includes integrated transmission cooler connections
• Confirm core size 350 x 565 x 32 mm against existing radiator
• Professional installation recommended to ensure correct coolant volume and hose routing
• Reuse compatible factory shrouds, mounts and hoses where condition allows
• Replace coolant and bleed system to manufacturer procedure after installation
