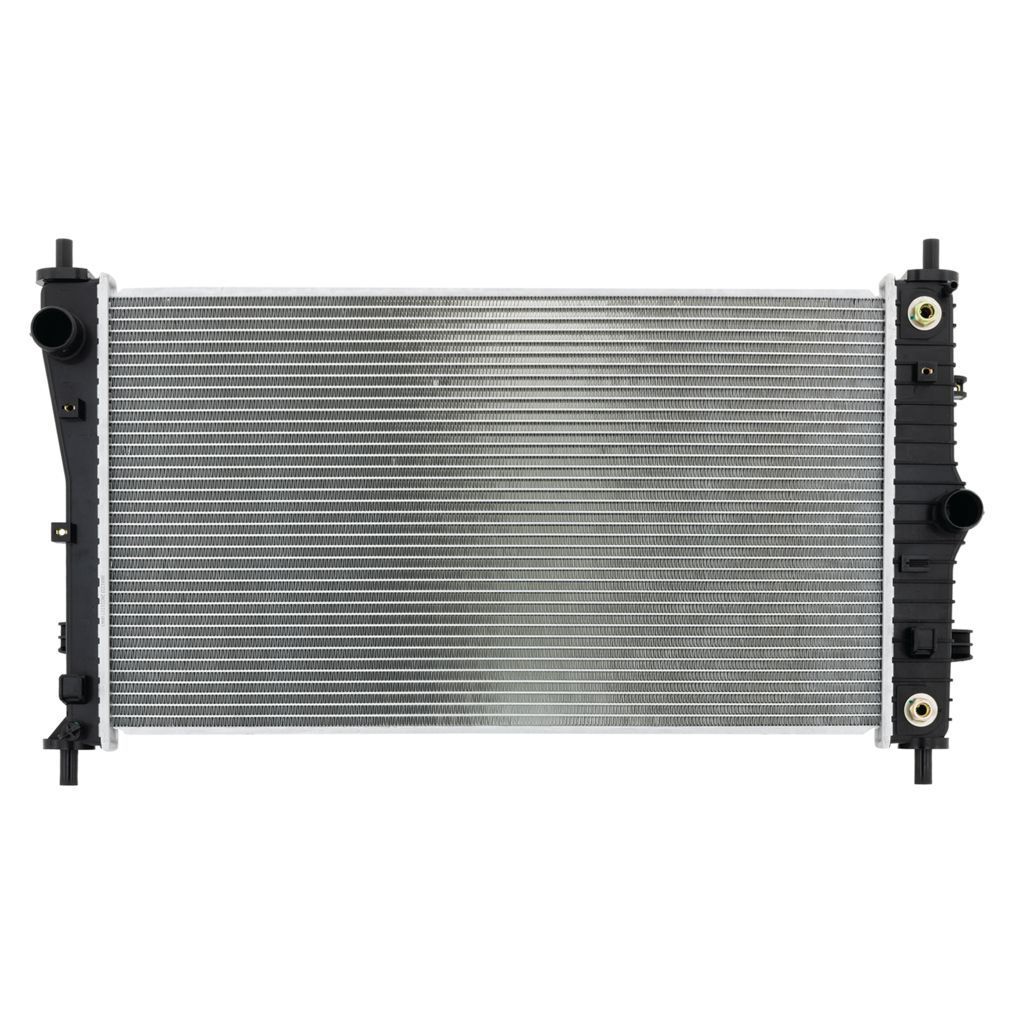

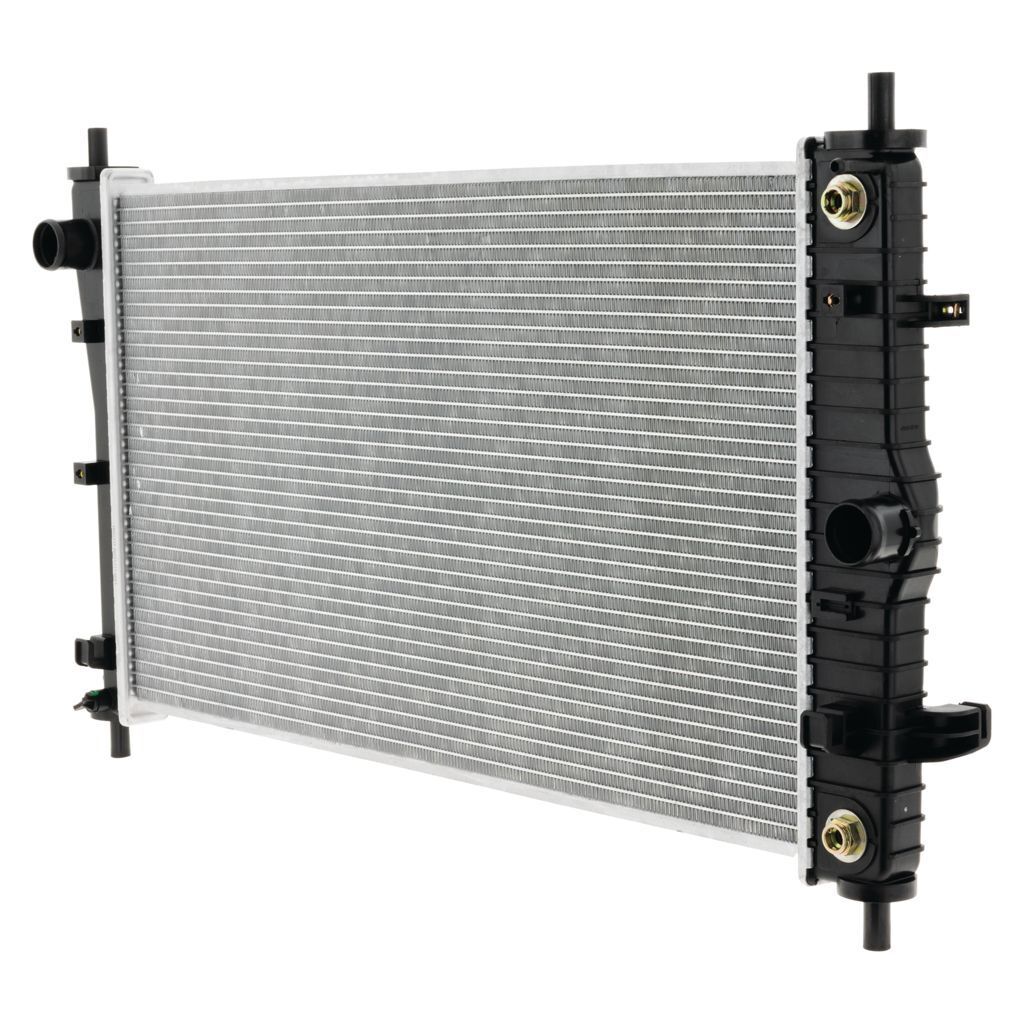

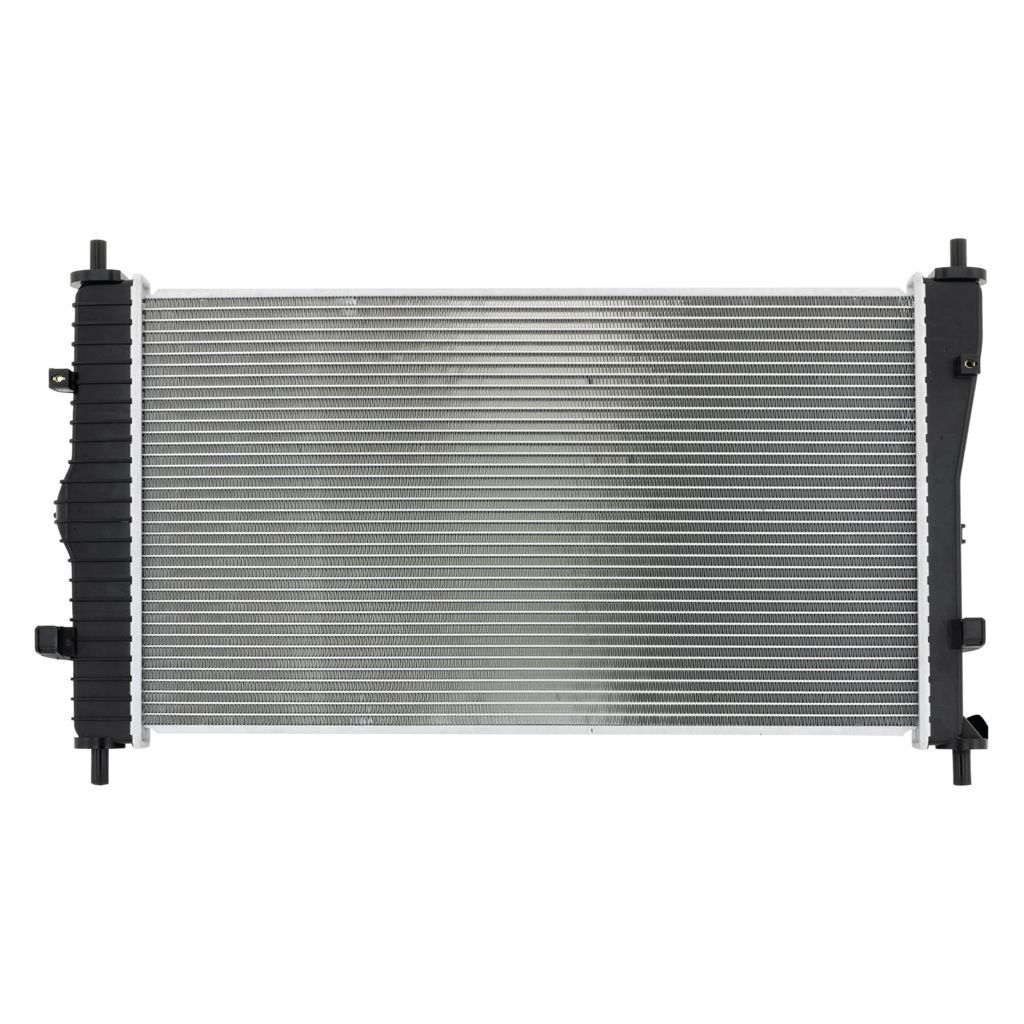

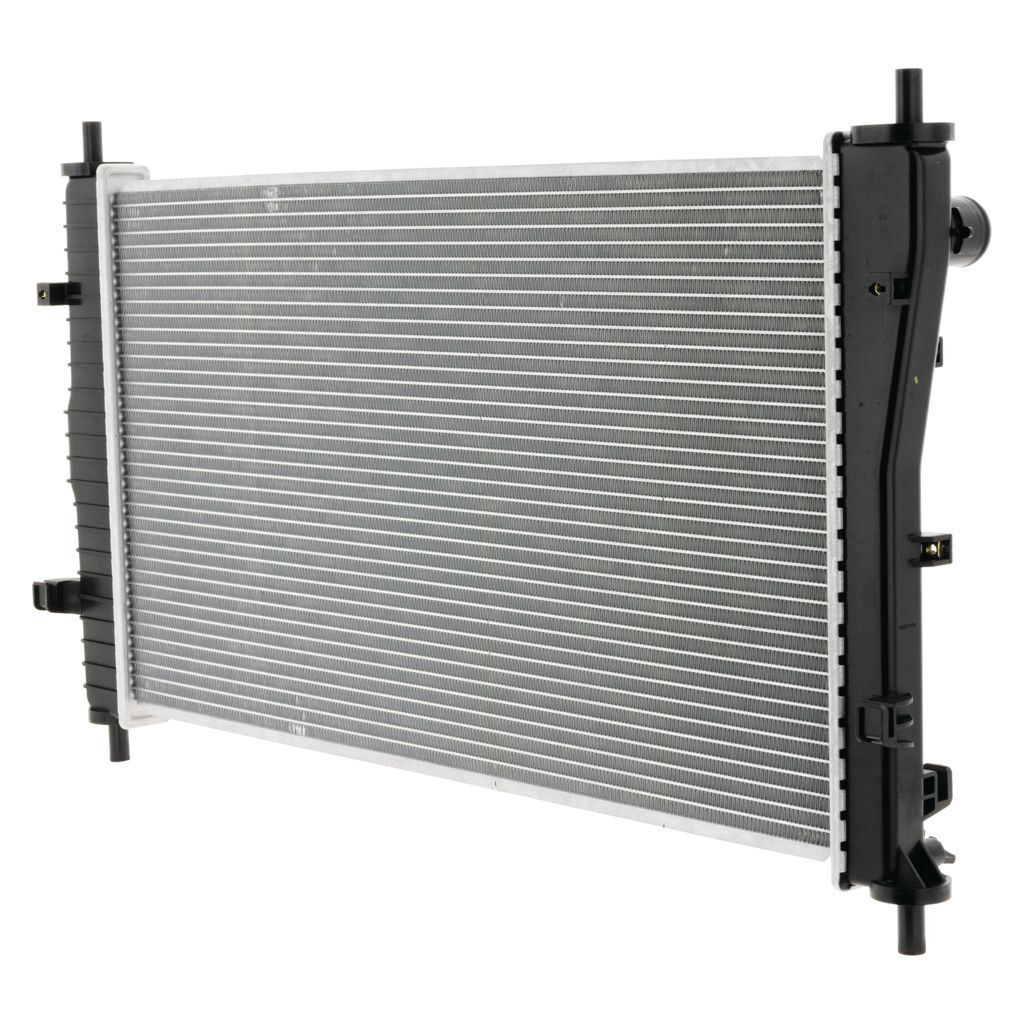

The Jayrad JR0122J radiator steps straight into LDV G10 vans with the 2.0L turbo petrol SV7 auto setup and uses a 680 mm core height to pull heat out of the coolant on long climbs. A 378 mm wide core and 22 mm thickness match the standard mounts, so the factory shroud and fan can still move plenty of air when you are stuck in traffic with the air con running hard. The integrated 350 mm transmission cooler section keeps auto fluid temps in check when you tow or load the van to its rated payload. Inlet and outlet pipe diameters of 38 mm and 35.5 mm line up with stock hoses, which makes hose routing straightforward for the mechanic. This is smart buy gear if you want factory-style cooling performance and dimensions that line up with the LDV G10 engine bay from 2015-on.

• Direct replacement radiator for LDV G10 2.0L turbo petrol SV7 auto (2015-on)
• Core height of 680 mm for strong cooling coverage
• Core width of 378 mm with dense fin area
• 22 mm core thickness suited to factory mounts and shroud
• 38 mm inlet and 35.5 mm outlet match OEM hoses
• Integrated 350 mm transmission cooler for auto gearboxes
• Suits 4x4 & Touring performance cooling applications
• Jayrad branded radiator built for everyday driving and towing
• Compatible with existing fan shroud and mounting hardware
• Ideal for restoring factory cooling performance on work vans

Q: Does this radiator fit all LDV G10 models?

This radiator suits LDV G10 2.0L turbo petrol SV7 auto models from 2015-onward. Other engine or transmission combinations may use different radiators. Always match the JR0122J part number to your existing unit before ordering. If you are unsure your mechanic can compare the core size and hose positions to confirm.

Q: Is the transmission cooler included in the radiator?

Yes this radiator includes an integrated transmission cooler section listed at 350 mm. The cooler uses built-in fittings so the auto transmission lines can connect in the same location as the original unit. This helps keep gearbox temperatures stable under towing or heavy load. Ensure new sealing washers or O-rings are used where required.

Q: Do I need new hoses when installing this radiator?

The inlet diameter is 38 mm and the outlet is 35.5 mm which match standard LDV G10 hoses. If your existing hoses are in good condition they may be reused after inspection. Many mechanics still recommend new hoses and clamps during radiator replacement. This approach reduces the chance of future leaks on an older cooling system.

Q: Can this radiator be used with manual transmission models?

This unit is specified for the SV7 auto configuration with an integrated transmission cooler. Some manual vehicles physically accept auto-style radiators but line connections may not be required. Always confirm against the original equipment number for manual variants. When in doubt order the radiator part listed specifically for your transmission type.

Suitable for LDV G10 2.0L Turbo Petrol SV7 Auto models from 2015-onwards. Intended as a direct replacement radiator for factory cooling on these vehicles. Transmission cooler connections support automatic transmission setups where fitted. Professional installation is recommended so hoses, mounts and transmission cooler lines are correctly transferred and sealed.
