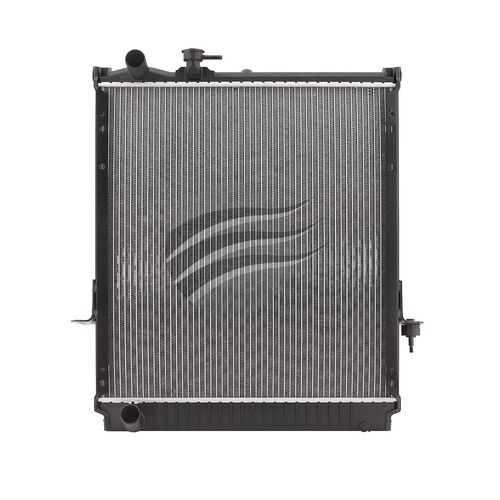

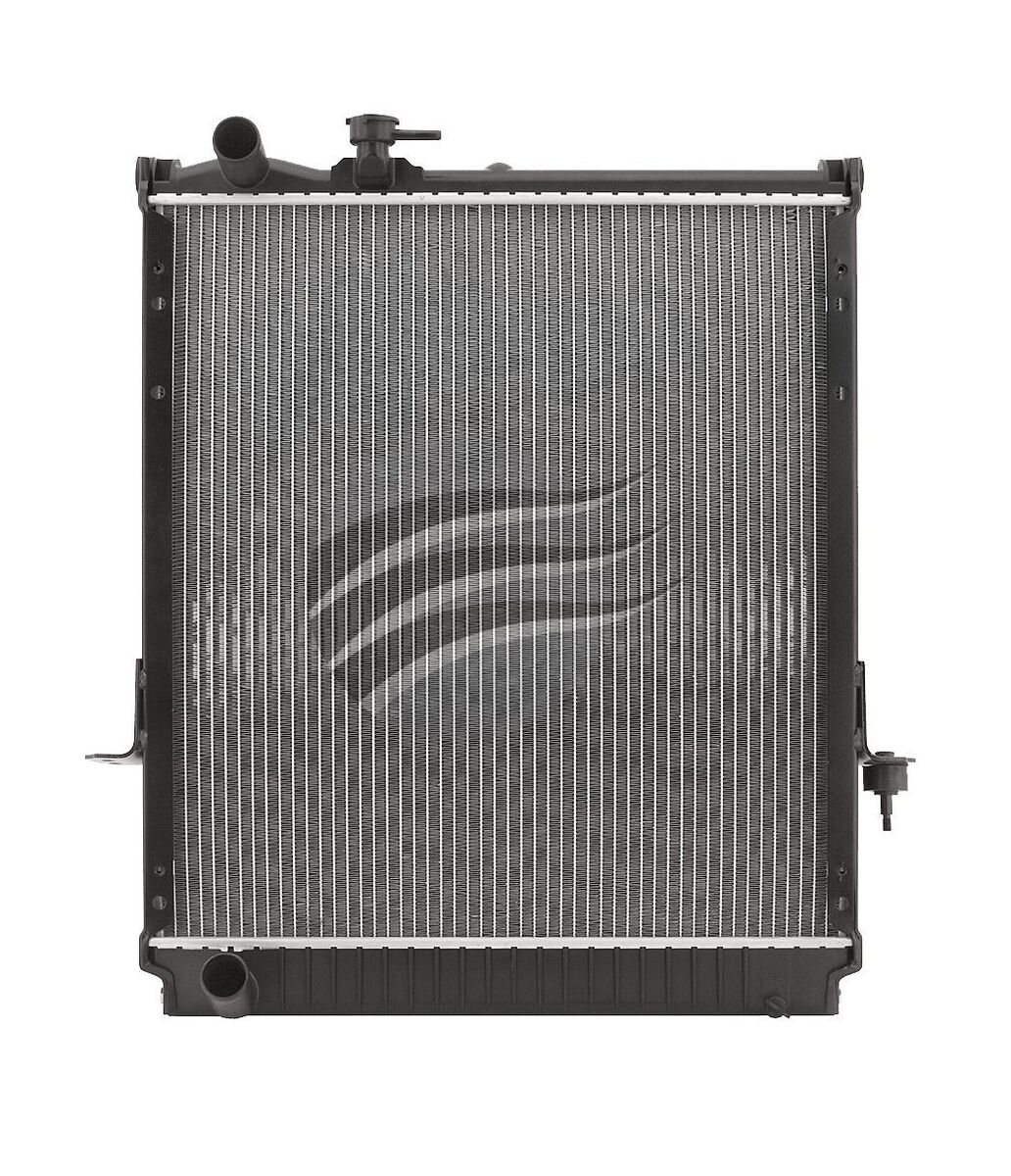

The Jayrad JR7912HD radiator drops into Isuzu NPR 300 Series M/T plus NQR NLS and NPS trucks from 2003 to 2007 with a core footprint of 590x544x42 mm so you keep the cooling path close to factory. A 590 mm core height and 544 mm width give enough face area for long runs with the tray loaded or the trailer on. The 42 mm thick core helps the cooling system tackle slow climbs and traffic without the temp needle creeping.

You get 38 mm inlet and outlet necks so the existing hoses line up and clamp straight on. The integrated transmission cooler section suits the driveline layout used across these Isuzu cab chassis models. That 590x544x42 mm package fits neatly behind the grille leaving space for airflow and fan clearance. For anyone wanting solid gear to keep a working truck on the road this radiator is a smart buy that matches known Isuzu dimensions.

• Replacement radiator for Isuzu NPR 300 Series M/T plus NQR NLS NPS 2003–2007
• Core size measures 590 x 544 x 42 mm
• Core height of 590 mm for ample frontal area
• Core width of 544 mm suits factory shroud
• 42 mm core thickness supports higher coolant volume
• 38 mm inlet diameter matches standard upper hose
• 38 mm outlet diameter matches standard lower hose
• Integrated transmission cooler section included
• Direct-fit dimensions minimise extra fabrication work
• Suitable for work trucks needing reliable cooling performance

Q: Will this radiator fit my Isuzu NPR 300 built in 2005?

Yes if it is the matching 300 Series manual transmission variant from 2003–2007. The core size should measure about 590x544x42 mm and the hoses should be 38 mm. If those match your existing radiator this unit will line up. When in doubt measure the old core and check the year and model plate on the truck.

Q: Does this radiator include a built-in transmission cooler?

Yes the specification lists a transmission cooler. That means the unit has an internal cooler section suited to the driveline layout on these Isuzu trucks. You still need to reconnect the existing cooler lines using the correct fittings. Always check for leaks after install and recheck levels once the truck has reached operating temperature.

Q: Can I install this radiator at home or should a mechanic do it?

A qualified mechanic is recommended. Radiator replacement involves draining coolant disconnecting hoses and cooler lines and bleeding the system afterward. Incorrect bleeding can leave air pockets that cause hot spots. A mechanic will also pressure test the setup and check caps and hoses so the truck is ready for work.

Q: What checks should I make before ordering this radiator?

Confirm your truck is an Isuzu NPR 300 Series M/T or NQR NLS NPS built between 2003 and 2007. Measure the existing core height width and thickness to match the 590x544x42 mm spec. Check the inlet and outlet necks are 38 mm. Matching these details helps avoid downtime from ordering the wrong gear.

Suitable for Isuzu NPR 300 Series manual transmission trucks plus NQR NLS and NPS models built between 2003 and 2007. Check core size of 590 x 544 x 42 mm plus 38 mm inlet and outlet diameters against your original unit before install. Professional installation by a qualified mechanic is recommended.
