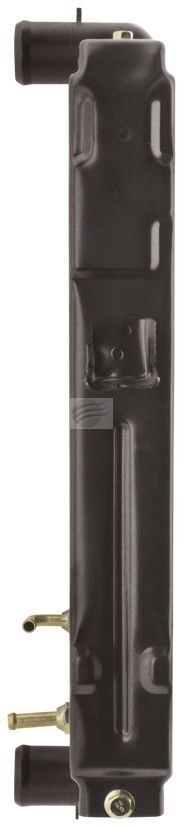

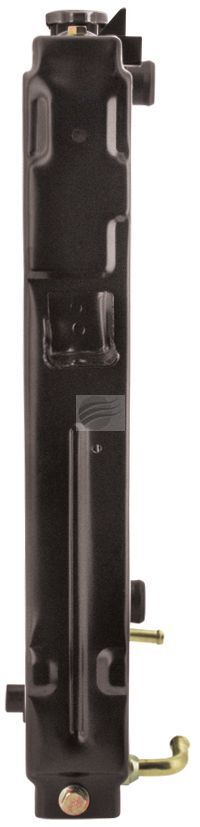

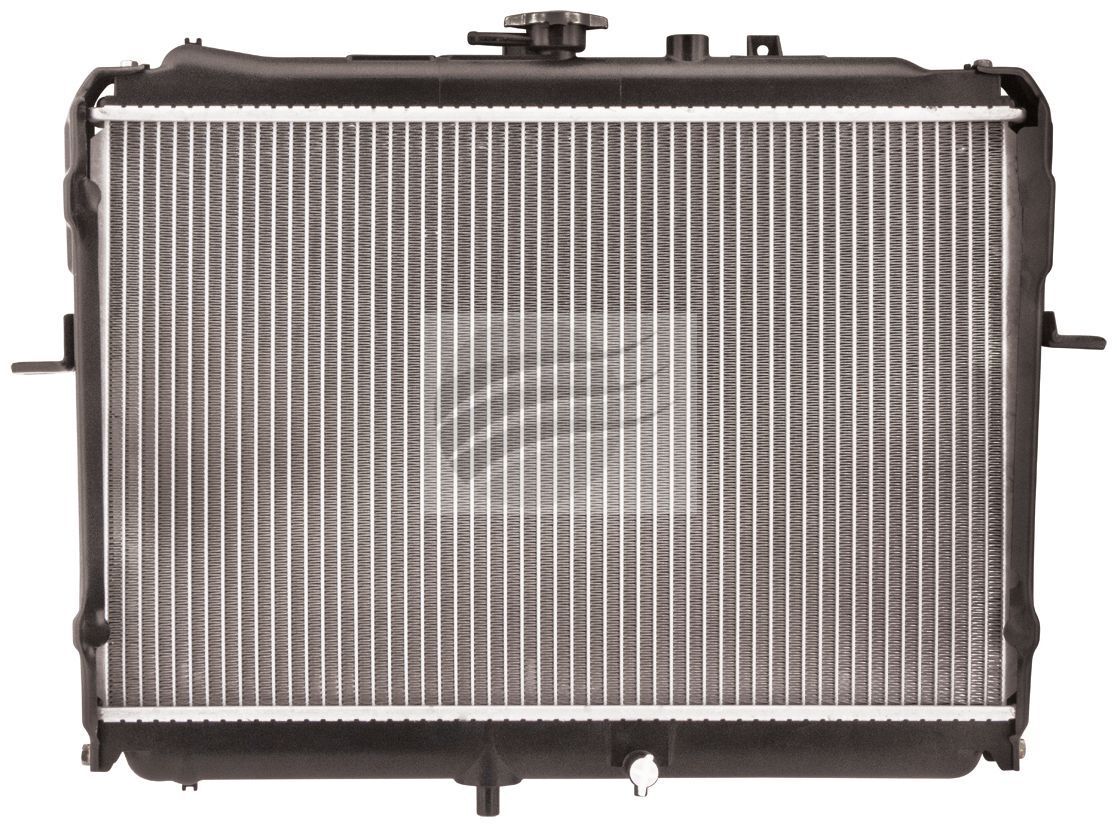

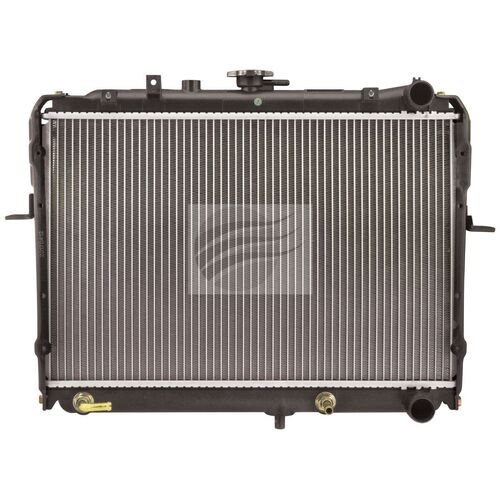

The Jayrad JR3061J radiator drops into Ford Econovan JH vans with a 2.0 L engine and auto box from 2003–2006, so you can tackle daily runs without watching the temp gauge. A core footprint of 350 mm high by 538 mm wide lines up with the factory mounts, and a 26 mm thick core keeps coolant moving on long pulls at 100 km/h. A 325 mm built-in trans cooler looks after the auto in slow yard work.

The necks on this gear sit at 35 mm inlet and 35 mm outlet, so the standard hoses from your Mazda E-Series or Econovan setup go straight back on. The FD034PACA2 pattern keeps fan shroud and support clearances tight, which matters when you load the van close to its GVM on hot bitumen. It is a smart buy if you want cooling gear matched to real Aussie stop-start and highway use.

• Suits Ford Econovan JH 2.0L auto 2003–2006
• Cross-reference FD034PACA2 for Mazda E-Series
• Core height 350 mm for factory fitment
• Core width 538 mm to match OEM shroud
• Core thickness 26 mm for controlled coolant volume
• 35 mm inlet neck diameter
• 35 mm outlet neck diameter
• Integrated 325 mm automatic transmission cooler
• Direct replacement Jayrad JR3061J radiator
• Suitable for daily work and touring use within factory limits

Q: Does this radiator suit manual Ford Econovan JH models?

This radiator is listed for automatic transmission models only. The integrated 325 mm transmission cooler is designed for auto fluid lines. Manual vans may use a different core or tank layout. Always match part number JR3061J or FD034PACA2 against your original unit before ordering.

Q: What measurements should I check against my old radiator before fitting?

Confirm core height, width, thickness and hose diameters. This unit has a core height of 350 mm, width of 538 mm and thickness of 26 mm. Both inlet and outlet necks are 35 mm diameter. Matching these figures helps avoid mount and hose alignment issues during install.

Q: Is the transmission cooler inside this radiator sufficient for towing within factory limits?

The built-in cooler length is specified at 325 mm, which matches the original auto setup. Within factory towing and GVM limits this cooler is sized to support standard automatic transmission operation. For heavy commercial use some owners still add an auxiliary cooler for extra thermal headroom.

Q: Can this radiator be used in Mazda E-Series vans?

The listing notes a cross-reference of FD034PACA2 for Mazda E-Series applications. Many Mazda E-Series vans sharing this pattern use the same mount points and hose layout. Always check the OE number and measure your existing core before fitting to confirm compatibility.

Suits Ford Econovan JH fitted with 2.0L petrol engine and automatic transmission built between 2003 and 2006. Also suits compatible Mazda E-Series applications noted under cross-reference FD034PACA2. Confirm core height 350 mm width 538 mm and thickness 26 mm against the original radiator before install. Professional installation is recommended to correctly connect the 35 mm inlet and outlet and the 325 mm automatic transmission cooler lines.
