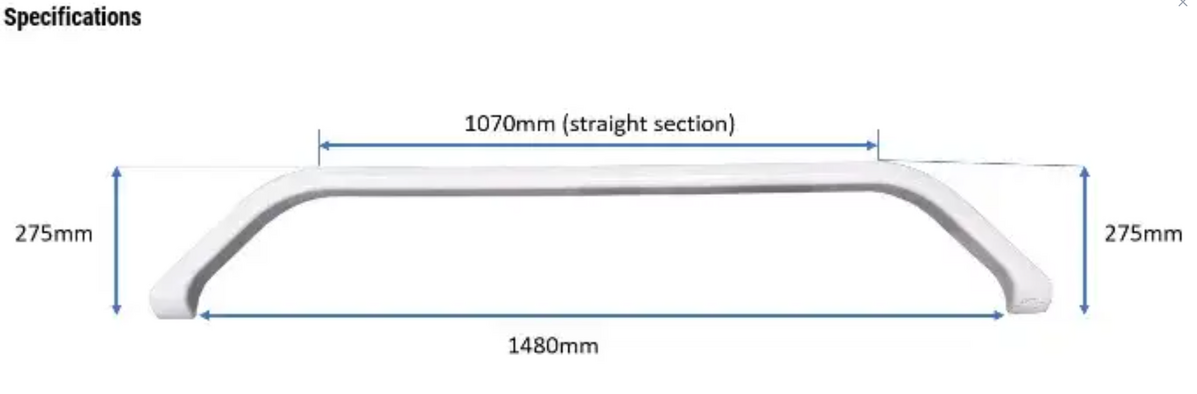

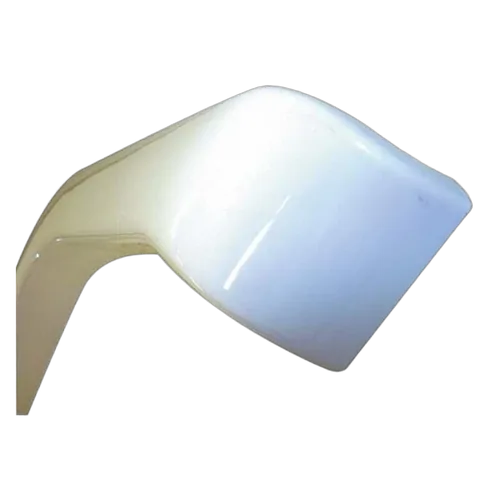

If you have a late model Jayco Heritage with tandem wheels this double wheel spat in white helps keep the side of the van tidy over a 1480 mm wheel opening. The guard spans a straight centre run of 1070 mm so it covers both tyres and still lines up with the factory body shape. End drops of 275 mm give enough depth around the arch to shield the van from grit and road spray.

This Jayco spat uses a hard plastic mould that keeps weight down while handling regular highway and gravel touring. The white outer surface matches typical Jayco panels and reflects harsh sun during 40°C summer days better than darker trims. The 1480 mm span suits replacement jobs where the original spat is cracked or missing and the 275 mm depth sits neatly over standard tandem tyres without crowding the tread.

• Genuine Jayco late model Heritage wheel spat
• Suits double wheel caravan setups
• Overall spat width approximately 1480 mm
• Straight centre section length approximately 1070 mm
• End drop height at each side approximately 275 mm
• Supplied as a single wheel spat in white
• Hard plastic construction keeps weight down
• Protects caravan sides from mud and road debris
• Covers tandem wheel arch for cleaner bodywork
• Ideal replacement when original spat is cracked or missing

Q: Is this Jayco wheel spat sold as a pair or individually?

This Jayco Late Model Heritage double wheel spat is sold individually. If your van has spats on both sides and both need replacing you will need to order two units. Many owners replace only the damaged side to match an existing good spat. Always confirm the condition and colour of both sides before you place the order.

Q: How can I check if this spat will match my existing wheel opening?

Measure the total width and height of your current wheel arch and compare it to this spat. The overall span of this spat is 1480 mm with a straight centre section of 1070 mm and a drop of 275 mm at each end. If your measurements are close to these figures it is more likely to suit your van. Small differences may indicate your caravan uses a different spat profile.

Q: Does the spat come with mounting hardware or sealant?

This listing covers the spat only and does not mention any mounting hardware or sealant. Most installers reuse existing holes or fasteners where possible or select stainless screws and appropriate sealant separately. Your local repairer or caravan service centre can advise on the best fixings for your specific wall construction.

Q: Can this white spat be painted to match a different colour scheme?

The spat is supplied in white but many repairers choose to paint plastic wheel spats to match custom graphics. Surface preparation and flexible compatible paint are important for a long lasting finish. If you plan to paint it speak with a paint supplier about primers and coatings suitable for exterior plastic. Always test on a small area first before spraying the full part.

This wheel spat suits late model Jayco Heritage caravans with a double wheel setup. The spat spans an overall outside width of 1480 mm with a 1070 mm straight centre section and 275 mm drops at each end. Check these measurements against your existing wheel arch before ordering. The spat mounts to the caravan body over the tandem wheel opening using appropriate fixings supplied separately by the installer.
