Description

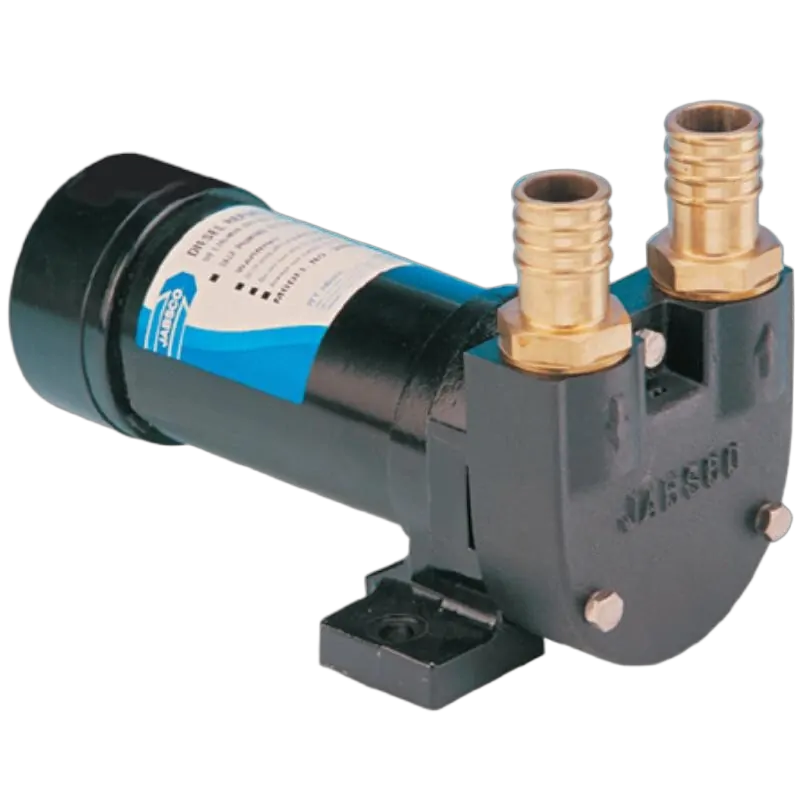

A range of high quality, high volume, heavy duty sliding vane pumps with continuously rated motors for fast fuel transfer. Vane pump operation is impervious to diesel and oils.
- A Suitable for diesel, kerosene, paraffin and hydraulic oils up to 50 centi stokes
- A Suitable for diesel transfer on boats and other equipment such as excavators, cranes, pavers, tractors, generators, agricultural machines etc.
Model VR100 100 LPM Capacity
- 100 litres per minute at 3 metre head
- 20 minutes rated at 3.4 Mtr head
- Suitable for tanks 400 - 1500 litres
- Self priming up to 5 metres vertical
- 10 metre maximum head
- 1" BSP threaded ports. No switch.
Service Kit (RWB-J45-158) also available.
Bronze hose adaptors shown are not included - sold separately. RWB-1477
| PART NUMBER | VOLTAGE | SUITS TANK SIZE | SELF PRIMING | THREADED PORT SIZE | LITRES PER MINUTE |
|---|---|---|---|---|---|
| RWB-J40-149 | 24v | 400 - 1500L | Up To 5m Vertical | 1" | 100LPM |
Specifications
| SKU | J40-149 |
|---|---|
| Barcode # | 671880551175 |
| Brand | Jabsco |
| Shipping Weight | 6.0000kg |
SKU: J40-149

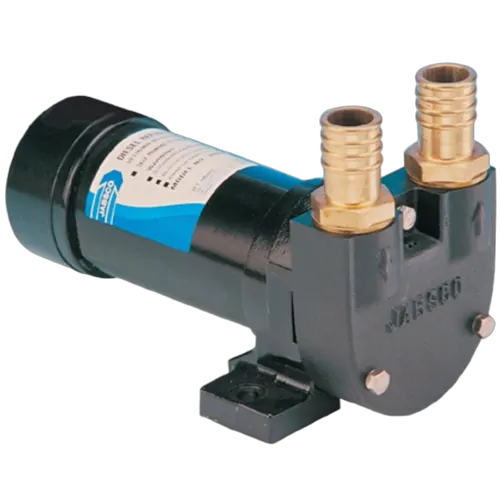

Jabsco Diesel Fuel Transfer Vane Pump High Volume 100L 24v
