Description
ISOTHERM® CLASSIC COMPACT SYSTEMS – AIR COOLED. 200 VOLUME* FRIDGE/ 65 FREEZER L. COMPRESSOR H155MM X W160MM X L315MM / EVAPORATOR H140MM X W380MM X L270MM. WEIGHT 9KG. MAX. POWER CONSUMPTION AMPS@12V: 3.5.
Features
- 12V kit suited to boat fridges
- Air-cooled compressor keeps install simple
- Up to 200L fridge plus 65L freezer
- Compact modules fit tight storage spaces
- Low 3.5A draw helps power planning
- Around 9kg total weight for lighter mounts
Specifications
- Brand: Isotherm
- System type: Classic Compact air-cooled refrigeration system
- Fridge capacity: 200 L (approximate volume*)
- Freezer capacity: 65 L (approximate volume*)
- Compressor dimensions: H155mm x W160mm x L315mm
- Evaporator dimensions: H140mm x W380mm x L270mm
- Power supply voltage: 12V DC
- Maximum current draw: 3.5A @ 12V
- Approximate system weight: 9kg
- Application category: Marine fridge and freezer system
- Isotherm Compact Classic air-cooled compressor module (approx. H155mm x W160mm x L315mm)
- O-style evaporator plate (approx. H140mm x W380mm x L270mm)
- Pre-charged refrigerant lines attached to evaporator
- Thermostat with capillary tube
- Mounting grid for compressor unit
- Evaporator protective lid / cover
| SKU | 381506-BLA |
|---|---|
| Barcode # | 9319786113011 |
| Brand | Isotherm |
| Shipping Weight | 9.0000kg |
| Shipping Width | 0.540m |
| Shipping Height | 0.295m |
| Shipping Length | 0.585m |

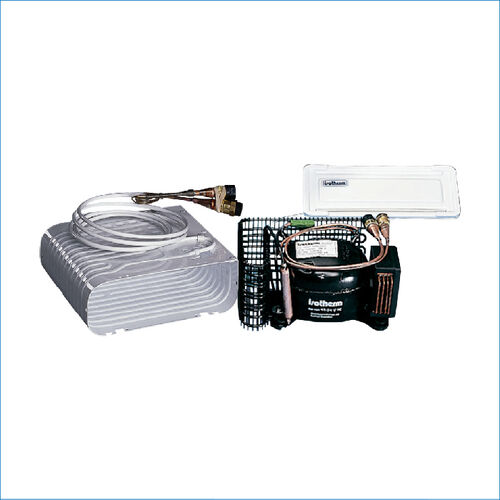

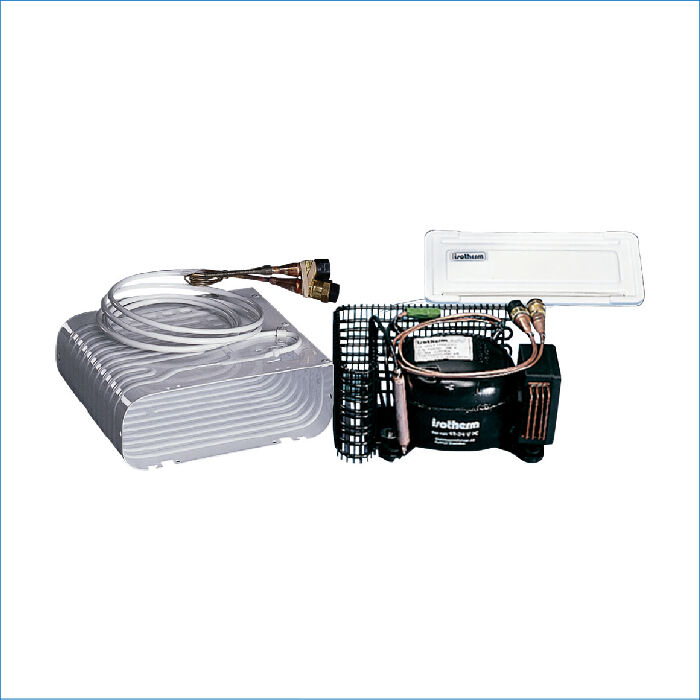

Isotherm Compact Classic System 200/65L O Evaporator
SKU: 381506-BLA
Sale price
REG $2,019.00
SALE ENDS
Dispatch in 7 days
More infoMake 4 payments of $446.87 over 8 weeks and get it now!
Calculate Shipping
