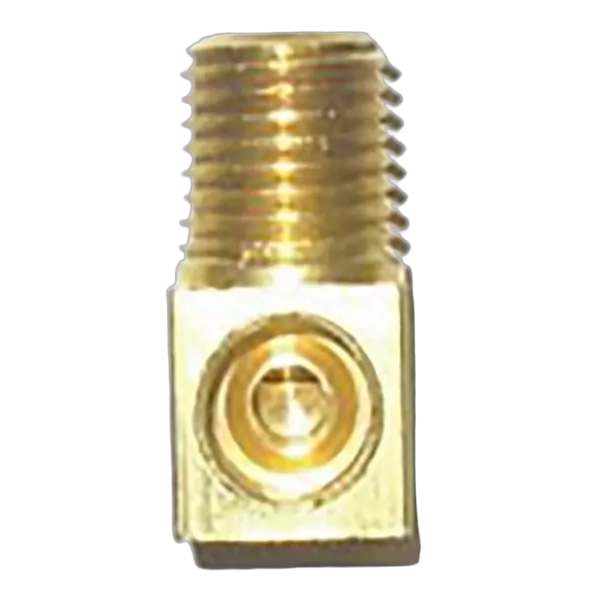

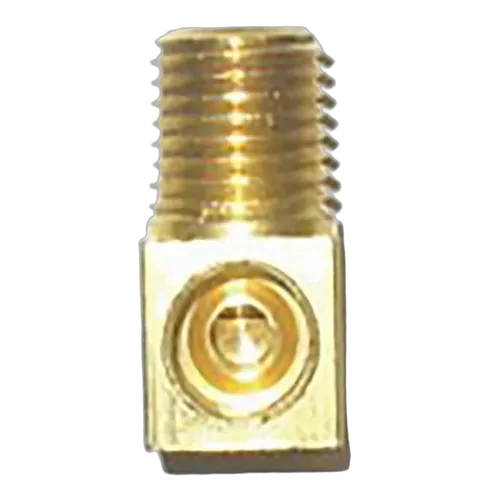

The Coast to Coast inverted flare elbow adapter turns a straight regulator outlet into a tight 90° corner so your gas line hugs the wall instead of jutting out. The 1/4 inch MNPT male end screws into a 2 stage regulator outlet and the 1/4 inch female inverted flare end takes your gas line fitting. That setup helps keep hoses tidy in short drawbars and small front lockers on caravans and campers. This little bit of kit sticks with standard gas sizes so you can match it to other 1/4 inch fittings in your system without drama. The elbow body is compact so you get room for a spanner around the flats even in busy gas lockers. The adapter suits LPG 2 stage regulator layouts used on caravan and RV gear where a fixed 90° turn makes routing lines simpler and cleaner.

• Inverted flare gas union elbow adaptor
• Suits 2 stage LPG gas regulators
• 90° elbow body for compact routing
• 1/4" MNPT male thread to regulator
• 1/4" female inverted flare connection
• Ideal for caravan and RV gas lockers
• Helps clear doors and cylinder walls
• Part of BSP connector style gas fittings
• Suitable for standard 1/4" LPG line sizes

Q: Can this elbow be used directly on a 2 stage caravan gas regulator outlet?

Yes, this adaptor is intended for use on a 2 stage gas regulator with a 1/4" MNPT outlet. The male 1/4" MNPT thread screws into the compatible regulator port. The 90° body then points the gas line sideways instead of straight out. That helps in lockers where space is tight in front of the regulator.

Q: What size gas line fitting connects to the inverted flare end?

The elbow accepts a 1/4" female inverted flare connection. Your gas line or hard line fitting must terminate in a matching 1/4" inverted flare to seat correctly. This style of flare uses the conical sealing face inside the elbow. Always check the flare size stamped or specified on your existing fittings before swapping parts.

Q: Is this adaptor suitable for caravan and RV LPG systems only?

The adaptor is listed under caravan and RV gas fittings, but the threads are standard gas sizes. It can be used in any compatible LPG setup that uses a 2 stage regulator with 1/4" MNPT and a 1/4" inverted flare line. Always confirm your local gas rules and have any fixed LPG system work done by someone qualified.

Q: Does the 90° bend affect gas flow from the regulator?

A 90° elbow like this introduces a minor change in flow path, but it is sized for 1/4" gas work so normal regulator flow rates are maintained. The main benefit is compact routing rather than flow increase. For most caravan regulators and appliances the flow capability of a 1/4" elbow is more than adequate. Always match fittings to the appliance and regulator ratings.

This adaptor suits setups that require a 90° change of direction between a 2 stage gas regulator outlet and a 1/4" inverted flare connection. One side connects to a 1/4" MNPT male port on the regulator. The other side accepts a 1/4" female inverted flare gas line fitting. Use only with gas components rated and installed to relevant Australian standards by a competent person.
