Description

235 Sequential Series

Reference: 235 Sequential Series

Features / Specifications

Recessed Fitting
Surface Mount Brackets Available
Low profile slimline design
ECE Approved
IP67 100% Waterproof
12 Volt Only
237mm x 25mm x 3mm
5 Year Warranty

Download Data Sheet

Fitting Instructions

Recessed - Mount onto flat surface horizontally. Push lamp and grommet into cutout (cut out 203mm x 19mm) in the mounting surface, run wires through the back and fix with screws (Max Torque - 8kgf/cm). Products can also be mounted using surface mounting brackets sold separately. Please refer to ADR 13/00 for mounting instructions.

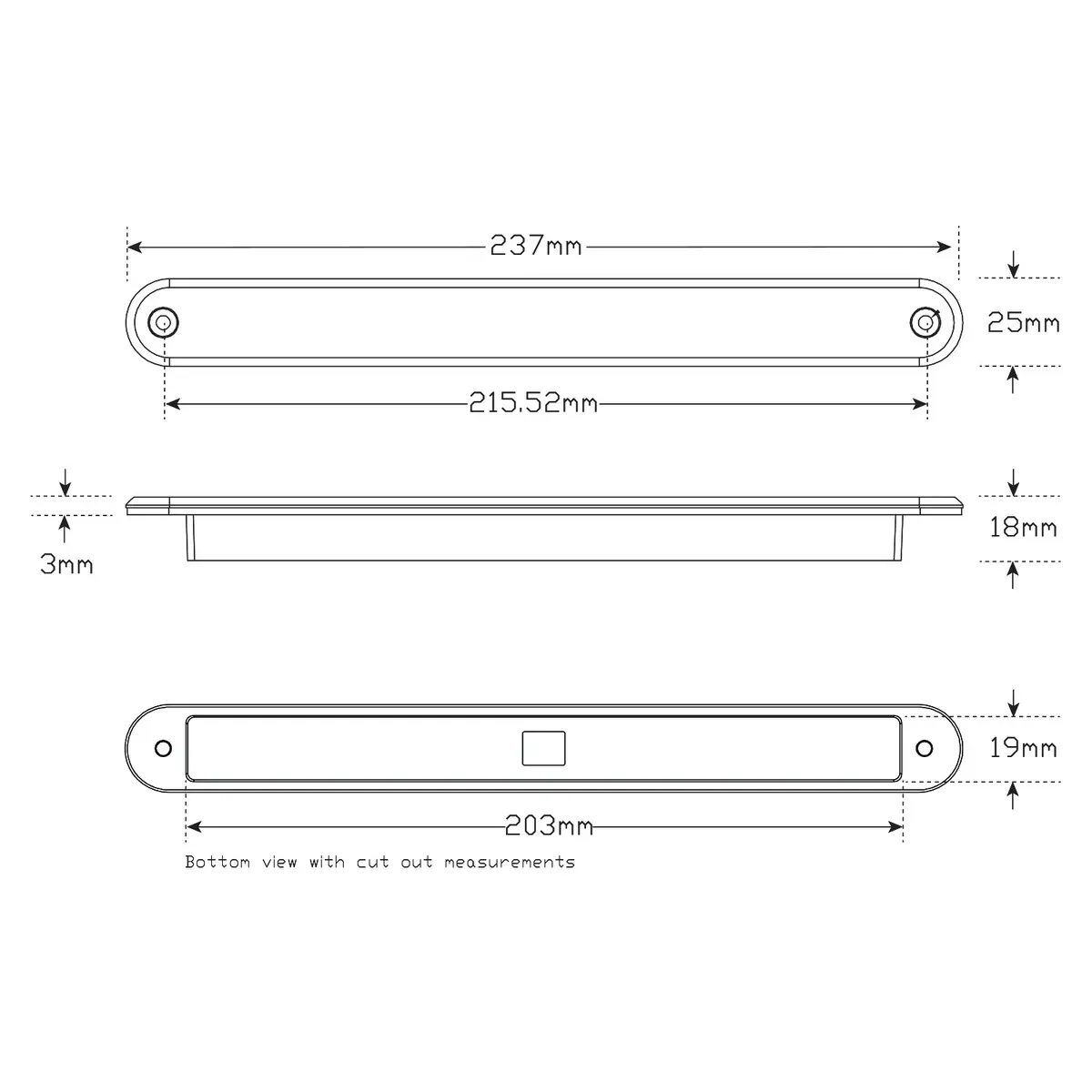

Technical Drawings

More details

Features

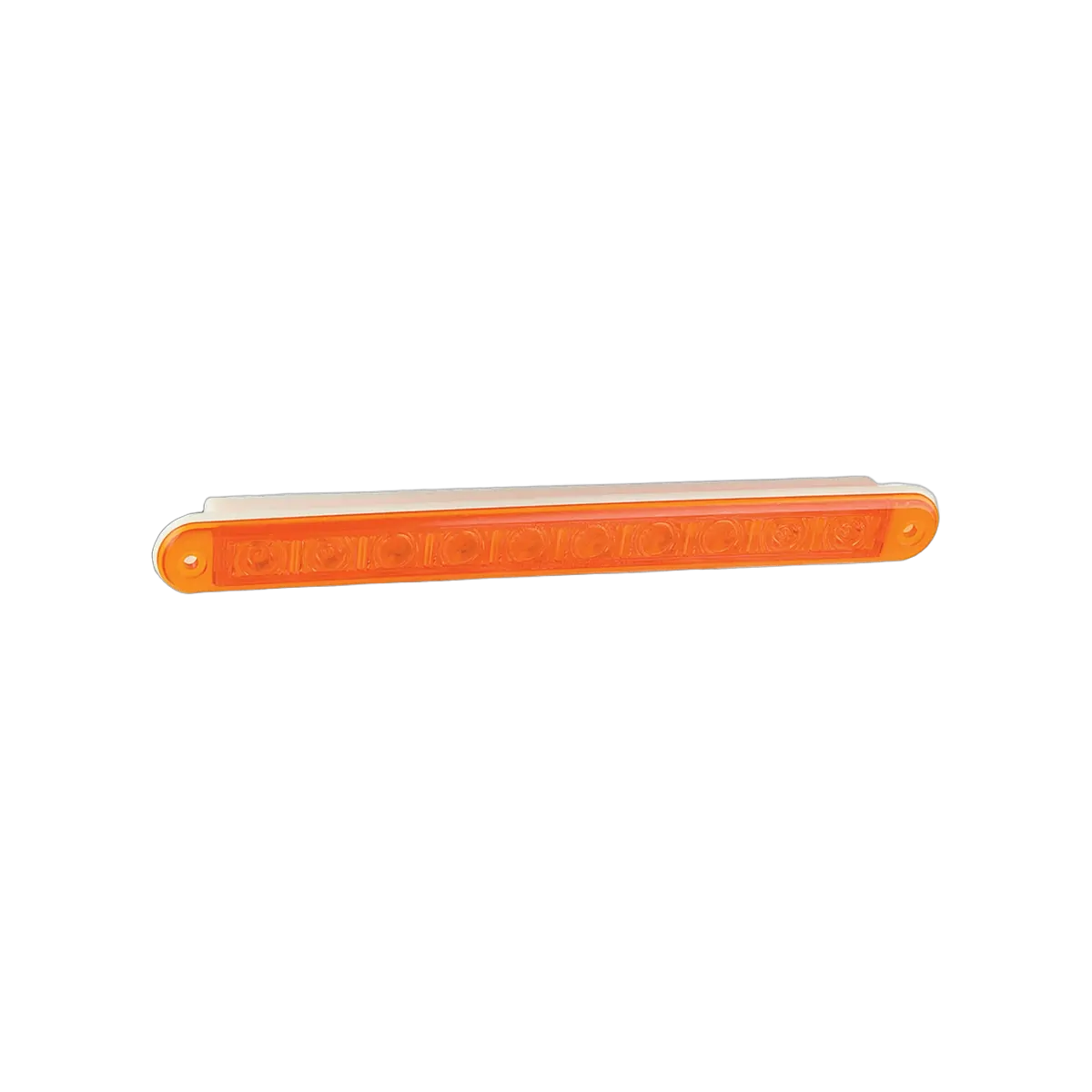

Slim recessed indicator strip lamp

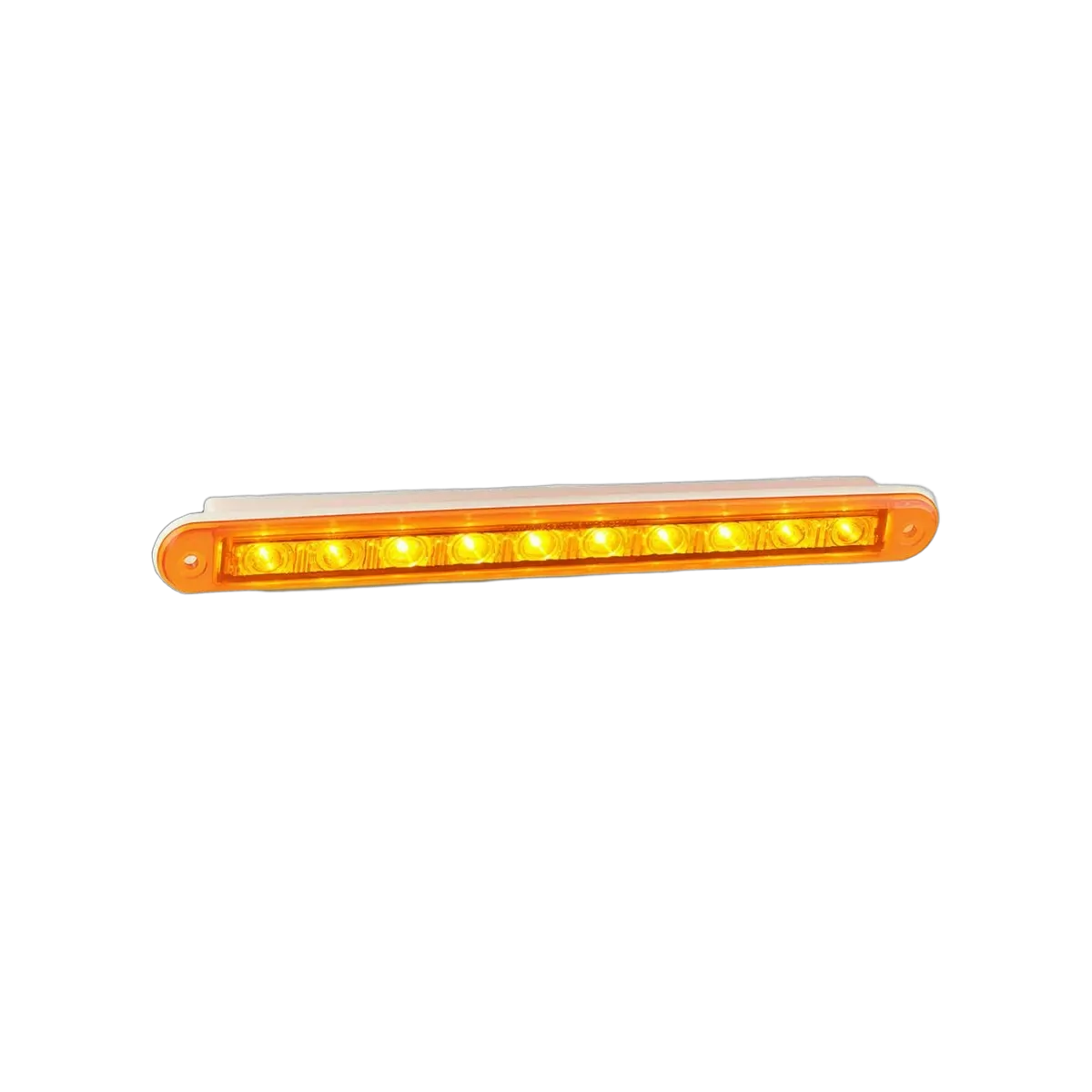

Sequential amber LEDs along 237mm
IP67 rating for dusty wet tracks
Suits 12V touring and towing setups
Five year warranty for peace of mind

Specifications

Brand: LED Autolamps
Model: 235 Sequential Series
Function: Sequential indicator strip lamp
Voltage: 12V only
LED count: 10 square LEDs
Lens colour: Amber
Mounting type: Recessed fitting
Optional mounting: Surface mount brackets available separately
Overall lamp dimensions: 237mm (L) x 25mm (H) x 18mm (D)
Front flange thickness: 3mm
Cutout size: 203mm (L) x 19mm (H)
Mounting hole centres: 215.52mm (approx.)
Ingress protection rating: IP67 100% waterproof
Certification: ECE approved
Cable: 40cm hard-wired lead
Warranty period: 5 years

1 x LED Autolamps 235 Sequential Series indicator lamp

1 x recessed mounting grommet

Pre-wired cable approximately 40 cm

SKU	235ASEQB
Barcode #	9335962101962
Brand	LED Autolamps
Shipping Weight	0.0910kg
Shipping Width	0.025m
Shipping Height	0.235m
Shipping Length	0.020m

Indicator Lamps 235ASEQB

SKU: 235ASEQB

$40.00 MATES’ PRICE

Earn 400 PTS on this item. Login or Join Free

Dispatch in 1-2 weeks

$40.00 MATES’ PRICE

Sequential Indicator Strip Lamp In 12Volt With 10 Square Leds, Amber Lens, Recessed Mount With 40Cm Hardwired. Size: 237 X 25 X 18Mm. Ece Approved, Bulk Packaging
