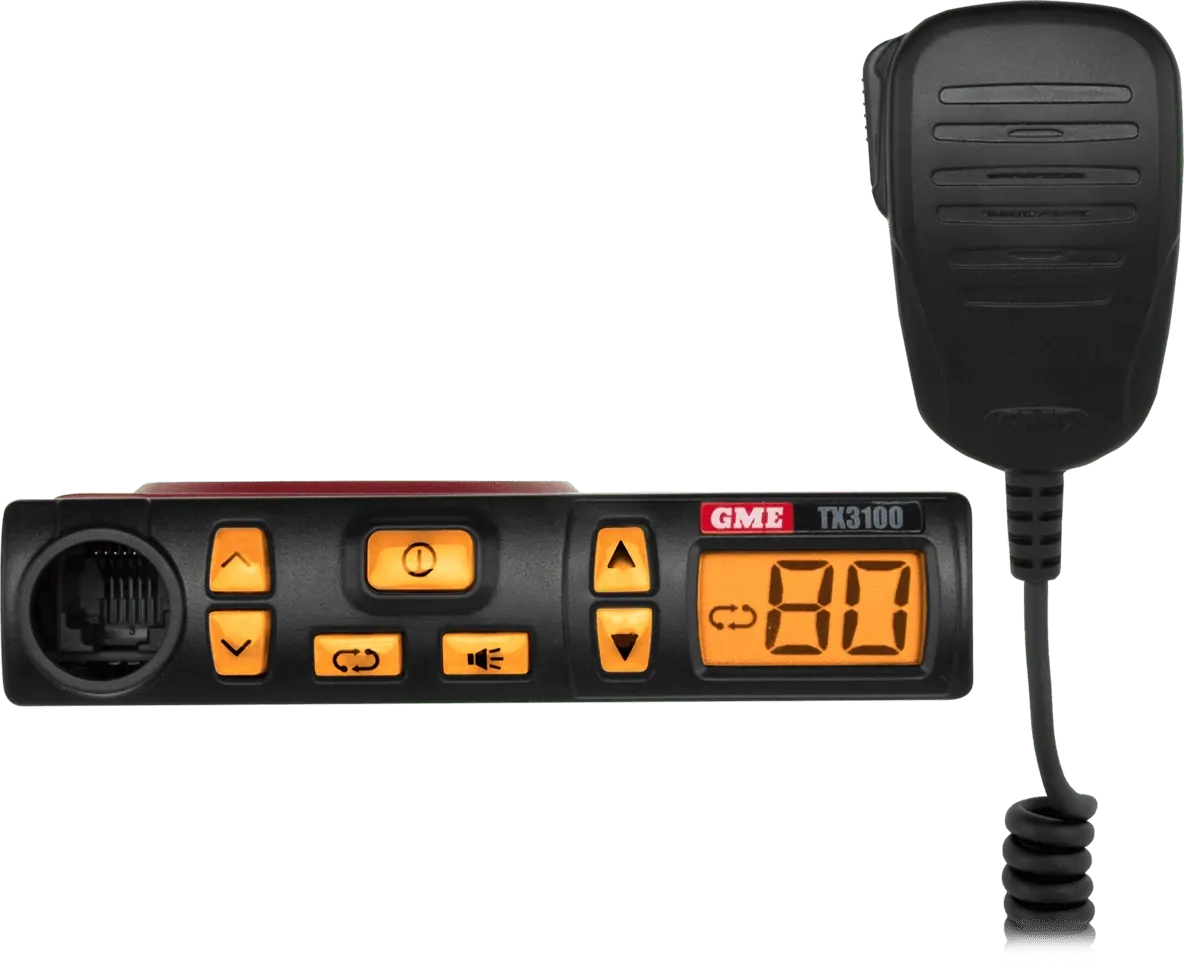

GME TX3100 Super Compact UHF CB Radio

Calculate Shipping

Qty

Suburb/Postal Code

Description

Check out the GME TX3100 Super Compact UHF CB Radio's Key Features
(GME TX3100)

Genuine Australian GME 5 Year Warranty (UHF Radio only)
Peace of Mind Purchase Guarantee (bottom of page)
80 Channel Radio

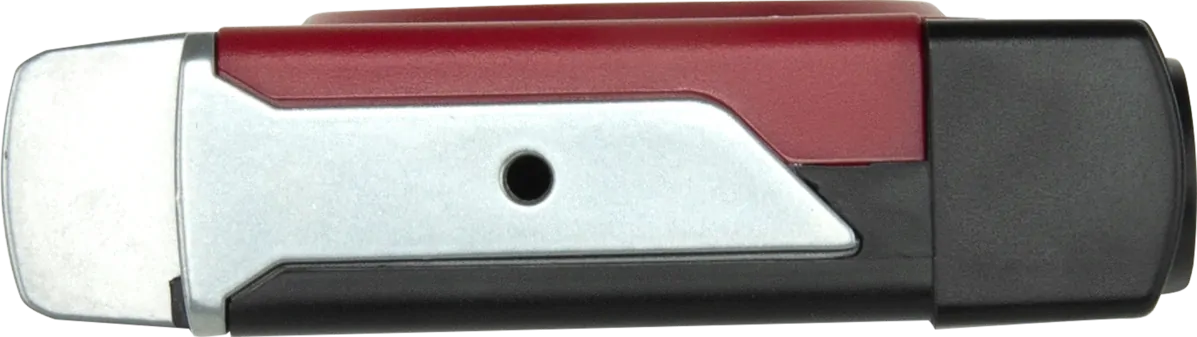

Unique flip feature for flexible mounting
Powered by Pure Sound DSP engine
User adjustable squelch
User selectable duplex channels
Australian design and manufacture

The GME TX3100 radio is Australian designed and built and is one of the most advanced UHF Citizen Band radio available. Combining the very latest in electronic hardware with the most up-to-date computer aided design and manufacturing techniques to produce an extremely compact mobile radio with outstanding specifications and performance.

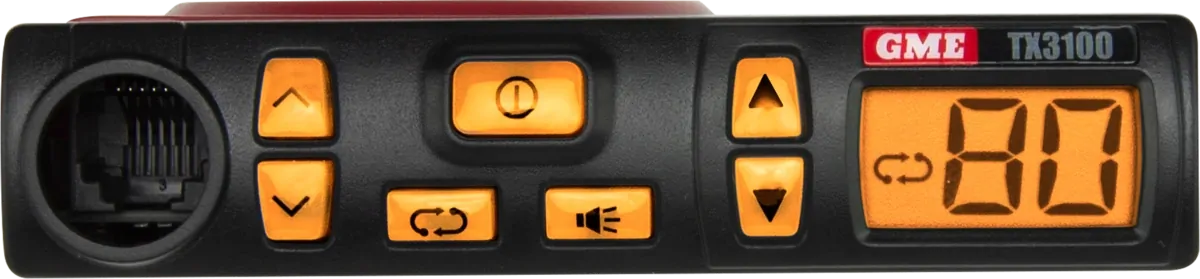

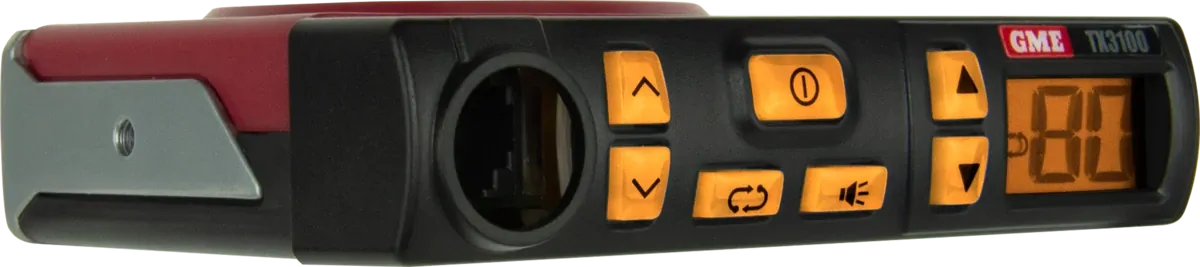

The TX3100, with its front mounted controls, is designed for unobtrusive mounting in modern vehicles. Its innovative features include a built-in loud speaker housed within an extremely compact case.

GME was established over 50 years ago with the intention of designing and manufacturing world class radio and communication equipment within Australia. GME products fall under the umbrella of Standard Communications Pty. Ltd. and proudly remain a privately owned Australian company. Their radio products are of the most reliable quality and have been depended upon by the Australian rural community and State Emergency Services. Their communications product range is broader than just radios and we stock great quality GME products including marine and car audio, UHF and VHF radios, scanners, chargers, batteries and a host of communication accessories.

Peace of Mind Purchase Guarantee & Declaration of Warranty
This product is supplied directly via GME Australia and enjoys the FULL benefits of the 'GME 5 YEAR AUSTRALIAN WARRANTY'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). Should this product fail, you have the option of contacting the manufacturer / supplier directly.

We are a FULLY AUTHORISED Australian retailer for GME Australia.

This product will be shipped from our Sydney Warehouse. This product is NOT DROP SHIPPED from overseas.

TECHNICAL SPECIFICATIONS

GENERAL
Compliant Specification	AS/NZS 4365
Frequency Range	476.425-477.4125 MHz
Number of Channels	80 UHF CB
Channel Spacing	12.5 kHz
Operation Mode	Simplex channels 1-80 Semi Duplex channels 1-8
Scanning Speed	20 channels per second
Antenna Impedance	50 Ohms nominal
Operating Voltage Range	10-15 Volts DC
Nominal Battery Voltage	13.8 Volts DC
Over Voltage Protection	25 Volts DC max. At 18 Volts DC the RF power is reduced
Over Current Protection	In-line 2A Fuse
Reverse Polarity Protection	Shunt Diode
Frequency Stability	±2.5 PPM
TRANSMITTER
RF Output	5.0 watts max.
Modulation	FM
Maximum Deviation	< ± 2.5 kHz at + 20 dB limiting
Spurious Emissions	< - 70 dBc
Transmit Frequency Response	+ 6 dB per octave 300 Hz to 3 kHz + 1-3 dB.
Audio Signal to Noise	> 45 dB
Current Consumption	1.5 Amps with 50 Ohms termination
RECEIVER
Circuit Type	Double Conversion Superheterodyne
Intermediate Frequencies	1st - 38.85 MHz 2nd - 450 kHz
Current Consumption	< 180 mA muted 600 mA @ max. A.F output
Sensitivity	- 123 dBm for 12 dB SINAD unweighted
Selectivity	- 6 dB at + 3.5 kHz - 60 dB at ± 12.5 kHz
Intermodulation Immunity	73 dB
Blocking Immunity	100 dB
Spurious Response Immunity	70 dB
Audio Power	3 Watts average into 4 Ohms
Audio Signal to Noise	> 45 dB
Receive Frequency Response	- 6 dB/Octave de-emphasis 300 Hz to 3 kHz + 1-3 dB
Conducted Spurious Emission	< - 57 dBm
MECHANICAL
Dimensions	102 (W) x 87 (D) x 23 (H) mm
Weight	158 grams
Shock and Vibration	MIL STD 810 method
ENVIRONMENTAL
Temperature Range	-10°C to +60°C

WHAT'S INCLUDED?

TX3100 Super Compact UHF CB Radio
Mounting bracket
Screw pack
Microphone
Microphone clip
DC lead
Spare GME model label
Instruction manual
