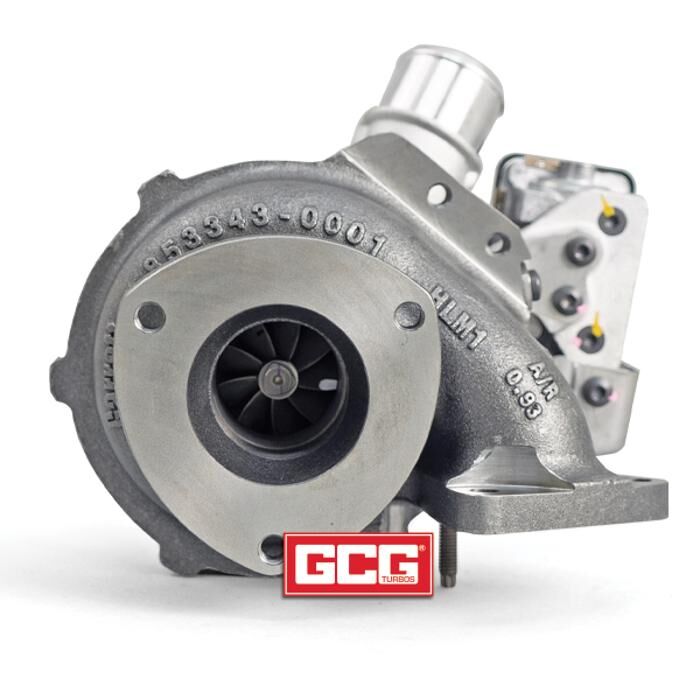

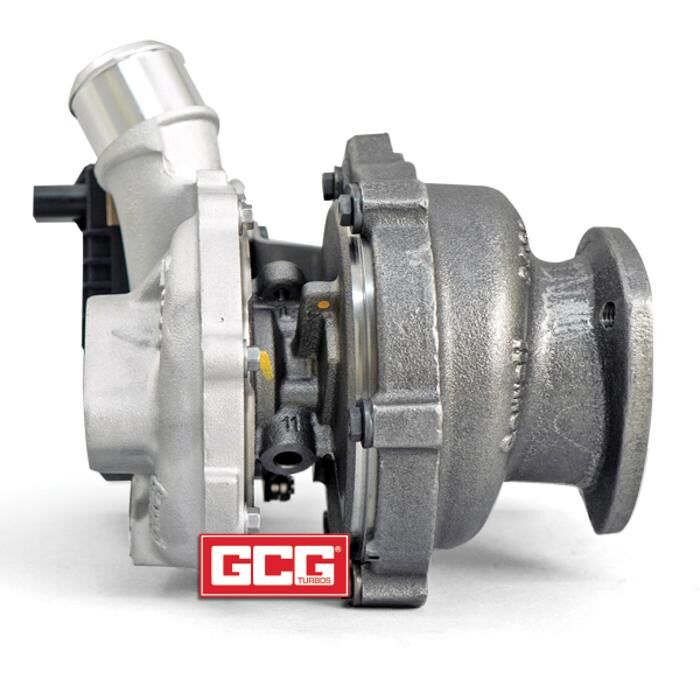

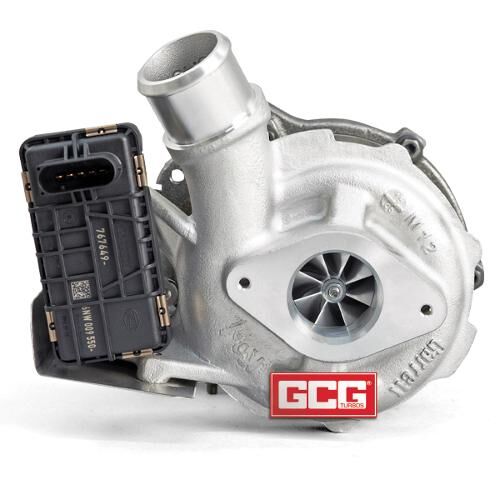

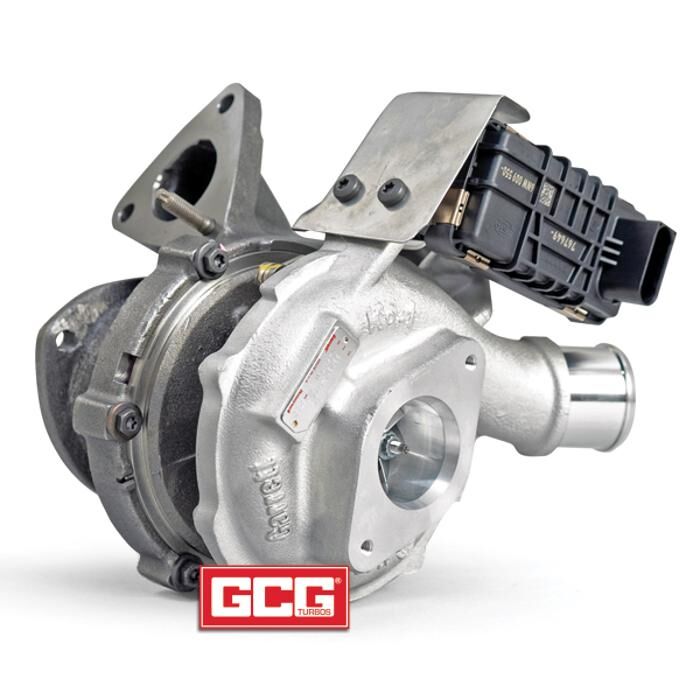

This Garrett PowerMax direct-fit turbocharger is specifically designed for the 3.2L Duratorq 5-cylinder turbo diesel engine found in Ford Ranger PX and the Mazda BT-50. The forged, fully machined compressor wheel designed for the GTX Gen II product line increases flow by 20% over the OE wheel. With the correct engine calibration, this enables the engine to be tuned up to 172kW from OE standard 147kW.

All Garrett PowerMax direct fit turbochargers are outline interchangeable with the OE turbocharger ensuring a perfect fit every time.

Brand: Garrett
Type: PowerMax, bolt-on replacement
Application: Ford Ranger 3.2TD PX1, PX2, PX3 (2011-21), Mazda BT50 (2011-20)
Engine Manufacturer: Ford
Engine Model: 3.2L Duratorq 5-cyl
Fuel Type: Diesel

OEM Turbocharger: GTB2256VK
Turbocharger Part Number: G880862-5001W
Turbocharger Factory Part Numbers: UH0513700, BK3Q-6K682-RC, BK3Q6K682RC, BK3Q-6K682-AB, BK3Q6K682AB, BK3Q-6K682-AC, BK3Q6K682AC, BK37-6K682-AB, BK376K682AB
Previous Versions: 812971-5002S, 812971-0002, 812971-2, 812971-5006S, 812971-0006, 812971-6, 798166-5007S, 798166-0007, 798166-7, UH513700

Included in the Kit:

• Garrett PowerMax Bolt-On Turbocharger

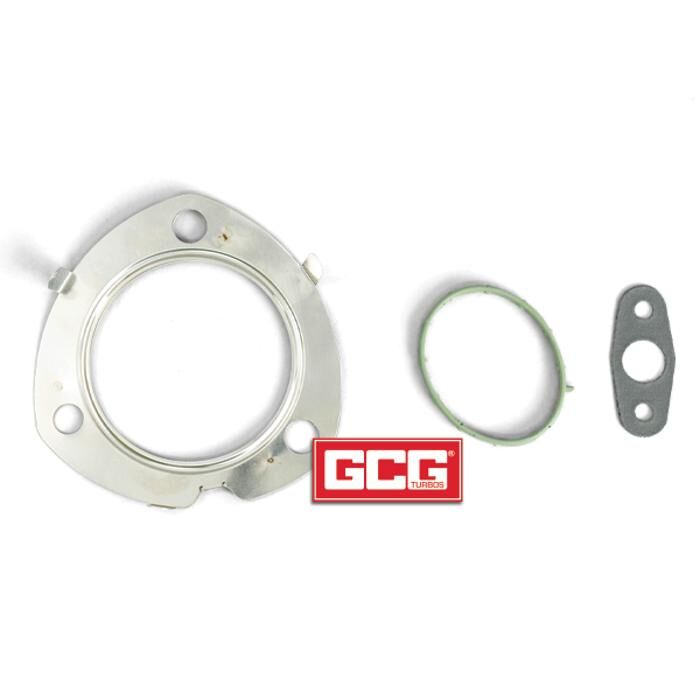

• Gasket kit

Product Notes:
To get the most out of your new PowerMax turbocharger we recommend re-tuning your vehicle. Without tuning, the overall torque/power results may vary.
