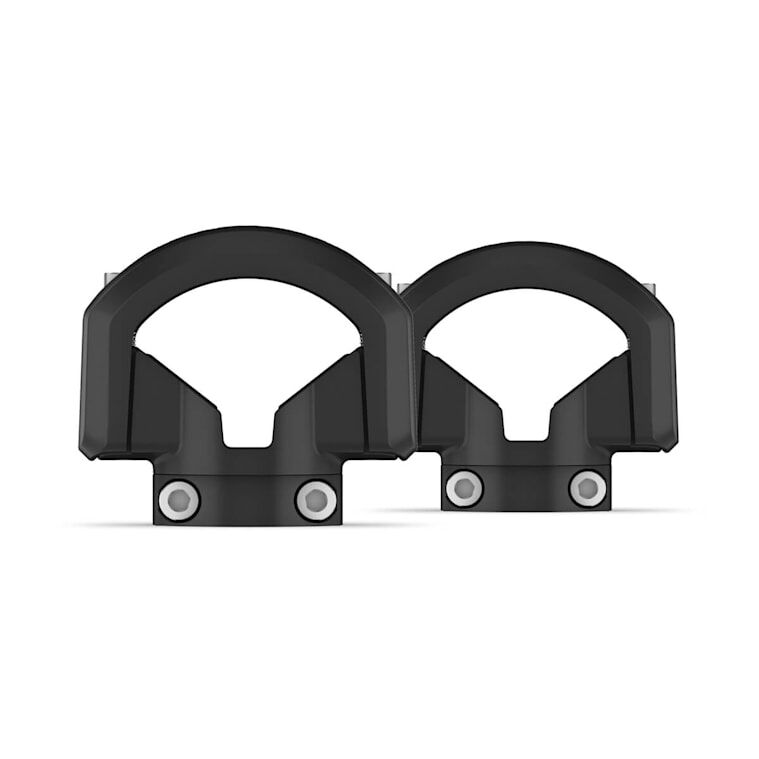

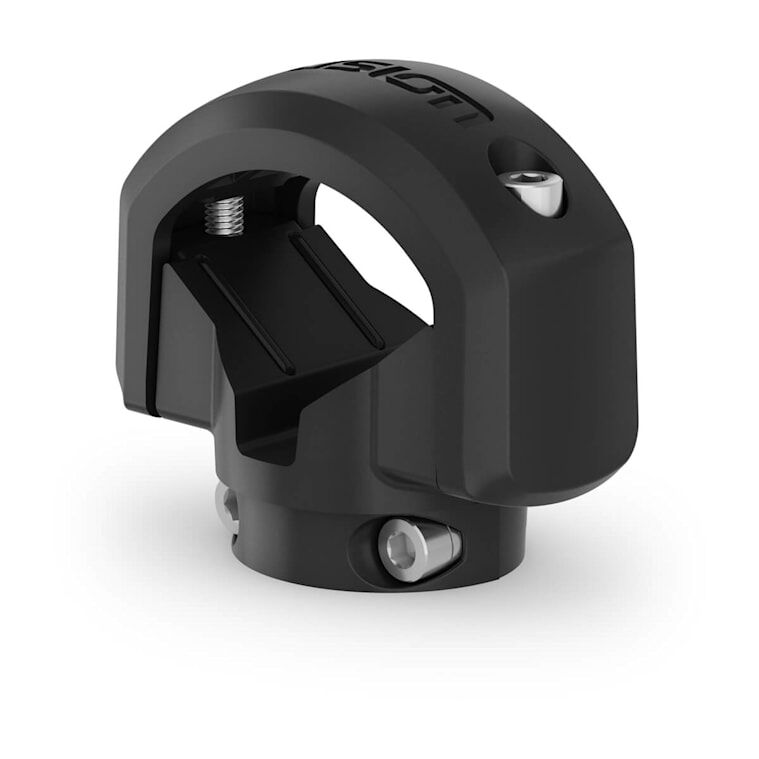

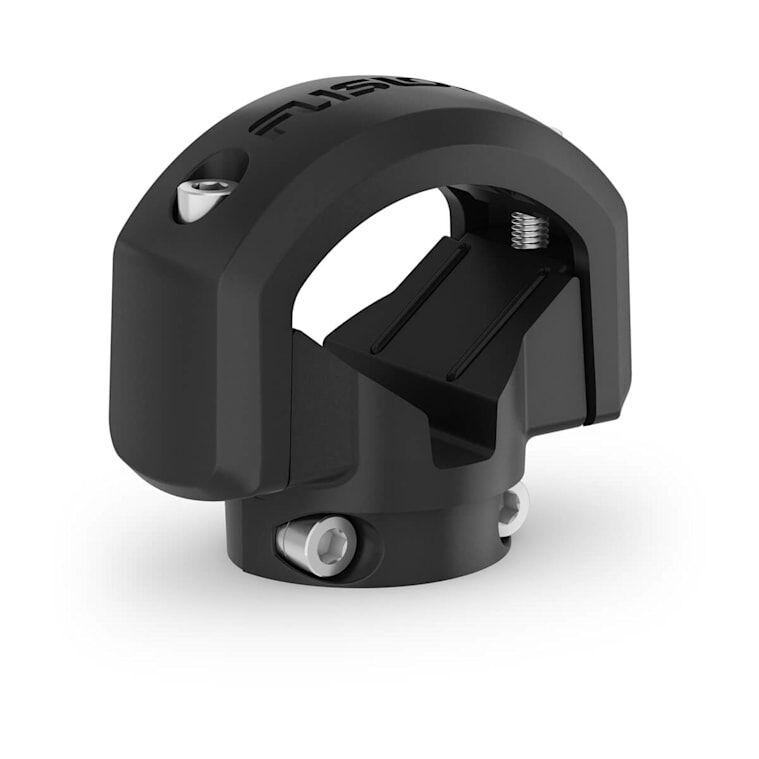

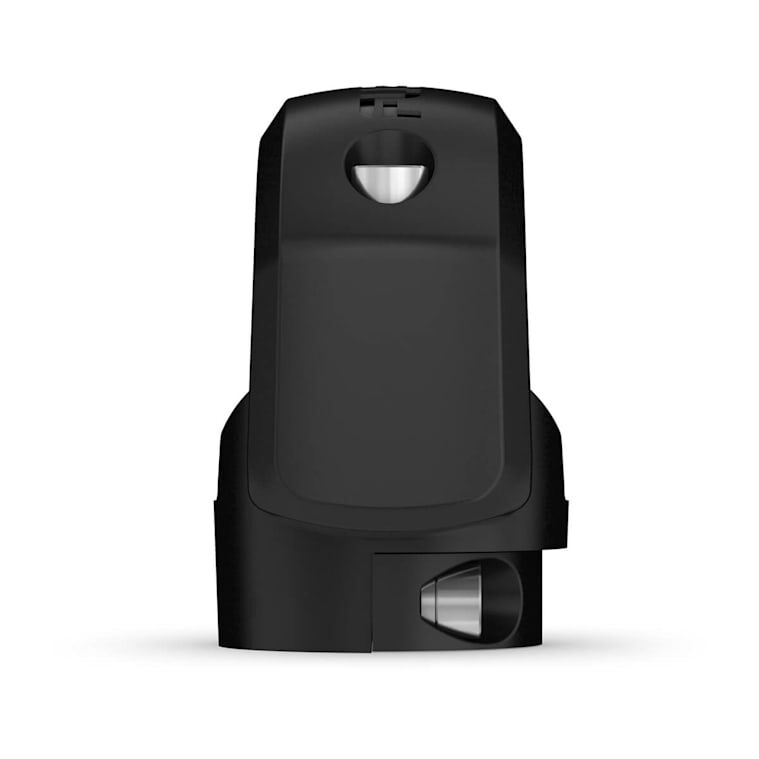

This range of accessory mounting options, including Flat Mount, Pipe Mount (2″) and Pipe Mount (2.5″) brackets, allows you to mount the Fusion XS Series 6.5″ Wake Tower Speakers on board your boat with versatility and ease.
Quick and simple to install.
The Pipe Mount brackets are user-adjustable to fit different wake tower bar diameters.
Hardware is UV stable and salt fog resistant to last on board.
THREE OPTIONS AVAILABLE
This range of wake tower mounting options consists of the Flat Mount, Pipe Mount (2″) and Pipe Mount (2.5″) brackets — giving you flexibility in where to fit the speakers on board your boat.
FITS A WIDE RANGE OF BAR DIAMETER
The Pipe Mount brackets are user-adjustable to fit wake tower bars of different diameters — 2″ bracket to fit bars from 1.75″ (44.5 mm) to 2” (50.8 mm) and 2.5″ bracket to fit bars from 2″ (50.8 mm) to 2.5″ (63.5 mm).
ALUMINIUM ALLOY HARDWARE DESIGN
The mounting brackets feature a UV stable and salt fog-resistant aluminium alloy design, built to last on board in the harsh marine environment.
SPECS
| General | |
| Physical Dimensions | 2.5" Mount (Width x Minimum Height x Depth): 3.94" x 3.70" x 1.87" (100 x 94 x 47.5 mm) 2" Mount (Width x Minimum Height x Depth): 3.35" x 2.91" x 1.89" (85 x 74 x 48 mm) Flat Mount (Width x Height x Depth): 3.54" x 2.91" x 1.89" (90 x 74 x 48 mm) |
| Materials | Aluminum alloy |
| Supported wake tower bar sizes | 2.5" Pipe Mount: Ø 2" to 2.5" (Ø 50.8 to 63.5 mm; user adjustable) 2" Pipe Mount: Ø 1.31" to 2" (Ø 33.4 to 50.8 mm; user adjustable) |
| Warranty | 1 year |
IN THE BOX
2" or 2.5" Pipe Mount Bracket
- Two pipe mount wake tower brackets (sized according to what was selected)
- Documentation
Flat Mount Bracket
- Two flat mount wake tower brackets
- Eight Phillips flat-head screws
- Documentation
COMPATIBLE DEVICES
Fusion® Signature Series 3i Marine Wake Tower Speakers
Fusion® XS Series Marine Wake Tower Speakers
- Gear suits 33.4–50.8 mm wake bars
- Aluminium alloy brackets made to last
- UV stable hardware for harsh sun
- Salt fog resistance for coastal use
- Matched fit for Fusion tower speakers
- Smart buy for tidy tower setups
- Mount type: 2" pipe mount wake tower bracket
- Compatible speaker ranges: Fusion Signature Series 3i Marine Wake Tower Speakers
- Additional compatibility: Fusion XS Series Marine Wake Tower Speakers
- Supported wake tower bar size (this 2" mount): Ø 1.31" to 2" (Ø 33.4 to 50.8 mm; user adjustable)
- Physical dimensions for 2" mount (W x minimum H x D): 3.35" x 2.91" x 1.89" (85 x 74 x 48 mm)
- Material: aluminium alloy hardware
- Environmental resistance: UV stable and salt fog resistant
- Installation: quick and simple surface clamp-style mounting
- Warranty: 1 year
2" or 2.5" Pipe Mount Bracket kit:
- Two pipe mount wake tower brackets (sized according to what was selected)
- Documentation
| SKU | 010-13101-10 |
|---|---|
| Barcode # | 0753759280864 |
| Brand | Fusion |
| Shipping Weight | 0.8700kg |
