Description
Outfit your boat with an exceptional sound system at an outstanding value. A Fusion® MS-RA60 marine stereo and EL Series speaker kit or MS-RA210 and XS Series speaker kit put the perfect soundtrack at your fingertips.
Enjoy your music ASAP. Your marine stereo and both speakers come ready to install.
Easily control music from your compatible Garmin MFD1, smart device or Garmin watch.
Built-in Class D amplifier brings aboard higher efficiency and greater output.
Multi-Zone™ Technology makes you the captain of two separate audio zones.
Conveniently update software via Bluetooth® technology2 from the Fusion® Audio app on your compatible smart device.
Grow your audio system with compatible Fusion speakers, subwoofers and amplifiers.
IPX6 AND IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the Fusion stereos have an IPX6 and IPX7-rated water-resistant front panel to perform and last on board.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.
DESIGNED AND ENGINEERED FOR THE MARINE ENVIRONMENT
The Fusion speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.
DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and water ingress, the Fusion speakers are designed and built for superior quality and robustness.
QUALITY MATERIALS AND ACOUSTIC ENGINEERING
The Fusion speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water.
SPECS
Stereo Specifications |
|
| Physical dimensions (HxWxD) | MS-RA60: 2.68″ x 6.18″ x 4.06″ (68 x 156.9 x 103.2 mm) MS-RA210: 2.68″ x 6.18″ x 4.99″ (68 x 157 x 126.6 mm) |
| Weight | MS-RA60: 11.1 oz (316 g) MS-RA210: 12.4 oz (350 g) |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Current (max.) | 15 A |
| NMEA 2000® LEN | MS-RA210: 1 (50 mA) |
| Bluetooth® wireless range | Up to 30 ft (10 metres) |
| ANT wireless range | Up to 10 ft (3 metres) |
| Wireless frequencies/protocols | Bluetooth 2.4 GHz @ +12 dBm nominal ANT 2.4 GHz @ +7 dBm nominal |
| Compass-safe distance | 5.9″ (150 mm) |
| Display | MS-RA60: 2.3″ perimeter bonded monochrome dot matrix LCD MS-RA210: 2.7″ optically bonded colour LCD |
| Built-in amplifier | Class-D (minimum 4 Ohm impedance) |
| Peak power | MS-RA210: 200 W MS-RA60: 180 W |
| Rated power output (4 Ohm) | MS-RA60: 22 W rms x 4 @ 14.4 V input < 10% THD MS-RA210: 26 W rms x 4 @ 14.4 V input < 10% THD |
| Fusion-Link™ control | MS-RA60: Yes (with smartphone and Garmin watch) MS-RA210: Yes (with MFD, smartphone and Garmin watch) |
| Built-in Digital Signal Processing | MS-RA210: Yes (with preconfigured DSP profiles) |
| Multi-Zone™ technology | 2 zones |
| Bluetooth wireless technology | Yes |
| ANT wireless technology | Yes |
| DAB+ ready | MS-RA60: Yes (DAB tuner built in) MS-RA210: Yes (requires DAB100A antenna module) |
| SiriusXM-ready | MS-RA210: Yes (requires SiriusXM Connect vehicle tuner) |
| Multi-language interface | MS-RA60: Dutch, English, French, German, Italian, Spanish MS-RA210: Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR/PT), Slovenian, Spanish, Swedish, Thai, Turkish |
| NRX remote compatibility | MS-RA210: yes |
| Software updates | MS-RA60: Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app MS-RA210: USB |
| Warranty | 1 year |
| Sources | MS-RA60: AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only) MS-RA210: AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x1/MTP/SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner)/DAB+ ready (available in Europe and Australia only) |
| Auxiliary input | One RCA input (AUX) |
| NMEA 2000 | MS-RA210: 1 port |
| USB 2.0 | MS-RA210: 1 port |
| SiriusXM satellite radio | MS-RA210: 1 port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather) |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | MS-RA60: 4 x speaker connections (2 zone amplified) MS-RA210: 4 x speaker connections (2 zone amplified) |
| RCA Pre-out (left, right and subwoofer) | MS-RA60: 1 zone (requires external amplification) MS-RA210: 2 zones (requires external amplification) |
| Line out | MS-RA60: Zone 1 (L + R, requires external amplification) MS-RA210: Zone 1, Zone 2 (1 x L + R per zone, requires external amplification) |
| Subwoofer out | MS-RA60: Zone 1 (requires external amplification) MS-RA210: Zone 1, Zone 2 (requires external amplification) |
| Line out | MS-RA60: Zone 1 (L + R, requires external amplification) |
| Subwoofer out | MS-RA60: Zone 1 (requires external amplification) |
Speaker Specifications |
|
| Physical dimensions (HxWxD) | EL Classic Speaker: 6.93″ x 2.26″ (176 x 57.5 mm) EL Sports Speaker: 6.93″ x 2.32″ (176 x 59 mm) XS Classic Speaker: 6.97″ x 3.19″ (177 x 81 mm) XS Sports Speaker: 6.97″ x 3.27″ (177 x 83 mm) |
| Water rating | IP65 |
| Configuration | EL Speaker: Full range XS Speaker: Coaxial |
| Speaker size | 6.5″ |
| Peak power (Watts) | EL Speaker: 80 W XS Speaker: 200 W |
| RMS power (Watts) | EL Speaker: 20 W XS Speaker: 50 W |
| Sensitivity (1 watt/1 metre) | EL Speaker: 88 dB XS Speaker: 91 dB |
| Frequency response | EL Speaker: 45 Hz-16 kHz XS Speaker: 80 Hz-18 kHz |
| Nominal impedance | 4 ohm |
| Recommended amplifier power (RMS) | EL Speaker: 20-40 W/Ch XS Speaker: 20-150 W/Ch |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | EL Speaker: 0.79″ XS Speaker: 1.18″ |
| Cone material | Polypropylene cone with cloth surround |
| Tweeter type | XS Speaker: Aluminium dome |
| Compass-safe distance | EL Speaker: 100″ (254 cm) XS Speaker: 122″ (310 cm) |
| Warranty | EL Speaker: 1 year XS Speaker: 3 years |
| Mounting diameter clearance | EL Speaker: 5.12″ (130 mm) XS Speaker: 5.31″ (135 mm) |
| Mounting depth clearance | EL Speaker: 1.69″ (43 mm) XS Speaker: 2.64″ (67 mm) |
| Sealed enclosure volume | XS Speaker: 0.28 cubic ft (8 L) |
IN THE BOX
MS-RA60 Stereo and EL Sports Speaker Kit
- MS-RA60 marine stereo
- One pair of EL Series sports grey marine speakers
- AM/FM stealth antenna
- Two 19 ft (6 metre) speaker wires
- Dust cover
- Wiring harnesses and mounting accessories
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1″))
MS-RA60 Stereo and EL Classic Speaker Kit
- MS-RA60 marine stereo
- One pair of EL Series classic white marine speakers
- AM/FM stealth antenna
- Two 19 ft (6 metre) speaker wires
- Dust cover
- Wiring harnesses and mounting accessories
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1″))

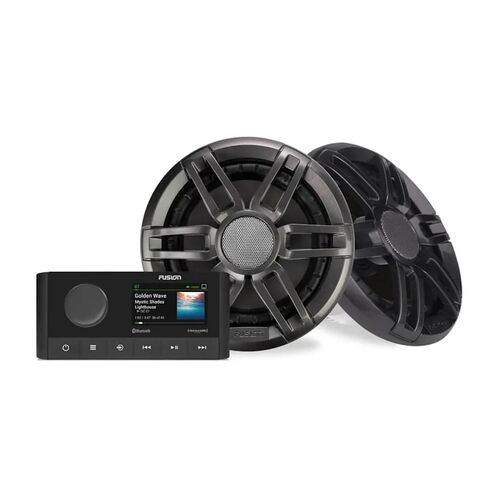

MS-RA210 Stereo and XS Sports Speaker Kit
- MS-RA210 marine stereo
- One pair of XS Series sports grey marine speakers
- AM/FM stealth antenna
- 6 ft (2 metre) NMEA 2000® drop cable
- Two 19 ft (6 metre) speaker wires
- Dust cover
- Wiring harnesses and mounting accessories
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1″))
MS-RA210 Stereo and XS Classic Speaker Kit
- MS-RA210 marine stereo
- One pair of XS Series classic white marine speakers
- AM/FM stealth antenna
- 6 ft (2 metre) NMEA 2000® drop cable
- Two 19 ft (6 metre) speaker wires
- Dust cover
- Wiring harnesses and mounting accessories
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1″))
COMPATIBLE DEVICES
Fusion® Signature Series Marine Amplifiers
Fusion® XS Series Marine Subwoofers
quatix® 6 Titanium
Features
- Stereo and speakers supplied together
- 200W peak XS Sports speaker handling
- 26W RMS x4 Class D amplification
- IPX6/IPX7 stereo face plus IP65 speakers
- Bluetooth plus NMEA 2000 connectivity
- Compact cut-out suits most helm layouts
Specifications

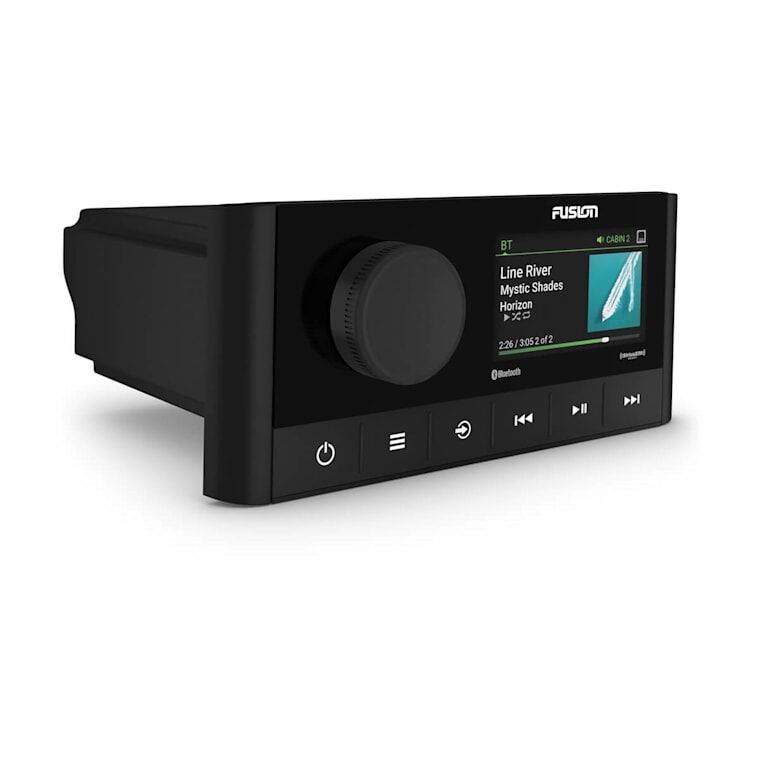

- Stereo model: MS-RA210 marine stereo

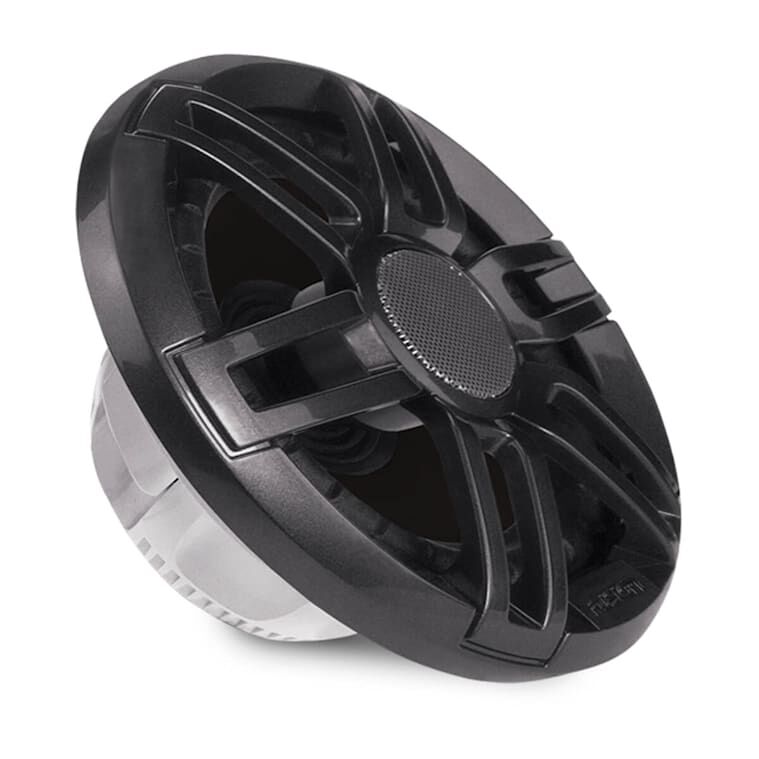

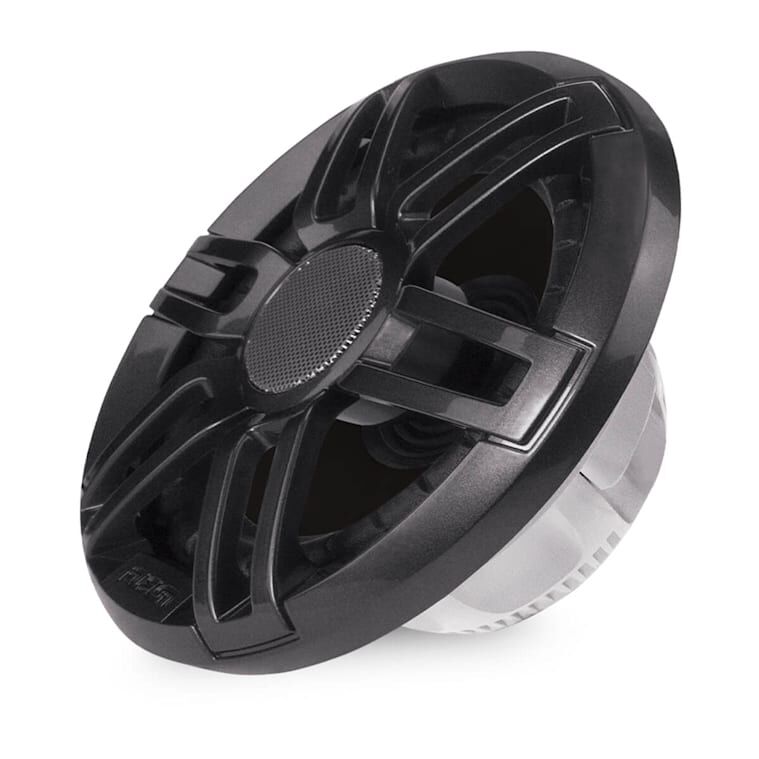

- Speaker model: XS Series 6.5" sports grey marine speakers

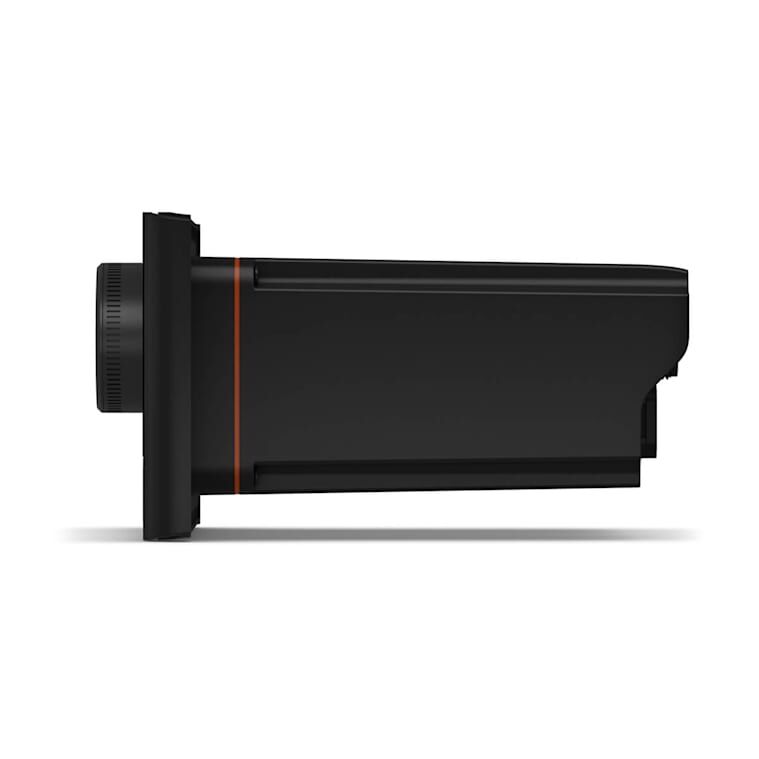

- Stereo physical dimensions (H x W x D): 2.68" x 6.18" x 4.99" (68 x 157 x 126.6 mm)
- Stereo weight: 12.4 oz (350 g)
- Stereo water rating: IPX6 and IPX7 front panel only when properly installed
- Power input voltage range: 10.8–16 VDC
- Operating temperature range (stereo and speakers): 32° to 122° F (0° to 50° C)
- Maximum current draw: 15 A
- Bluetooth wireless range: up to 30 ft (10 metres)
- ANT wireless range: up to 10 ft (3 metres)
- Wireless protocols: Bluetooth 2.4 GHz @ +12 dBm nominal and ANT 2.4 GHz @ +7 dBm nominal
- Compass-safe distance (stereo): 5.9" (150 mm)
- Display type and size: 2.7" optically bonded colour LCD
- Built-in amplifier type: Class-D minimum 4 Ohm impedance
- Stereo peak power: 200 W
- Rated power output @ 4 Ohm: 26 W RMS x 4 @ 14.4 V input < 10% THD
- Multi-Zone technology: 2 separate audio zones
- Fusion-Link control: compatible with MFD smartphone and Garmin watch
- Built-in digital signal processing: preconfigured DSP profiles on MS-RA210
- DAB+ readiness: requires DAB100A antenna module (Europe and Australia only)
- SiriusXM readiness: requires SiriusXM Connect vehicle tuner (USA only)
- Multi-language interface: wide selection including English Dutch French German Italian Spanish and more
- NRX remote compatibility: yes
- Software updates: via USB
- Audio sources: AM/FM Bluetooth USB audio iPhone/iPod AUX x1 MTP SiriusXM-ready and DAB+ ready where supported
- Auxiliary input: one RCA AUX input

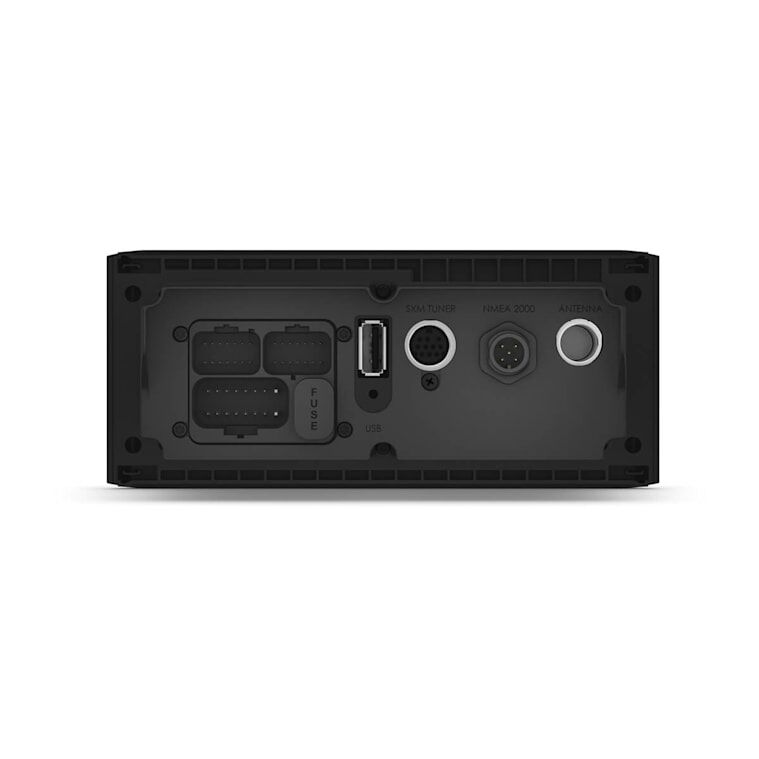

- NMEA 2000 networking: 1 port LEN 1 (50 mA)
- USB connectivity: 1 x USB 2.0 port
- SiriusXM satellite radio port: 1 port for SiriusXM Connect vehicle tuner
- AM/FM antenna connection: one Motorola antenna connector port
- Speaker outputs: 4 x speaker connections supporting 2 amplified zones
- RCA pre-out (left right and subwoofer): 2 zones requiring external amplification
- Line out: Zone 1 and Zone 2 left and right per zone requiring external amplification
- Subwoofer out: Zone 1 and Zone 2 requiring external amplification

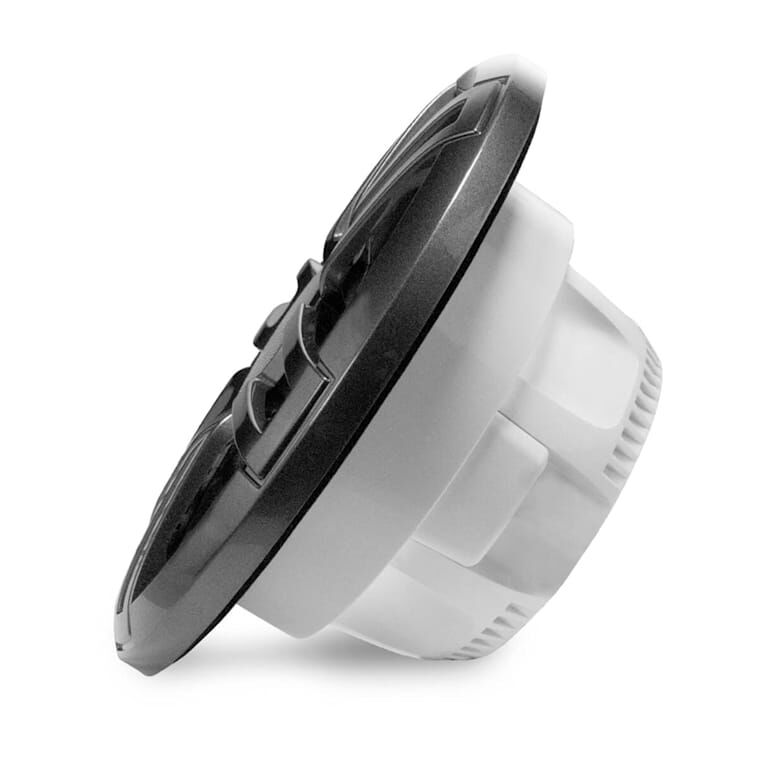

- Speaker physical dimensions (XS Sports H x D): 6.97" x 3.27" (177 x 83 mm)
- Speaker water rating: IP65
- Speaker configuration: coaxial
- Speaker size: 6.5"
- Speaker peak power handling: 200 W
- Speaker RMS power handling: 50 W
- Speaker sensitivity (1 W / 1 metre): 91 dB
- Speaker frequency response: 80 Hz – 18 kHz
- Speaker nominal impedance: 4 Ohm
- Recommended amplifier power (RMS): 20–150 W per channel
- Voice coil diameter (XS Speaker): 1.18"
- Cone material: polypropylene cone with cloth surround
- Tweeter type: aluminium dome
- Compass-safe distance (XS Speaker): 122" (310 cm)
- Speaker warranty: 3 years
- Stereo warranty: 1 year
- Speaker mounting diameter clearance: 5.31" (135 mm)
- Speaker mounting depth clearance: 2.64" (67 mm)
- Sealed enclosure volume (XS Speaker): 0.28 cubic ft (8 L)
MS-RA210 marine stereo

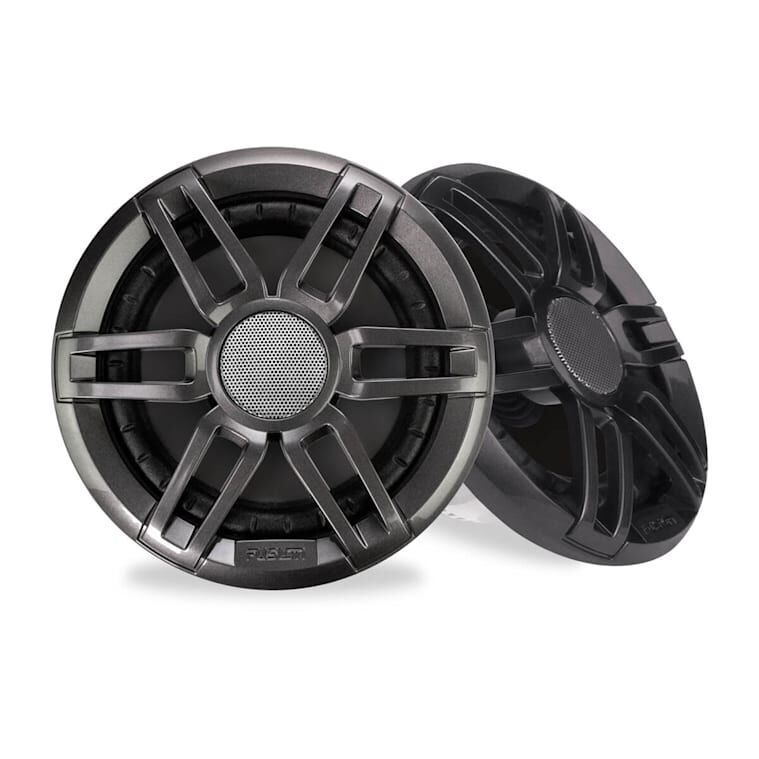

One pair of XS Series sports grey marine speakers

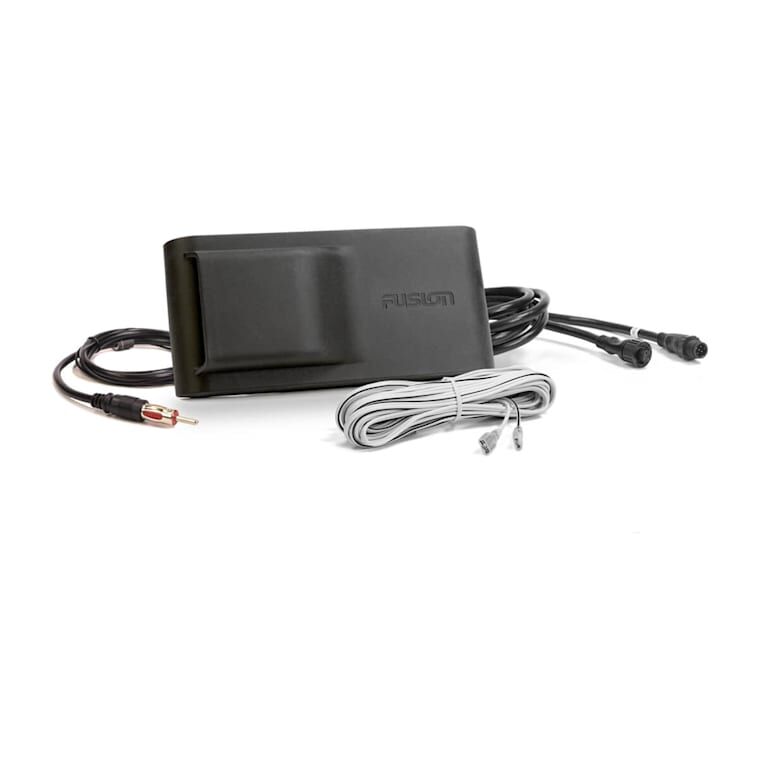

AM/FM stealth antenna
6 ft (2 metre) NMEA 2000 drop cable
Two 19 ft (6 metre) speaker wires
Dust cover
Wiring harnesses and mounting accessories
Mounting gasket
Four 6-gauge self-tapping screws
Two screw covers
Power and speaker wiring harness
Auxiliary-in line-out and subwoofer-out wiring harnesses
12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1"))
| SKU | 010-02250-60 |
|---|---|
| Barcode # | 0753759294137 |
| Brand | Fusion |
| Shipping Weight | 5.8500kg |
Dispatch in 7 days
More infoMake 4 payments of $217.25 over 8 weeks and get it now!
Calculate Shipping
Description
Outfit your boat with an exceptional sound system at an outstanding value. A Fusion® MS-RA60 marine stereo and EL Series speaker kit or MS-RA210 and XS Series speaker kit put the perfect soundtrack at your fingertips.
Enjoy your music ASAP. Your marine stereo and both speakers come ready to install.
Easily control music from your compatible Garmin MFD1, smart device or Garmin watch.
Built-in Class D amplifier brings aboard higher efficiency and greater output.
Multi-Zone™ Technology makes you the captain of two separate audio zones.
Conveniently update software via Bluetooth® technology2 from the Fusion® Audio app on your compatible smart device.
Grow your audio system with compatible Fusion speakers, subwoofers and amplifiers.
IPX6 AND IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the Fusion stereos have an IPX6 and IPX7-rated water-resistant front panel to perform and last on board.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.
DESIGNED AND ENGINEERED FOR THE MARINE ENVIRONMENT
The Fusion speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.
DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and water ingress, the Fusion speakers are designed and built for superior quality and robustness.
QUALITY MATERIALS AND ACOUSTIC ENGINEERING
The Fusion speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water.
SPECS
Stereo Specifications |
|
| Physical dimensions (HxWxD) | MS-RA60: 2.68″ x 6.18″ x 4.06″ (68 x 156.9 x 103.2 mm) MS-RA210: 2.68″ x 6.18″ x 4.99″ (68 x 157 x 126.6 mm) |
| Weight | MS-RA60: 11.1 oz (316 g) MS-RA210: 12.4 oz (350 g) |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Current (max.) | 15 A |
| NMEA 2000® LEN | MS-RA210: 1 (50 mA) |
| Bluetooth® wireless range | Up to 30 ft (10 metres) |
| ANT wireless range | Up to 10 ft (3 metres) |
| Wireless frequencies/protocols | Bluetooth 2.4 GHz @ +12 dBm nominal ANT 2.4 GHz @ +7 dBm nominal |
| Compass-safe distance | 5.9″ (150 mm) |
| Display | MS-RA60: 2.3″ perimeter bonded monochrome dot matrix LCD MS-RA210: 2.7″ optically bonded colour LCD |
| Built-in amplifier | Class-D (minimum 4 Ohm impedance) |
| Peak power | MS-RA210: 200 W MS-RA60: 180 W |
| Rated power output (4 Ohm) | MS-RA60: 22 W rms x 4 @ 14.4 V input < 10% THD MS-RA210: 26 W rms x 4 @ 14.4 V input < 10% THD |
| Fusion-Link™ control | MS-RA60: Yes (with smartphone and Garmin watch) MS-RA210: Yes (with MFD, smartphone and Garmin watch) |
| Built-in Digital Signal Processing | MS-RA210: Yes (with preconfigured DSP profiles) |
| Multi-Zone™ technology | 2 zones |
| Bluetooth wireless technology | Yes |
| ANT wireless technology | Yes |
| DAB+ ready | MS-RA60: Yes (DAB tuner built in) MS-RA210: Yes (requires DAB100A antenna module) |
| SiriusXM-ready | MS-RA210: Yes (requires SiriusXM Connect vehicle tuner) |
| Multi-language interface | MS-RA60: Dutch, English, French, German, Italian, Spanish MS-RA210: Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR/PT), Slovenian, Spanish, Swedish, Thai, Turkish |
| NRX remote compatibility | MS-RA210: yes |
| Software updates | MS-RA60: Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app MS-RA210: USB |
| Warranty | 1 year |
| Sources | MS-RA60: AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only) MS-RA210: AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x1/MTP/SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner)/DAB+ ready (available in Europe and Australia only) |
| Auxiliary input | One RCA input (AUX) |
| NMEA 2000 | MS-RA210: 1 port |
| USB 2.0 | MS-RA210: 1 port |
| SiriusXM satellite radio | MS-RA210: 1 port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather) |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | MS-RA60: 4 x speaker connections (2 zone amplified) MS-RA210: 4 x speaker connections (2 zone amplified) |
| RCA Pre-out (left, right and subwoofer) | MS-RA60: 1 zone (requires external amplification) MS-RA210: 2 zones (requires external amplification) |
| Line out | MS-RA60: Zone 1 (L + R, requires external amplification) MS-RA210: Zone 1, Zone 2 (1 x L + R per zone, requires external amplification) |
| Subwoofer out | MS-RA60: Zone 1 (requires external amplification) MS-RA210: Zone 1, Zone 2 (requires external amplification) |
| Line out | MS-RA60: Zone 1 (L + R, requires external amplification) |
| Subwoofer out | MS-RA60: Zone 1 (requires external amplification) |
Speaker Specifications |
|
| Physical dimensions (HxWxD) | EL Classic Speaker: 6.93″ x 2.26″ (176 x 57.5 mm) EL Sports Speaker: 6.93″ x 2.32″ (176 x 59 mm) XS Classic Speaker: 6.97″ x 3.19″ (177 x 81 mm) XS Sports Speaker: 6.97″ x 3.27″ (177 x 83 mm) |
| Water rating | IP65 |
| Configuration | EL Speaker: Full range XS Speaker: Coaxial |
| Speaker size | 6.5″ |
| Peak power (Watts) | EL Speaker: 80 W XS Speaker: 200 W |
| RMS power (Watts) | EL Speaker: 20 W XS Speaker: 50 W |
| Sensitivity (1 watt/1 metre) | EL Speaker: 88 dB XS Speaker: 91 dB |
| Frequency response | EL Speaker: 45 Hz-16 kHz XS Speaker: 80 Hz-18 kHz |
| Nominal impedance | 4 ohm |
| Recommended amplifier power (RMS) | EL Speaker: 20-40 W/Ch XS Speaker: 20-150 W/Ch |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | EL Speaker: 0.79″ XS Speaker: 1.18″ |
| Cone material | Polypropylene cone with cloth surround |
| Tweeter type | XS Speaker: Aluminium dome |
| Compass-safe distance | EL Speaker: 100″ (254 cm) XS Speaker: 122″ (310 cm) |
| Warranty | EL Speaker: 1 year XS Speaker: 3 years |
| Mounting diameter clearance | EL Speaker: 5.12″ (130 mm) XS Speaker: 5.31″ (135 mm) |
| Mounting depth clearance | EL Speaker: 1.69″ (43 mm) XS Speaker: 2.64″ (67 mm) |
| Sealed enclosure volume | XS Speaker: 0.28 cubic ft (8 L) |
IN THE BOX
MS-RA60 Stereo and EL Sports Speaker Kit
- MS-RA60 marine stereo
- One pair of EL Series sports grey marine speakers
- AM/FM stealth antenna
- Two 19 ft (6 metre) speaker wires
- Dust cover
- Wiring harnesses and mounting accessories
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1″))
MS-RA60 Stereo and EL Classic Speaker Kit
- MS-RA60 marine stereo
- One pair of EL Series classic white marine speakers
- AM/FM stealth antenna
- Two 19 ft (6 metre) speaker wires
- Dust cover
- Wiring harnesses and mounting accessories
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1″))
MS-RA210 Stereo and XS Sports Speaker Kit
- MS-RA210 marine stereo
- One pair of XS Series sports grey marine speakers
- AM/FM stealth antenna
- 6 ft (2 metre) NMEA 2000® drop cable
- Two 19 ft (6 metre) speaker wires
- Dust cover
- Wiring harnesses and mounting accessories
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1″))
MS-RA210 Stereo and XS Classic Speaker Kit
- MS-RA210 marine stereo
- One pair of XS Series classic white marine speakers
- AM/FM stealth antenna
- 6 ft (2 metre) NMEA 2000® drop cable
- Two 19 ft (6 metre) speaker wires
- Dust cover
- Wiring harnesses and mounting accessories
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1″))
COMPATIBLE DEVICES
Fusion® Signature Series Marine Amplifiers
Fusion® XS Series Marine Subwoofers
quatix® 6 Titanium
Features
- Stereo and speakers supplied together
- 200W peak XS Sports speaker handling
- 26W RMS x4 Class D amplification
- IPX6/IPX7 stereo face plus IP65 speakers
- Bluetooth plus NMEA 2000 connectivity
- Compact cut-out suits most helm layouts
Specifications
- Stereo model: MS-RA210 marine stereo
- Speaker model: XS Series 6.5" sports grey marine speakers
- Stereo physical dimensions (H x W x D): 2.68" x 6.18" x 4.99" (68 x 157 x 126.6 mm)
- Stereo weight: 12.4 oz (350 g)
- Stereo water rating: IPX6 and IPX7 front panel only when properly installed
- Power input voltage range: 10.8–16 VDC
- Operating temperature range (stereo and speakers): 32° to 122° F (0° to 50° C)
- Maximum current draw: 15 A
- Bluetooth wireless range: up to 30 ft (10 metres)
- ANT wireless range: up to 10 ft (3 metres)
- Wireless protocols: Bluetooth 2.4 GHz @ +12 dBm nominal and ANT 2.4 GHz @ +7 dBm nominal
- Compass-safe distance (stereo): 5.9" (150 mm)
- Display type and size: 2.7" optically bonded colour LCD
- Built-in amplifier type: Class-D minimum 4 Ohm impedance
- Stereo peak power: 200 W
- Rated power output @ 4 Ohm: 26 W RMS x 4 @ 14.4 V input < 10% THD
- Multi-Zone technology: 2 separate audio zones
- Fusion-Link control: compatible with MFD smartphone and Garmin watch
- Built-in digital signal processing: preconfigured DSP profiles on MS-RA210
- DAB+ readiness: requires DAB100A antenna module (Europe and Australia only)
- SiriusXM readiness: requires SiriusXM Connect vehicle tuner (USA only)
- Multi-language interface: wide selection including English Dutch French German Italian Spanish and more
- NRX remote compatibility: yes
- Software updates: via USB
- Audio sources: AM/FM Bluetooth USB audio iPhone/iPod AUX x1 MTP SiriusXM-ready and DAB+ ready where supported
- Auxiliary input: one RCA AUX input
- NMEA 2000 networking: 1 port LEN 1 (50 mA)
- USB connectivity: 1 x USB 2.0 port
- SiriusXM satellite radio port: 1 port for SiriusXM Connect vehicle tuner
- AM/FM antenna connection: one Motorola antenna connector port
- Speaker outputs: 4 x speaker connections supporting 2 amplified zones
- RCA pre-out (left right and subwoofer): 2 zones requiring external amplification
- Line out: Zone 1 and Zone 2 left and right per zone requiring external amplification
- Subwoofer out: Zone 1 and Zone 2 requiring external amplification
- Speaker physical dimensions (XS Sports H x D): 6.97" x 3.27" (177 x 83 mm)
- Speaker water rating: IP65
- Speaker configuration: coaxial
- Speaker size: 6.5"
- Speaker peak power handling: 200 W
- Speaker RMS power handling: 50 W
- Speaker sensitivity (1 W / 1 metre): 91 dB
- Speaker frequency response: 80 Hz – 18 kHz
- Speaker nominal impedance: 4 Ohm
- Recommended amplifier power (RMS): 20–150 W per channel
- Voice coil diameter (XS Speaker): 1.18"
- Cone material: polypropylene cone with cloth surround
- Tweeter type: aluminium dome
- Compass-safe distance (XS Speaker): 122" (310 cm)
- Speaker warranty: 3 years
- Stereo warranty: 1 year
- Speaker mounting diameter clearance: 5.31" (135 mm)
- Speaker mounting depth clearance: 2.64" (67 mm)
- Sealed enclosure volume (XS Speaker): 0.28 cubic ft (8 L)
MS-RA210 marine stereo
One pair of XS Series sports grey marine speakers
AM/FM stealth antenna
6 ft (2 metre) NMEA 2000 drop cable
Two 19 ft (6 metre) speaker wires
Dust cover
Wiring harnesses and mounting accessories
Mounting gasket
Four 6-gauge self-tapping screws
Two screw covers
Power and speaker wiring harness
Auxiliary-in line-out and subwoofer-out wiring harnesses
12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1"))
| SKU | 010-02250-60 |
|---|---|
| Barcode # | 0753759294137 |
| Brand | Fusion |
| Shipping Weight | 5.8500kg |
