The Sound-Panel from Fusion allows you to enjoy high-quality audio in your Camper, without the headaches of installing speakers in areas where space is limited.

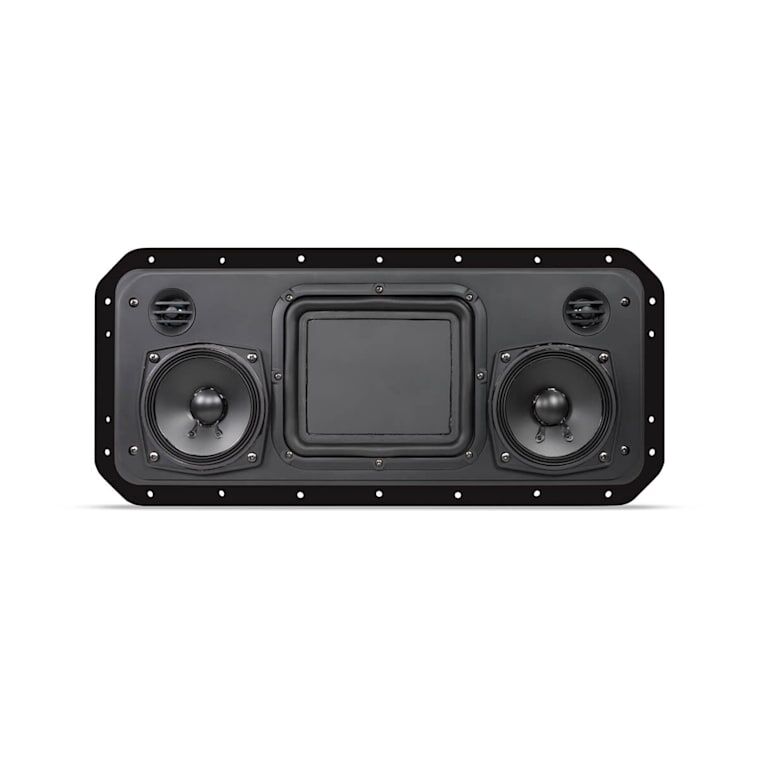

Optimally tuned, sealed enclosure with two 4″ speakers, two tweeters and a passive bass radiator.
Quick and easy installation with only one cutout and one connection required.
Multiple mounting options are available, including flush, recessed and surface mounting.
Stainless steel hardware and grille improve the looks and durability.
IP65 INGRESS PROTECTION
The Sound-Panel is designed for life on the road, wherever it takes you. It has an IP65 rating for protection against dust and water.
ALL-IN-ONE SPEAKER SYSTEM
Great-sounding speakers don’t have to take up a lot of space. The Sound-Panel combines speakers, tweeters and bass into a single tuned enclosure.

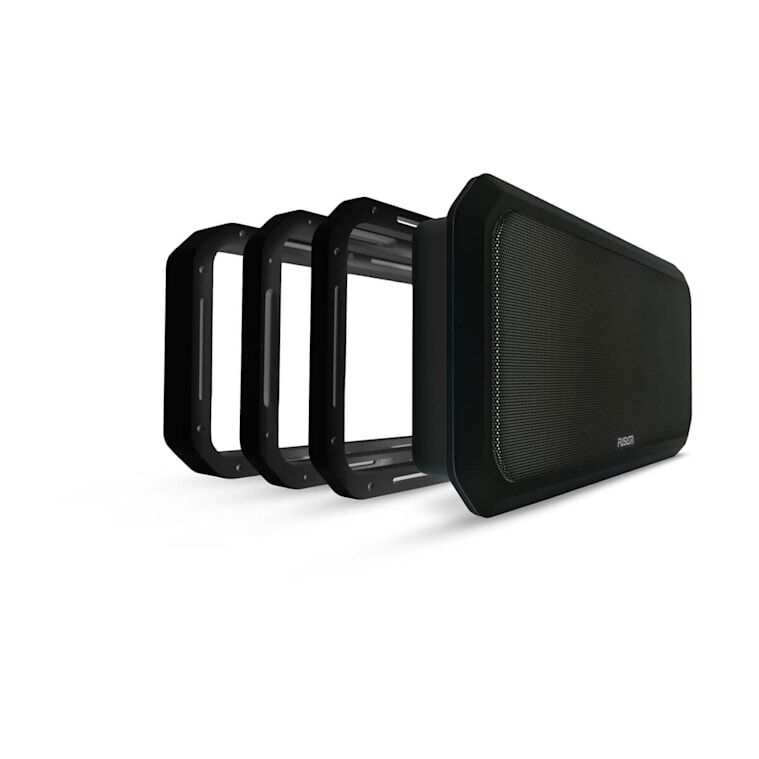

MOUNTING SPACERS
We made installation easy. You can install the Sound-Panel with a conventional flush mount finish or use the mounting spacers (sold separately) for recessed or surface mount installation.
SPECS
General |
|
| Physical dimensions (WxHxD) | 18.7″ x 8.43″ x 2.52″ (475 x 214 x 64 mm) |
| Water and dust rating | IP65 |
| Speaker size | 4″ (two) |
| Peak power (Watts) | 100 watts |
| Sensitivity (1 watt @ 1 metre) | 87 dB |
| Frequency response | 67 Hz - 20 kHz |
| Recommended amplifier power (watts RMS) | 5-50 watts |
| Nominal impedance | 4 ohm |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Tweeter type | Soft dome |
| Compass-safe distance | 133.9″ (340 cm) |
| Warranty | 1 year |
Mounting Dimensions |
|
| Mounting dimension clearance (WxH) | 16.97″ x 6.73″ (431 x 171 mm) |
| Mounting depth clearance | 1.61″ (41 mm) |
IN THE BOX
- 1 Sound Panel
- Mounting template
- Documentation
| SKU | 010-01791-00 |
|---|---|
| Barcode # | 0753759175085 |
| Brand | Fusion |
| Shipping Weight | 2.9000kg |
Fusion Sound-Panel, Black
More infoMake 4 payments of $59.91 over 8 weeks and get it now!
Calculate Shipping
The Sound-Panel from Fusion allows you to enjoy high-quality audio in your Camper, without the headaches of installing speakers in areas where space is limited.
Optimally tuned, sealed enclosure with two 4″ speakers, two tweeters and a passive bass radiator.
Quick and easy installation with only one cutout and one connection required.
Multiple mounting options are available, including flush, recessed and surface mounting.
Stainless steel hardware and grille improve the looks and durability.
IP65 INGRESS PROTECTION
The Sound-Panel is designed for life on the road, wherever it takes you. It has an IP65 rating for protection against dust and water.
ALL-IN-ONE SPEAKER SYSTEM
Great-sounding speakers don’t have to take up a lot of space. The Sound-Panel combines speakers, tweeters and bass into a single tuned enclosure.
MOUNTING SPACERS
We made installation easy. You can install the Sound-Panel with a conventional flush mount finish or use the mounting spacers (sold separately) for recessed or surface mount installation.
SPECS
General |
|
| Physical dimensions (WxHxD) | 18.7″ x 8.43″ x 2.52″ (475 x 214 x 64 mm) |
| Water and dust rating | IP65 |
| Speaker size | 4″ (two) |
| Peak power (Watts) | 100 watts |
| Sensitivity (1 watt @ 1 metre) | 87 dB |
| Frequency response | 67 Hz - 20 kHz |
| Recommended amplifier power (watts RMS) | 5-50 watts |
| Nominal impedance | 4 ohm |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Tweeter type | Soft dome |
| Compass-safe distance | 133.9″ (340 cm) |
| Warranty | 1 year |
Mounting Dimensions |
|
| Mounting dimension clearance (WxH) | 16.97″ x 6.73″ (431 x 171 mm) |
| Mounting depth clearance | 1.61″ (41 mm) |
IN THE BOX
- 1 Sound Panel
- Mounting template
- Documentation
| SKU | 010-01791-00 |
|---|---|
| Barcode # | 0753759175085 |
| Brand | Fusion |
| Shipping Weight | 2.9000kg |
