Bring on the elements. The Signature Series 3i coaxial speakers deliver crystal-clear audio and withstand the conditions like never before.
Crystal-clear premium sound quality is suited for the marine environment.
Water-resistant connectors provide simplified installation and superior protection.
The rigorously tested marinised design has an IP65 rating.
Available in 6.5″, 7.7″ and 8.8″ designs, classic or sports style grilles.
CRGBW LED lights set the scene on your boat.
Built to last season after season, the Fusion® Signature Series 3i Marine Coaxial Speakers include a supported 3-year warranty.
MARINISED CONNECTORS
New, water-resistant connectors now come standard. This makes installation easy and provides superior protection from the harsh marine environment.
REDESIGNED GRILLE
Material enhancements and protective engineering maintain the sharp aesthetic appeal of your speakers, year after year.
TRUE-MARINE™ PHILOSOPHY
Any product that bears the Fusion True-Marine seal of assurance has been designed by Fusion to withstand the harshest marine environments season after season and comes with an industry-leading 3-year warranty.
CURV® CONE TECHNOLOGY
A lighter and stronger woven fibre composite produces greater sound definition at a higher volume.
LED ILLUMINATION
Cool white, red, green, blue, warm white. You can choose a colour to match the mood of your music.
SYSTEM INTEGRATION
These speakers are designed to work optimally with Fusion® stereo systems and amplifiers (sold separately) with custom DSP profiles. This requires the Fusion-Link™ smart-device app for setup.
SPORTS SPEAKERS
The speakers are available in white or grey. CRGBW LED lights are optional on 6.5″ and 7.7″ sizes and standard on 8.8″ size.

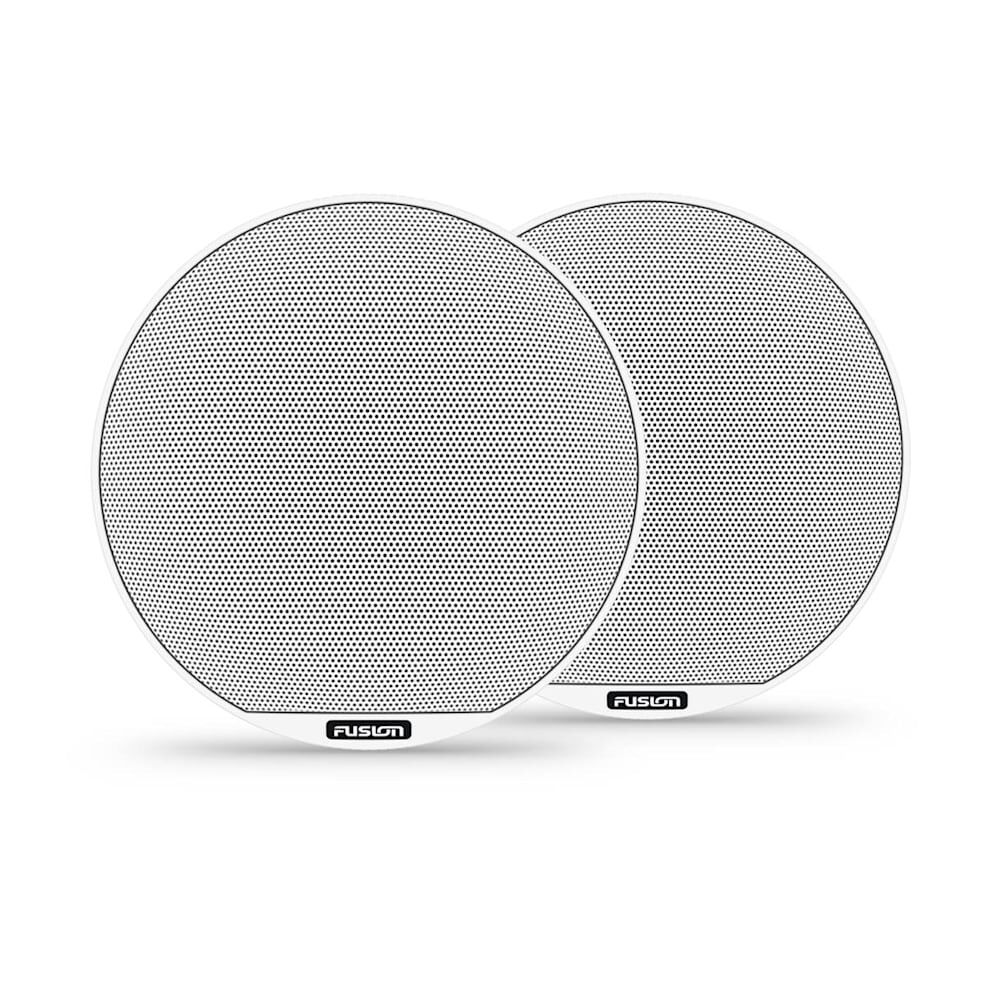

CLASSIC WHITE SPEAKERS
The classically styled perforated metal grille is available in 6.5″, 7.7″ and 8.8″ sizes.
SPECS
General
| Sizes | 6.5"/7.7"/8.8" |
|---|---|
| Colour | Classic White or Sports White or Sports Grey |
| Physical dimensions (Diameter) | 6.5" (Classic): 200 mm (7.87") 6.5" (Sports): 176 mm (6.93") 7.7" (Classic): 220 mm (8.66") 7.7" (Sports): 196 mm (7.72") 8.8" (Classic): 247 mm (9.75") 8.8" (Sports): 224 mm (8.82") |
| Physical dimensions (Depth) | 6.5" (Classic): 103 mm (4.06") 6.5" (Sports): 104.5 mm (4.11") 7.7" (Classic): 109.5 mm (4.31") 7.7" (Sports): 111 mm (4.37") 8.8" (Classic): 131mm (5.16") 8.8" (Sports): 133mm (5.24") |
| Weight | 6.5" (Classic): 1.35 kg (3 lbs) 6.5" (Sports): 1.29 kg (2.8 lbs) 6.5" (Sports) with CRGBW: 1.32 kg (2.9 lbs) 7.7" (Classic): 1.8 kg (4 lbs) 7.7" (Sports): 1.76 kg (3.9 lbs) 7.7" (Sports) with CRGBW: 1.77 kg (3.9 lbs) 8.8" (Classic): 2.62 kg (5.8 lbs) 8.8" (Sports) with CRGBW: 2.61 kg (5.8 lbs) |
| Water and dust rating | IP65 |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5": 75 W 7.7": 100 W 8.8": 130 W |
| Sensitivity (SPL @ 1 W/1 m) | 6.5": 90 dB 7.7"/8.8": 91 dB |
| Frequency response (+/- 3 dB) | 6.5": 70 Hz-22 kHz 7.7": 60 Hz-22 kHz 8.8": 50 Hz-20 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | General 6.5": 25-160 W/Channel 7.7": 25-220 W/Channel 8.8": 30-300 W/Channel |
| LED lighting | Yes - CRGBW (selected Sport models only) |
| LED supply voltage | 10.8-16 VDC (selected Sport models only) |
| LED Load Current @ 14.4 VDC (max) | 300 mA (selected Sport models only) |
| Operating temperature range | 0° to 50° C (32° to 122° F) |
| Cone material | CURV® Cone Technology with rubber surround |
| Tweeter type | Silk dome |
| Warranty | 3 years |
Electrical features
| Compass safe distance | 6.5": 310 cm (122") 7.7": 358 cm (141") 8.8": 412 cm (162") |
|---|
Connections
| Speaker connections | Flying Lead with Water-resistant 2-way Connector, 150mm (5.9") |
|---|---|
| LED connection | Flying Lead with Water-resistant 6-way Connector, 150 mm (5.9") (selected Sport models only) |
Mounting Dimensions
| Mounting diameter clearance | 6.5": 136mm (5.35") 7.7": 156mm (6.14") 8.8": 188mm (7.44") |
|---|---|
| Mounting depth clearance | 6.5": 79 mm (3.11") 7.7": 86mm (3.39") 8.8": 106mm (4.13") |
| Frontal grille protrusion | 6.5": 29 mm (1.14") 7.7": 29 mm (1.14") 8.8": 31 mm (1.34") |
IN THE BOX
- One pair of speakers (based on what you select)
- 12 Phillips stainless steel mounting screws, 4.2 mm x 40 mm (8 gauge x 1.6”)
- 2 water-resistant cable assemblies with 2-pin connector (5.9" (150mm))
- 2 water-resistant cable assemblies with 6-pin connector (5.9" (150mm), sports style with LED models only)
- Documentation
COMPATIBLE DEVICES
Apollo RA670
Apollo RA770
Apollo WB670
Fusion® Apollo™ Marine Amplifiers
Fusion® Apollo™ MS-WB675 Marine Hideaway Stereo
Fusion® Apollo™ SRX400
Fusion BB100 Black Box
Fusion® MS-RA60 Marine Stereo
Fusion RA210 Marine Stereo
Fusion® RA70 Series Marine Stereos
Fusion® Signature Series Marine Amplifiers
| SKU | 010-02771-00 |
|---|---|
| Barcode # | 0753759297848 |
| Brand | Fusion |
| Shipping Weight | 3.9000kg |
Fusion Signature Series 3i Marine Speakers, 6.5" 230-watt coaxial Classic white marine speakers (pair)
More infoMake 4 payments of $149.75 over 8 weeks and get it now!
