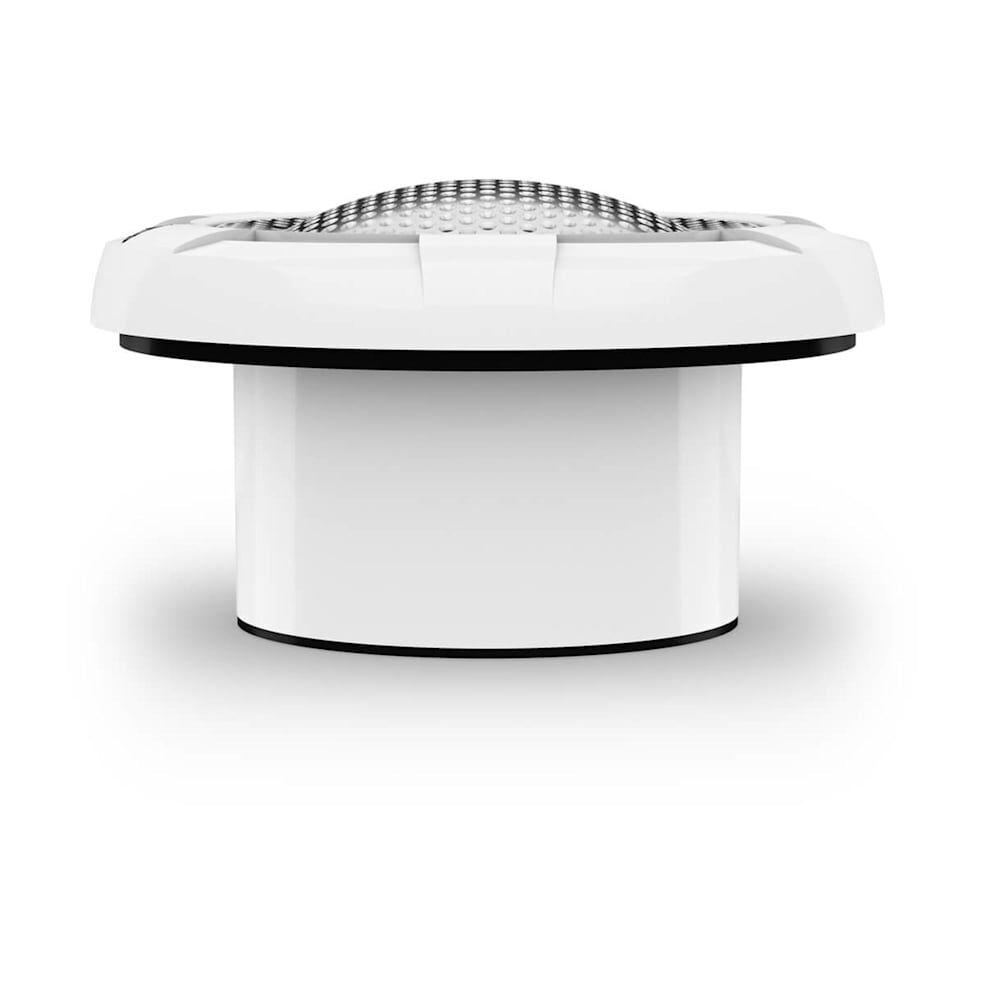

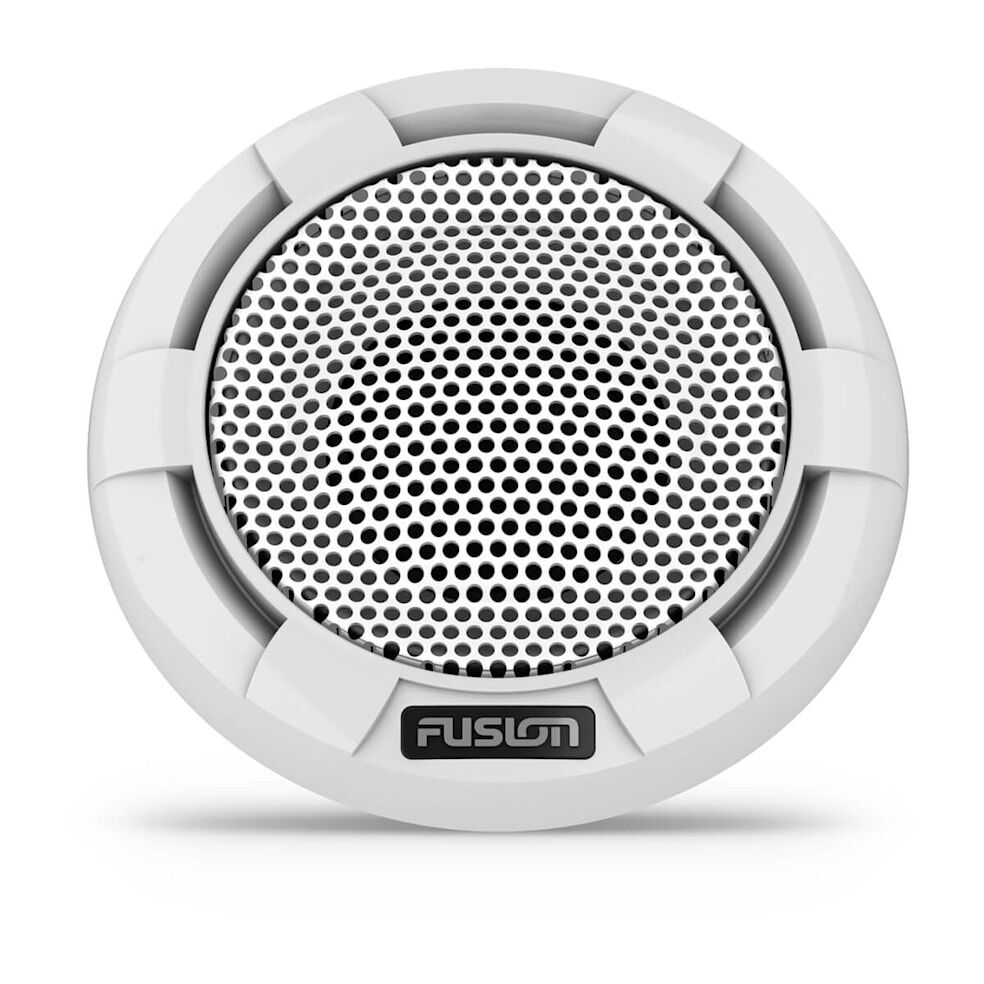

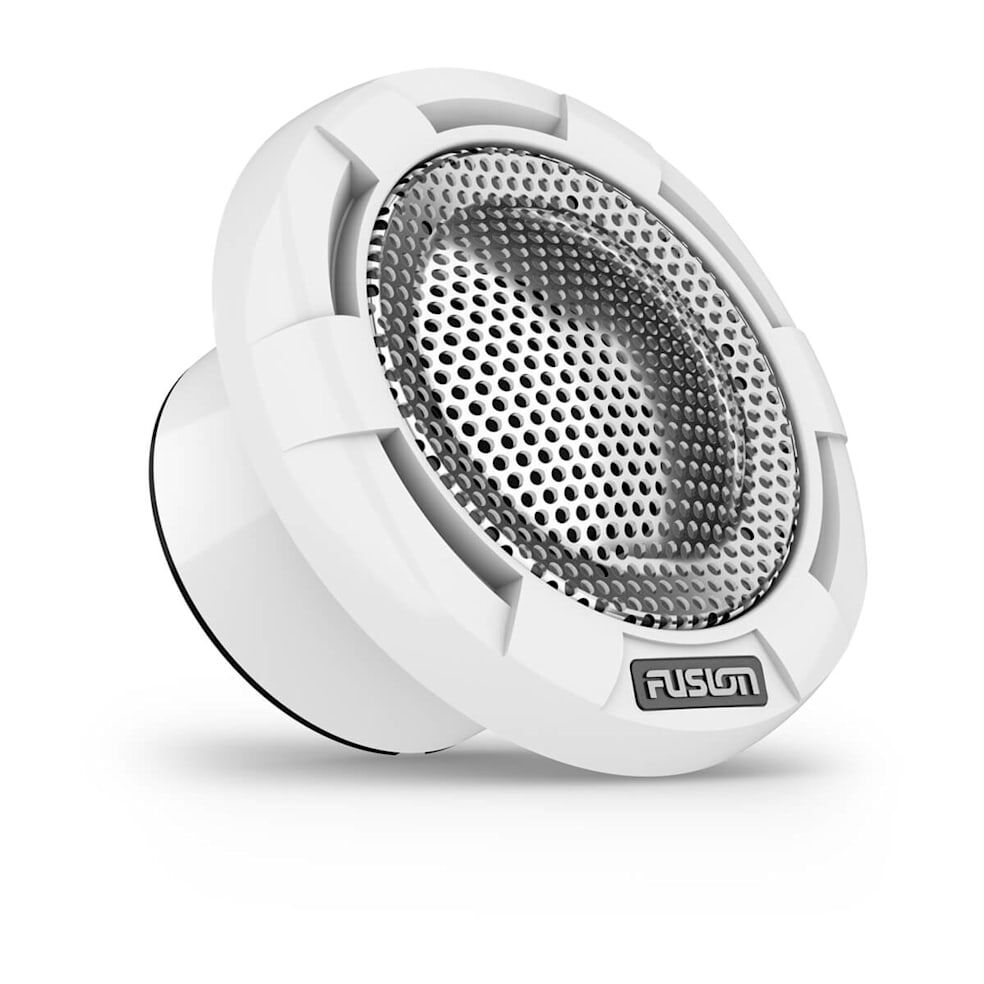

Enhance your listening experience while you’re on the move with these marinised component tweeters. Designed to be dash mounted in raised positions to restore high frequencies, you can clearly hear vocals over engine, wind and wave noise. Key features include a compact form factor, low profile mounting design, IP65 weather rating and Fusion True-Marine™ design with a 3 year warranty. Now with plug-and-play, water-resistant connectors as a standard, you can enjoy simplified installation and improved protection from the elements.
SPECS
General
| Physical dimensions (diameter x depth) | 2.91″ x 1.64″ (74 x 41.6 mm) |
|---|---|
| Water and dust rating | IP65 |
| Tweeter size | 1″ |
| Peak power (watt) | 330 W |
| RMS power (watt) | 60 W |
| Sensitivity (1 W / 1 m) | 91 dB |
| Frequency response | 3 kHz - 20 kHz |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 25 - 140 W/Ch |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 1″ |
| Material | Aluminum dome |
| Tweeter connection | Flying lead with water-resistant 2-way connector, 5.9″ (150 mm) |
| Compass-safe distance | 43.3″ (110 cm) |
| Warranty | 3 years |
Mounting Dimensions
| Mounting diameter clearance | 2.01″ (51 mm) |
|---|---|
| Mounting depth clearance | 1.22″ (31 mm) |
IN THE BOX

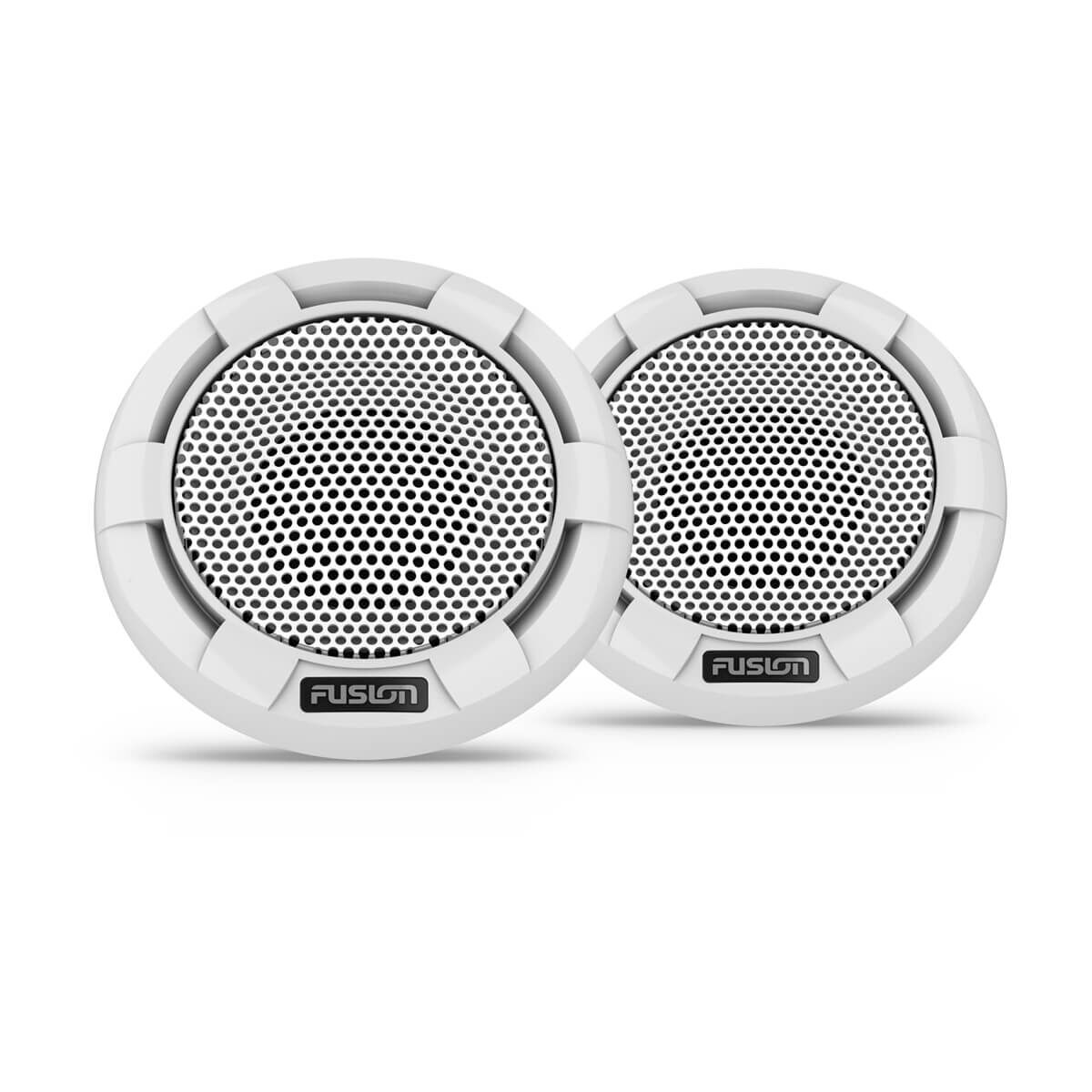

- One pair of component tweeters
- 6 Phillips stainless steel mounting screws (3.5 mm x 25.4 mm (6 gauge x 1″))
- 2 water-resistant cable assembly with 2-pin connector (5.9″ (150 mm))
- Documentation
COMPATIBLE DEVICES
Apollo RA670
Apollo RA770
Apollo WB670
Fusion® Apollo™ MS-WB675 Marine Hideaway Stereo
Fusion Apollo™ Speakers
Fusion® Apollo™ SRX400
Fusion BB100 Black Box
Fusion® MS-RA60 Marine Stereo
Fusion RA210 Marine Stereo
Fusion® RA70 Series Marine Stereos
Fusion® Signature Series 3i Marine Coaxial Speakers
- Compact gear for raised dash mounting
- IP65 housing handles spray and dust
- 3 kHz–20 kHz for clear treble
- Suits 25–140 W per channel amps
- Aluminium dome tweeters made to last
- Physical dimensions (diameter x depth): 2.91" x 1.64" (74 x 41.6 mm)
- Mounting diameter clearance: 2.01" (51 mm)
- Mounting depth clearance: 1.22" (31 mm)
- Tweeter size: 1"
- Voice coil diameter: 1"
- Peak power: 330 W
- RMS power: 60 W
- Recommended amplifier power (RMS): 25 – 140 W/Ch
- Sensitivity (1 W / 1 m): 91 dB
- Frequency response: 3 kHz – 20 kHz
- Nominal impedance: 4 ohms
- Water and dust rating: IP65
- Operating temperature range: 32° to 122° F (0° to 50° C)
- Tweeter connection: Flying lead with water-resistant 2-way connector, 5.9" (150 mm)
- Compass-safe distance: 43.3" (110 cm)
- Dome material: Aluminium
- Warranty: 3 years
- Colour: White
- One pair of component tweeters
- 6 Phillips stainless steel mounting screws (3.5 mm x 25.4 mm (6 gauge x 1"))
- 2 water-resistant cable assemblies with 2-pin connector (5.9" (150 mm))
- Documentation
| SKU | 010-02796-20 |
|---|---|
| Barcode # | 0753759303020 |
| Brand | Fusion |
| Shipping Weight | 0.6200kg |
