OVERVIEW
CLEAR AUDIO, CLEAN AESTHETICS – ALL CLASS

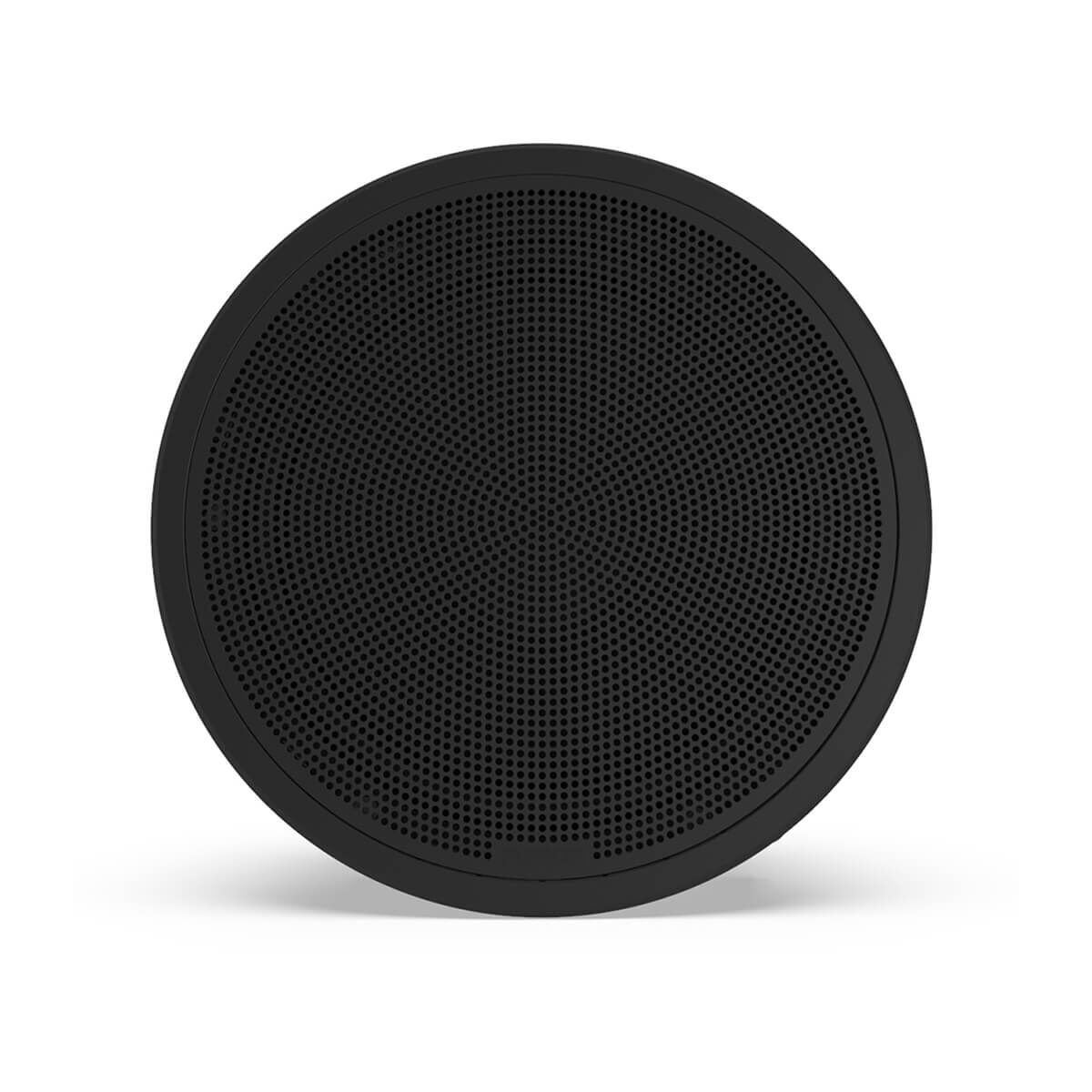

The Fusion FM Series subwoofers are designed to enhance your on-water audio listening experience with quality bass, in a sleek and minimalistic aesthetic.
Innovative flush-mount design for a sleek and minimalistic finish.
Low profile, near flat installation with a mounting profile of just 3 mm.
Create a 2.1 audio zone to reduce system cost and simplify installation.
With an increase in real power, the voice coil provides a high-quality sound experience.
The subwoofers are available in 10-inch designs with a round or square form factor.
Engineered to last season after season, the subwoofers include a 3-year warranty.
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion, the FM Series subwoofers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.
DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and water ingress, the FM Series subwoofers are designed and built for superior quality and robustness.
VERSATILE SYSTEM INTEGRATION
Built for system versatility and ease of integration, you can connect your FM Series subwoofer directly to a 2.1 audio zone compatible system such as the Apollo™ Series without the need for an external amplifier – reducing system cost and simplifying installation.
INJECTION-MOULDED POLYPROPYLENE CONE
By using a water-resistant IMPP cone, we are able to produce defined, high-resolution low-frequencies from the excellent self-damping and bass reproduction.
LARGE DIAMETER VOICE COIL
With an increase in real power and efficiency, the large diameter voice coil delivers a truly high-quality sound experience.
HIGH-QUALITY BASKET CONSTRUCTION
The basket is constructed using high-quality engineered plastics to deliver enhanced durability when exposed to the marine environment.
INNOVATIVE FLUSH-MOUNT DESIGN
The FM Series subwoofers are designed to be flush-mounted with a mounting profile no thicker than 3 mm for a visually appealing, near flat finish. The sleek and minimalistic aesthetic allows the FM Series subwoofers to blend in seamlessly with your boat.
NON-INTRUSIVE MOUNTING SYSTEM

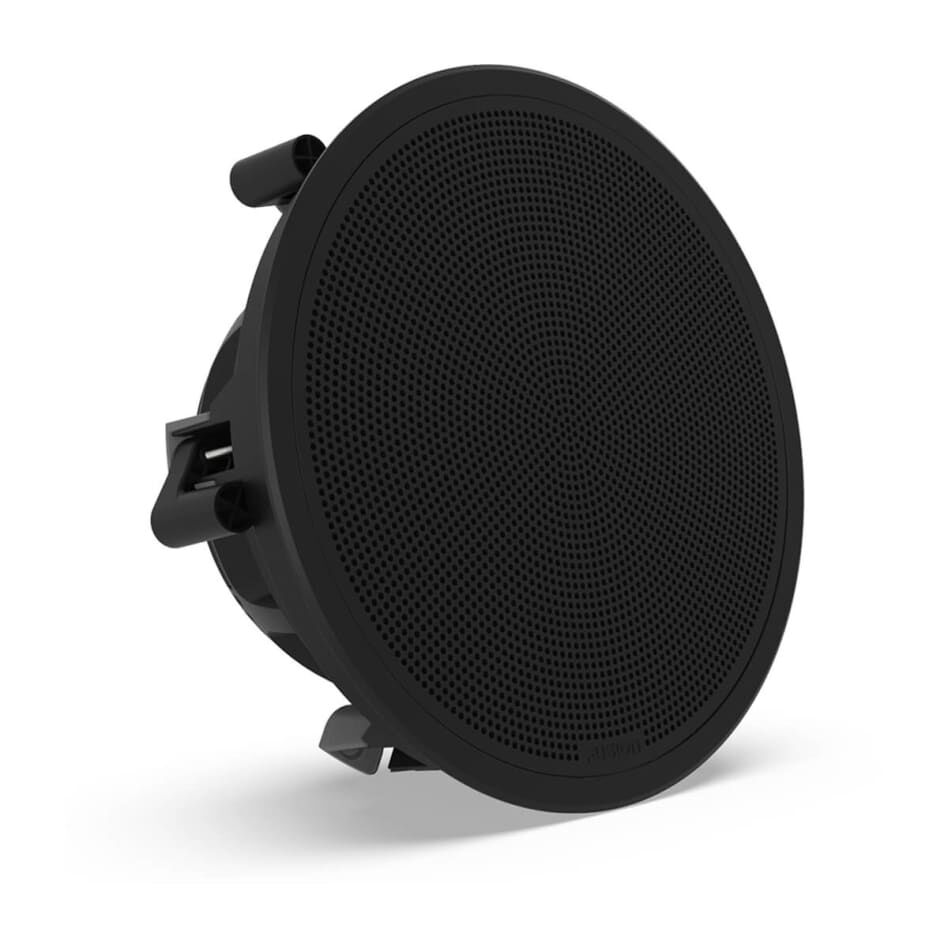

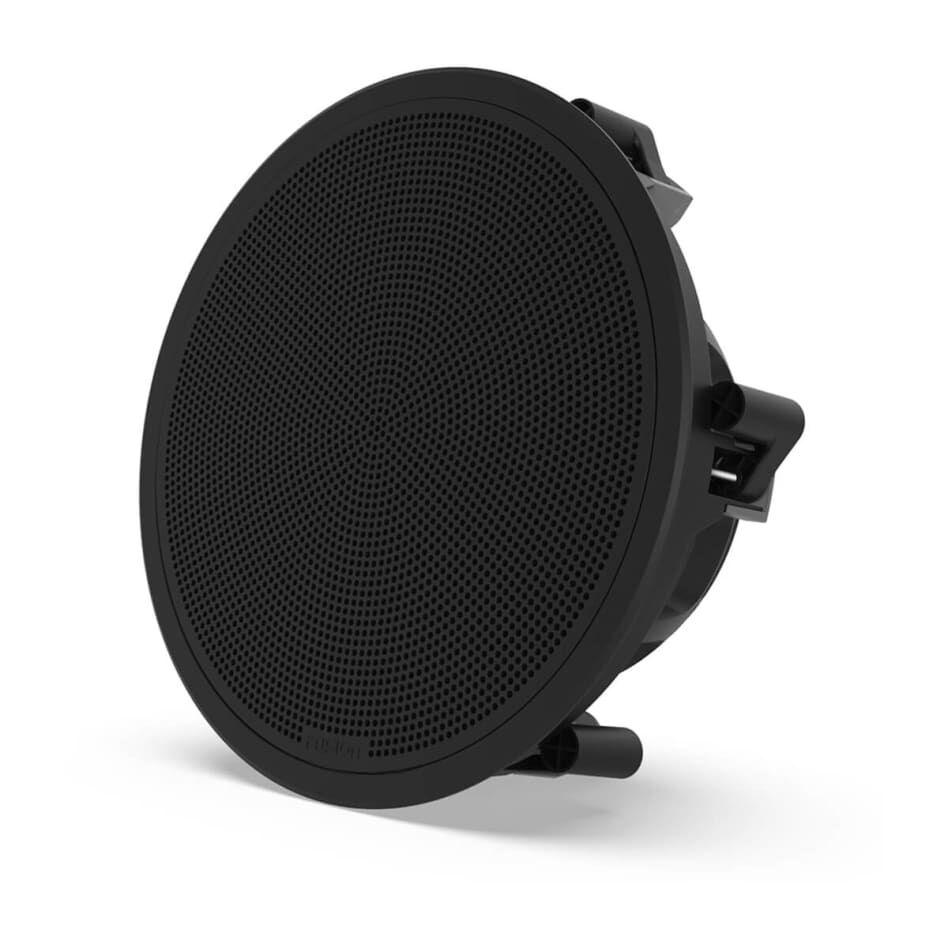

The FM Series subwoofers feature an intelligent mounting system. Simply place the subwoofer into the cutout, tighten the screws and the subwoofer legs will tighten against the panel, keeping it in place without needing to create any screw holes in your boat.
SPECS
General
| Sizes | 10" |
|---|---|
| Colour | Round White or Round Black or Square White or Square Black |
| Physical dimensions (Diameter) | 11.18 mm (284") |
| Physical dimensions (Depth) | 139.5 mm (5.49") |
| Weight | 10" Round: 3 kg (6.61 lbs) 10" Square White: 2.95 kg (6.5 lbs) 10" Square Black: 3.1 kg (6.83 lbs) |
| Water and dust rating | IP65 |
| Speaker type | Subwoofer |
| Continuous power handling (RMS) | 120 W |
| Sensitivity (SPL @ 1 W/1 m) | 87 dB |
| Frequency response (+/- 3 dB) | 30 Hz-2 kHz |
| Nominal impedance | 4 Ω |
| Operating temperature range | 0° to 50° C (32° to 122° F) |
| Cone material | Polypropylene cone with rubber surround |
| Warranty | 3 years |
Electrical features
| Compass safe distance | 381 cm (150") |
|---|
Connections
| Speaker connections | Spade Connectors |
|---|
Mounting Dimensions
| Mounting diameter clearance | 269 mm (10.59") |
|---|---|
| Mounting depth clearance | 140 mm (5.51") |
| Frontal grille protrusion | 3 mm (0.12") |
IN THE BOX
- One subwoofer (based on what you select)
- Documentation
COMPATIBLE DEVICES
Apollo RA670
Apollo RA770
Apollo WB670
Fusion® Apollo™ SRX400
Fusion BB100 Black Box
Fusion® MS-RA60 Marine Stereo
Fusion RA210 Marine Stereo
Fusion® RA70 Series Marine Stereos
Fusion® Signature Series Marine Amplifiers
| SKU | 010-02301-01 |
|---|---|
| Barcode # | 0753759236717 |
| Brand | Fusion |
| Shipping Weight | 4.0500kg |
