OVERVIEW

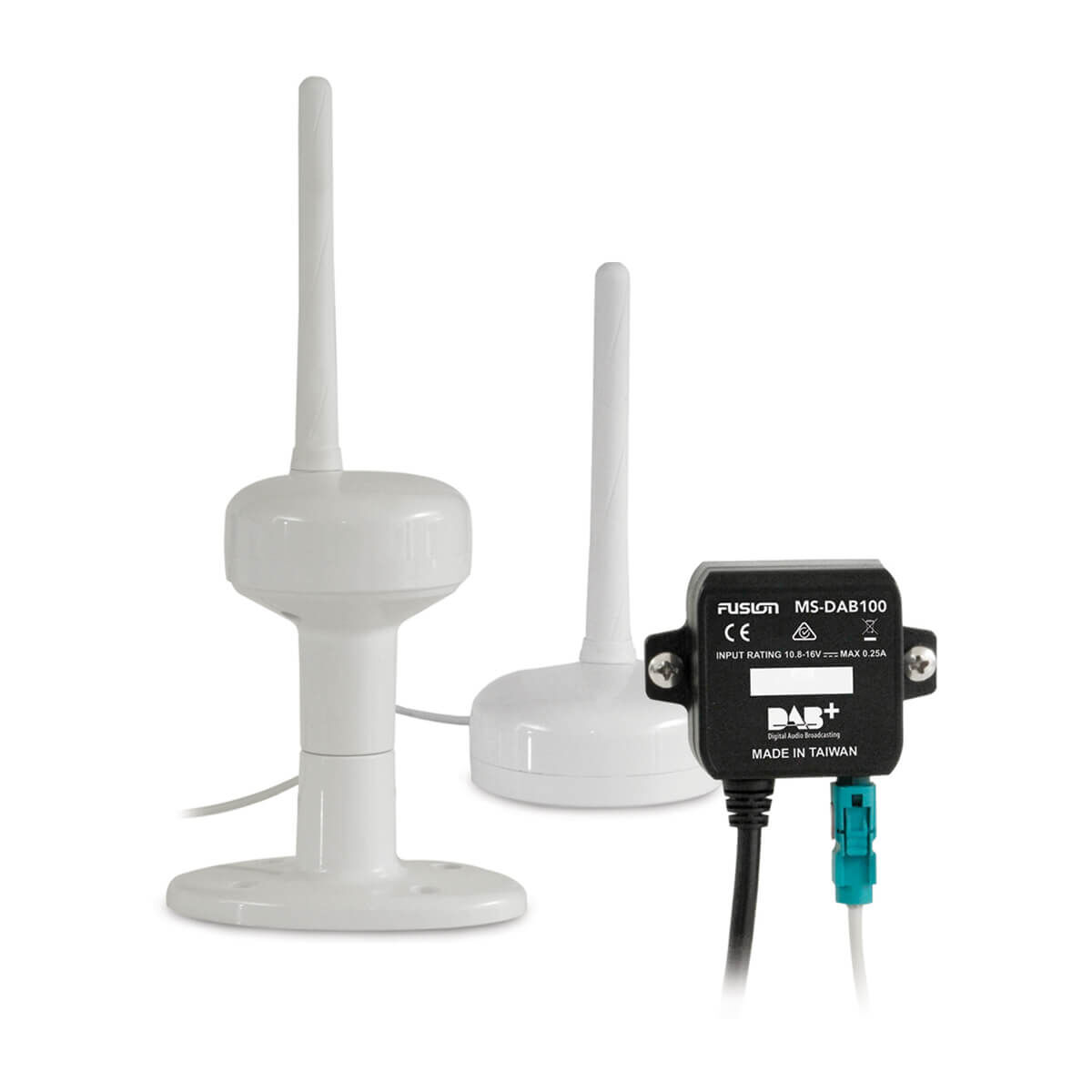

Connect this DAB+ module and antenna to your compatible Fusion marine stereo to enjoy DAB and DAB+ digital radio broadcasts¹. The antenna can either be mounted using the included mounting bracket or adhesive pad.

SPECS

Overview

• Physical dimensions (WxHxD): 64 x 58 x 21 mm
• Weight: 103 g
• Water rating: IPX3
• Input voltage: 10.8-16 VDC
• Input current (max): 250 mA
• Output voltage to antenna: 8-15 VDC
• Output current to antenna (max): 50 mA
• DAB standard compatability: DAB and DAB+
• DAB frequency band: Band III (174 to 240 MHz)
• DAB transmission modes: Mode I
• Sensitivity: -97 dBm
• Antenna connector type: FAKRA Z-type waterblue male, compatible with SMB connectors
• Power/control/audio stereo connector: 10-pin mini DIN
• Power/control/audio stereo cable length: 1.5 m
• Operating temperature range: 0° to 50° C
• Compass-safe distance: 50 mm

Antenna

• Maximum physical dimensions with whip antenna and base (W x H): 110 x 248 mm
• Antenna base diameter: 74 mm
• Weight (excluding cable): 170 g
• Water rating: IPX7
• Input voltage: 6-16 VDC
• Input current (max): 13 mA
• Frequencies: DAB Band III (174 to 240 MHz)
• Impedance: 50 ohms
• Polarization: Vertical
• LNA gain: 22 dB (typical)
• Voltage standing wave ratio (VSWR): Less than 2.5 : 1
• Maximum power: 312 mW
• Antenna cable connector: FAKRA Z-type waterblue female
• Antenna cable length: 10 m
• Operating temperature range: 0° to 50° C
• Compass-safe distance: 50 mm

IN THE BOX

• 1 DAB module
• 2 mounting screws (for DAB module)
• 1 DAB antenna base
• 1 whip antenna mast (for DAB antenna base)
• 1 pole mount adapter (attached to DAB antenna base)
• 1 mounting bracket (for DAB antenna)
• 4 mounting screws (for DAB antenna mounting bracket)
• 2 seal pads (for surface mounting the DAB antenna)
• 3 threaded rods (for surface mounting the DAB antenna)
• 3 thumbscrews (for surface mounting the DAB antenna)
• Documentation
