OVERVIEW
STYLE AND SOUND
The compact CMM-30 is an all-in-one source unit and multimedia hub. Add sound and style to your boat with the 3.5-inch colour LCD controller.
BLUETOOTH STREAMING
Start streaming from your compatible smartphone or any device with BLUETOOTH technology, and get improved audio quality with Qualcomm® aptX™ processing.
CONNECTIVITY OPTIONS
This digital receiver has one stereo pair of auxiliary inputs as well as USB for charging and file playback. It’s also equipped with SiriusXM-Ready® radio (tuner and antenna sold separately; subscription required).
SHAPE YOUR SOUND
Adjust highs, mids and lows to get the perfect sound with a 5-band equaliser and built-in amp. You can even adjust sound in different parts of the boat with 4-zone control.
FULL-COLOUR DISPLAY
See what’s playing with the 3.5-inch full-colour LCD display.
TUNE IN TO RADIO
Play local radio stations with a built-in AM/FM tuner. Or get the latest forecast from the weather band.
RUGGED AND READY
The front panel of CMM-30 is IP66- rated, so you can move confidently out on the water.
SPECS
General
| Physical dimensions (Height) | CMM-30: 3.90" (99 mm) CMM-30BB: 7.90" (201 mm) |
|---|---|
| Physical dimensions (Width) | CMM-30: 151 mm (5.94") CMM-30BB: 138 mm (5.42") |
| Physical dimensions (Depth) | CMM-30: 75 mm (2.95") CMM-30BB: 138 mm (2.01") |
| Control Surface Dust/Water Rating (when properly installed) | IP66 |
| Operating temperature range | -20° C to +60° C (-4° F to +140° F) |
| Current draw (max) | 15 A |
| Warranty | 1 year |
Networking
| NMEA 2000® LEN | 1 (50 mA) |
|---|---|
| Bluetooth® wireless range | Up to 11 metres (35 ft) |
| Wireless frequencies/protocols | BLUETOOTH® |
Audio
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) | 25 W x 4 |
|---|
Electrical features
| POWER INPUT | 10-16 VDC |
|---|
Stereo features
| Display Size | CMM-30: 76 mm (3") |
|---|---|
| Display type | CMM-30: colour TFT LCD backlit |
| Display resolution | CMM-30: 640 x 360 |
| Optically bonded display | Yes (CMM-30) |
| Built-in amplifier | Class-D (2 Ω stereo-stable) |
| Multi-Zone™️ technology | YES |
| Bluetooth® wireless technology | YES |
| SiriusXM-ready | YES |
| Multi-language interface | English |
| Software updates | YES |
Sources
| Supported sources | Digital AM/FM with RDS/NOAA Weather Radio (US only)/BLUETOOTH®/USB audio/iPhone/iPod/AUX/SiriusXM-Ready (USA & CA only, requires subscription and SiriusXM Connect vehicle tuner) |
|---|---|
| Supported audio formats (USB) | MP3, WMA, FLAC, WAV |
Connections
| Auxiliary inputs (RCA) | 1 (2V or 1V RMS input sensitivity) |
|---|---|
| NMEA 2000® ports | 1 (Micro-C connector) |
| USB 2.0 ports | 1 High-speed connection for use with iPhone®/iPod® (MFi Certified) or USB storage device (2.1 A charging output) |
| SiriusXM ports | 1 |
| Antenna ports | 1 |
| Speaker connections | 4 (2 zones amplified) |
| RCA pre-out (left, right and subwoofer - requires external amplification) | 4 zones (L+R) or Zone 4 as subwoofer |
| Line out (requires external amplification) | 4 (L + R per zone) |
| Subwoofer out (requires external amplification) | Occupies Zone 4 |
IN THE BOX
- One marine source unit with trim ring (attached)
- Power and speaker connections wire harness
- One mounting gasket (not included with Hideaway Receiver)
- One mounting template
- Four mounting screws
- Protective sun cover (not included with Hideaway Receiver)
| SKU | 010-03225-00 |
|---|---|
| Barcode # | 0729218928059 |
| Brand | Fusion |
| Shipping Weight | 1.4300kg |

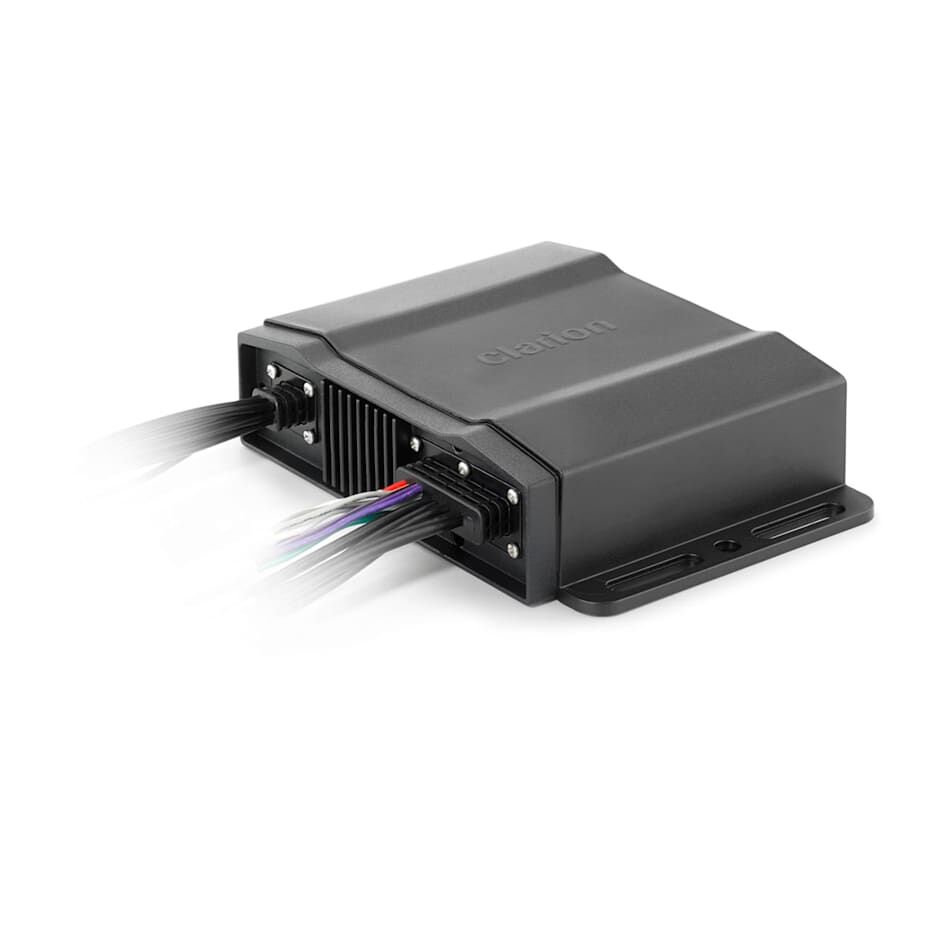

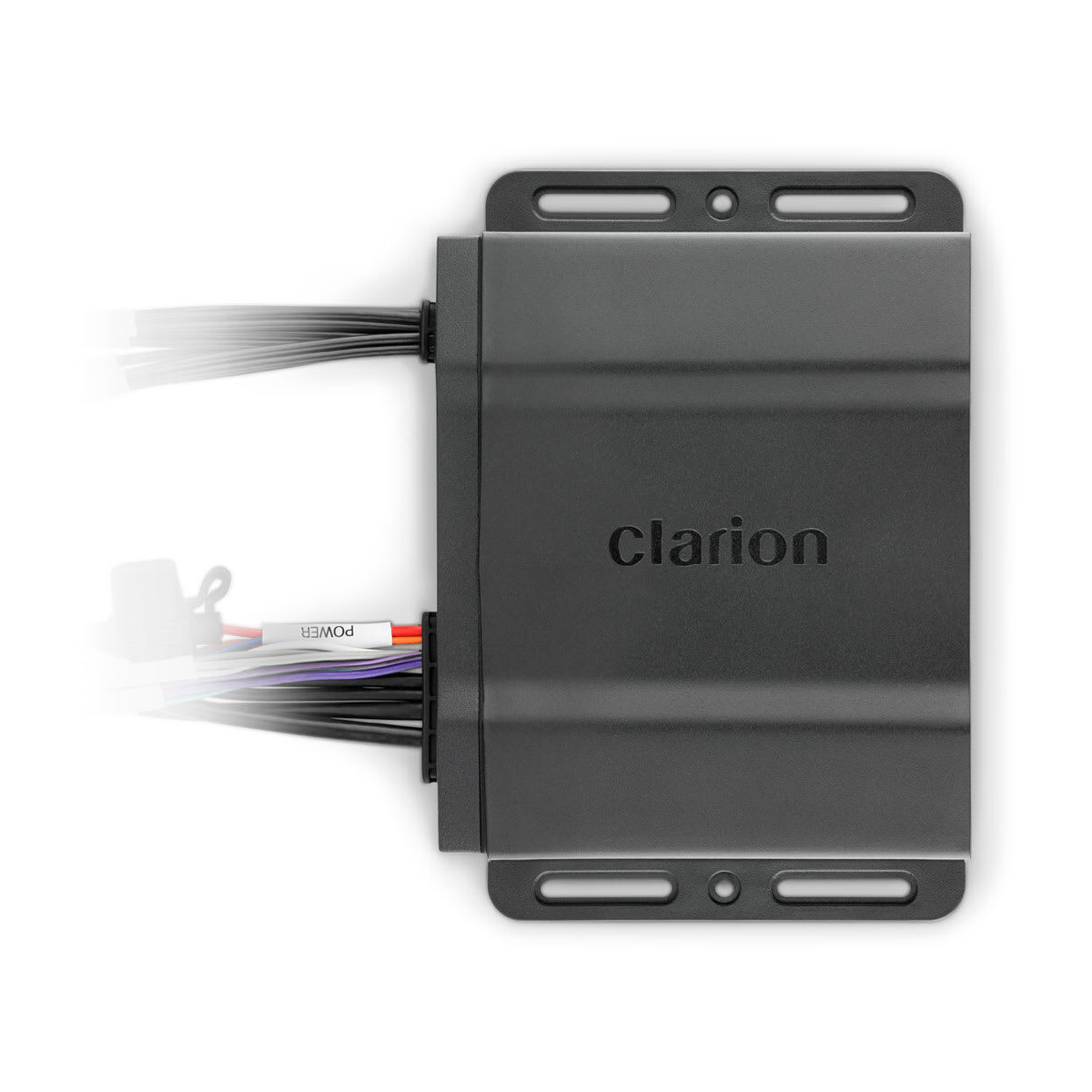

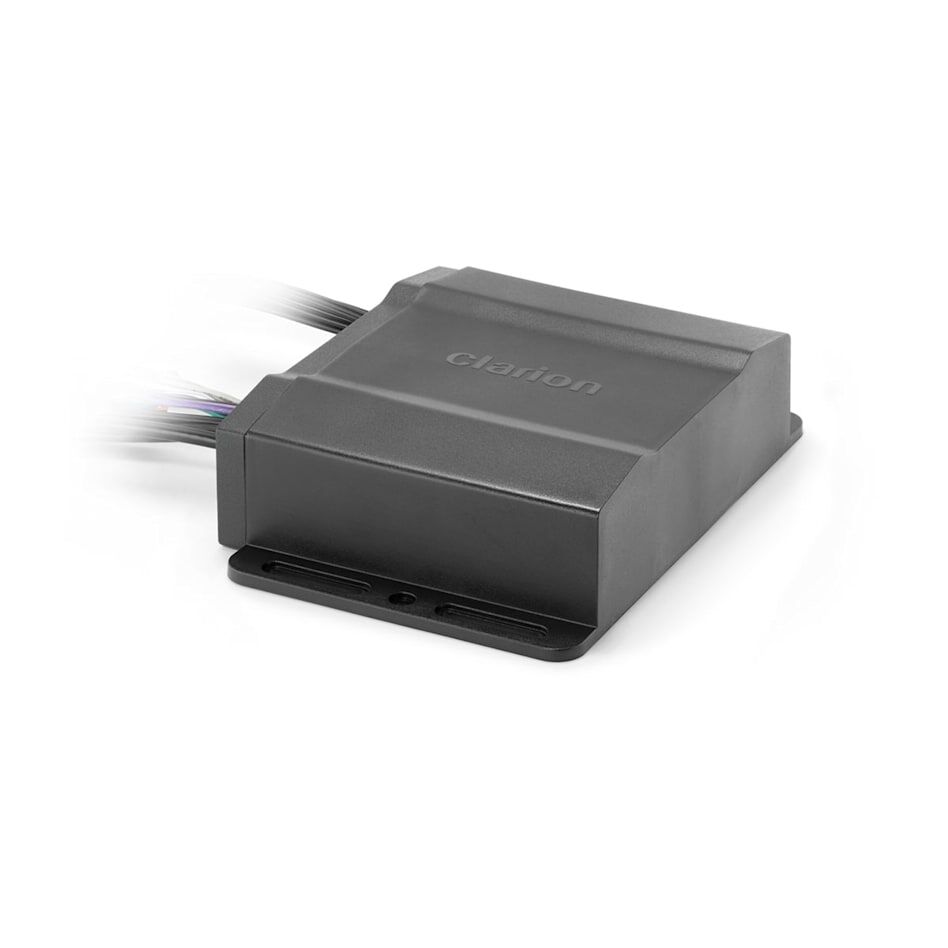

Fusion Clarion marine soure unit, Hideaway (CMM-30BB)
