OVERVIEW
BIG BASS RESPONSE IN A COLOURFUL PACKAGE

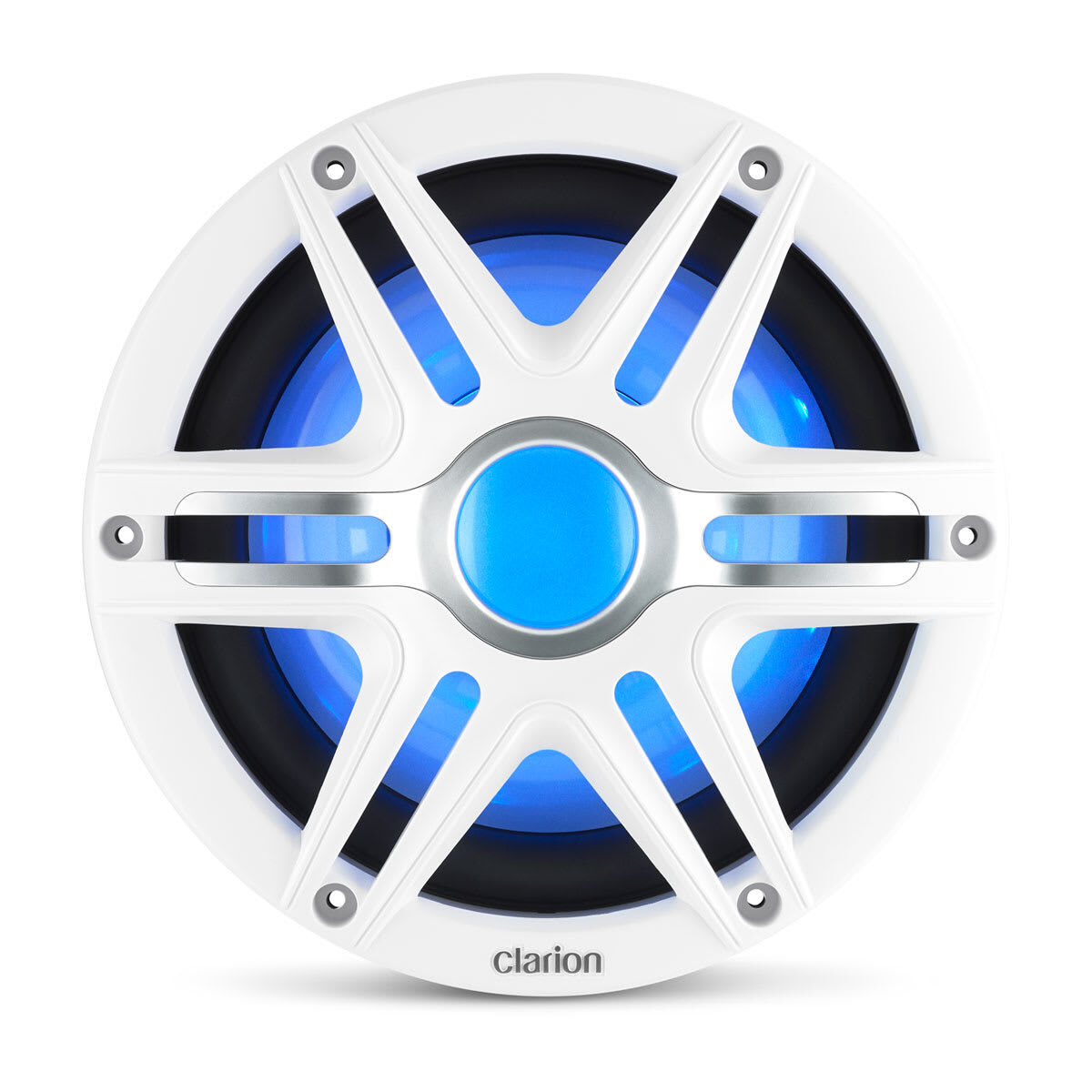

Get powerful bass with a splash of colour on this 10-inch marine subwoofer.
MARINE SUBWOOFER
This 10-inch subwoofer features an injection molded polypropylene cone and rubber surround with a marine-grade synthetic spider to keep the cone under control for tight bass response.
RGB LED LIGHTING
Enhance your audio entertainment experience with bright and even LED illumination in a wide range of colours.
EXTRAORDINARY PERFORMANCE
A long-excursion, high-power handling design delivers low distortion and excellent low-frequency capability.
SALT AND SUN PROTECTED
Clarion subwoofers meet or exceed ASTM standards for salt-fog exposure as well as UV exposure. They feature marine-grade materials and finishes with corrosion-resistant connections and circuit boards.
OPTIONAL GRILLE
Complete the look with an optional grille. Choose a white or metallic grey sport grille to match CMSP marine speakers.
SPECS
General
| Sizes | 10" |
|---|---|
| Colour | Black |
| Physical dimensions (Diameter) | 269 mm (10.57") (without grille) |
| Physical dimensions (Depth) | 131mm (5.16") |
| Weight | 4.85 kg (10.69 lbs) |
| Speaker type | Infinite Baffle Subwoofer |
| Continuous power handling (RMS) | 250 W |
| Sensitivity (SPL @ 1 W/1 m) | 86 dB |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 250 W |
| LED lighting | Yes, RGB |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 220 mA |
| Cone material | Injection-molded, polypropylene |
Mounting Dimensions
| Mounting depth clearance | 131 mm (5.16") |
|---|---|
| Mounting hole | 222 mm (8.75") |
| Bolt hole circle | 247 mm (9.72") |
Parameters
| Free Air Resonance (FS) | 2 Ω: 44.81 Hz 4 Ω: 47.15 Hz |
|---|---|
| Electrical “Q” (Qes) | 2 Ω: 0.832 4 Ω: 1.005 |
| Mechanical “Q” (Qms) | 2 Ω: 11.410 4 Ω: 11.532 |
| Total “Q” (Qts) | 2 Ω: 0.775 4 Ω: 0.925 |
| Equivalent Compliance (Vas) | 2 Ω: 0.87 cu ft (24.77 L) 4 Ω: 0.88 cu ft (24.93 L) |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 2 Ω: 10 mm (0.39") 4 Ω: 10 mm (0.39") |
| Effective piston area (SD) | 2 Ω: 0.0314 m² (48.67 in²) 4 Ω: 0.0314 m² (48.67 in²) |
| DC resistance (RE) | 2 Ω: 2.180 Ω 4 Ω: 4.080 Ω |
IN THE BOX
- One 10" marine subwoofer
- 6" waterproof 4-pin LED harness
- Six 1-3/8" stainless steel screws
- One 0.250" female crimpable connectors
- One 0.185" female crimpable connectors
- Proven 250 W RMS marine subwoofer
- 10 inch cone tackles open decks
- 4 ohm load matches typical amps
- RGB LEDs run off 10–14.4 V
- Marine materials go the distance
- Smart buy for better onboard bass
- Size: 10 inch subwoofer
- Colour: Black
- Diameter (without grille): 269 mm (10.57")
- Depth: 131 mm (5.16")
- Weight: 4.85 kg (10.69 lbs)
- Speaker type: Infinite baffle subwoofer
- Continuous power handling (RMS): 250 W
- Recommended amplifier power (RMS): 250 W
- Sensitivity (SPL @ 1 W/1 m): 86 dB
- Nominal impedance: 4 Ω
- LED lighting: RGB
- LED supply voltage: 10–14.4 VDC
- LED load current @ 14.4 VDC (max): 220 mA
- Cone material: Injection-moulded polypropylene
- Mounting depth clearance: 131 mm (5.16")
- Mounting hole diameter: 222 mm (8.75")
- Bolt hole circle: 247 mm (9.72")
- Free air resonance (FS) 4 Ω: 47.15 Hz
- Electrical Q (Qes) 4 Ω: 1.005
- Mechanical Q (Qms) 4 Ω: 11.532
- Total Q (Qts) 4 Ω: 0.925
- Equivalent compliance (Vas) 4 Ω: 0.88 cu ft (24.93 L)
- One-way linear excursion (Xmax) 4 Ω: 10 mm (0.39")
- Effective piston area (Sd) 4 Ω: 0.0314 m² (48.67 in²)
- DC resistance (Re) 4 Ω: 4.080 Ω
One 10" marine subwoofer
One 6" waterproof 4-pin LED harness
Six 1-3/8" stainless steel screws
One 0.250" female crimpable connector
One 0.185" female crimpable connector
| SKU | 010-03050-00 |
|---|---|
| Barcode # | 0729218926222 |
| Brand | Fusion |
| Shipping Weight | 5.9500kg |
Fusion Clarion marine premium subwoofer grille, 10" with LED 4 ohm (CMSP-101RGB-4) (grilles sold separately)
