OVERVIEW
ULTRACOMPACT BUILD. FULL SOUND.

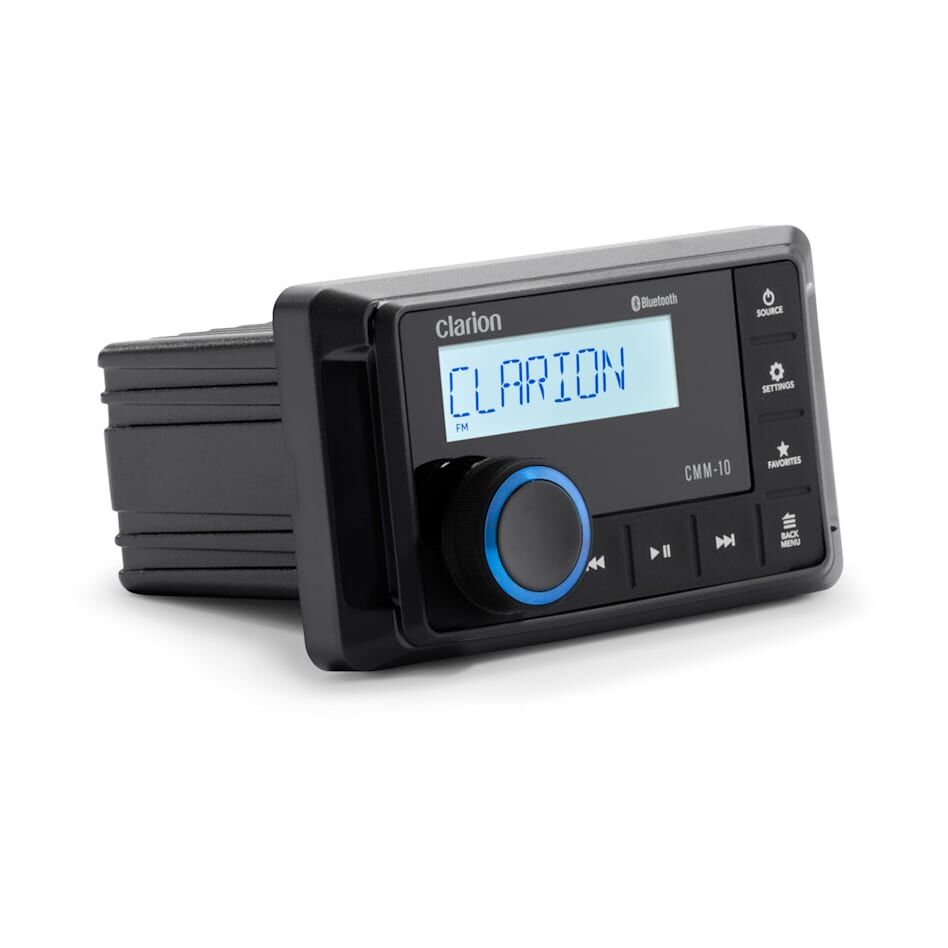

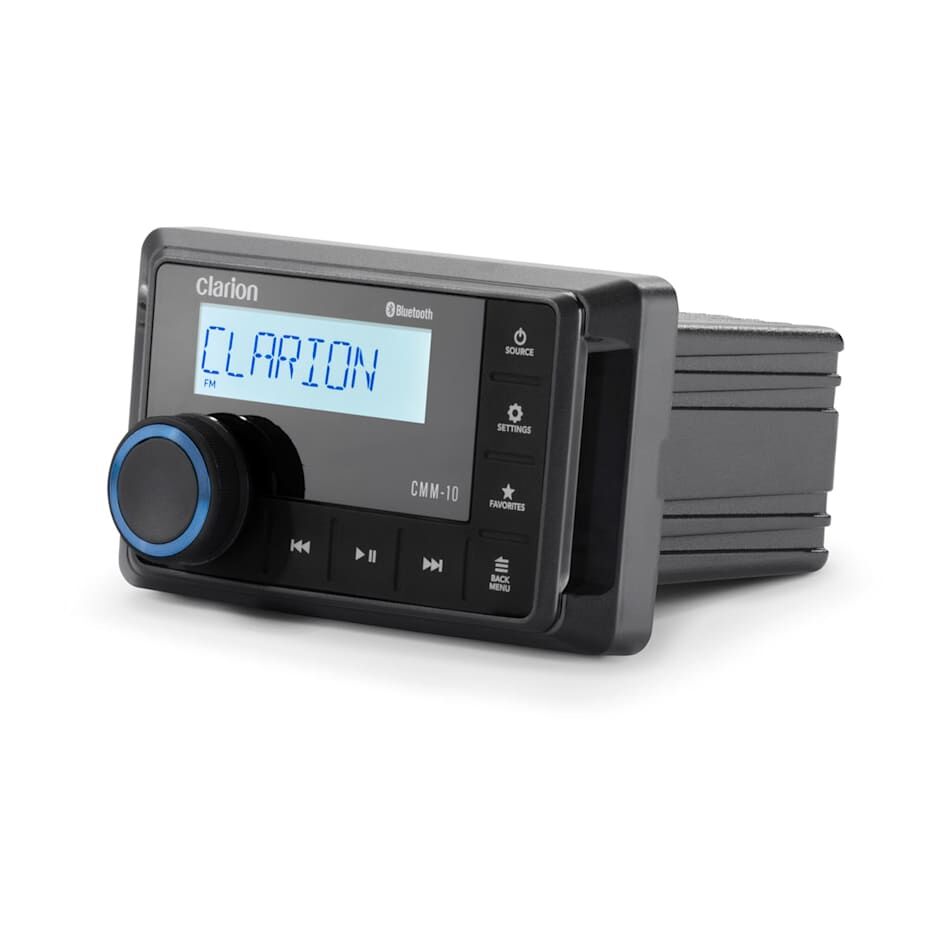

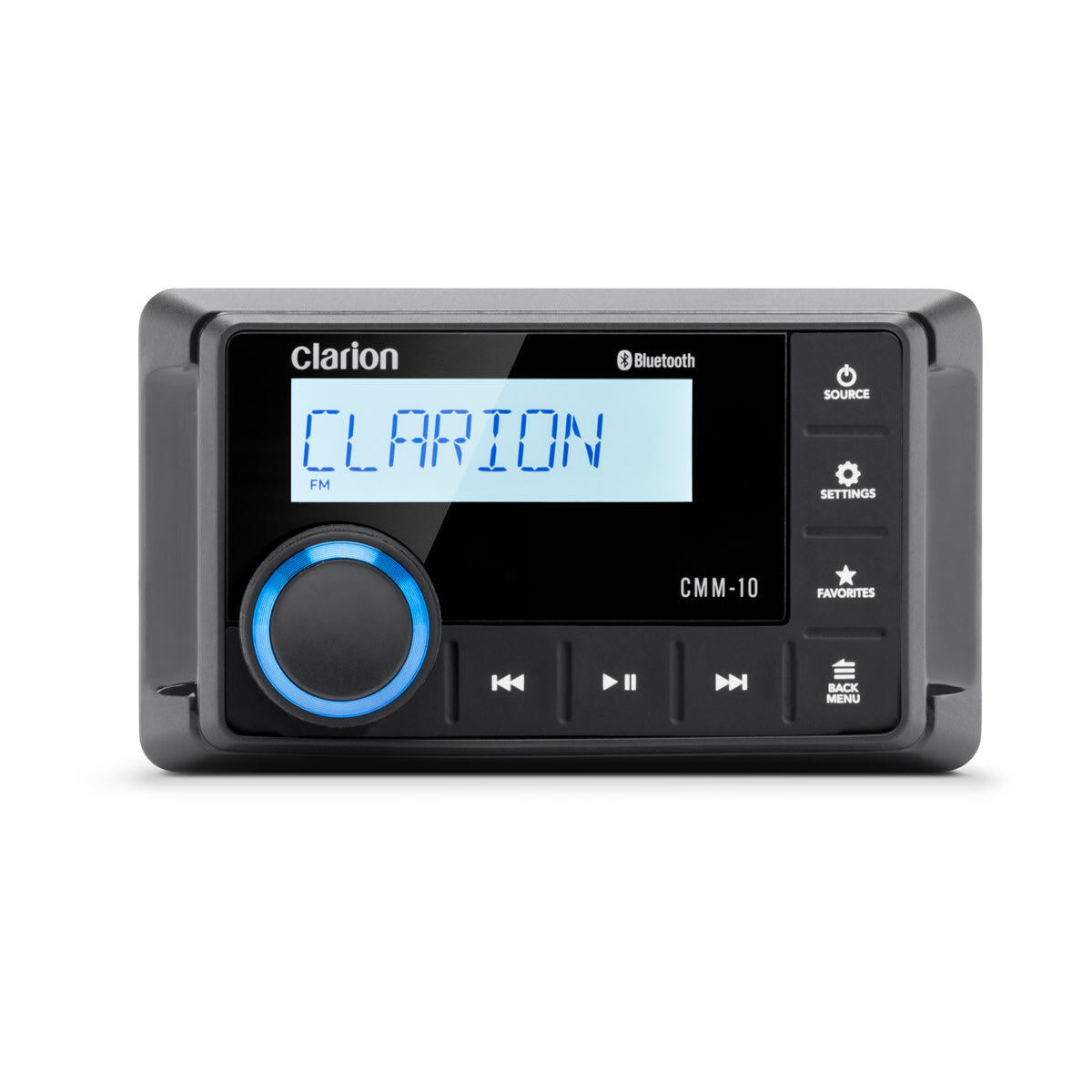

Engineered for marine and powersports use, CMM-10 is an ultracompact source unit with built-in power and versatile audio features.
BLUETOOTH STREAMING
Start streaming from your compatible smartphone or any device with BLUETOOTH technology.
CONNECTIVITY OPTIONS
This digital receiver has a front-facing AUX input as well as USB for charging and file playback.
SHAPE YOUR SOUND
Customise your sound with bass and treble controls plus a built-in amp. Or you can select from 4 equaliser presets. You can also adjust sound in different parts of the boat with 2-zone control.
TUNE IN TO RADIO
Play local radio stations with a built-in AM/FM tuner. Or get the latest forecast from the weather band.
RUGGED AND READY
This source unit is IP66- rated, so you can move confidently out on the water.
SPECS
General
| Physical dimensions (Height) | CMM-10: 63 mm (2.48") CMM-10GR: 102 mm (4.03") |
|---|---|
| Physical dimensions (Width) | CMM-10: 110 mm (4.33") CMM-10GR: 102 mm (4.03") |
| Physical dimensions (Depth) | 80 mm (3.15") |
| Control Surface Dust/Water Rating (when properly installed) | IP66 |
| Operating temperature range | -20° C to +60° C (-4° F to +140° F) |
| Current draw (max) | 15 A |
| Warranty | 1 year |
Networking
| Bluetooth® wireless range | Up to 11 metres (35 ft) |
|---|---|
| Wireless frequencies/protocols | BLUETOOTH® |
Audio
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) | 20 W x 4 |
|---|
Electrical features
| POWER INPUT | 10-16 VDC |
|---|
Stereo features
| Display Size | CMM-10: 53 mm (2.09") CMM-10GR: 53mm (2.09") |
|---|---|
| Display type | Monochrome, segmented, TFT LCD backlit |
| Optically bonded display | |
| Built-in amplifier | Class AB (4 Ω) |
| Multi-Zone™️ technology | |
| Bluetooth® wireless technology | |
| DAB+ ready | See Additional |
| Multi-language interface | English |
Sources
| Supported sources | Digital AM/FM with RDS/NOAA Weather Radio (US only)/DAB+ (CMM-10i: Europe only)/BLUETOOTH®/USB audio/iPhone/iPod |
|---|---|
| Supported audio formats (USB) | MP3, WMA, FLAC, WAV |
Connections
| USB 2.0 ports | 1 USB storage device (1 A charging output) |
|---|---|
| Antenna ports | 1 |
| Speaker connections | 4 (2 zones amplified) |
| RCA pre-out (left, right and subwoofer - requires external amplification) | 2 zones (L+R) or Zone 2 as subwoofer |
| Line out (requires external amplification) | 2 (L + R per zone) |
| Subwoofer out (requires external amplification) | Occupies Zone 2 |
Additional
| Additional | DAB+ Ready: CMM-10i: yes |
|---|
IN THE BOX
- Marine digital media with trim ring (attached)
- Power and speaker connections wire harness
- One mounting template
- Four mounting screws
| SKU | 010-03442-00 |
|---|---|
| Barcode # | 0699440927161 |
| Brand | Fusion |
| Shipping Weight | 0.9400kg |
