OVERVIEW
Enjoy the exceptional performance of our CMSP speakers, engineered to play your music with exceptional sound quality at all listening levels.
VERSATILE COAXIAL MARINE SPEAKERS
The CMSP speakers have 50- to 60-watt RMS power handling, perfect for use with Clarion marine amplifiers. The standard cutout size and mounting hole make for easy retrofitting.

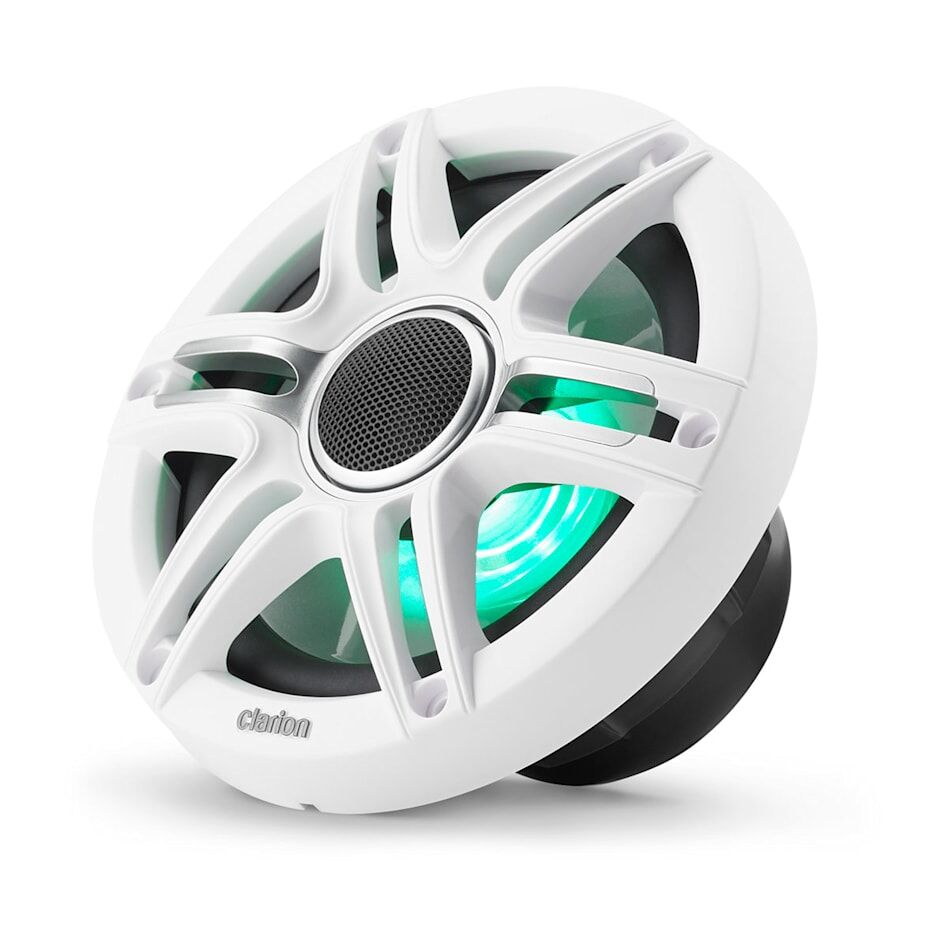

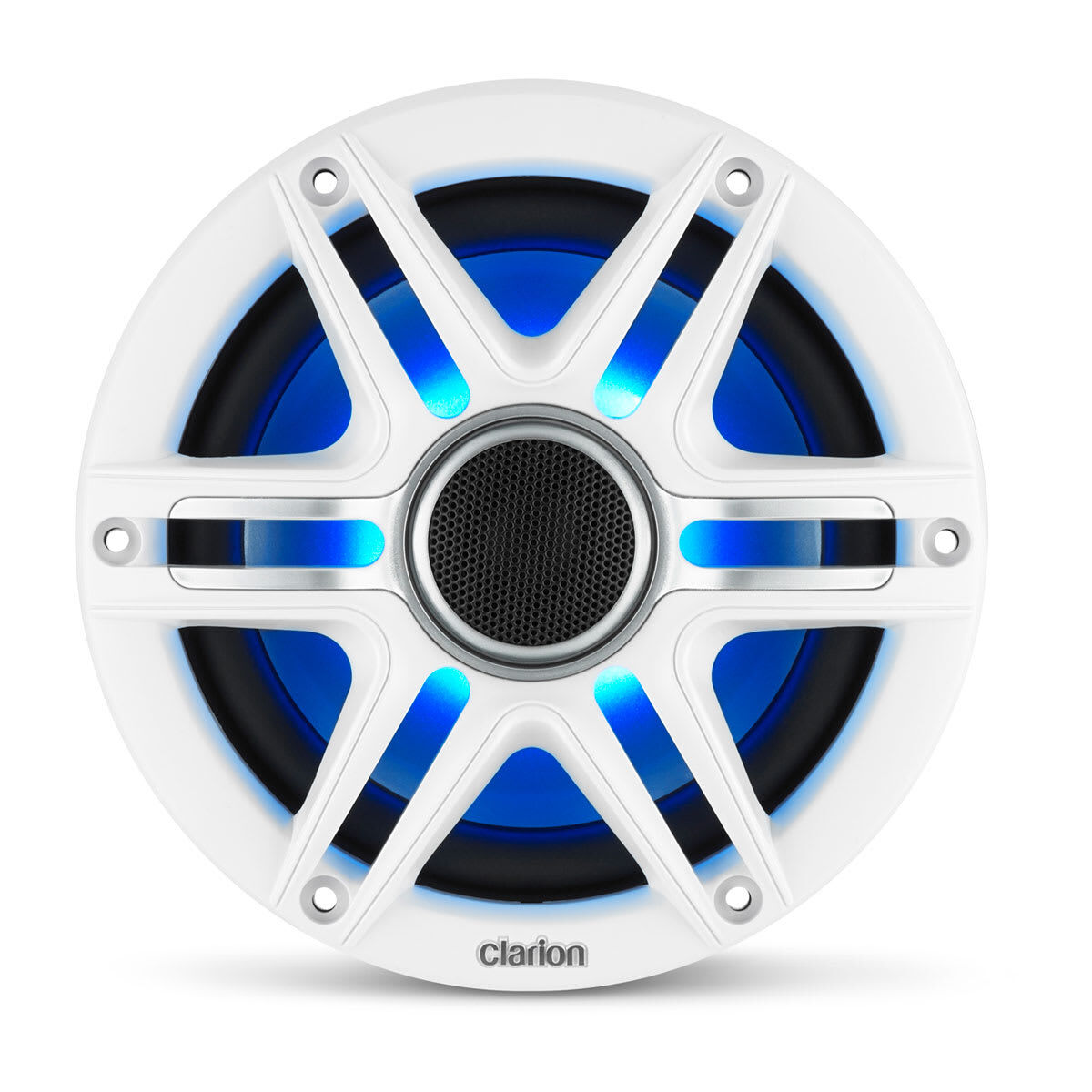

OPTIONAL RGB LED LIGHTING
Enhance your audio entertainment experience with bright and even LED illumination in a wide range of colours.
SILK DOME TWEETER
Each speaker includes a bridge-mounted, 1-inch edge-driven silk dome tweeter with neodymium magnet and ferrofluid cooling.
MULTIPLE GRILLE OPTIONS
Premium speakers include white and metallic grey sport grilles.
SALT AND SUN PROTECTED
Clarion speakers meet or exceed ASTM standards for salt fog exposure as well as UV exposure. They utilise marine-grade materials and finishes with corrosion-resistant connections and circuit boards.
SPECS
General
| Sizes | 6.5"/7.7" |
|---|---|
| Colour | White and metallic grey |
| Physical dimensions (Diameter) | 6.5": 175 mm (6.90") 7.7": 196 mm (7.7") |
| Physical dimensions (Depth) | 6.5": 106 mm (4.19") 7.7": 117 mm (4.6") |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5": 50W 7.7": 60W |
| Sensitivity (SPL @ 1 W/1 m) | 6.5": 87 dB 7.7": 88 dB |
| Frequency response (+/- 3 dB) | 6.5": 55 Hz-20 KHz 7.7": 45 Hz-20 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 6.5": 30-100 W/Channel 7.7": 40-120 W/Channel |
| LED lighting | Yes, RGB (Select sport models only) |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 140 mA (Select sport models only) |
| Cone material | Injection-molded, mica-filled polypropylene |
| Tweeter type | Silk dome |
| Tweeter size | 25 mm (1") |
| Warranty | 1 year |
Connections
| Speaker connections | Spade Connectors Flying Lead with waterproof connector 18 AWG Wire (Selected sport models only) |
|---|
Mounting Dimensions
| Mounting depth clearance | 6.5": 72 mm (2.83") 7.7": 78 mm (3.07") |
|---|---|
| Frontal grille protrusion | 6.5": 35 mm (1.36") 7.7": 39 mm (1.53") |
| Mounting hole | 6.5": 127-133 mm (5"- 5.25") 7.7": 159 mm (6.25") |
| Bolt hole circle | 6.5": 156 mm (6.14") 7.7": 176 mm (6.92") |
IN THE BOX
- Two marine speakers
- Two white grilles
- Two grey metallic grilles
- Twelve 1-1/8" stainless steel screws CMSP-651-SWG also includes:
- Two 0.250" female crimpable connectors
- Two 0.185" female crimpable connectors CMSP-651RGB-SWG and CMSP-771RGB-SWG also include:
- Two waterproof 6-pin harnesses
- Proven 50W RMS marine speakers
- RGB LED accents for night sessions
- Mica-filled cones resist salt and spray
- 4 ohm load suits common marine amps
- Standard cut-out makes upgrades simple
- Solid gear for coast to campsite boats
- Speaker size: 6.5 in coaxial
- Continuous power handling (RMS): 50 W
- Recommended amplifier power (RMS): 30–100 W per channel
- Sensitivity @ 1 W/1 m: 87 dB
- Frequency response (+/-3 dB): 55 Hz – 20 kHz
- Nominal impedance: 4 Ω
- Cone material: injection-moulded mica-filled polypropylene
- Tweeter type and size: 25 mm (1 in) silk dome
- LED lighting: RGB with 10–14.4 VDC supply
- LED load current @ 14.4 VDC (max): 140 mA
- Diameter: 175 mm (6.90 in)
- Total depth: 106 mm (4.19 in)
- Mounting depth clearance: 72 mm (2.83 in)
- Frontal grille protrusion: 35 mm (1.36 in)
- Mounting hole diameter: 127–133 mm (5–5.25 in)
- Bolt hole circle: 156 mm (6.14 in)

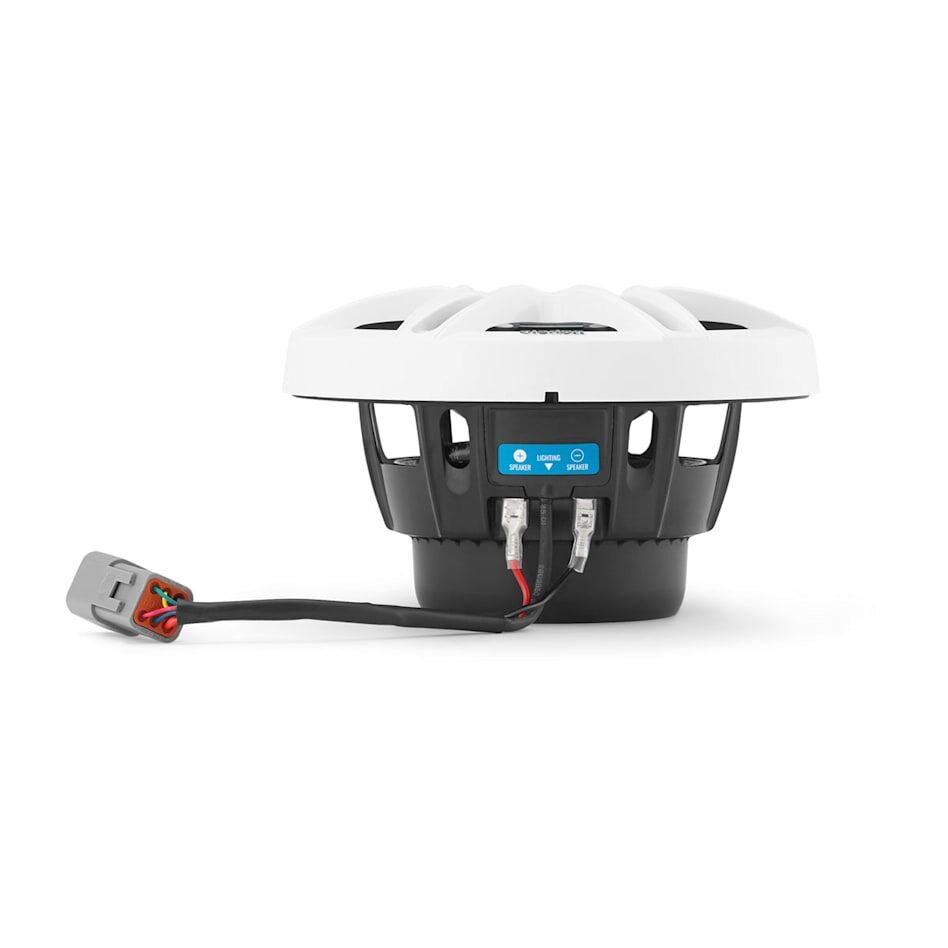

- Speaker connections: spade connectors and flying lead with waterproof connector (18 AWG wire)
- Colour: white and metallic grey
- Salt fog and UV protection to ASTM standards
- Warranty: 1 year
Two marine speakers
Two white sport grilles
Two grey metallic sport grilles
Twelve 1-1/8" stainless steel screws
Two 0.250" female crimpable connectors
Two 0.185" female crimpable connectors
Two waterproof 6-pin harnesses
| SKU | 010-03048-00 |
|---|---|
| Barcode # | 0729218926208 |
| Brand | Fusion |
| Shipping Weight | 2.8600kg |

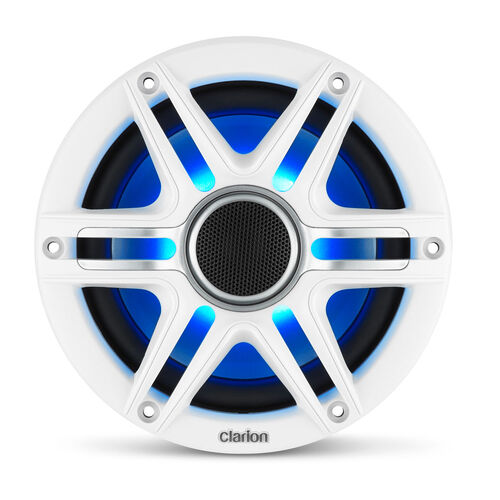

Fusion Clarion Marine CMSP speakers, 6.5" with LED and White and Grey Sport Grille (CMSP-651RGB-SWG)
