Description

OVERVIEW

Compact black box entertainment solution
There is no need to compromise on quality audio entertainment due to limited helm space with the value packed Fusion MS-BB100 compact black box entertainment solution.

Compact form factor allows for easy installation on your boat.

Control the BB100 using the included IPX7 wired remote control.

Built-in Class-AB amplifier delivers efficiency with reduced distortion.

Multi-Zone™ technology gives you control of 2 separate audio zones.

Control your music from a compatible multifunction display (MFD), smart device or Garmin watch.

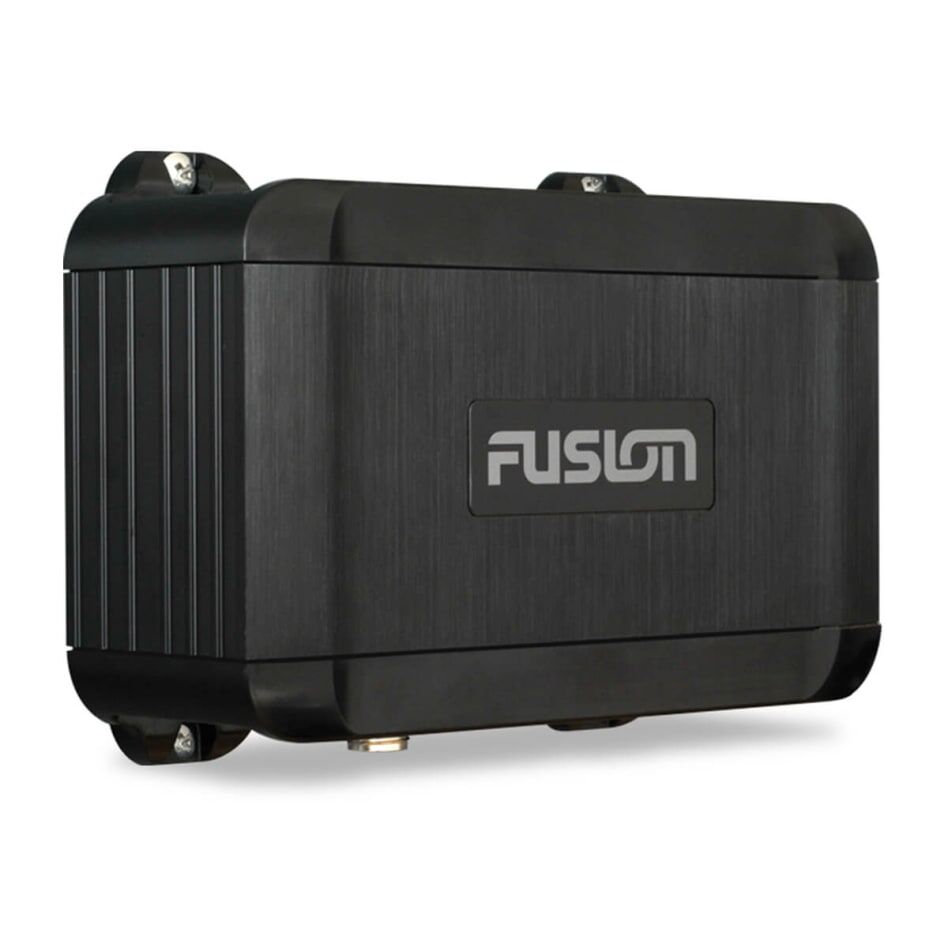

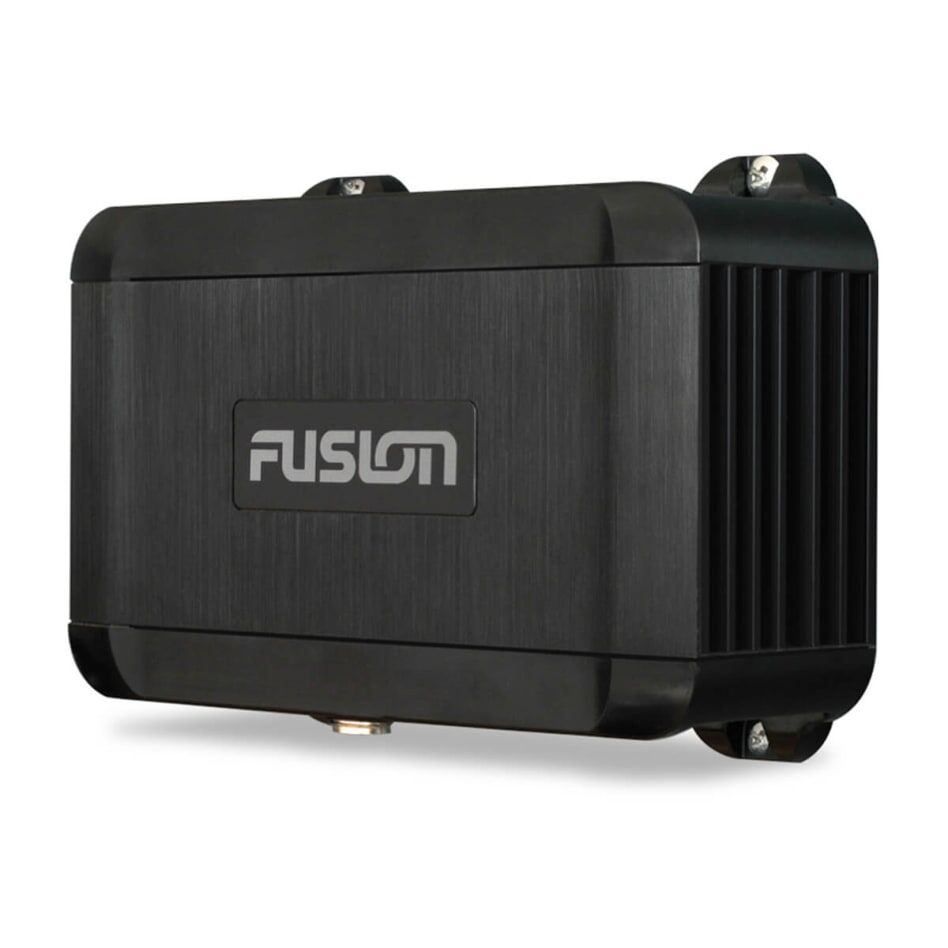

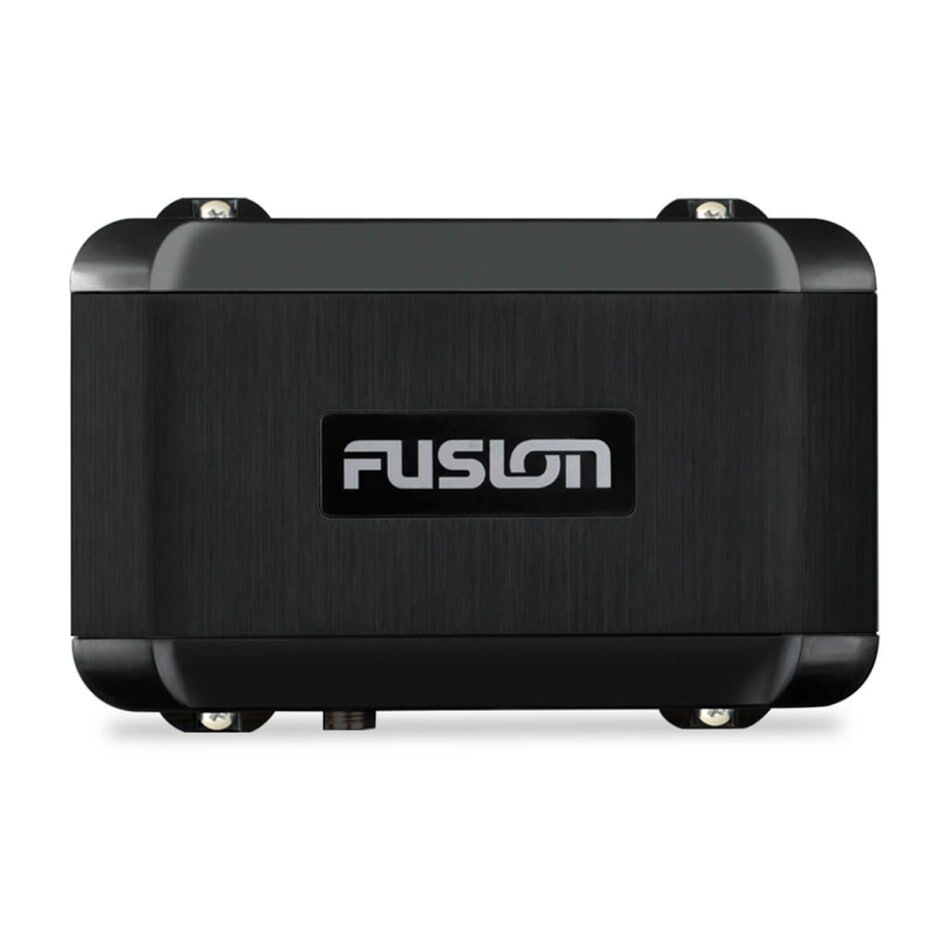

Black box design
Designed to save space at the helm, the compact design of the MS-BB100 allows it to be mounted in out-of-way places such as storage lockers, inside helm consoles and other concealed compartments.

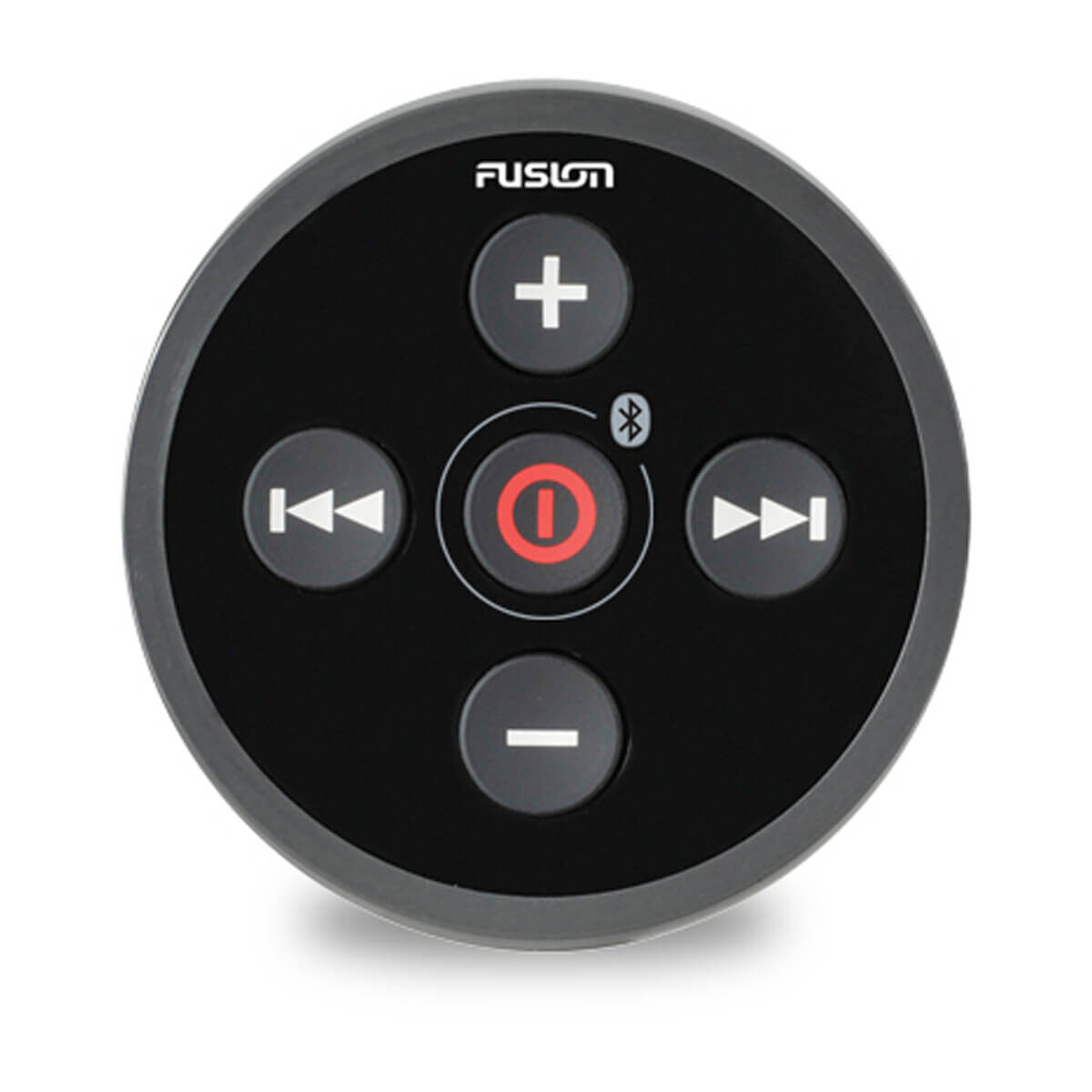

IPX7 wired remote control
An IPX7 rated wired remote control is included in the box for you to control the MS-BB100. You can mount the wired remote with a conventional flush finish or integrate it into the helm for a premium flat finish.

Multiple source options
Take advantage of the many source options available, including Bluetooth® technology, DAB+ radio, AM/FM radio, AUX and USB connections.

DAB+ ready
Enjoy high quality digital radio with DAB+ radio1.

SPECS

General

Dimension	Black Box: 6.1" x 3.7" x 2.63" (155 x 94 x 60 mm) Remote: 2.56" x 2.56" x 2.13" (65 x 65 x 54 mm)
Weight	1.23 lbs (560 g)
Water rating	Black Box: IPX3 (when properly installed) Wired Remote: IPX7 (front panel only, when properly installed)
Operating temperature	32° to 122° F (0° to 50° C)
Current (max)	15 A

Networking

NMEA 2000® LEN	1 (50 mA)
Bluetooth^® wireless range	Up to 10 metres (30 ft)
ANT^® wireless range	Up to 10 ft (3 metres)
Wireless frequencies/protocols	Bluetooth®: 2.4 GHz @ +1.9 dBm nominal ANT®: 2.4 GHz @ +1.9 dBm nominal

Audio

Amplifier	Class-AB (4 ohm)

Electrical features

POWER INPUT	10.8 - 16 VDC
Compass safe distance	5.9" (150 mm)

Stereo features

Peak power	200 watts
Rated power output (4 Ohm)	26 watts RMS x 4 @ 14.4 V input < 10% THD
Control	Yes (MFD, smart device and Garmin watch)
Multi-Zone™️ technology	2 zones
Bluetooth^® wireless technology	YES
ANT^® wireless technology	YES
DAB+ ready	YES
Supports NRX wired remote	YES
Software updates	USB
Warranty	1year

Sources

Supported sources	AM, FM, Bluetooth®, USB audio, iPhone®, iPod®, AUX x1, AOA DAB+ ready (available in Europe and Australia only)

Connections

Auxiliary inputs (RCA)	1
NMEA 2000® ports	1
USB 2.0 ports	1
AM/FM ports (Motorola antenna connector)	1
Speaker connections	4 (2 zone amplified)
RCA Pre-out (left, right and subwoofer)	2 zones (requires external amplification)
Line out	2 (L + R per zone, requires external amplification)
Subwoofer out	Zone 1 (requires external amplification)

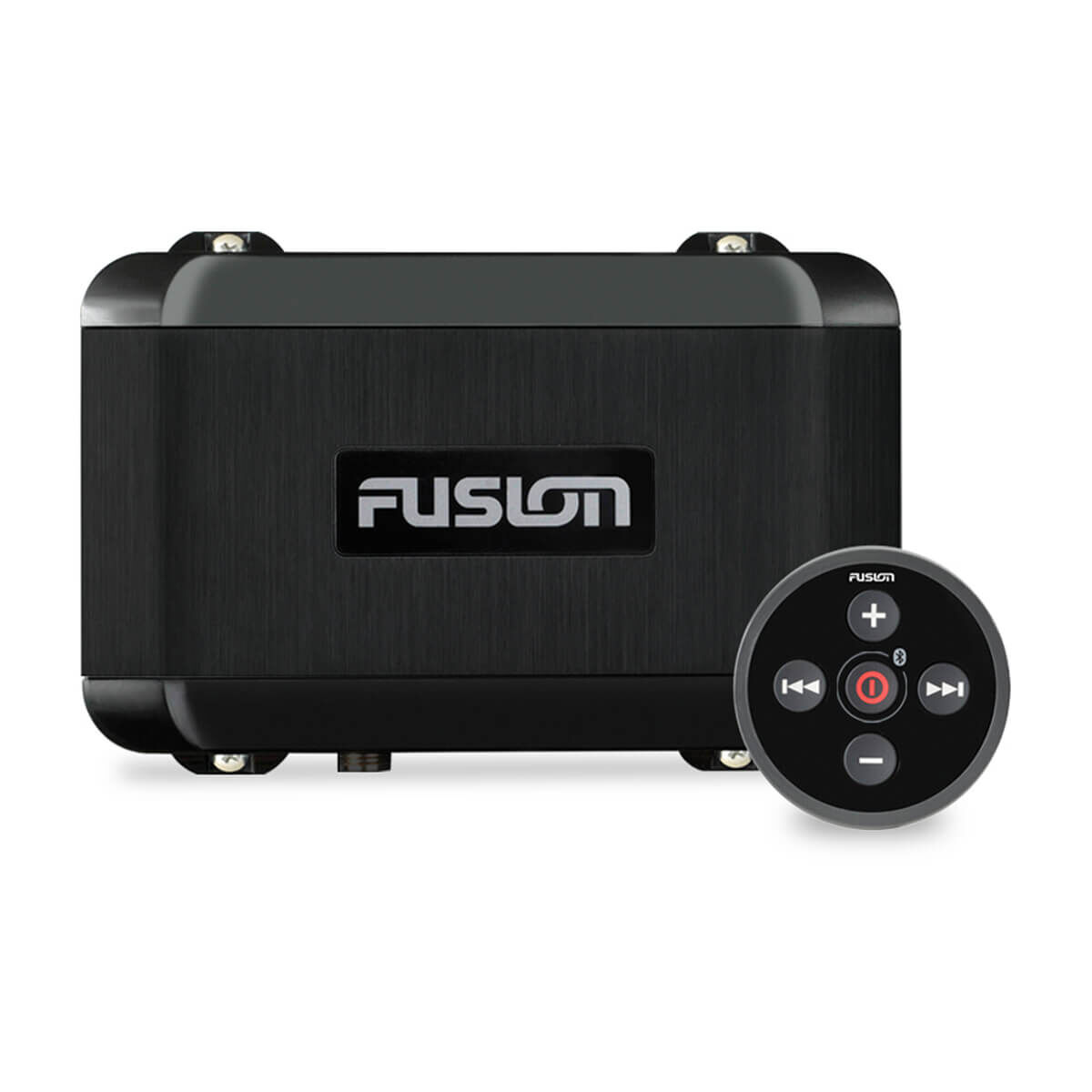

IN THE BOX

MS-BB100 media black box
IPX7 wired remote control
One remote control mounting nut (M56)
One remote control mounting gasket
Four 8-gauge, mounting screws
Power and speaker wiring harness
Auxiliary-in, line-out, and subwoofer-out wiring harness
6 ft (2 metre) NMEA 2000^® drop cable
Documentation

COMPATIBLE DEVICES

ECHOMAP™ UHD 65cv
ECHOMAP™ UHD 75sv
ECHOMAP™ UHD 95sv
ECHOMAP™ Ultra 125sv, With GT56UHD-TM Transducer
Fusion® EL Series Marine Speakers
Fusion® FM Series Marine Speakers
Fusion® FM Series Marine Subwoofers
Fusion® Signature Series 3 Marine Speakers
Fusion® Signature Series 3 Marine Subwoofers
Fusion Signature Series 3 Marine Wake Tower Speakers
Fusion® Signature Series Marine Amplifiers
Fusion® SM Series Marine Speakers
Fusion® Sound-Panel
Fusion® XS Series Marine Speakers
Fusion® XS Series Marine Subwoofers
GPSMAP 1022xsv
GPSMAP 1222xsv
GPSMAP® 8412xsv
GPSMAP® 8416xsv
GPSMAP® 8612
GPSMAP® 8700 Black Box
quatix® 6 Titanium
quatix® 7 – Sapphire Edition
quatix® 7 - Standard Edition
quatix® 7 Pro
quatix® 7X – Solar Edition
quatix® 8 – 47 mm, AMOLED

Features

Compact housing suits tight helm setups
IPX7 remote ready for wet decks
Dual zones balance bow and stern sound
Class-AB amp matches Fusion speakers
Bluetooth and USB keep sources simple
NMEA 2000 link into existing network

Specifications

Black box dimensions: 6.1" x 3.7" x 2.63" (155 x 94 x 60 mm)
Remote dimensions: 2.56" x 2.56" x 2.13" (65 x 65 x 54 mm)
Weight: 1.23 lbs (560 g)
Water rating black box: IPX3 (when properly installed)
Water rating wired remote: IPX7 front panel only (when properly installed)
Operating temperature range: 32° to 122° F (0° to 50° C)
Maximum current draw: 15 A
Power input voltage range: 10.8 – 16 VDC
Amplifier type: Class-AB 4 ohm
Peak power: 200 W
Rated power output: 26 W RMS x 4 @ 14.4 V < 10% THD
Multi-Zone technology: 2 audio zones
Bluetooth wireless range: up to 10 m (30 ft)
ANT wireless range: up to 3 m (10 ft)
NMEA 2000 LEN: 1 (50 mA)
Compass safe distance: 5.9" (150 mm)
Supported sources: AM FM Bluetooth USB audio iPhone iPod AUX x1 AOA DAB+ ready (Europe and Australia only)
USB standard: USB 2.0
Auxiliary RCA inputs: 1
NMEA 2000 ports: 1
AM/FM antenna ports (Motorola connector): 1
Speaker connections: 4 (2 zone amplified)
RCA pre-out: 2 zones (left right and subwoofer requires external amplification)
Line-out connections: 2 (L + R per zone requires external amplification)
Subwoofer out: Zone 1 (requires external amplification)
Software update method: USB
Supports NRX wired remote: Yes
Warranty: 1 year

MS-BB100 media black box
IPX7 wired remote control
One remote control mounting nut (M56)
One remote control mounting gasket
Four 8-gauge mounting screws
Power and speaker wiring harness
Auxiliary-in line-out and subwoofer-out wiring harness
6 ft (2 metre) NMEA 2000 drop cable
Documentation

SKU	010-01517-01
Barcode #	0753759149864
Brand	Fusion
Shipping Weight	1.4900kg

Fusion BB100 Media Black Box

SKU: 010-01517-01

$539.00

REG

$488.50 SALE

Earn 4,880 PTS on this item. Login or Join Free

SAVE $50.50

REG $539.00

SALE ENDS

Dispatch in 7 days
