OVERVIEW
AMPLIFY THE MOMENT

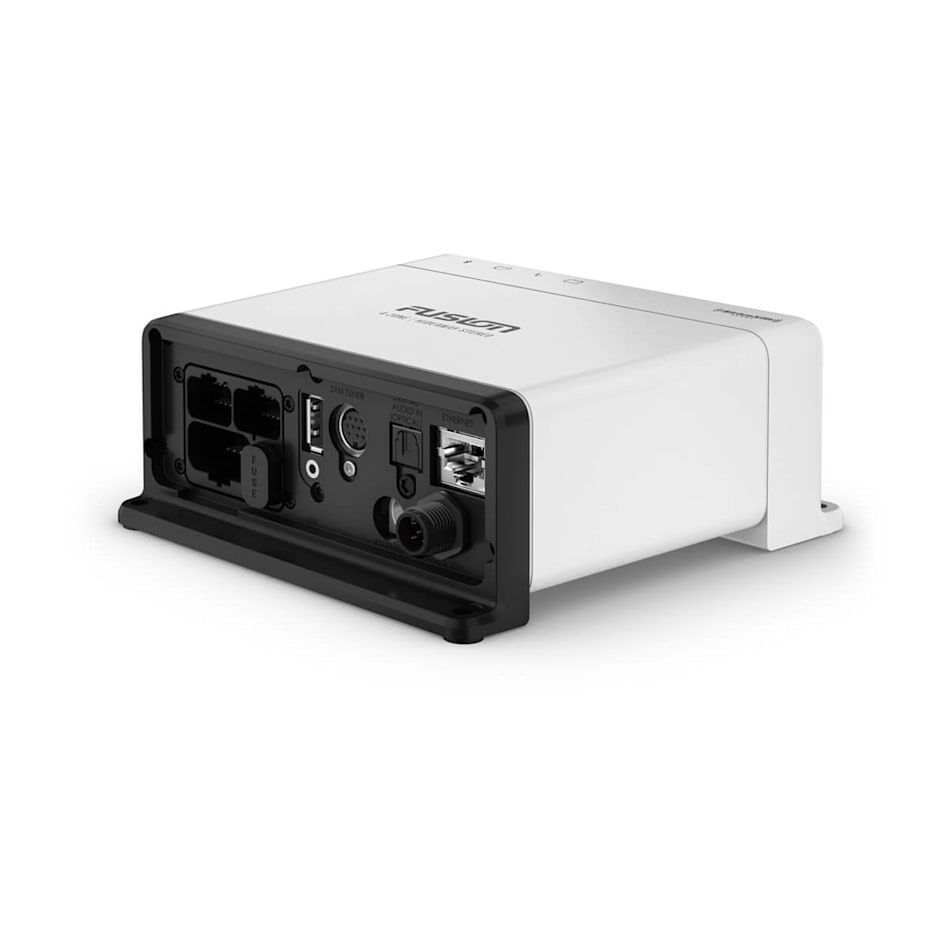

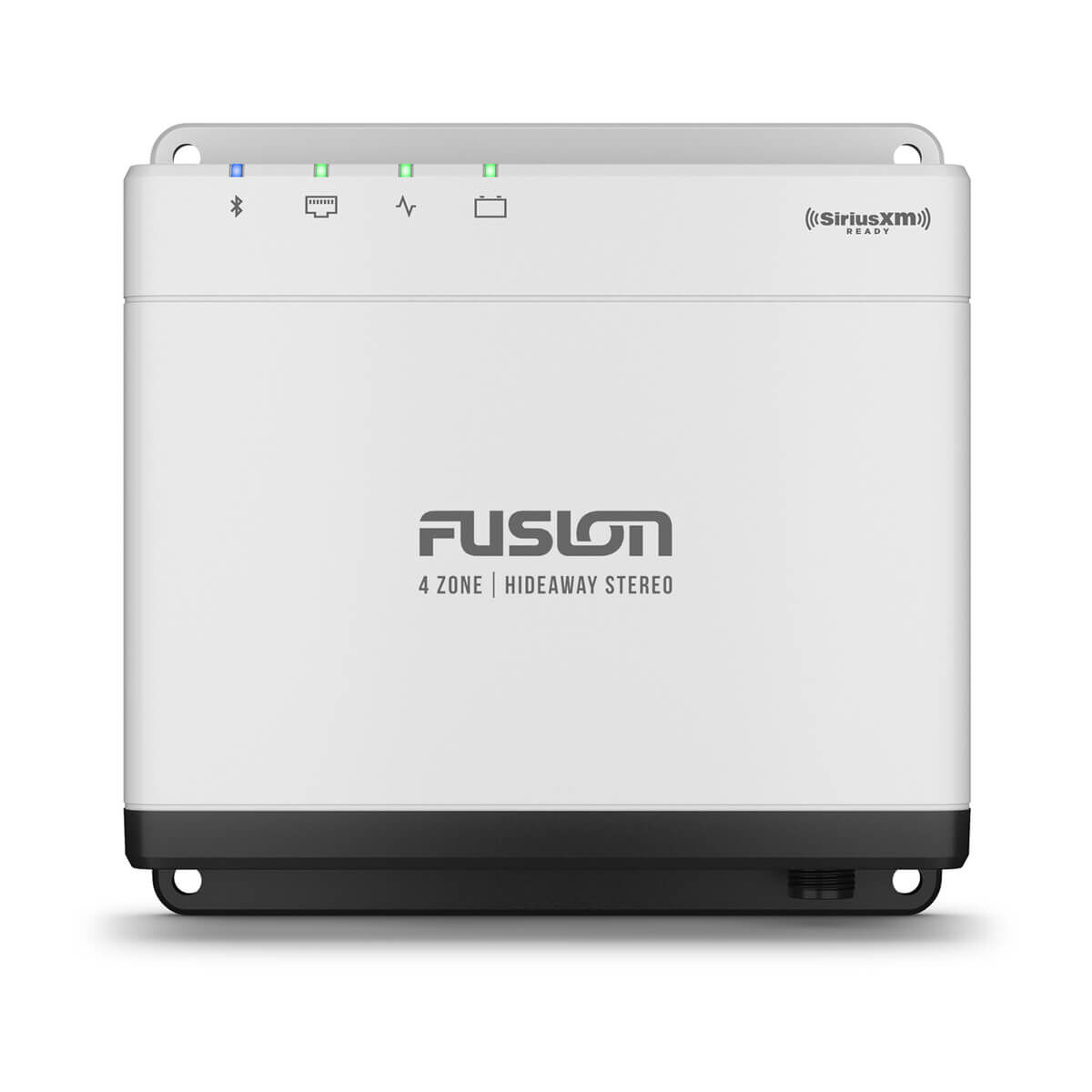

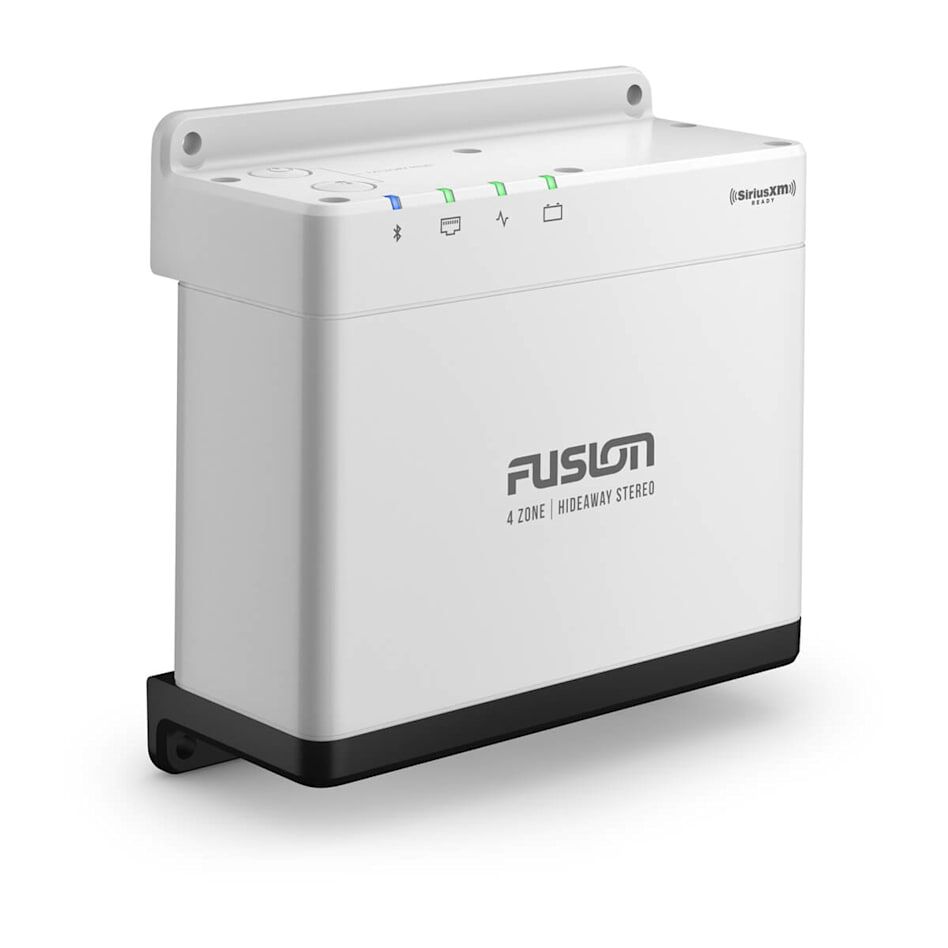

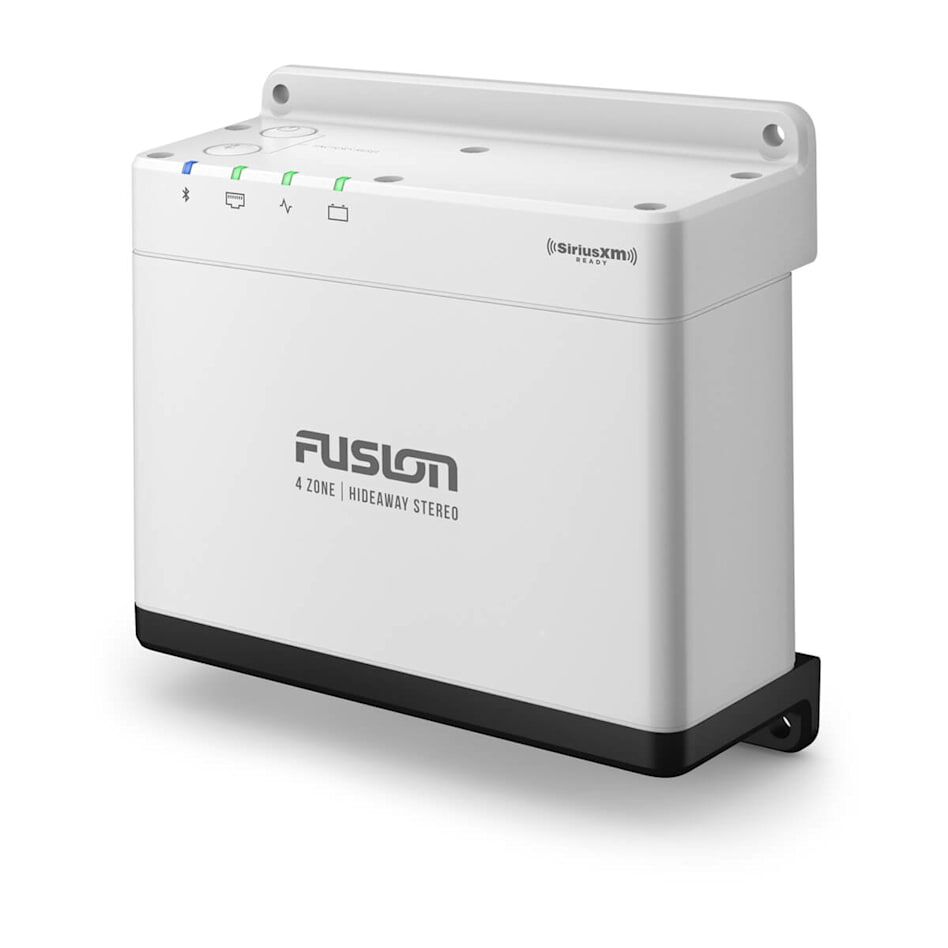

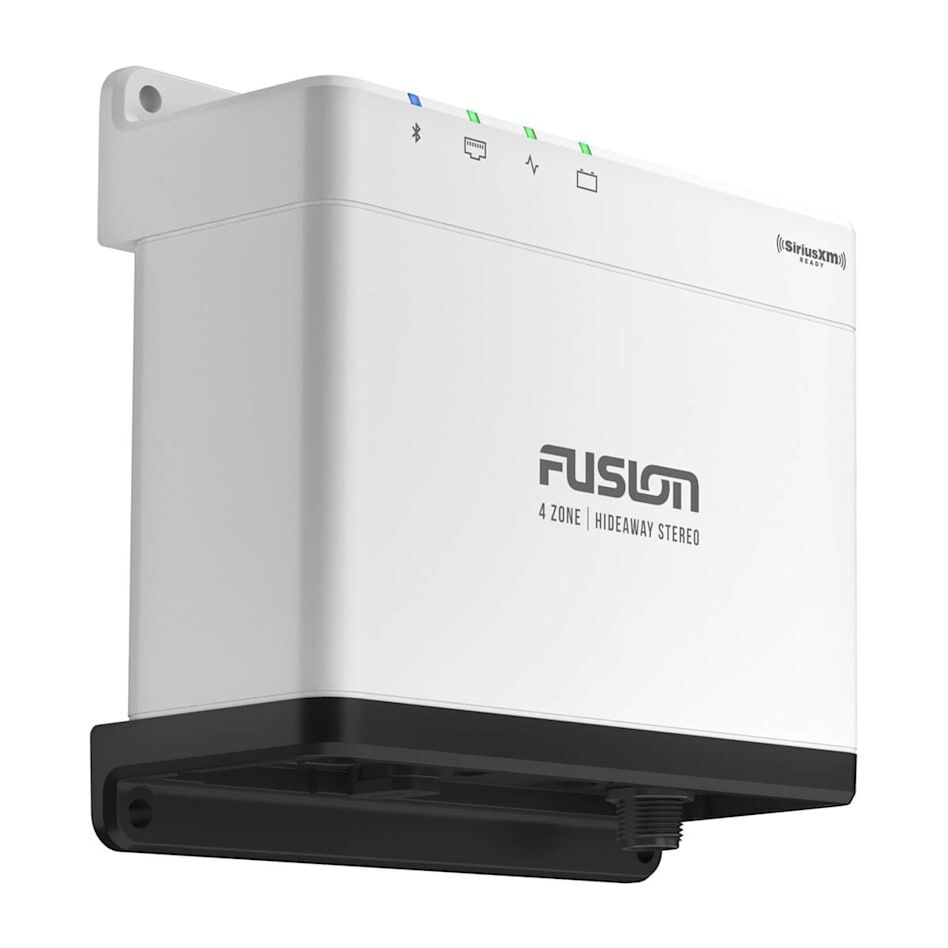

The Apollo WB675 marine hideaway stereo is compact in design but still offers superior audio quality in up to four separate audio zones that you can control.
Custom audio profiles for each zone on your boat deliver superior quality audio.
Audio streaming with Wi-Fi® technology provides high-quality audio with a faster data transfer rate1.
Experience seamless high-quality audio streaming from your music app via the AirPlay® 2 software feature1.
Enjoy the freedom of musical choice with PartyBus™-Network technology1.
Multi-Zone™ Technology gives you control of up to four separate audio zones.
Control your music from your compatible multifunction display (MFD), smart device or Garmin smartwatch.
DESIGNED AND ENGINEERED TO FUSION® TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion®, the Apollo WB675 stereo has been tested to a high level of protection against salt fog, temperature, vibration and UV.
COMPACT DESIGN
Designed to save space at the helm, Apollo WB675 can be hidden away in the dash or mounted in a variety of areas such as storage lockers, inside helm consoles and other concealed compartments.
SPEED VS. VOLUME
With your stereo connected to an NMEA 2000® network with an appropriate speed sensor installed, selecting Speed vs. Volume from the stereo’s settings menu enables audio volume to be automatically adjusted based on your boat’s speed. Faster = louder; slower = lower volume. Compatible speed sources include speed over ground, speed through water, engine RPM or wind speed.
FUSION DIGITAL SIGNAL PROCESSING (DSP)
A technically superior listening experience made simple, Fusion DSP optimises the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels, in every listening environment.
EASY-TO-INSTALL DSP PROFILES
With just a few clicks on your compatible smartphone, setting up your DSP profiles is made simple with the free Fusion® Audio app. You can set up the preconfigured DSP profiles once and enjoy listening to high-quality audio customised for your ears and the environment.
GAIN WI-FI CAPABILITIES
Connect your Apollo WB675 stereo via Ethernet to your wireless network router, Garmin MFD or Apollo Series stereo network, and enjoy Wi-Fi audio streaming and over-the-air software updates1.
AUDIO STREAMING WITH WI-FI
Enjoy the clarity and premium quality of audio streaming with Wi-Fi technology, including the convenience of AirPlay 2 from Apple® and universal plug-and-play (UPnP)1.
OVER-THE-AIR SOFTWARE UPDATES
Updates are now available from your compatible smartphone or device, via the free Fusion® Audio app. The Apollo Series is intelligently simple and easy to keep up to date1.
STEREO GROUPING
Grouping allows you to link up multiple Apollo Series stereos connected to the same network and play the same audio source synchronised across all stereos.
VOLUME CONTROL
Scroll through available zones on your boat, and enjoy independent volume control, or select ALL volume to adjust a group of stereos at once.
POWER OPTIONS
Power options allow you to turn on any connected Apollo Series stereo in standby mode on the PartyBus-Network remotely from another Apollo Series stereo.
HOME ZONE
Home Zone is the physical zone on board your boat in which the stereo is installed. After adjusting audio in another zone, the stereo defaults to control of the Home Zone after a period of inactivity.
FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT
Take advantage of the many source options available, including the AirPlay 2 feature1, Bluetooth® technology, UPnP1, optical audio, DAB+ radio, AM/FM radio, AUX and USB connections.
FULL CONTROL FROM YOUR APOLLO ERX400 REMOTE
Control the Apollo WB675 stereo by connecting your Apollo ERX400 wired remote via Ethernet and enjoy the full Apollo user experience including PartyBus-Network functionalities.
CONTROL FROM A COMPATIBLE MFD
Are you looking for a more streamlined system? You can connect Apollo WB675 to your compatible MFD using an Ethernet or NMEA 2000® network connection without the need for an additional wired remote.
CONTROL MORE AUDIO ZONES
Control up to eight independent audio zones by connecting your second Apollo WB675 stereo via Ethernet to a router or Ethernet switch (additional stereo sold separately). You’ll be able to control both Apollo WB675 stereos from your Apollo ERX400 wired remote.
SPECS
General
| Dimension | 5.1" x 5.1" x 2.2" (130 x 130 x 56 mm) |
|---|---|
| Weight |
1.05 lbs (475 g) |
| Water rating | IPX2 (when properly installed) |
| Operating temperature | 32° to 122° F (0° to 50° C) |
| Current (max) | 15 A |
Networking
| NMEA 2000® LEN | 1 (50 mA) |
|---|---|
| Bluetooth® wireless range | Up to 10 metres (30 ft) |
| ANT® wireless range | Up to 10 ft (3 metres) |
| Wireless frequencies/protocols | Bluetooth®: 2.4 GHz @ +12 dBm nominal ANT®: 2.4 GHz @ +7 dBm nominal |
Audio
| Amplifier | Class-D (2 Ohm stereo-stable) |
|---|
Electrical features
| POWER INPUT | 10.8 - 16 VDC |
|---|---|
| Compass safe distance | 5.9" (150 mm) |
Stereo features
| Peak power | 280 watts |
|---|---|
| Rated power output (2 Ohm) | 43 watts RMS x 4 @ 14.4 V input < 10% THD |
| Rated power output (4 Ohm) | 26 watts RMS x 4 @ 14.4 V input < 10% THD |
| Built-in Digital Signal Processing (DSP) | Yes (with custom DSP profile setup using Fusion-Link™ app) |
| Stereo networking | Yes (wired) |
| Control | Yes (MFD, smart device and Garmin watch) |
| Multi-Zone™️ technology | 4 zones |
| Bluetooth® wireless technology | YES |
| ANT® wireless technology | YES |
| SiriusXM-ready | YES |
| DAB+ ready | YES |
| Optical audio input | YES |
| Supports ERX wired remote | YES |
| Supports NRX wired remote | YES |
| Software updates | Over-the-air updates via Fusion-Link™ app / USB |
| Warranty | 3years |
Sources
| Supported sources | AM, FM, Bluetooth®, Apple® AirPlay® 2, digital optical input, USB audio, iPhone®, iPod®, AUX x1, UPnP, MTP |
|---|

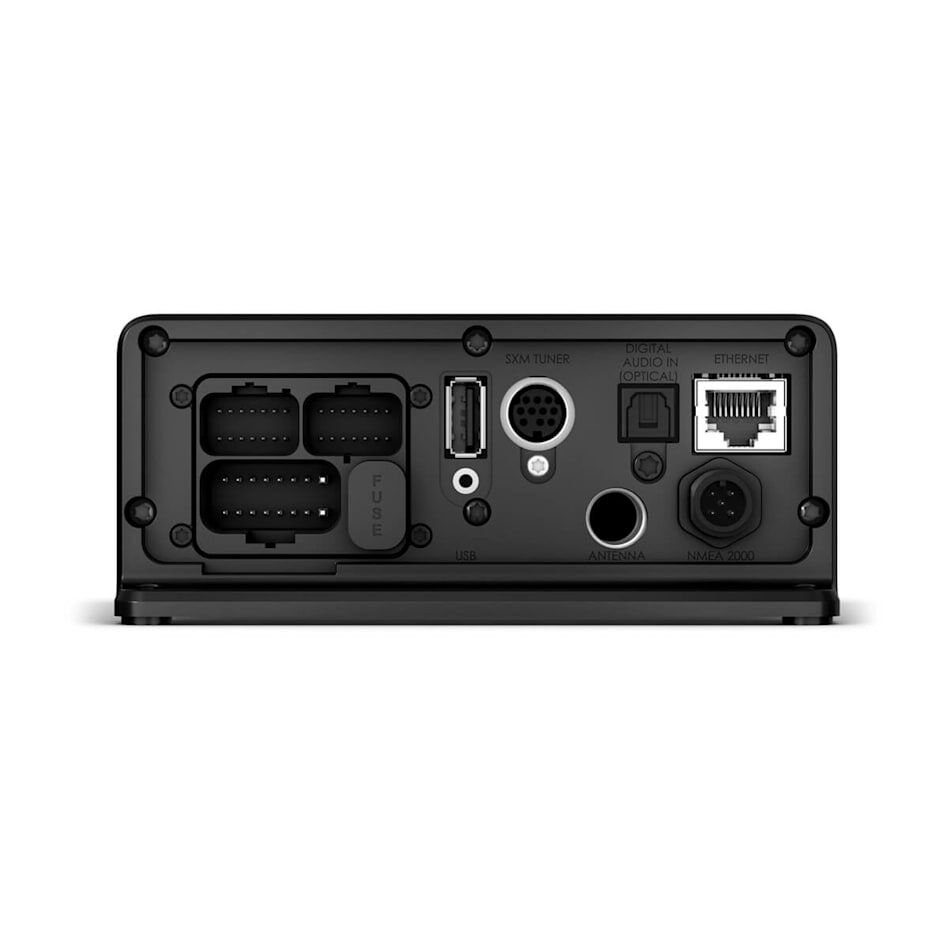

Connections
| Auxiliary inputs (RCA) | 1 |
|---|---|
| Optical audio inputs (Digital Optical Input SPDIF) | 1 |
| Ethernet ports | 1 |
| NMEA 2000® ports | 1 |
| USB 2.0 ports | 1 |
| SiriusXM ports | 1 |
| Antenna ports | 1 |
| Speaker connections | 4 (2 zone amplified) |
| RCA Pre-out (left, right and subwoofer) | 4 zones (requires external amplification) |
| Line out | 4 (L + R per zone, requires external amplification) |
| Subwoofer out | 4 (1 mono output per zone, requires external amplification) |
IN THE BOX
- Fusion® Apollo™ MS-WB675 Marine Hideaway Stereo
- Four 8-gauge, self-tapping screws
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harness
- Line-out and subwoofer-out wiring harness
- 6 ft (2 meter) NMEA 2000® drop cable
- Documentation
COMPATIBLE DEVICES
ECHOMAP™ UHD 65cv
ECHOMAP™ Ultra 125sv, With GT56UHD-TM Transducer
Fusion® Apollo™ Marine Amplifiers
Fusion Apollo™ MS-RA800 marine stereo
Fusion® Apollo™ SRX400
Fusion® EL Series Marine Speakers
Fusion® FM Series Marine Speakers
Fusion® FM Series Marine Subwoofers
Fusion® Signature Series 3 Marine Speakers
Fusion® Signature Series 3 Marine Subwoofers
Fusion Signature Series 3 Marine Wake Tower Speakers
Fusion® Signature Series 3i Marine Coaxial Speakers
Fusion® Signature Series 3i Marine Subwoofers
Fusion® Signature Series 3i Marine Wake Tower Speakers
Fusion® Signature Series Marine Amplifiers
Fusion® SM Series Marine Speakers
Fusion® XS Series Marine Speakers
Fusion® XS Series Marine Subwoofers
Fusion® XS Series Marine Wake Tower Speakers
GPSMAP 1022xsv
GPSMAP 1222xsv
GPSMAP® 1222xsv Plus
GPSMAP® 1222xsv Touch
GPSMAP® 8410xsv
GPSMAP® 8412xsv
GPSMAP® 8416xsv
GPSMAP® 8417 MFD
GPSMAP® 8422 MFD
GPSMAP® 8424 MFD
GPSMAP® 8612
GPSMAP® 8624
GPSMAP® 8624 MFD
GPSMAP® 8700 Black Box
GPSMAP® 953xsv
quatix® 6 Titanium
quatix® 7 – Sapphire Edition
quatix® 7 - Standard Edition
quatix® 7 Pro
quatix® 7X – Solar Edition
quatix® 8 – 47 mm, AMOLED
| SKU | 010-02346-50 |
|---|---|
| Barcode # | 0753759300159 |
| Brand | Fusion |
| Shipping Weight | 1.3200kg |
Fusion Apollo MS-WB675 Marine Hideaway Stereo
More infoMake 4 payments of $212.25 over 8 weeks and get it now!
Calculate Shipping
