OVERVIEW
AWARD-WINNING INNOVATION REEMBODIED
The Apollo RA670 marine stereo inherits key audio innovations and revolutionary technology from the award-winning Apollo RA770, reimagined in a compact form factor.
Custom audio profiles for each zone on your boat to deliver superior quality audio.
Audio streaming with Wi-Fi technology provides high-quality audio with a faster data transfer rate.
Experience seamless high-quality audio streaming from your music app via the AirPlay® 2 software feature1.
Enjoy the freedom of musical choice with Fusion’s PartyBus™-Network technology1.
Multi-Zone™ Technology gives you control of three separate audio zones.
Control your music from a compatible multifunction display (MFD), smart device or Garmin watch.
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion®, the Apollo RA670 stereo has an IPX6- and IPX7-rated water-resistant front panel and has been tested to a high level of protection against salt fog, temperature, vibration and UV.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy, uniform and elegant installation.
SPEED VS. VOLUME
With your stereo connected to an NMEA 2000® network with an appropriate speed sensor installed, selecting Speed vs. Volume from the stereo’s settings menu enables audio volume to be automatically adjusted based on your boat’s speed. Faster = louder; slower = lower volume. Compatible speed sources include speed over ground, speed through water, engine RPM or wind speed.
FUSION DIGITAL SIGNAL PROCESSING (DSP)
A technically superior listening experience made simple, Fusion DSP optimises the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels, in every listening environment.
EASY-TO-INSTALL DSP PROFILES
With a few clicks on your compatible smartphone, setting up your DSP profiles is made simple with the free Fusion® Audio app. You can set up the preconfigured DSP profiles once and enjoy listening to high-quality audio customised for your ears and the environment.
GAIN WI-FI CAPABILITIES
Connect your Apollo RA670 via Ethernet to a wireless network router, Garmin MFD or Apollo Series stereo network, and enjoy Wi-Fi audio streaming and over-the-air software updates1.
AUDIO STREAMING WITH WI-FI
In a world-first for marine stereos, enjoy the clarity and premium quality of audio streaming with Wi-Fi technology, including the convenience of AirPlay 2 from Apple® and universal plug-and-play (UPnP)1.
OVER-THE-AIR SOFTWARE UPDATES
Updates are now available from your compatible smartphone or device, via the free Fusion® Audio app. The Apollo Series is intelligently simple and easy to keep up to date.
STEREO GROUPING
Grouping allows you to link up multiple Apollo Series stereos connected to the same network and play the same audio source synchronised across all stereos.
VOLUME CONTROL
Scroll through available zones on your boat, and enjoy independent volume control, or select ALL volume to adjust a group of stereos at once.
POWER OPTIONS
Power options allow you to turn on any connected Apollo Series stereo in standby mode on the PartyBus™-Network remotely from another Apollo Series stereo.
HOME ZONE
Home Zone is the physical zone on board your boat in which the stereo is installed. After adjusting audio in another zone, the stereo defaults to control of the Home Zone after a period of inactivity.
FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT
Take advantage of the many source options available, including the AirPlay 2 feature1, Bluetooth® technology, UPnP1, optical audio, DAB+ radio, AM/FM radio, AUX and USB connections.
SPECS
General
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
|---|---|
| Display | 2.7″ optically bonded colour LCD |
| Operating temperature | 32° to 122° F (0° to 50° C) |
| Current (max) | 15 A |
Networking
| NMEA 2000® LEN | 1 (50 mA) |
|---|---|
| Bluetooth® wireless range | Up to 10 metres (30 ft) |
| ANT® wireless range | Up to 10 ft (3 metres) |
| Wireless frequencies/protocols | Bluetooth®: 2.4 GHz @ +12 dBm nominal ANT®: 2.4 GHz @ +7 dBm nominal |
Audio
| Amplifier |
Class-D (2 Ohm stereo-stable) |
|---|
Electrical features
| POWER INPUT | 10.8 - 16 VDC |
|---|---|
| Compass safe distance | 7.87" (200 mm) |
Stereo features
| Peak power | 280 watts |
|---|---|
| Rated power output (2 Ohm) | 43 watts RMS x 4 @ 14.4 V input < 10% THD |
| Rated power output (4 Ohm) | 26 watts RMS x 4 @ 14.4 V input < 10% THD |
| Built-in Digital Signal Processing (DSP) | Yes (with custom DSP profile setup using Fusion-Link™ app) |
| Stereo networking | Yes (wired) |
| Control | Yes (MFD, smart device and Garmin watch) |
| Multi-Zone™️ technology | 3 zones |
| Bluetooth® wireless technology | |
| ANT® wireless technology | |
| SiriusXM-ready | |
| DAB+ ready | |
| Optical audio input | |
| Supports ERX wired remote | |
| Supports NRX wired remote | |
| Multi-language interface | Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Portuguese-Portugal, Slovenian, Spanish, Swedish, Thai, Turkish |
| Software updates | Over-the-air updates via Fusion-Link™ app / USB |
Sources
| Supported sources | AM, FM, Bluetooth®, Apple® AirPlay® 2, digital optical input, USB audio, iPhone®, iPod®, AUX x1, UPnP, MTP SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner) DAB+ ready (available in Europe and Australia only) |
|---|

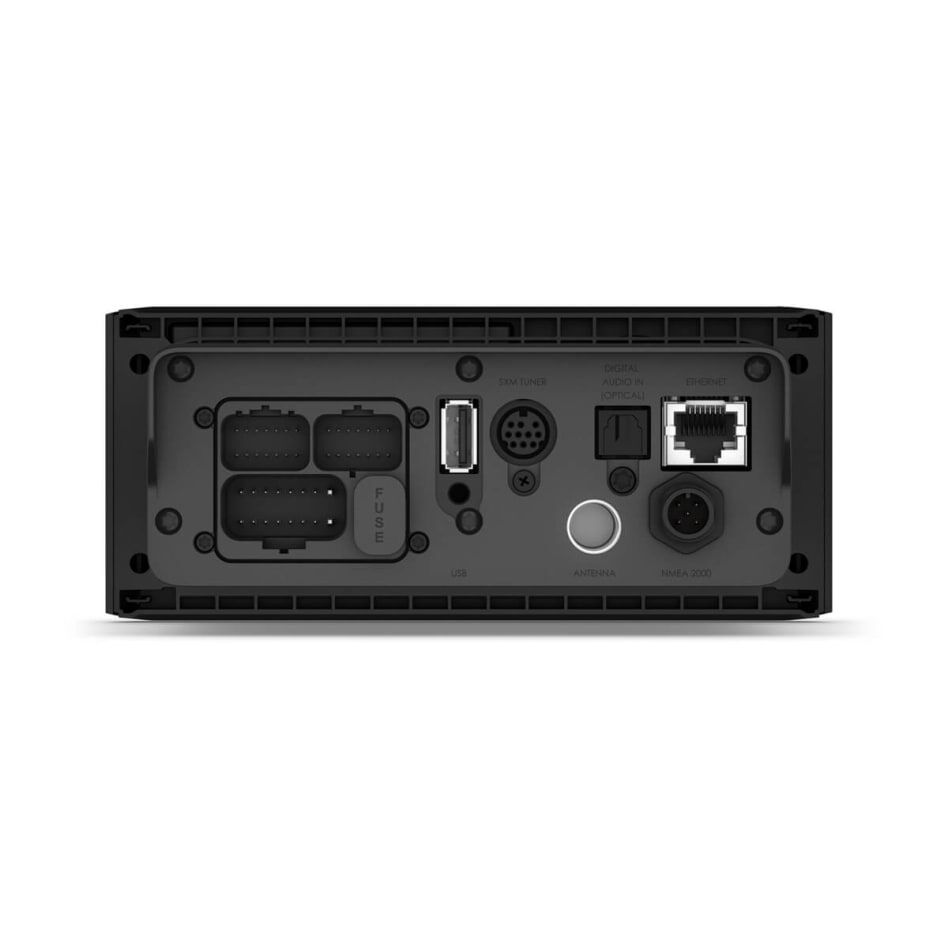

Connections
| Auxiliary inputs (RCA) | 1 |
|---|---|
| Optical audio inputs (Digital Optical Input SPDIF) | 1 |
| Ethernet ports | 1 |
| NMEA 2000® ports | 1 |
| USB 2.0 ports | 1 |
| SiriusXM ports | 1 |
| Antenna ports | 1 |
| Speaker connections | 4 (2 zone amplified) |
| RCA Pre-out (left, right and subwoofer) | 3 zones (requires external amplification) |
| Line out | 3 (L + R per zone, requires external amplification) |
| Subwoofer out | 3 (1 mono output per zone, requires external amplification) |
IN THE BOX
- Mounting gasket
- Four 8-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- Dust cover
- 2 metre NMEA 2000® drop cable
- Documentation
COMPATIBLE DEVICES
ECHOMAP™ UHD 65cv
ECHOMAP™ UHD 75sv
ECHOMAP™ UHD 95sv
ECHOMAP™ Ultra 125sv, With GT56UHD-TM Transducer
Fusion® Apollo™ SRX400
Fusion® EL Series Marine Speakers
Fusion® FM Series Marine Speakers
Fusion® FM Series Marine Subwoofers
Fusion® Signature Series 3 Marine Speakers
Fusion® Signature Series 3 Marine Subwoofers
Fusion Signature Series 3 Marine Wake Tower Speakers
Fusion® Signature Series Marine Amplifiers
Fusion® SM Series Marine Speakers
Fusion® Sound-Panel
Fusion® XS Series Marine Speakers
Fusion® XS Series Marine Subwoofers
GPSMAP 1022xsv
GPSMAP 1222xsv
GPSMAP® 8412xsv
GPSMAP® 8416xsv
GPSMAP® 8612
GPSMAP® 8700 Black Box
quatix® 6 Titanium
| SKU | 010-02138-00 |
|---|---|
| Barcode # | 0753759221751 |
| Brand | Fusion |
| Shipping Weight | 1.5500kg |
