Description
- These tanks are made with high density polyethylene plastic, suitable for petrol or diesel.
- Features include a removable inspection port hole, vented cap, stepped 3/4"-5/8" tail for external breather, 10mm tail for fuel hose, blanked 1/4" BSP terminal for a second fuel pickup or diesel return and provision for a 5 hole fuel sender.
- ISO 21487 CE certification.
| Part No. | 37376 |
| Length | 600mm (A) |
| Width | 500mm (B) |
| Depth (C) | 150mm |
| Depth (D) | 230mm |
| Note | Tank dimensions exclude fittings (30mm). |
*Please be advised that the Can-SB range of plastic fuel tanks are manufactured in accordance with ISO Standard 21487 which relates to fuel tanks suitable for permanent installation in small craft only and must not be subjected to continued UV exposure. They have no ADR or AVSR compliance for installation in a vehicle.
Features
- 57 litres of onboard fuel capacity
- Tough HDPE shell for marine use
- Compact keel footprint at 600 x 500 mm
- Vented inspection port for easy checks
- Extra BSP port for pickup or return
- ISO 21487 and CE compliant tank
Specifications
- Capacity: 57 litres
- Material: high density polyethylene plastic (HDPE)
- Fuel compatibility: petrol or diesel
- Length: 600 mm (dimension A)
- Width: 500 mm (dimension B)
- Depth C: 150 mm
- Depth D: 230 mm
- Fittings allowance: add 30 mm to tank height for fittings
- Breather connection: stepped 3/4"–5/8" tail for external breather
- Fuel hose connection: 10 mm tail
- Auxiliary port: blanked 1/4" BSP terminal for second pickup or diesel return
- Sender compatibility: provision for 5-hole fuel sender
- Certification: ISO 21487 CE
- Installation class: permanent installation in small craft only
- UV exposure: tank must not be subjected to continued UV exposure
- Vehicle compliance: no ADR or AVSR compliance for installation in vehicles
- 1 x CAN-SB Marine Plastics 57 litre keel fuel tank
- Removable inspection port hole assembly with vented cap
- Stepped 3/4"–5/8" tail for external breather
- 10 mm hose tail for fuel line connection
- Blanked 1/4" BSP terminal for second pickup or diesel return
- Provision plate for standard 5-hole fuel sender unit
| SKU | 37376 |
|---|---|
| Barcode # | 9330420195484 |
| Brand | CAN-SB Marine Plastics |
| Shipping Weight | 6.5000kg |
| Shipping Width | 0.620m |
| Shipping Height | 0.028m |
| Shipping Length | 0.500m |
| Shipping Cubic | 0.008680000m3 |
| Assembled Length | 0.600m |
| Assembled Width | 0.500m |

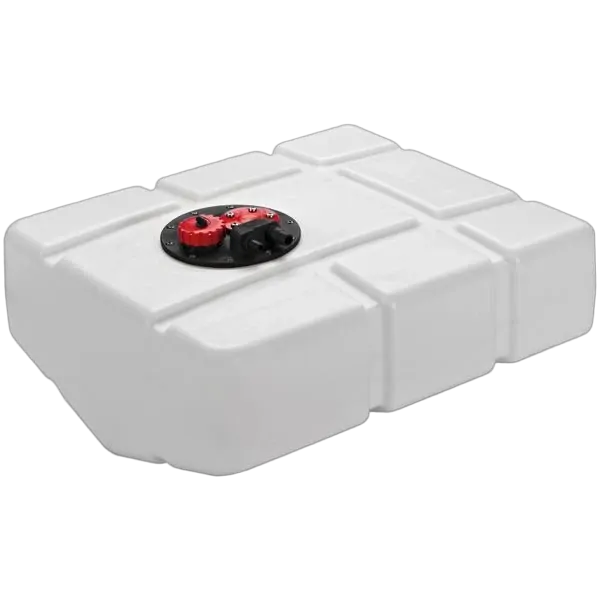

Can-Sb Marine 57Litre Keel Fuel Tank 600mm x 500mm x 230mm
