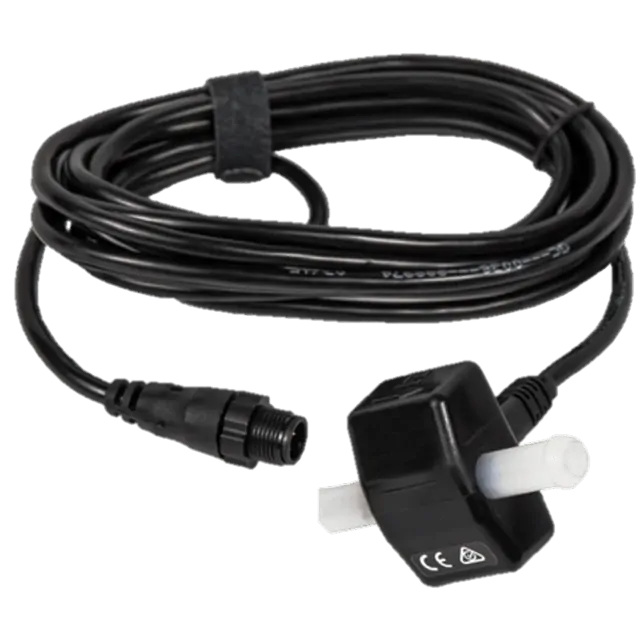

Description
Fuel Flow Sensor - For gasoline engines. In-line sensor for 3/8" (9.5 mm) Inside Diameter fuel line. Comes with 10ft cable and T-connector.
Fuel Flow Sensor Gasoline only. One required per engine. Up to 3 engines supported. To get data on Fuel Remaining in the vessel tanks requires a 000-11522-001 Fuel Data Manager.
Outputs:
- Fuel Flow
- Tank Fuel Used
- Trip Fuel Used
- Seasonal Fuel Used
| Cable Length | 10 Ft |
| Fuel Line Diameter | 3/8" (9.5 mm) Inside Diameter |
| Flow Rate Measured | Optimized for 0.6-45 Gal/hr but can measure outside these values |
| Added Back Pressure to the fuel system | 0.5 PSI at 20 Gal/hr; 1 PSI at 40 Gal/hr |
| Installation Location | Above the max level of the fuel tank, in-line after the fuel filter and any Y's or T's in the line |
| Package contents | Fuel Flow Sensor, N2K T and 2 (two) 1" hose clamps |
| Fuel Type | Gasoline only. The Fuel Flow Sensor does not operate diesel engine fuel systems. |
| Hole required to route through a bulkhead | 22mm (7/8") |
| Multiple Fuel Flow sensors possible | Yes |
Features
- Proven Lowrance NMEA 2000 fuel gear
- Clear data for trip fuel planning
- Suits standard 3/8 in petrol lines
- Handles up to three engines monitored
- Built to handle regular marine use
- Smart buy for honest fuel numbers

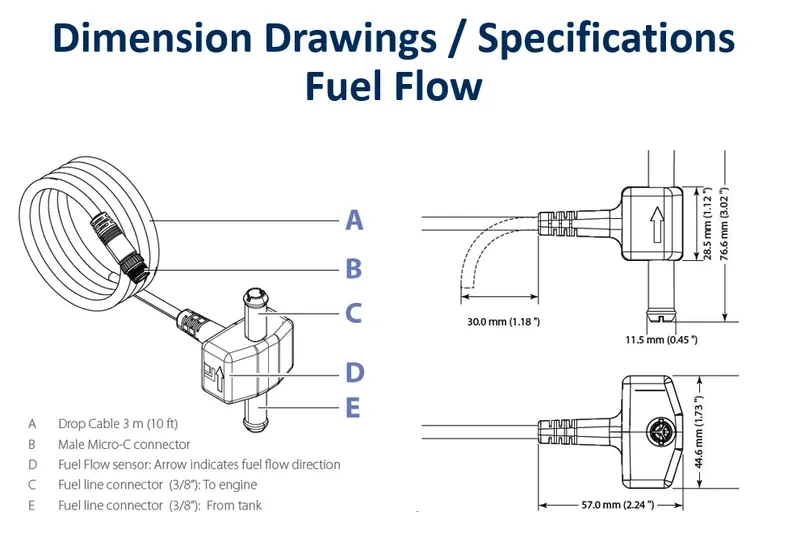

Specifications
- Fuel type: gasoline only
- Fuel line size: 3/8 in (9.5 mm) inside diameter
- Cable length: 3 m (10 ft)
- Measured flow range: optimised for 0.6–45 gal/hr
- Added back pressure: 0.5 PSI at 20 gal/hr
- Added back pressure: 1 PSI at 40 gal/hr

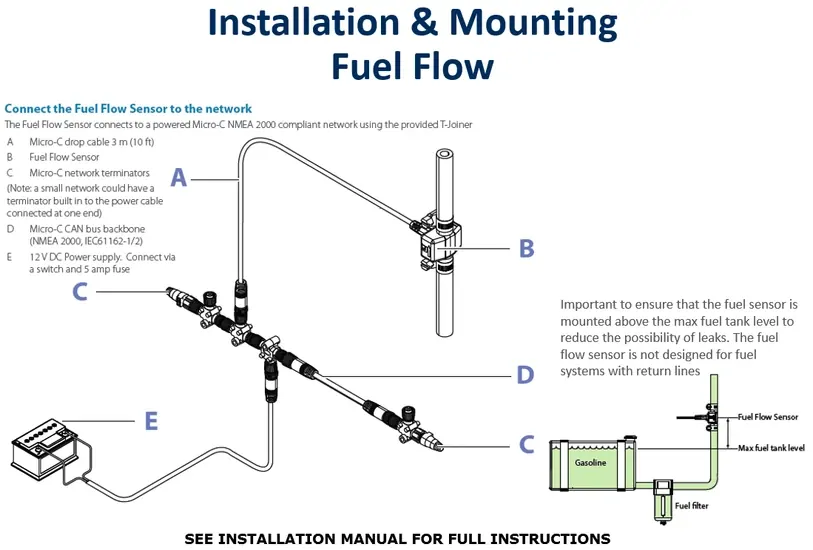

- Installation height: above max fuel tank level
- Mounting position: in‑line after fuel filter and any Ys or Ts
- Bulkhead hole required: 22 mm (7/8 in)
- Supported engines per vessel: up to 3 sensors

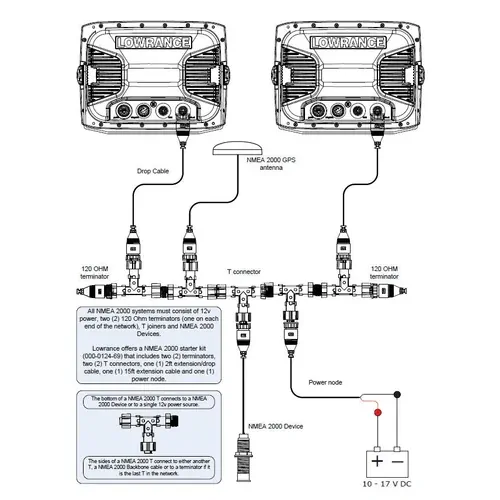

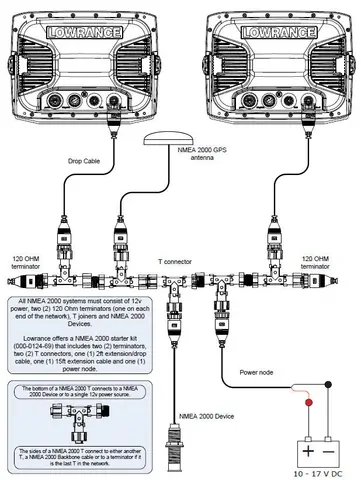

- Compatible network: NMEA 2000 via Micro‑C T‑connector
- Fuel systems with return line or sump: not supported

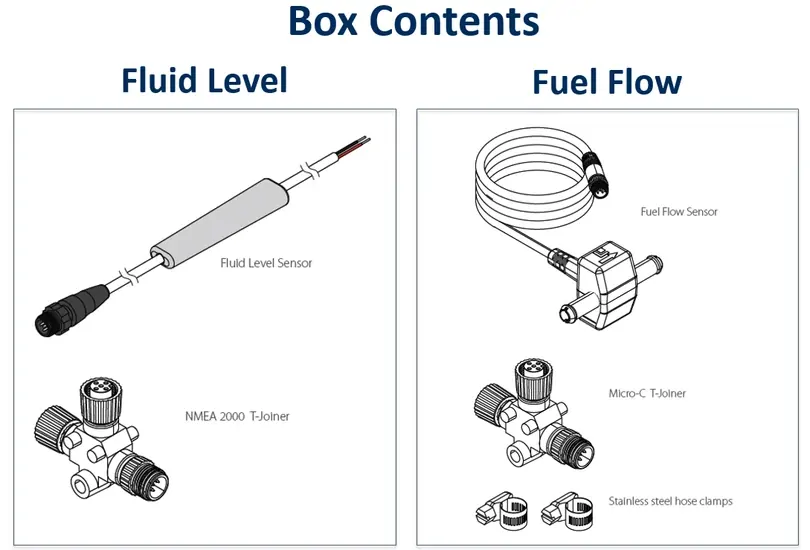

- Lowrance Fuel Flow Sensor x 1
- Micro‑C drop cable 3 m (10 ft) x 1
- Micro‑C T‑connector (NMEA 2000 T‑Joiner) x 1
- Stainless steel hose clamps 1 in x 2
| SKU | 000-11517-001 |
|---|---|
| Barcode # | 9420024129852 |
| Brand | Lowrance |
| Shipping Weight | 0.7000kg |
| Shipping Width | 0.251m |
| Shipping Height | 0.082m |
| Shipping Length | 0.108m |
Lowrance Fuel Flow Sensor
SKU: 000-11517-001
Sale price
REG $299.00
Dispatch in 7 days
More infoMake 4 payments of $74.75 over 8 weeks and get it now!
Calculate Shipping
