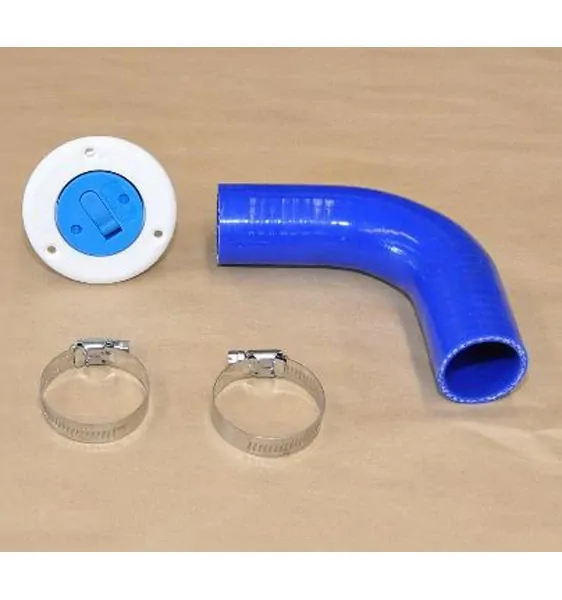

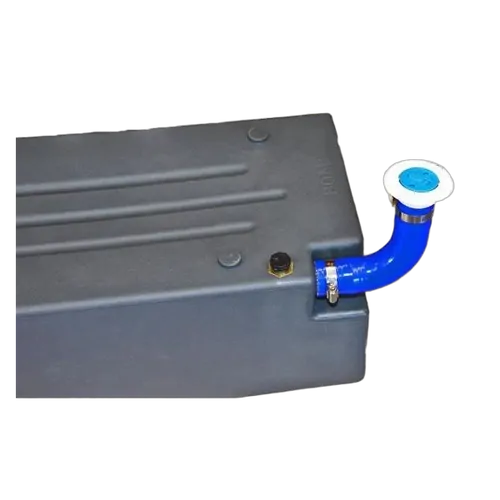

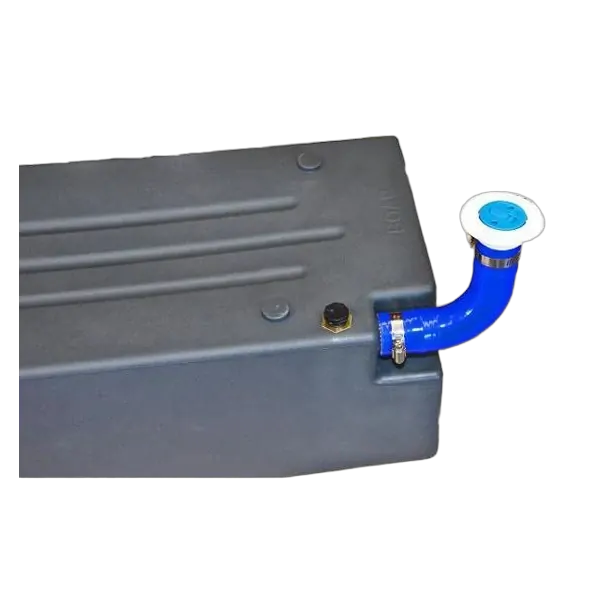

This Boab filler kit runs a 38 mm hose from your WTP45FV or WTP60FV tank to an external neck, so you can pull up at camp and top the tank straight from a hose or jerry without crawling under the vehicle. The elbow shape keeps the run tight against the tank so it does not steal room from drawers or tubs, handy on utes and wagons packed with touring gear. The hose has a 38 mm internal and 47 mm external diameter, so it grips firmly when you tension the two supplied clamps around the tank spigot and filler neck. The neck flange covers the cutout edge and gives you a clean, clearly marked fill point that suits Aussie dust and road grime. The full kit stays simple, with just the neck, elbow and clamps to check before long highway legs.

• Boab filler kit for water tanks
• Suits WTP45FV and WTP60FV models
• Includes filler neck, elbow and clamps
• Hose internal diameter 38 mm
• Hose external diameter 47 mm
• Elbow layout suits tight installs
• Creates external fill point for tank
• Simple component count for maintenance
• Compatible with panel or tub mounting
• Ideal for touring and camping water setups

Q: Does this filler kit include everything needed between tank and filler point?

Yes, it includes the filler neck, the elbow hose and two clamps. You still choose where to mount the neck on your vehicle body or canopy panel. Once you have a suitable hole cut, this kit links the tank inlet to that point. Any screws for fixing the neck flange to the panel are supplied separately.

Q: What size hole should I cut for the hose and neck?

The hose has a 47 mm external diameter. A hole close to 47 mm allows the hose to pass through while staying well supported. The filler neck flange then covers the edge of the hole. Always measure the actual parts before drilling to match your tools and panel thickness.

Q: Can I use this kit on other water tanks?

It is specified to suit Boab WTP45FV and WTP60FV water tanks. The 38 mm internal diameter hose may physically fit other tanks with the same spigot size. However the angles and clearances are set up around those Boab tanks, so check your layout and connection sizes carefully before using it elsewhere.

Q: Is the hose flexible enough for tight installs?

The hose is formed as an elbow to handle a set change of direction. This shape keeps the run neat off the tank outlet. It is not a loose coil or highly flexible tube, so the main bend angle is already fixed. Rotate the elbow on the spigots during install to line the neck up with your chosen panel position.

This filler kit suits Boab WTP45FV and WTP60FV water tanks only. The hose internal diameter is 38 mm which matches the tank inlet. The hose external diameter is 47 mm for grommet or hole sizing. Installation uses the supplied elbow, filler neck and clamps attached to the tank filler port.
