Description
- 316G stainless steel.
- Cylinder lock made from marine grade stainless steel.
- Designed when locked the cap revolves freely but cannot be opened.
- O-ring seal.
- Cap retainer wire.
- 2 keys included.
| Part No. | 29665 |
| Cut Out | Dia. 52mm |
| Protrusion | 17mm |
| Intrusion | 97mm |
| Mount Screws | 5mm c/s |
| Angle | 30 Degree |
| Type | Diesel |
| Hose Size | 50mm (2 Inch) |
| Flange O.D. | 90mm |
| Note | These fillers are not breathable. |
Features
- Proven 316 stainless for harsh decks
- Lockable cap helps guard your diesel
- 30° angle lines up with sloped coamings
- 50 mm hose tail fits common setups
- Low 17 mm profile keeps walkways clear
- Non-breathable style works with dedicated vent
Specifications
- Material: 316G stainless steel body and flange
- Lock: Marine grade stainless steel cylinder lock
- Fuel type: Diesel
- Hose size: 50 mm (2 inch)
- Cut-out diameter: 52 mm
- Flange outside diameter: 90 mm
- Protrusion above deck: 17 mm
- Intrusion below deck: 97 mm
- Mounting screw size: 5 mm countersunk
- Filler angle: 30 degrees
- Seal type: O-ring
- Venting: Non-breathable design
- Part number: 29665
- 1 x 316G stainless steel diesel deck filler
- 1 x lockable cap with cylinder lock
- 1 x cap retainer wire
- 2 x keys
| SKU | 29665 |
|---|---|
| Barcode # | 9330420204452 |
| Brand | Sam Allen |
| Shipping Weight | 1.0000kg |
| Assembled Length | 0.120m |
| Assembled Height | 0.130m |
| Assembled Width | 0.075m |

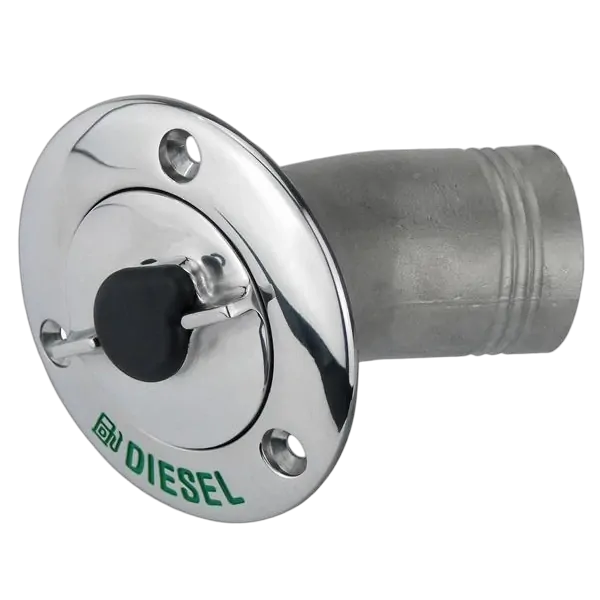

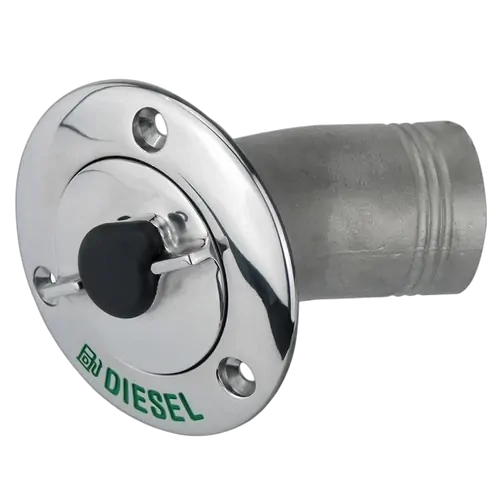

316 Stainless Steel Lockable Diesel Filler 30°- 2" Nps
