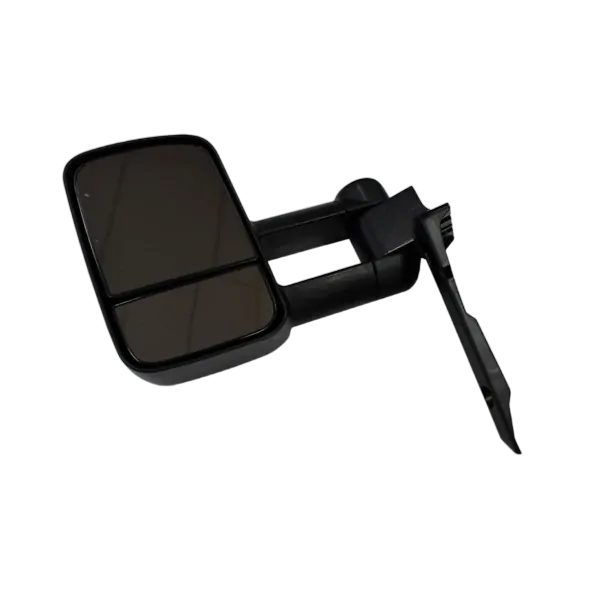

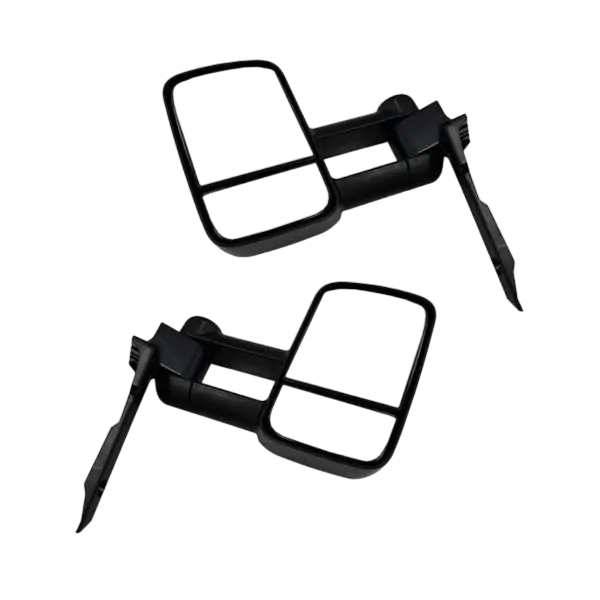

Tuff Terrain Extendable Towing Mirrors: Toyota Landcruiser 70 Series

These Tuff Terrain Extendable Towing Mirrors are permanent, vehicle-specific replacements for the stock mirrors on Toyota Landcruiser 75, 76, 78, and 79 Series models. They are designed to provide the visibility required by Australian road rules when towing trailers or caravans wider than the vehicle. The mirrors feature a heavy-duty construction intended to maintain stability and resist folding when passing oncoming heavy vehicles at highway speeds.

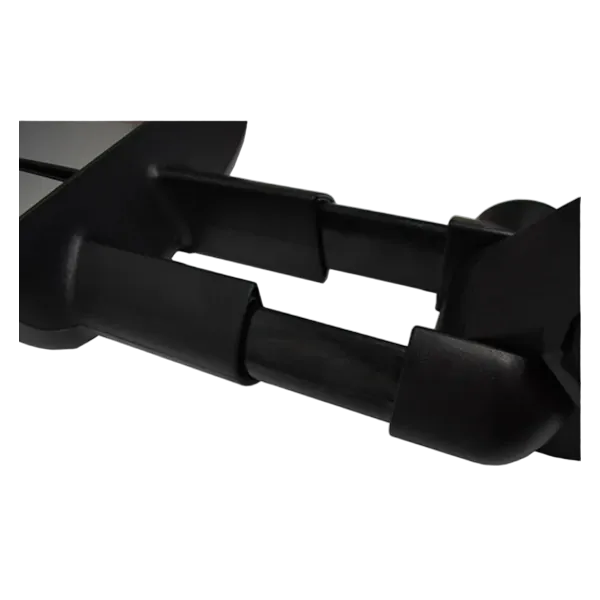

The mirrors utilize an extendable slide mechanism that increases the width from a 475mm unextended position to a 560mm fully extended position. This allows for an unobstructed line of sight down the side of a wide load. When the vehicle is not in use for towing, the mirrors can be retracted or folded inward to reduce the vehicle's total width for parking or navigating narrow tracks.

Product Features

• Adjustable Reach: Slides from 475mm to 560mm from the door footing to accommodate different trailer widths.
• Large Mirror Surface: The main mirror casing measures 310mm high and 230mm wide, providing a broad field of view.
• Vehicle Compatibility: Custom-built to fit the door profiles of the Toyota Landcruiser 70 Series (75, 76, 78, 79).
• Manual Adjustment: Designed with manual mirror positioning for mechanical simplicity and reliability in off-road conditions.
• Stability: Features a heavy-duty mounting system to minimise glass vibration compared to temporary mirror attachments.

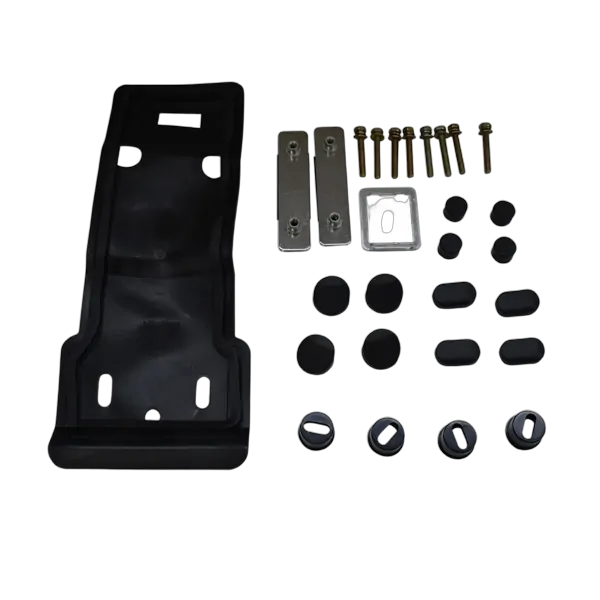

• Installation: Replaces factory mirrors using existing mounting points (note model-specific drilling requirements).
• Warranty Support: Includes a 3-year manufacturer warranty covering defects in materials and construction.

Specifications

• Length unextended (from door footing): 475mm
• Length extended (from door footing): 560mm
• Mirror width: 175mm
• Mirror height: 285mm
• Mirror casing height: 310mm
• Mirror casing width: 230mm (including indicator)
• Mirror casing depth: 100mm
• Indicator cord length: 600mm

Please Note:

• 2 additional holes will need to be drilled for the 76 Series.
• This model does not have an indicator.
