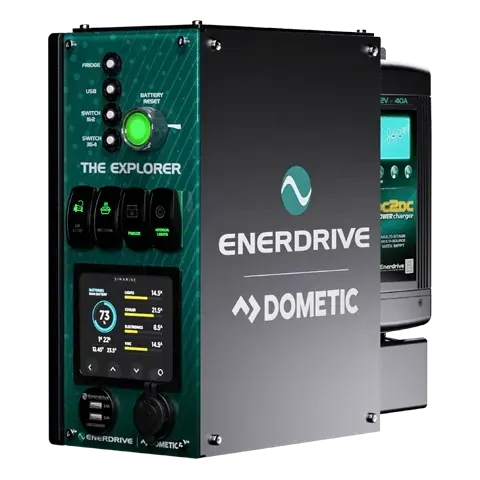

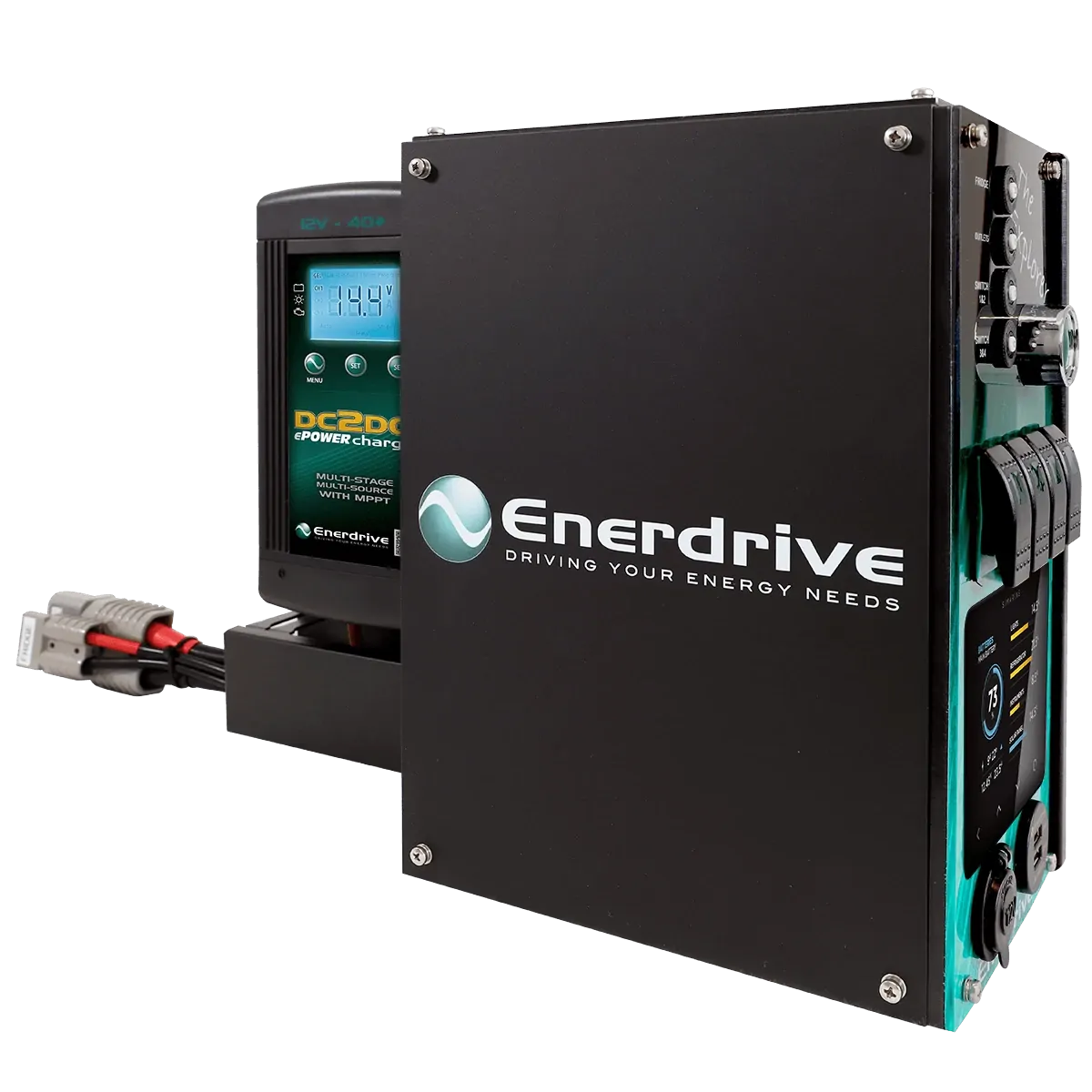

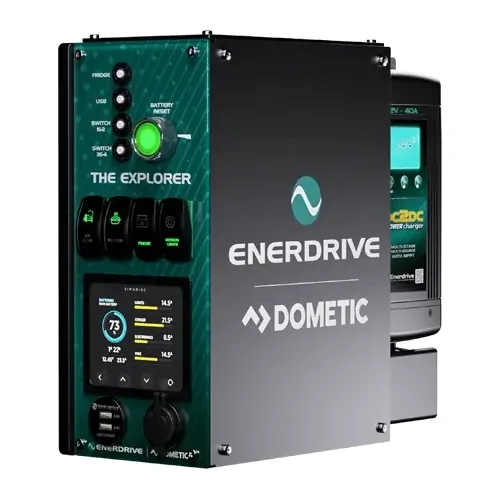

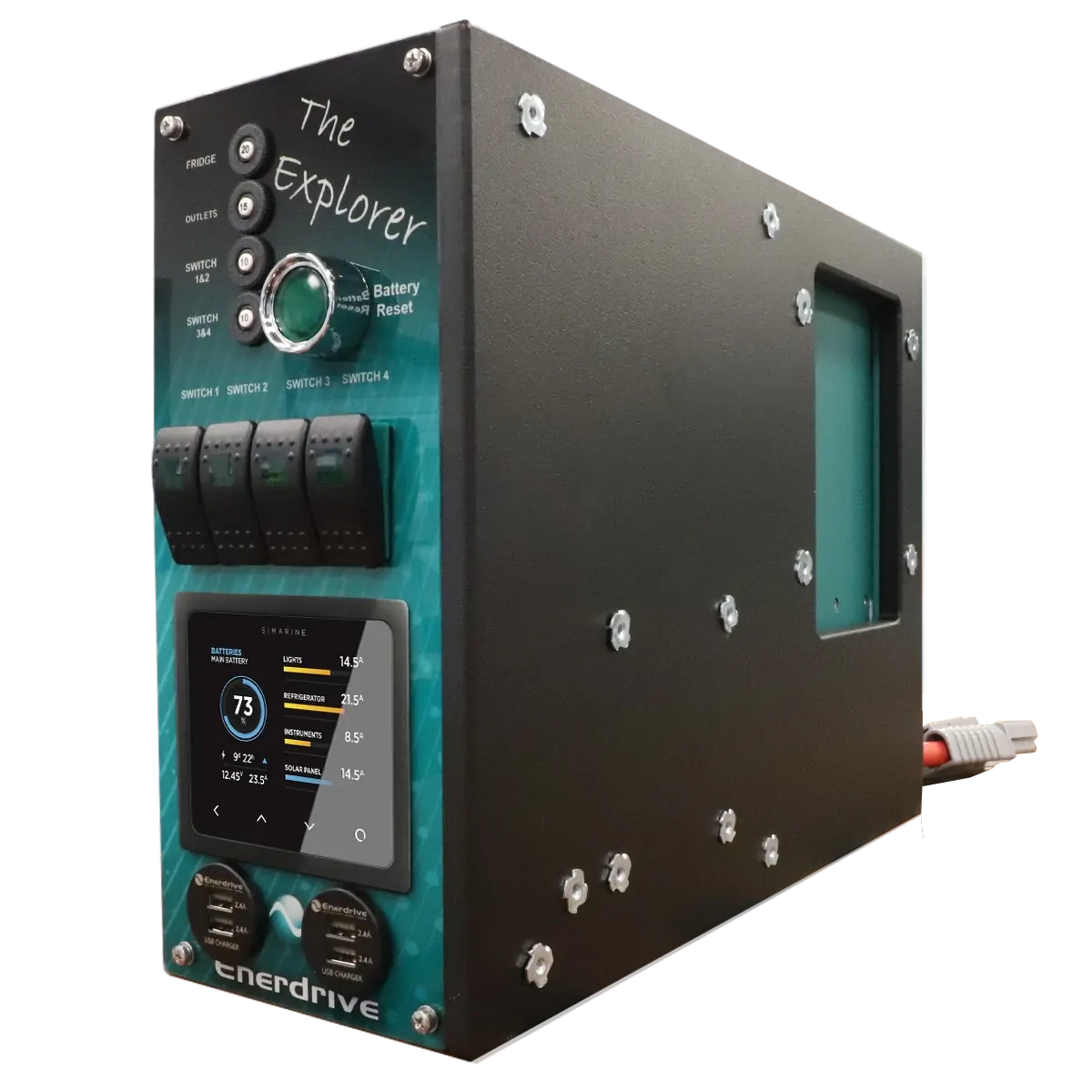

K-EXPLORER-02 inc Simarine Battery Monitoring

All Explorer systems are pre-wired by Enerdrive so the only cabling required at installation time is load outputs & vehicle/solar/tank inputs

All systems are built into a unique compact box arrangement and designed to mount for example on either the front or rear bulkhead of a vehicles canopy. The systems are available in either Left (Passenger side) or Right (Drivers side) or Roof Mount installation. Any brand of battery is suitable from Wet Sealed, AGM, Gel and Lithium.

Features
Built & tested by Enerdrive for guaranteed performance
Simple DIY Installation by end user.

Designed to maximise the following Enerdrive premium products

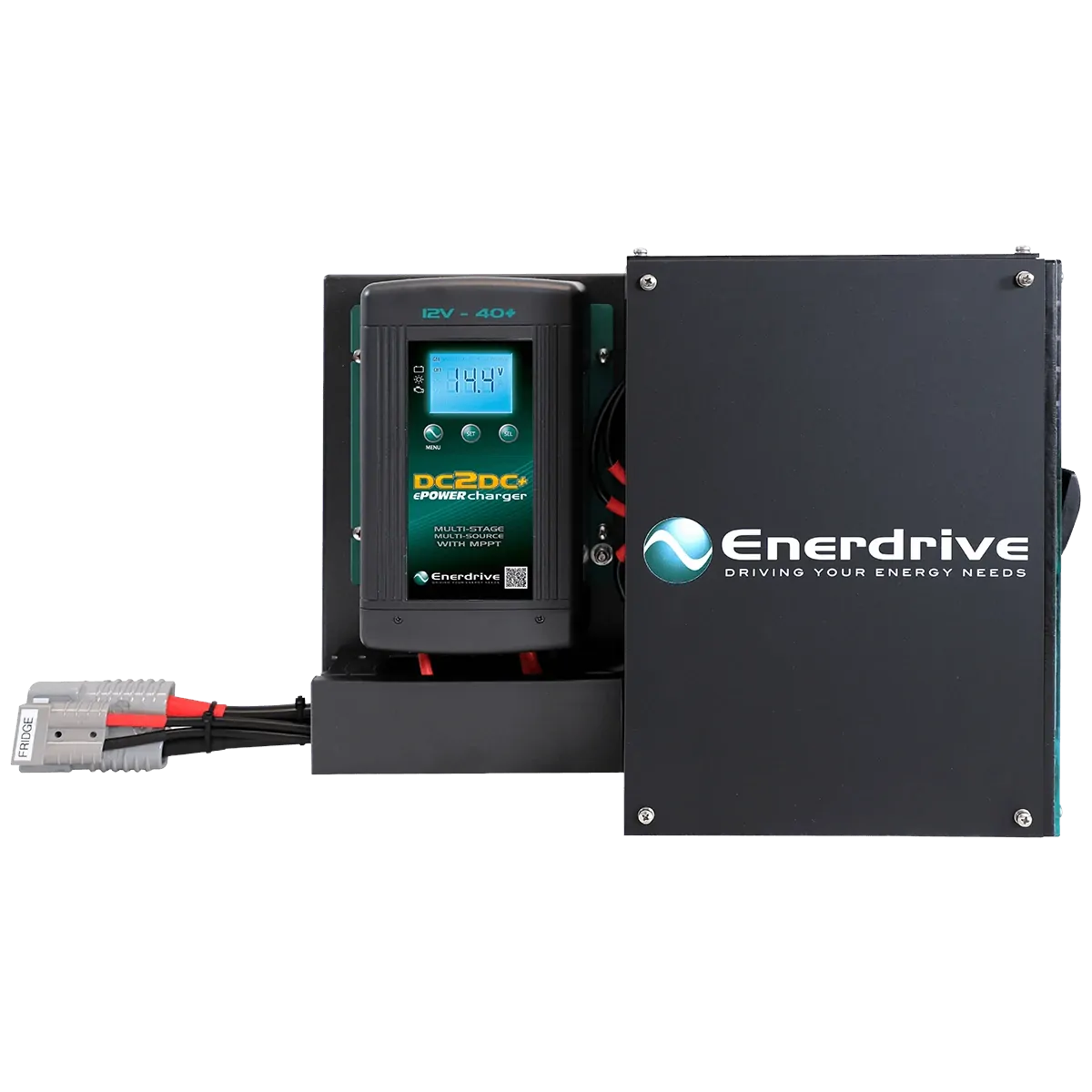

Enerdrive ePower DC to DC Battery Charger w Solar Input - 12V / 40A
The Enerdrive ePOWER DC2DC+ Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller. DC charger features include:

Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output
DC M6 screw terminals that will allow for large battery cable connection between all sources
A dedicated Maximum Power Point (MPPT) solar regulator
The same battery algorithms as included in our AC mains ePOWER battery charger including a specific lithium charging profile
40A output up to 40+ degrees C with thermo controlled fan cooling
Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
Temperature sensor included in charger for more accurate battery charging
Simarine Pico+ Display
SIMARINE PICO sets new standards for marine battery and tank monitors in design, functionality, connectivity and ease of use.

PICO's display unit is made of a sleek anodized aluminum casing and a thick Gorilla Glass with Anti-Reflective coating protecting the optically bonded high-contrast 3.5 inch IPS LCD display. It's water and dust proof and can be mounted both indoors and outdoors. The screen brightness is automatically adjusted with a light sensor. The device is operated by four water tolerant CapSense touch buttons.

The Pico system provides you with a simple overview of all important details regarding your battery (voltage, current, amp hours, battery capacity in%, battery temperature) and also tank level and temperature indications.

Simarine offers a free App to connect your PICO display to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.

5 year warranty.
